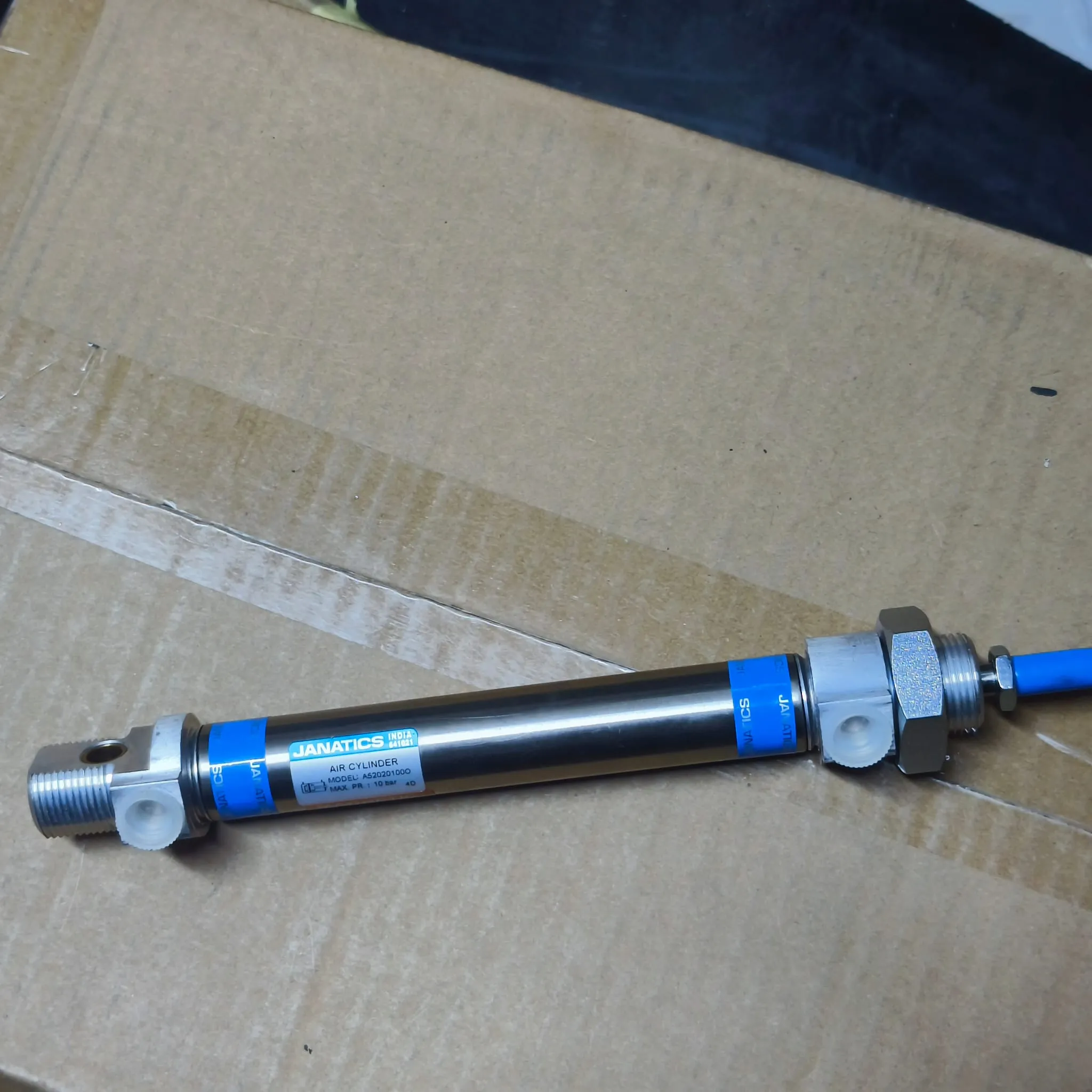

Janatics A52 Series Miniature Pneumatic Cylinder, Bore Diameter 20 mm, Stroke 100 mm, Double Acting Magnetic Piston, A52020100O
Technical overview
The Janatics A52 Series is a miniature magnetic pneumatic cylinder for small mechanisms where the actuator must be light, compact and easy to place close to the work area. It is a double acting linear pneumatic actuator with a 20 mm bore and 100 mm stroke, with magnetic piston position detection for compatible reed switches and elastomer cushioning at both ends for softer end-stroke movement. The miniature round-cylinder construction suits ISO-style compact installations where small bore pneumatic motion is needed without using a large actuator body. It is suitable for small jigs, pick-and-place units, packaging machines, indexing devices, light clamping and other compact automation applications, with G1/8 pneumatic air port thread.
Key Features
- Miniature cylinder construction supports compact linear pneumatic actuation.
- Double acting operation provides controlled extension and retraction using compressed air.
- Magnetic piston design supports external position sensing with compatible sensors.
- Small body size is useful for light-duty automation and fixture movement.
- Suitable for repetitive push-pull motion in compact pneumatic systems.
- Made in India.
Applications
- Small machines, test rigs and compact automation systems.
- Light-duty clamping, feeding, ejecting and positioning tasks.
- Packaging, assembly and electronics machinery.
- Replacement use in miniature pneumatic actuator applications.
Specifications
SeriesA52 Series
Port SizeG1/8
Bore Diameter20 mm
Stroke Length100 mm
Action TypeDouble Acting
Piston TypeMagnetic Piston
CushioningElastomer Cushioning at Both Ends
Working Pressure Range0.5 to 10 bar
Ambient Temperature Range-10 °C to +60 °C
Piston Rod Diameter8 mm
Piston Rod EndM8 × 1.25 Thread
Compliance StandardsISO 6432 / CETOP RP52P
