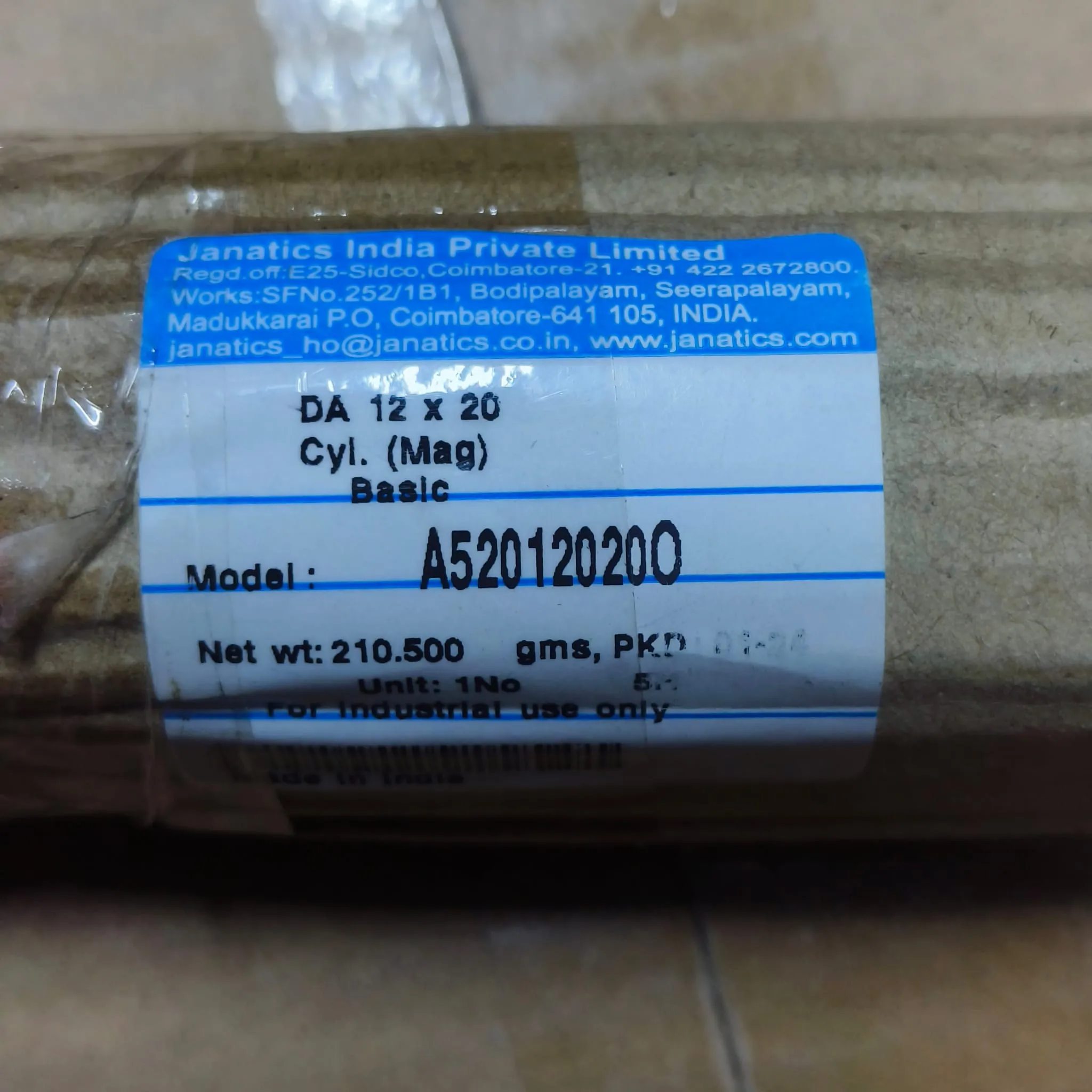

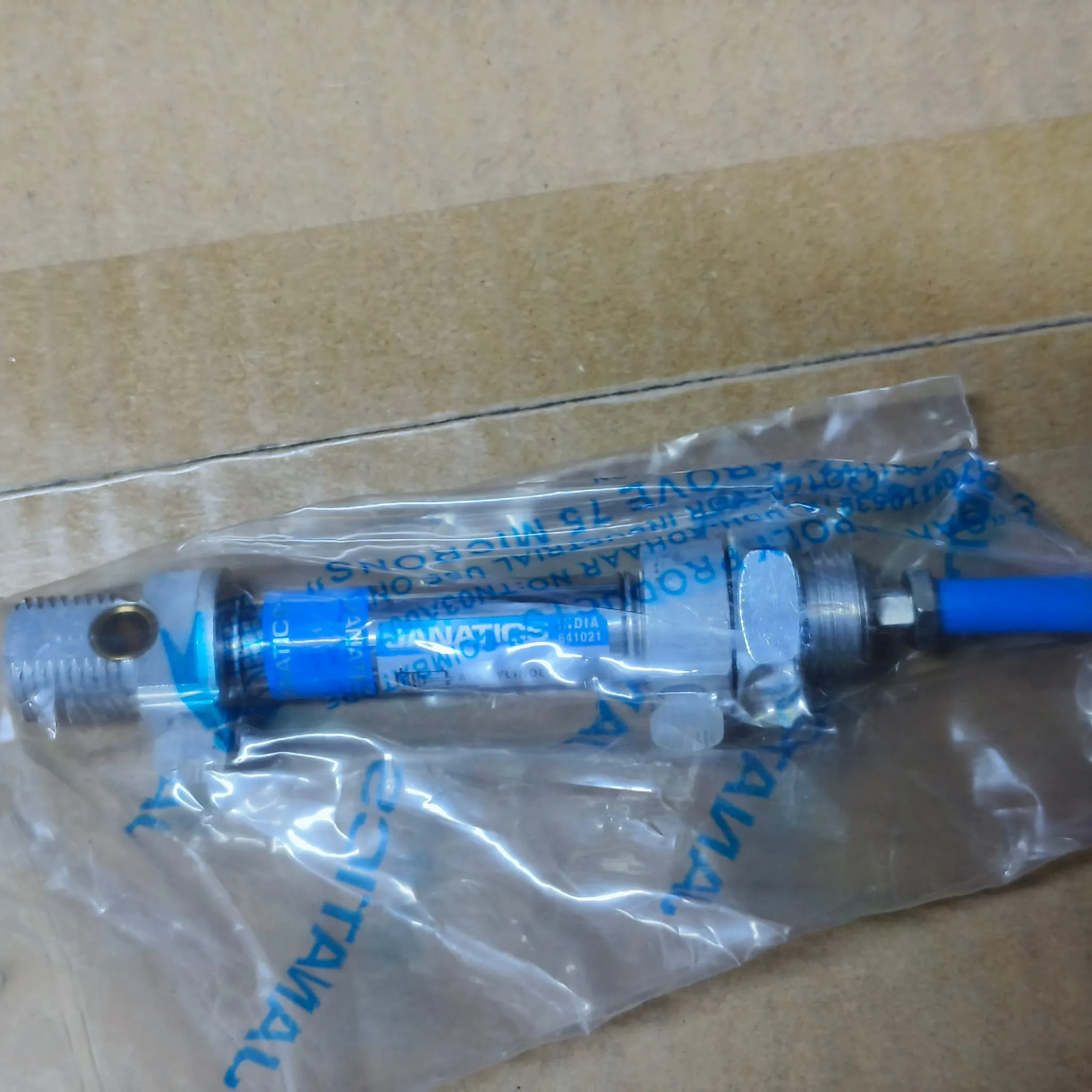

Janatics A52 Series Miniature Pneumatic Cylinder, Bore Diameter 12 mm, Stroke 20 mm, Double Acting Magnetic Piston, A52012020O
Janatics

Janatics A52 Series Miniature Pneumatic Cylinder, Bore Diameter 12 mm, Stroke 20 mm, Double Acting Magnetic Piston, A52012020O

Mfr. part no.
A52012020O
SKU
PN-CYLA520-1220

Specifications

Series A52 Series
Port Size M5 x 0.8
Bore Diameter 12 mm
Stroke Length 20 mm
Action Type Double Acting
Piston Type Magnetic Piston
Cushioning Elastomer Cushioning at Both Ends
Working Pressure Range 0.5 to 10 bar
Ambient Temperature Range -10 °C to +60 °C
Piston Rod Diameter 6 mm
Piston Rod End M6 × 1 Thread
Compliance Standards ISO 6432 / CETOP RP52P

Key Features

  • Miniature cylinder construction supports compact linear pneumatic actuation.
  • Double acting operation provides controlled extension and retraction using compressed air.
  • Magnetic piston design supports external position sensing with compatible sensors.
  • Small body size is useful for light-duty automation and fixture movement.
  • Suitable for repetitive push-pull motion in compact pneumatic systems.
  • Made in India.

Other versions in this series

Other versions in this series
Part no. Bore Diameter Stroke Length Port Size
A52010010O 10 mm 10 mm M5 x 0.8
A52010020O 10 mm 20 mm M5 x 0.8
A52010025O 10 mm 25 mm M5 x 0.8
A52012010O 12 mm 10 mm M5 x 0.8
A52012015O 12 mm 15 mm M5 x 0.8
A52012020O (This part) 12 mm 20 mm M5 x 0.8
A52012025O 12 mm 25 mm M5 x 0.8
A52012050O 12 mm 50 mm M5 x 0.8
A52016025O 16 mm 25 mm M5 x 0.8
A52020050O 20 mm 50 mm G1/8
A52020080O 20 mm 80 mm G1/8
A52020100O 20 mm 100 mm G1/8
A52025020O 25 mm 20 mm G1/8

Description

The Janatics A52 Series is a miniature magnetic pneumatic cylinder for small mechanisms where the actuator must be light, compact and easy to place close to the work area. It is a double acting linear pneumatic actuator with a 12 mm bore and 20 mm stroke, with magnetic piston position detection for compatible reed switches and elastomer cushioning at both ends for softer end-stroke movement. The miniature round-cylinder construction suits ISO-style compact installations where small bore pneumatic motion is needed without using a large actuator body. It is suitable for small jigs, pick-and-place units, packaging machines, indexing devices, light clamping and other compact automation applications, with M5 x 0.8 pneumatic air port thread.

Applications

  • Small machines, test rigs and compact automation systems.
  • Light-duty clamping, feeding, ejecting and positioning tasks.
  • Packaging, assembly and electronics machinery.
  • Replacement use in miniature pneumatic actuator applications.

Documents

  • Janatics-A52 Series Cylinders — Datasheet

    PDF, 3.3 MB

Cross-reference

The closest equivalents from other brands, with the differences stated so you can check before you order.

Festo DSNU-12-20-P-A

Festo DSNU — Round cylinder, double-acting, ISO 6432

Festo DSNU-12-20-P-A — the ISO 6432 equivalent: 12 mm bore, 20 mm stroke, double-acting, elastomer end cushioning, magnetic piston for proximity sensing.

Parker P1A-S012DS-0020

Parker Hannifin P1A — Mini ISO 6432 Pneumatic Cylinder (Pneumatic Division Europe)

Parker P1A-S012DS-0020 — the ISO 6432 equivalent: 12 mm bore, 20 mm stroke, double-acting, fixed end cushioning, magnetic piston, M5 ports.
