Festo DSNU-25-25-P-A
Festo DSNU — Round cylinder, double-acting, ISO 6432
Festo DSNU-25-25-P-A — the ISO 6432 equivalent: 25 mm bore, 25 mm stroke, double-acting, elastomer end cushioning, magnetic piston for proximity sensing.
Pneumatic Cylinders
Janatics

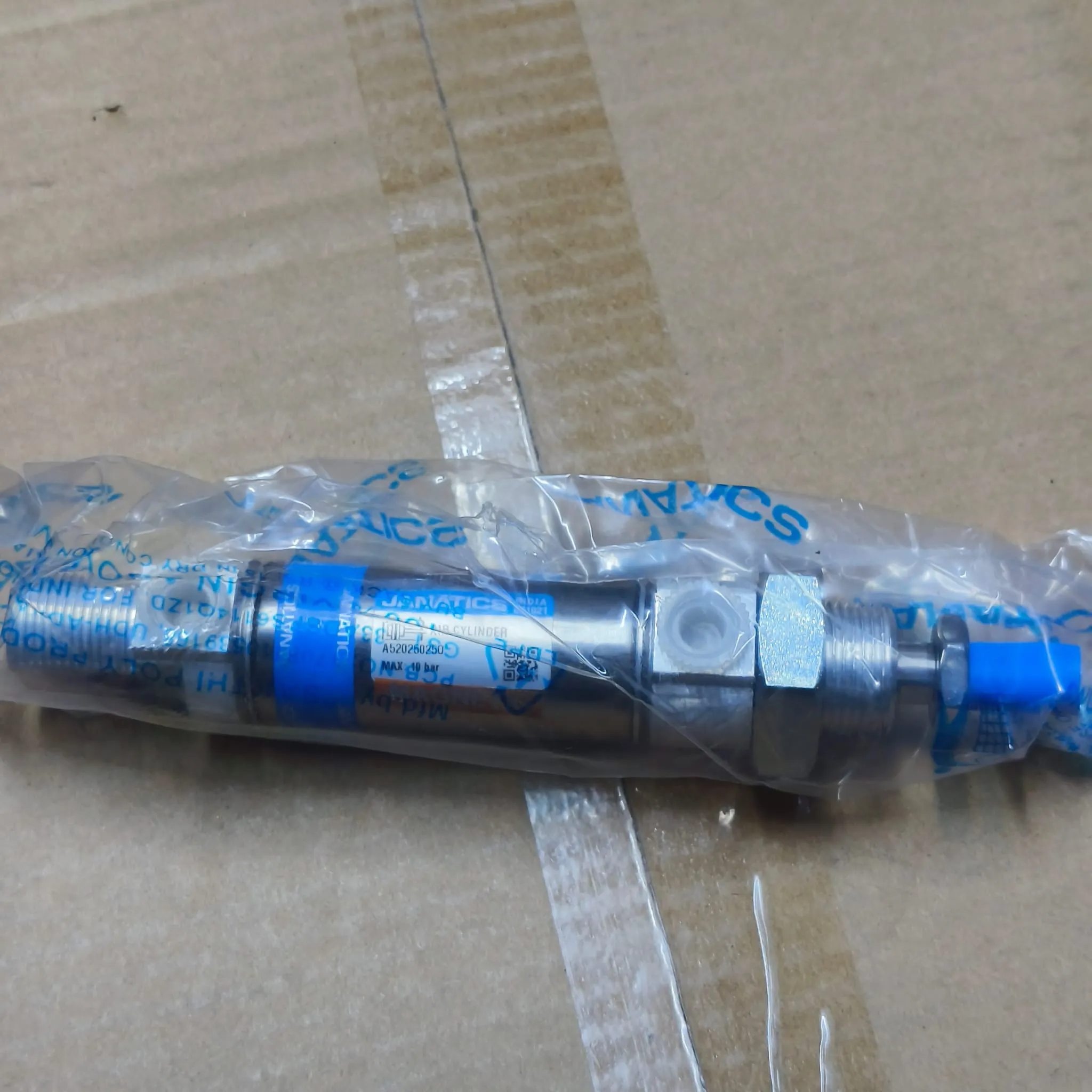

Janatics A52 Series Miniature Pneumatic Cylinder, Bore Diameter 25 mm, Stroke 25 mm, Double Acting Magnetic Piston, A52025025O
- Mfr. part no.
- A52025025O
- SKU
- PN-CYLA520-2525
Specifications
| Series | A52 Series |
|---|---|
| Port Size | G1/8 |
| Bore Diameter | 25 mm |
| Stroke Length | 25 mm |
| Action Type | Double Acting |
| Piston Type | Magnetic Piston |
| Cushioning | Elastomer Cushioning at Both Ends |
| Working Pressure Range | 0.5 to 10 bar |
| Ambient Temperature Range | -10 °C to +60 °C |
| Piston Rod Diameter | 10 mm |
| Piston Rod End | M10 × 1.25 Thread |
| Compliance Standards | ISO 6432 / CETOP RP52P |
Key Features
- Miniature cylinder construction supports compact linear pneumatic actuation.
- Double acting operation provides controlled extension and retraction using compressed air.
- Magnetic piston design supports external position sensing with compatible sensors.
- Small body size is useful for light-duty automation and fixture movement.
- Suitable for repetitive push-pull motion in compact pneumatic systems.
- Made in India.
Description
The Janatics A52 Series is a miniature magnetic pneumatic cylinder for small mechanisms where the actuator must be light, compact and easy to place close to the work area. It is a double acting linear pneumatic actuator with a 25 mm bore and 25 mm stroke, with magnetic piston position detection for compatible reed switches and elastomer cushioning at both ends for softer end-stroke movement. The miniature round-cylinder construction suits ISO-style compact installations where small bore pneumatic motion is needed without using a large actuator body. It is suitable for small jigs, pick-and-place units, packaging machines, indexing devices, light clamping and other compact automation applications, with G1/8 pneumatic air port thread.
Applications
- Small machines, test rigs and compact automation systems.
- Light-duty clamping, feeding, ejecting and positioning tasks.
- Packaging, assembly and electronics machinery.
- Replacement use in miniature pneumatic actuator applications.
Documents
Cross-reference
The closest equivalents from other brands, with the differences stated so you can check before you order.
Parker P1A-S025DS-0025
Parker Hannifin P1A — Mini ISO 6432 Pneumatic Cylinder (Pneumatic Division Europe)
Parker P1A-S025DS-0025 — the ISO 6432 equivalent: 25 mm bore, 25 mm stroke, double-acting, fixed end cushioning, magnetic piston, G1/8 ports.
We carry A52025025O as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
