General Instruments Vacuum Gauge SPGS-P, -760...0 mmHg, 2nd Scale bar, 2.5" Dial, 1/4" Male NPT Back Mount With Front Flange, SS Body & Parts, SPGS-P-063-S4S-S6S-S6S-S4S-T06NTM-(-760-0)-MMH/BAR-A16-DUS
All General Instruments products
General Instruments Bourdon Tube Pressure Gauges
All Bourdon Tube Pressure Gauges (every brand)
Technical overview

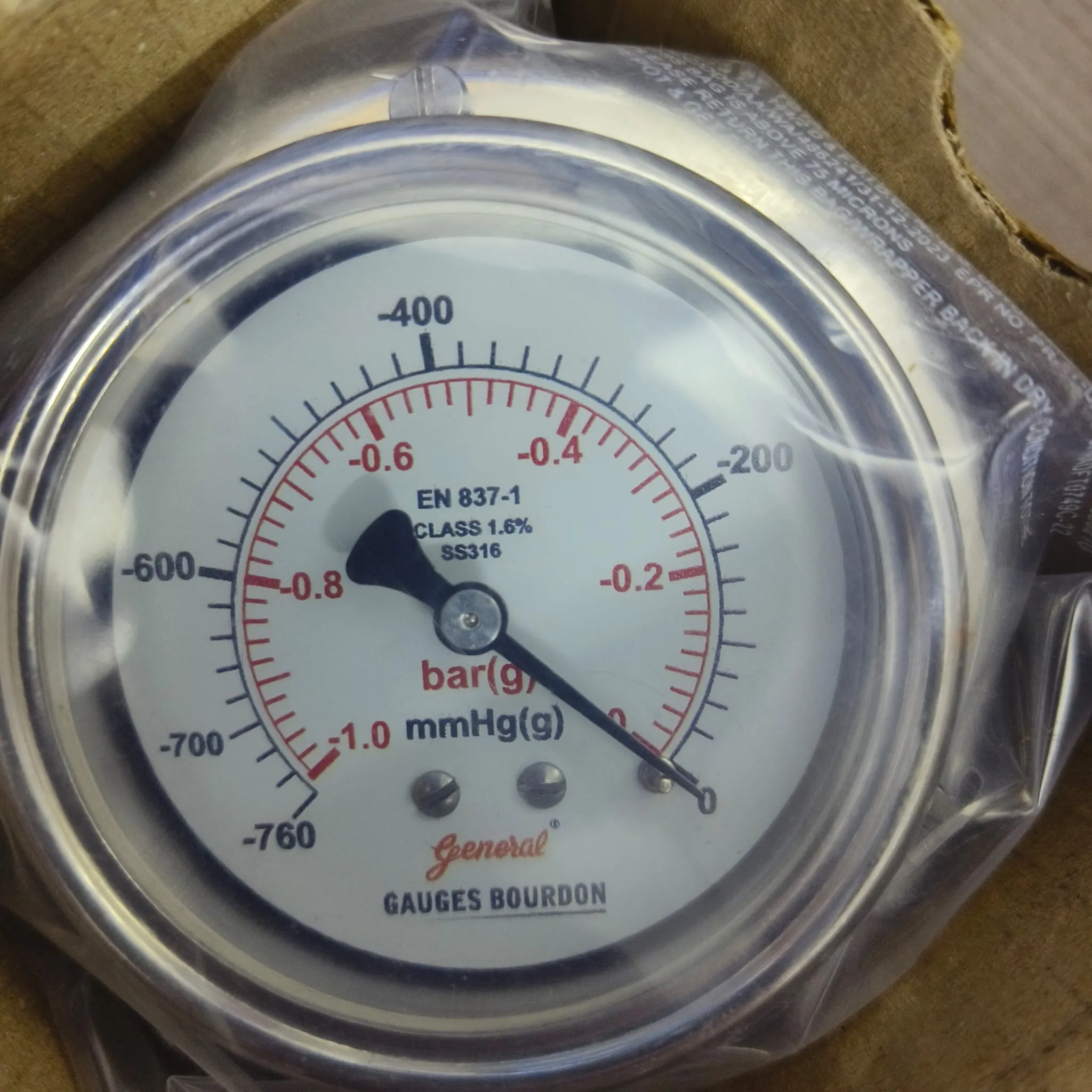

General Instruments vacuum gauge Model SPGS-P is designed for reliable panel-mounted vacuum indication in demanding industrial service. The gauge uses a 2.5" / 63 mm dial with a 1/4" Male NPT back connection and front flange for panel mounting. Stainless Steel Made, with SS316 wetted parts, glass window and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is -760...0 mmHg with secondary bar scale, accuracy class is Class 1.6, and the compact design is suitable for suction lines, vacuum pumps, compressor systems and general process duties.
Key Features
- 2.5" / 63 mm dial for clear compact vacuum indication.
- Primary mmHg scale with 2nd scale bar for vacuum reading.
- 1/4" Male NPT process connection for industrial installation.
- Back mount with front flange for panel mounting.
- SS body and parts with SS316 wetted parts.
- Dry case, prepared for filling for service with vibration or dynamic pressure.
- Glass window and Class 1.6 accuracy for dependable local reading.
- Made in India.
Applications
- Hydraulic and pneumatic pressure monitoring.
- Pump, compressor and utility line pressure indication.
- Industrial machinery, skids and process panels.
- General process service requiring compact local indication.
Specifications
ModelSPGS-P
Measuring SystemBourdon Tube
Dial Size63 mm / 2.5"
Gauge TypeVacuum
Measuring Range-760...0 mmHg
Secondary Scale2nd scale bar
Process Connection1/4" Male NPT
Mounting PositionBack mount
Mounting FlangeSS front flange
Case FillingDry case, prepared for filling
Wetted PartsSS316
Case MaterialSS304
Accuracy ClassClass 1.6
WindowGlass, clear
Over Range125% FSD
Pressure Gauge StandardEN 837-1
Ambient Temperature Range-20...+60°C
Blow Out DiscProvided on top of case (Neoprene)
