Bourdon Tube Pressure Gauges

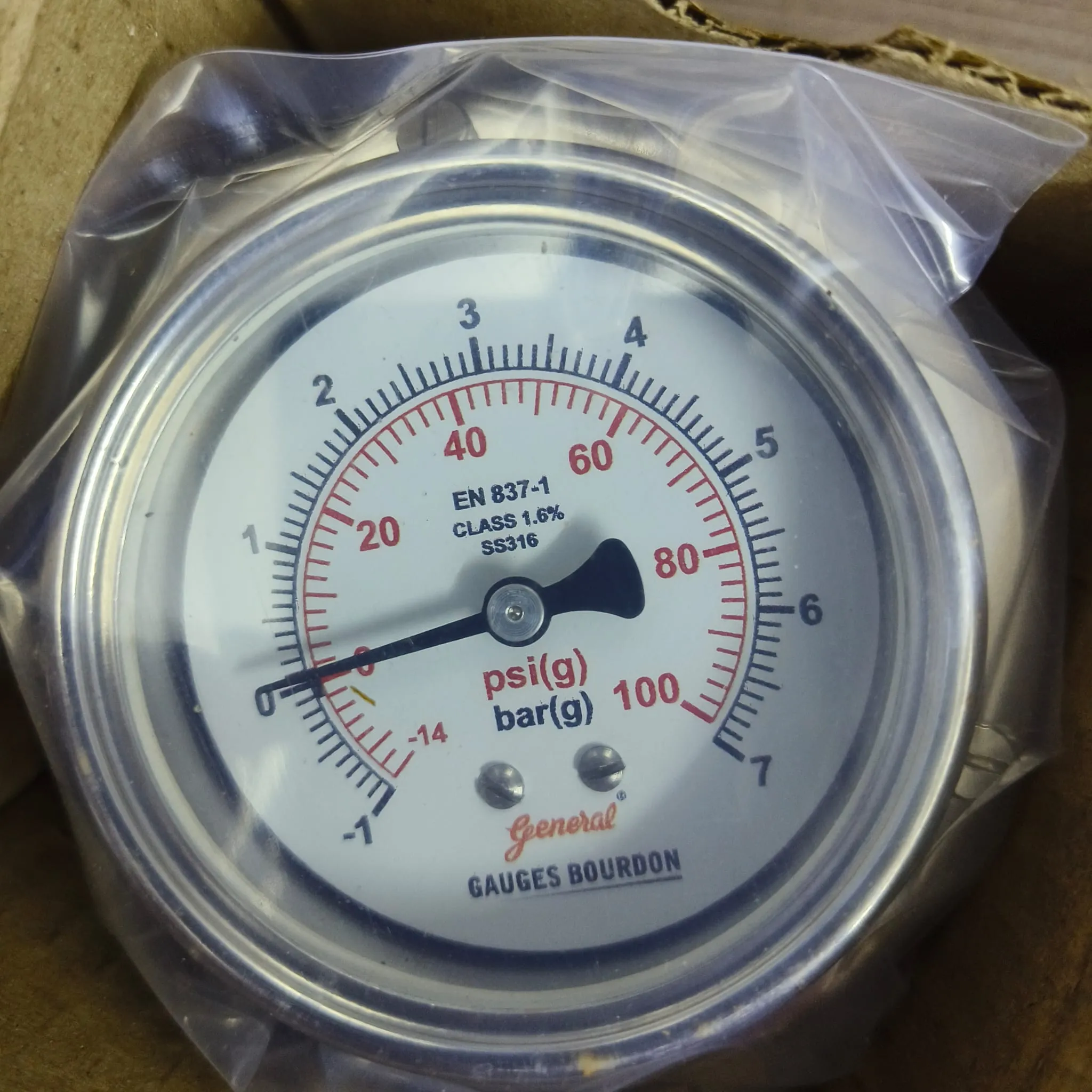

General Instruments Compound Gauge SPGS-P, -1...7 bar, 2nd Scale psi, 2.5" Dial, 1/4" Male NPT Back Mount With Front Flange, SS Body & Parts, SPGS-P-063-S4S-S6S-S6S-S4S-T06NTM-(-1-7)-BAR/PSI-A16-DUS
General Instruments

General Instruments Compound Gauge SPGS-P, -1...7 bar, 2nd Scale psi, 2.5" Dial, 1/4" Male NPT Back Mount With Front Flange, SS Body & Parts, SPGS-P-063-S4S-S6S-S6S-S4S-T06NTM-(-1-7)-BAR/PSI-A16-DUS

Mfr. part no.
SPGS-P-063-S4S-S6S-S6S-S4S-T06NTM-(-1-7)-BAR/PSI-A16-DUS
SKU
PSC250-BC-0100-GG

Specifications

Model SPGS-P
Measuring System Bourdon Tube
Dial Size 63 mm / 2.5"
Gauge Type Compound
Measuring Range -1...7 bar
Secondary Scale 2nd scale psi
Process Connection 1/4" Male NPT
Mounting Position Back mount
Mounting Flange SS front flange
Case Filling Dry case, prepared for filling
Wetted Parts SS316
Case Material SS304
Accuracy Class Class 1.6
Window Glass, clear
Over Range 125% FSD
Pressure Gauge Standard EN 837-1
Ambient Temperature Range -20...+60°C
Blow Out Disc Provided on top of case (Neoprene)

Key Features

  • 2.5" / 63 mm dial for clear compact compound pressure indication.
  • Primary bar scale with 2nd scale psi for compound pressure reading.
  • 1/4" Male NPT process connection for industrial installation.
  • Back mount with front flange for panel mounting.
  • SS body and parts with SS316 wetted parts.
  • Dry case, prepared for filling for service with vibration or dynamic pressure.
  • Glass window and Class 1.6 accuracy for dependable local reading.
  • Made in India.

Description

General Instruments compound gauge Model SPGS-P is designed for reliable panel-mounted compound pressure indication in demanding industrial service. The gauge uses a 2.5" / 63 mm dial with a 1/4" Male NPT back connection and front flange for panel mounting. Stainless Steel Made, with SS316 wetted parts, glass window and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is -1...7 bar with secondary psi scale, accuracy class is Class 1.6, and the compact design is suitable for hydraulic lines, pneumatic systems, pumps, compressors and general process duties.

Applications

  • Hydraulic and pneumatic pressure monitoring.
  • Pump, compressor and utility line pressure indication.
  • Industrial machinery, skids and process panels.
  • General process service requiring compact local indication.

Documents

  • General Pressure Gauges SPGS-63 mm Dial — Datasheet

    PDF, 124 KB
