General Instruments Pressure Gauge SPGS-P, 0...150 psi, 2nd Scale bar, 2.5" Dial, 1/4" Male NPT Back Mount With Front Flange, SS Body & Parts, SPGS-P-063-S4S-S6S-S6S-S4S-T06NTM-(0-150)-PSI/BAR-A16-DUS
All General Instruments products
General Instruments Bourdon Tube Pressure Gauges
All Bourdon Tube Pressure Gauges (every brand)
Technical overview

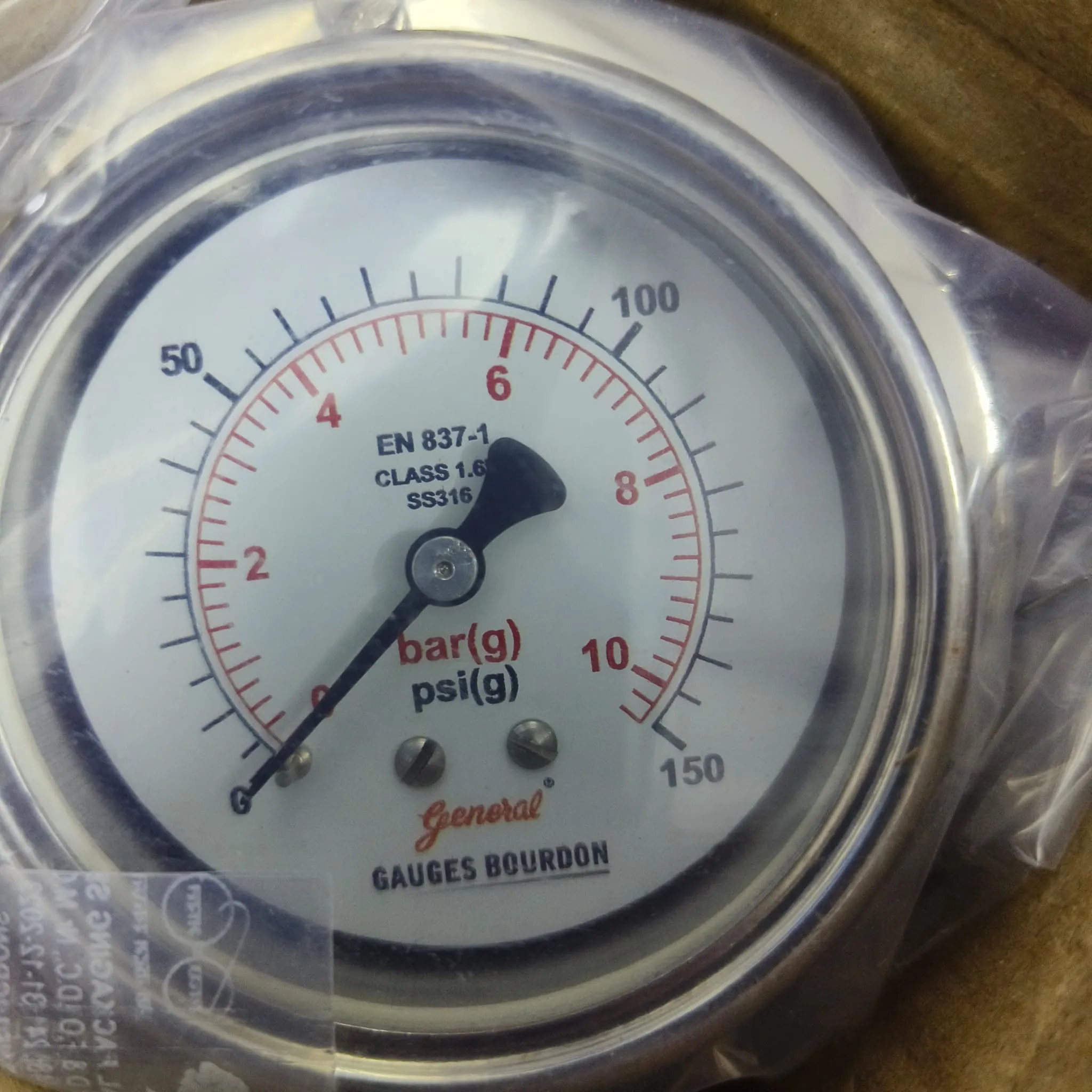

General Instruments pressure gauge Model SPGS-P is designed for reliable panel-mounted pressure indication in demanding industrial service. The gauge uses a 2.5" / 63 mm dial with a 1/4" Male NPT back connection and a front flange for flush panel mounting. Stainless Steel Made, with glass window, SS316 wetted parts and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is 0...150 psi with 2nd scale bar, accuracy class is Class 1.6, and the compact design is suitable for machinery panels, pump skids, compressor systems and general process duties.
Key Features
- 2.5" / 63 mm dial for clear compact pressure indication.
- Primary psi scale with 2nd scale bar for quick reference.
- 1/4" Male NPT process connection for industrial installation.
- Stainless steel made body with SS316 wetted parts.
- Dry case, prepared for filling for service with vibration or dynamic pressure loads.
- Glass window and Class 1.6 accuracy for dependable local reading.
- Back mount with front flange for panel installation.
- Made in India.
Applications
- Hydraulic and pneumatic pressure monitoring.
- Pump, compressor and utility line pressure indication.
- Industrial machinery, skids and process panels.
- General process service requiring compact local indication.
Specifications
ModelSPGS-P
Measuring SystemBourdon Tube
Dial Size63 mm / 2.5"
Measuring Range0...150 psi
Secondary Scale2nd scale bar
Process Connection1/4" Male NPT
Mounting PositionBack mount
Mounting FlangeSS front flange
Case FillingDry case, prepared for filling
Wetted PartsSS316
Case MaterialSS304
Accuracy ClassClass 1.6
WindowGlass, clear
Over Range125% FSD
Pressure Gauge StandardEN 837-1
Ambient Temperature Range-20...+60°C
Blow Out DiscProvided on top of case (Neoprene)
