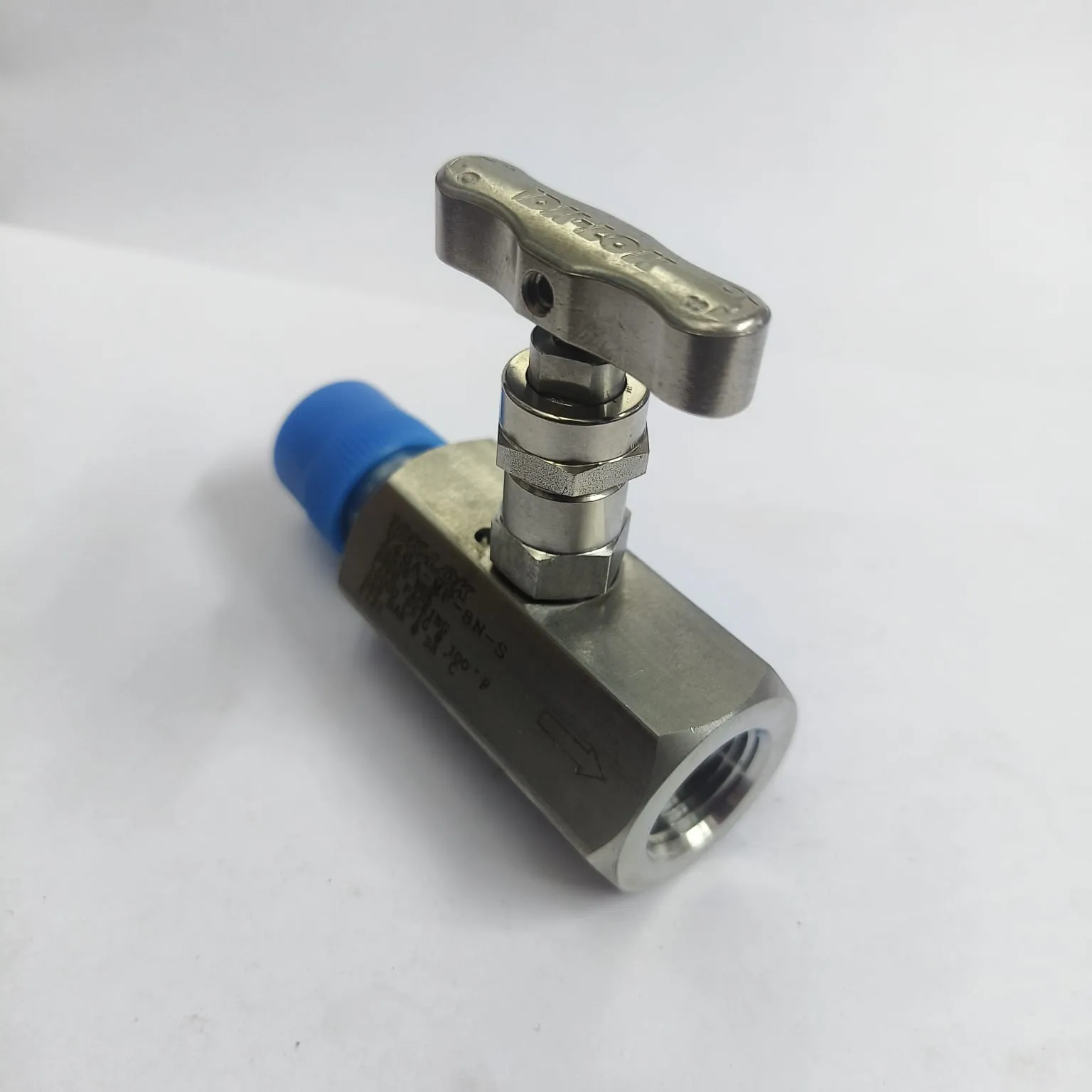

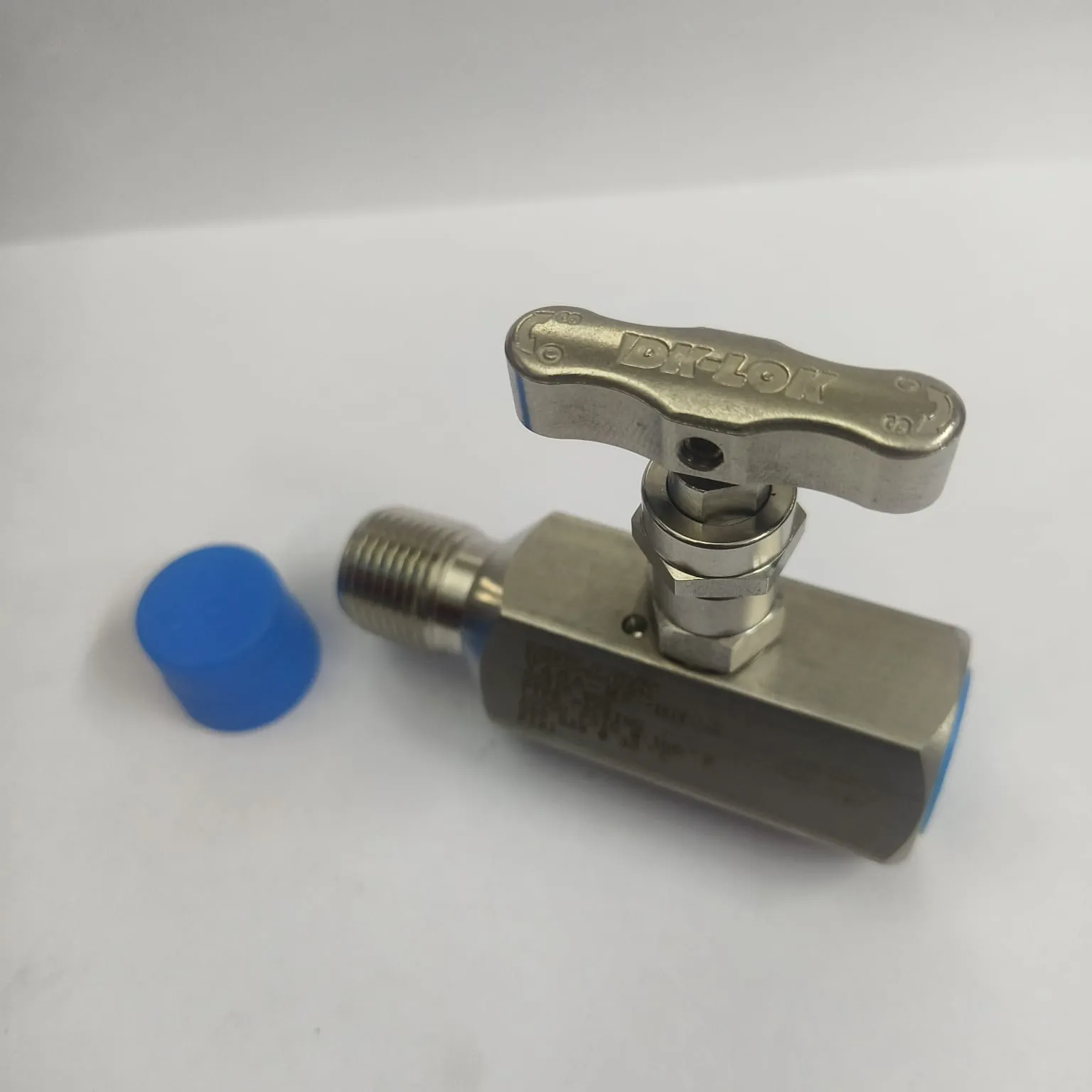

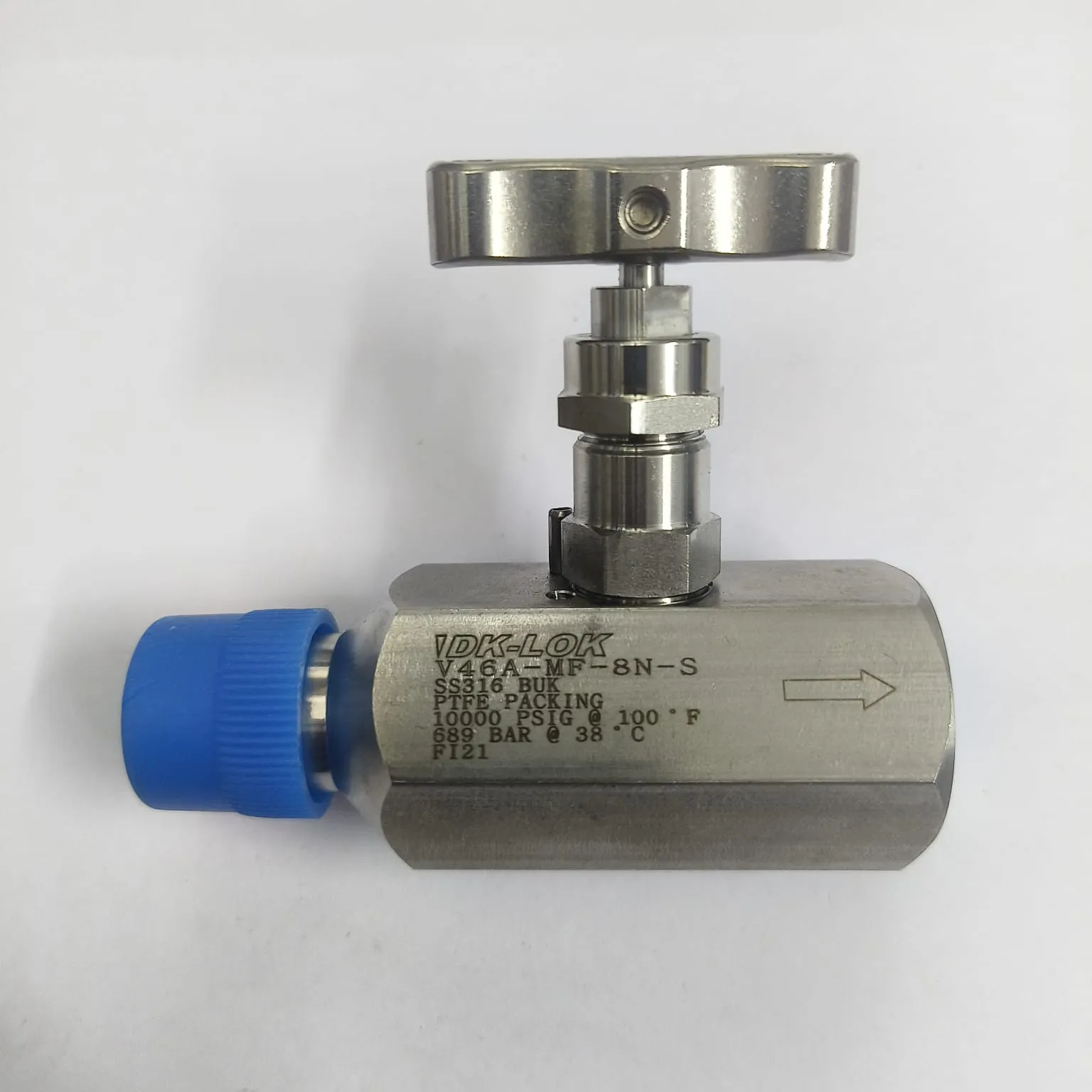

DK-LOK V46A Series Needle Valve, 10000 psi, 1/2" Male x Female NPT Connections, SS316, V46A-MF-8N-S
Technical overview
The DK-LOK V46A series needle valve with 1/2" Male x Female NPT Connections is engineered for reliable throttling and shutoff up to 10000 psi at 100°F (38°C). The hex-body design provides strength in a compact footprint, while the non-rotating stem tip supports smooth operation and repeatable adjustment. Suitable for high-pressure instrument tubing and piping where stable flow control, leak-tight isolation, and SS316 compatibility are required.
Key Features
- Pressure rating up to 10000 psi @ 100°F (38°C)
- Compact hex body design for high-strength installations
- Non-rotating stem tip supports smooth operation and long life
- Packing below stem threads helps protect threads from process media
- SS316 body for corrosion resistance in many services
Applications
- Instrumentation isolation for gauges and pressure transmitters
- Sampling panels and analyzer lines
- Chemical injection and dosing skids
- Hydraulic and pneumatic control circuits
- General high-pressure process isolation and throttling
Specifications
SeriesV46A Hex Body Needle Valve
Maximum Pressure10,000 psig @ 100°F (38°C)
Temperature Range-65 to 450°F (-54 to 232°C)
Connection Size1/2" Male NPT x 1/2" Female NPT
Body MaterialStainless Steel 316
Packing MaterialChevron PTFE
Orifice Size4.7 mm
Stem TipNon-rotating
Stem MaterialSS316 (ASTM A276/A479)
Stem Disc MaterialSS630 (ASTM A564)
