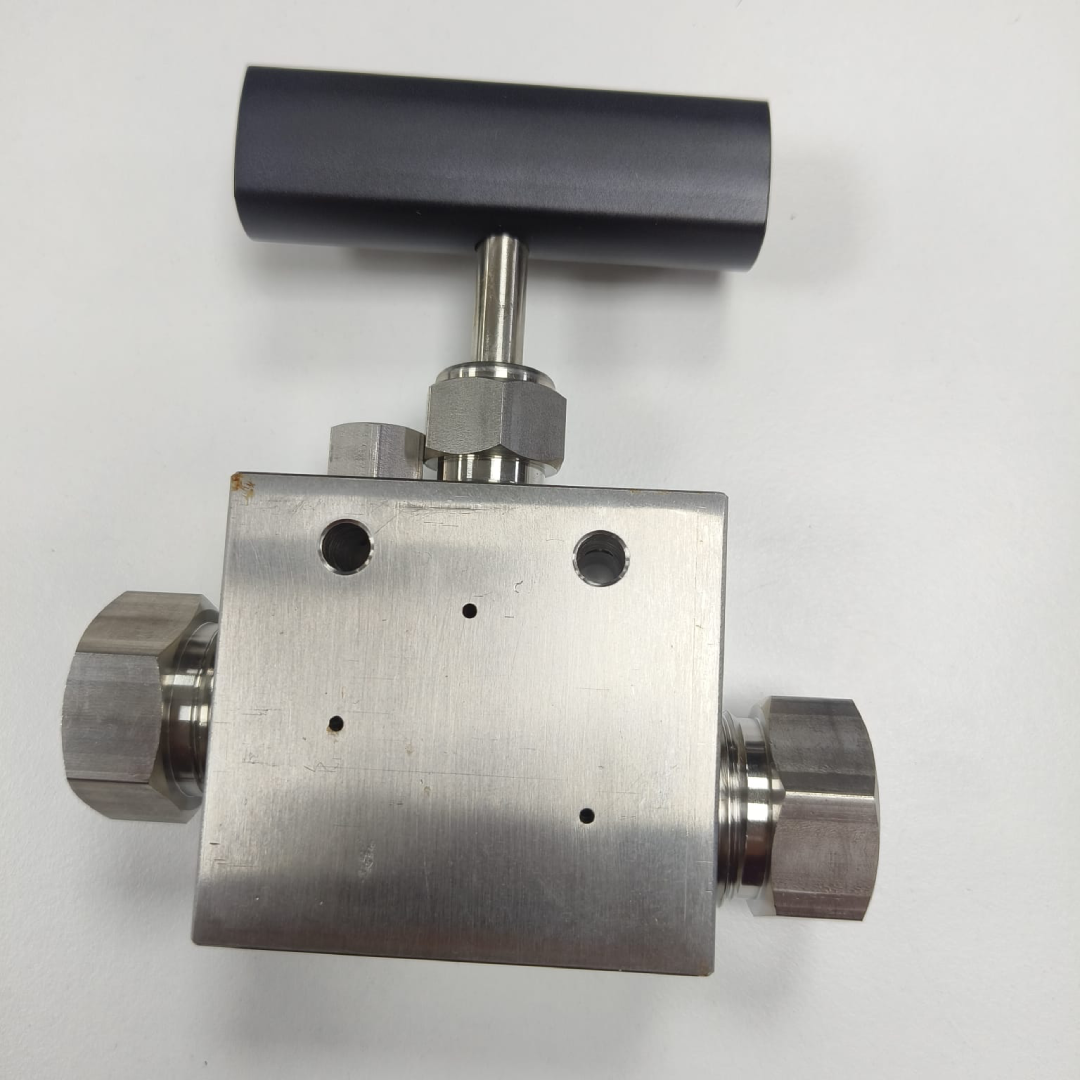

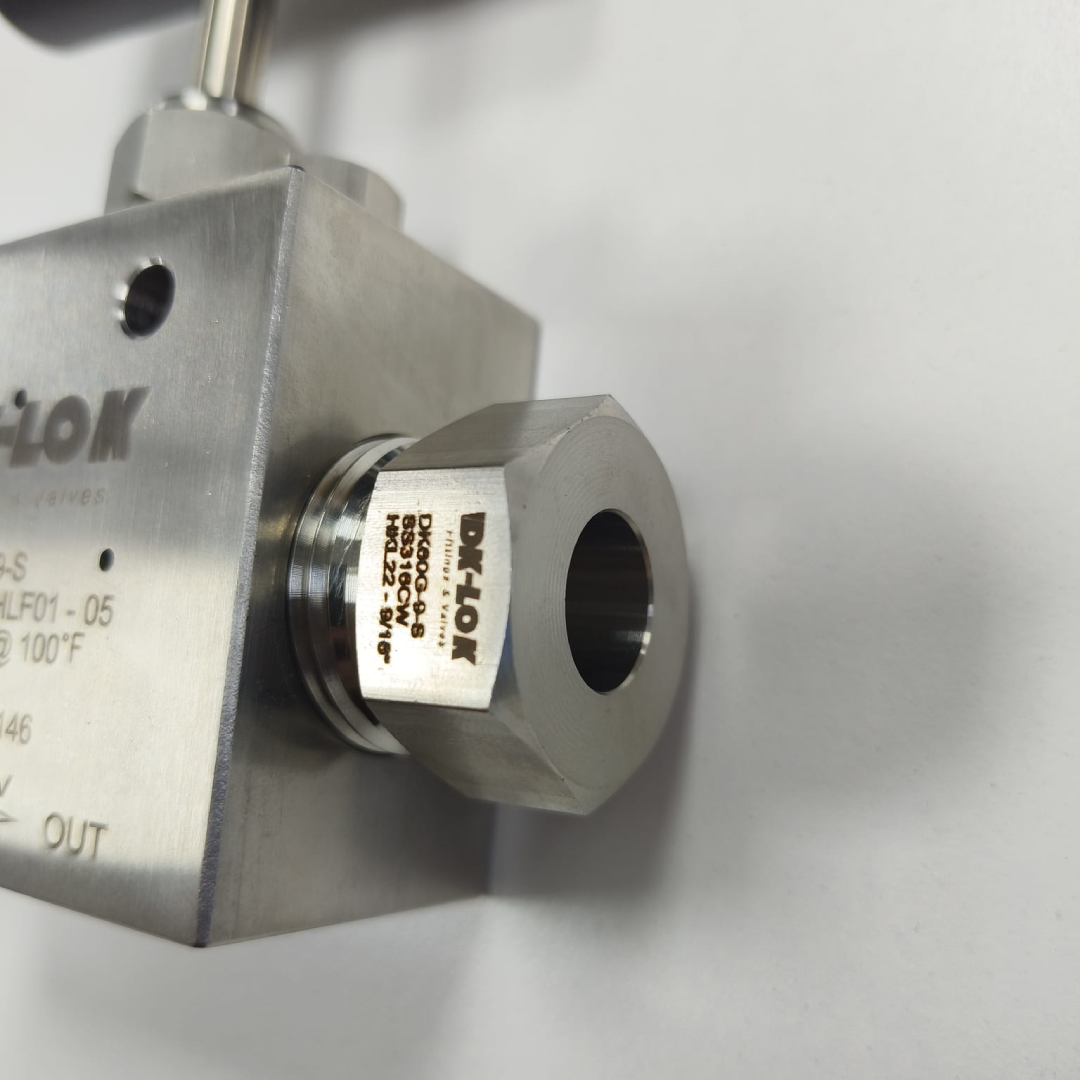

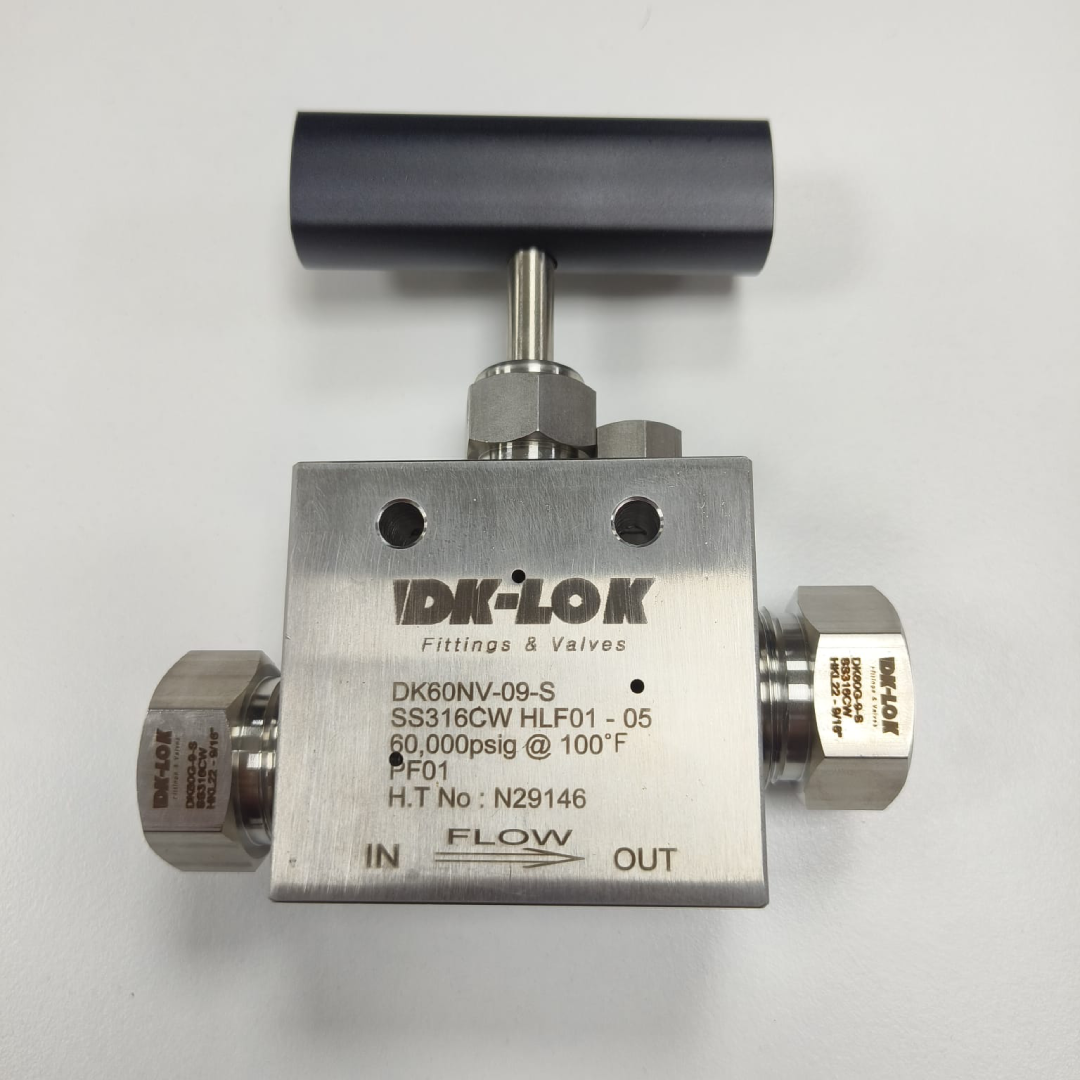

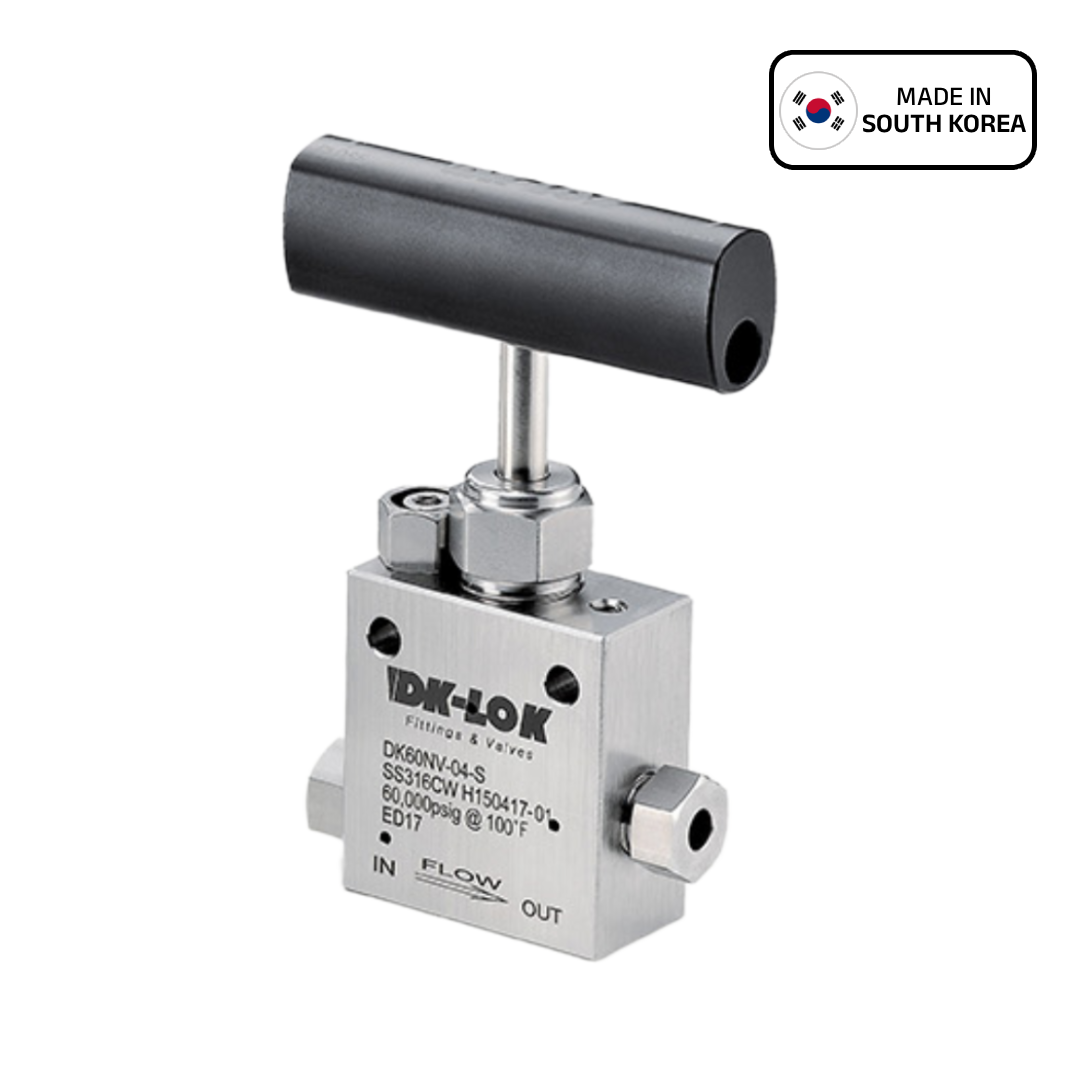

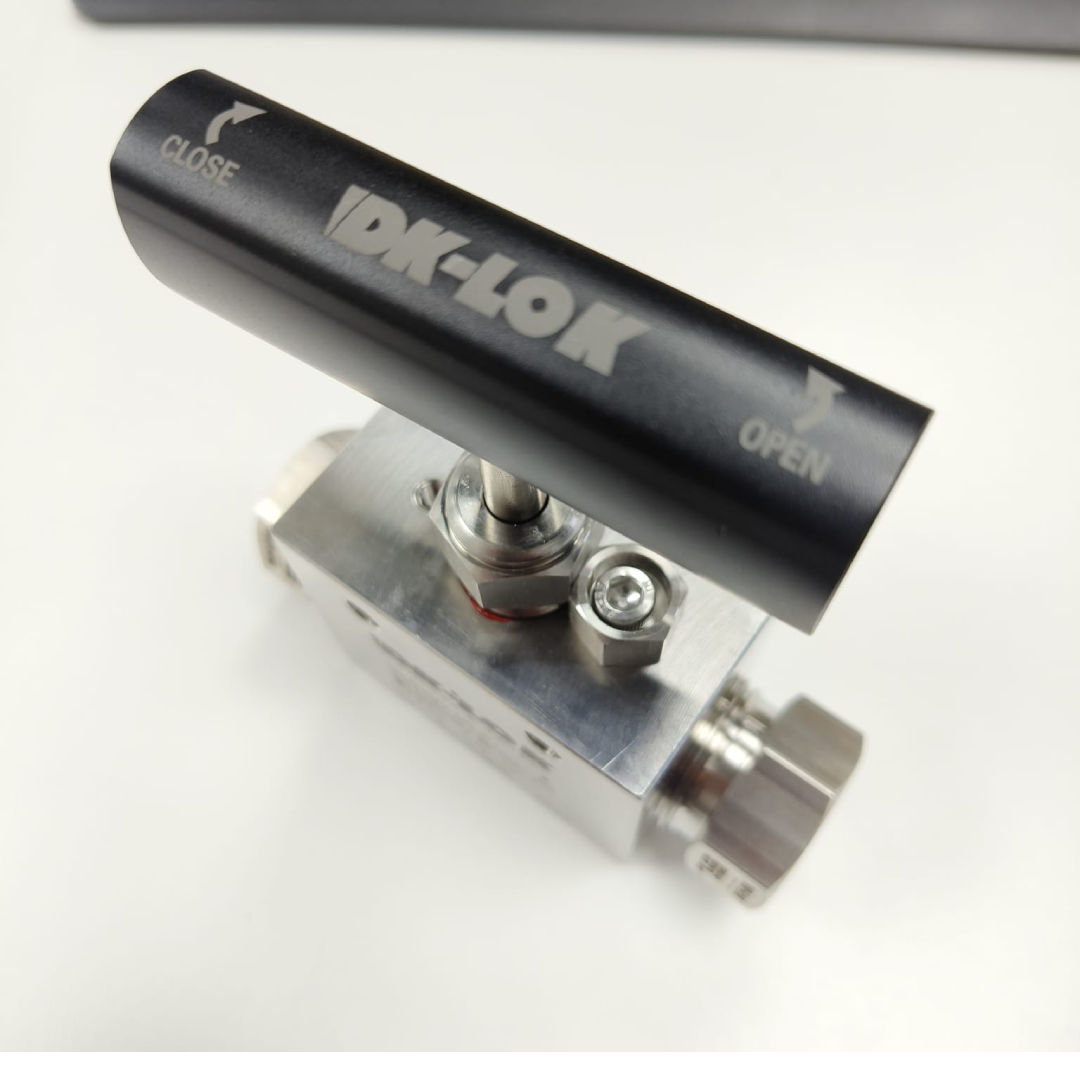

DK-LOK DK-NV High Pressure Needle Valve, 60,000 psi, 9/16" Straight, SS316L, DK60NV-09
Technical overview
The DK-LOK DK60NV-09 is a straight-pattern high pressure needle valve designed for manual isolation and throttling in high pressure gas and liquid systems. Its inline flow path is suited to straight tubing runs, while the 9/16" connection size is rated up to 60,000 psig. The body is ASTM A276 Type 316L stainless steel and the stem is ASTM A564 Type 630 stainless steel. DK-LOK specifies a non-rotating stem tip, standard Vee stem tip, PTFE packing with optional graphite and an operating temperature range from -100°F to 600°F (-73°C to 315°C). Typical uses include high pressure test equipment, chemical injection, instrumentation isolation, hydraulic systems and process tubing.
Key Features
- 60,000 psi class straight type high pressure needle valve
- Straight flow path supports inline high pressure tubing installations
- 9/16 inch high pressure connection on both sides
- ASTM A276 Type 316L stainless steel body with Type 630 stem
- PTFE packing as standard with optional graphite packing
Applications
- High pressure test equipment and calibration systems
- Chemical injection and dosing lines
- Instrumentation isolation and sampling systems
- Hydraulic and gas lines requiring precise manual control
- Inline process systems using high pressure tubing
Specifications
Valve PatternStraight
Maximum Pressure60,000 psig
Connection Size9/16"
Orifice Size2.0 mm
Flow CoefficientCv 0.14
Body MaterialASTM A276 Type 316L Stainless Steel
Temperature Range-100°F to 600°F (-73°C to 315°C)
