Temperature Gauges
WIKA R5502 Bimetal Thermometer, 0...200 °C, 4" Dial Size, 1/2" Male NPT Bottom Connection, 80 mm Stem Length, 84095916
WIKA

WIKA R5502 Bimetal Thermometer, 0...200 °C, 4" Dial Size, 1/2" Male NPT Bottom Connection, 80 mm Stem Length, 84095916

Mfr. part no.
84095916
SKU
PW-TG4-BT-080M-200C

Specifications

Model R5502
Measuring Range 0...200 °C
Dial Size 4" (100 mm)
Secondary Scale °F
Mounting Position Lower mount
Process Connection 1/2" Male NPT Fitting
Insertion Length 80 mm
Stem Diameter 6 mm
Body Material Stainless Steel Case & Wetted Parts
Window Flat Instrument glass
Accuracy Class Class 1 per EN 13190 Standard
Measuring System Bimetal coil
Ambient Temperature Range -40 ... +70 °C

Key Features

  • Model R5502 with 4" (100 mm) dial size for clear local temperature indication.
  • Scale range 0 ... 200 °C with dual °C/°F dial for easy reading in process service.
  • 1/2" Male NPT male process connection with radial bottom mounting for standard installation.

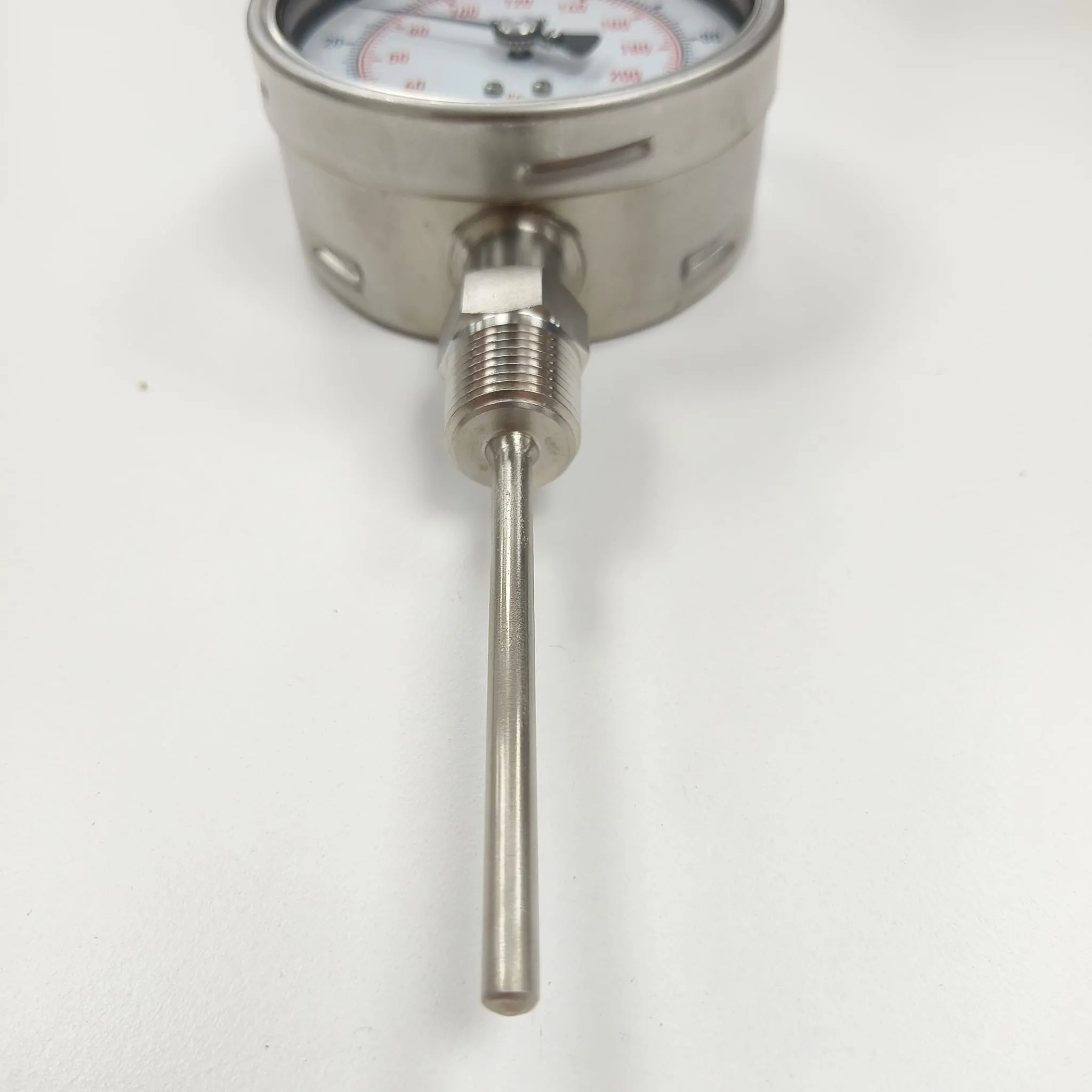

  • 80 mm insertion length with 6 mm stainless steel stem for immersion into the measuring point.
  • Accuracy class 1 in accordance with EN 13190.
  • All-stainless-steel industrial thermometer with stainless steel case and stainless steel wetted parts.
  • Instrument glass window with aluminium dial and black pointer.
  • Bimetal coil measuring element for reliable mechanical temperature indication.

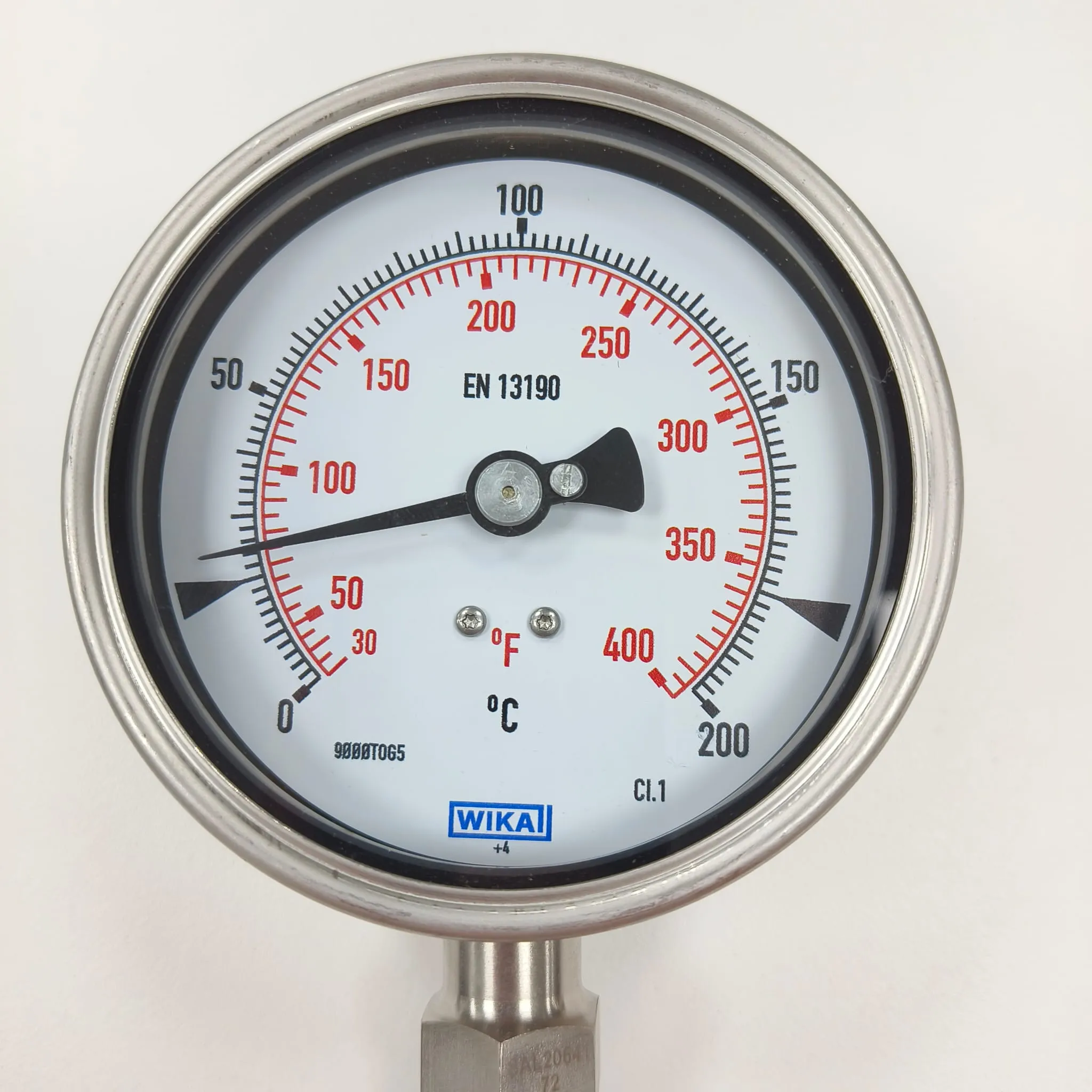

  • Outer black scale for °C readings and inner red scale for °F readings.
  • Suitable for harsh and aggressive environments in the process industry.

Description

The WIKA R5502 bimetal thermometer is a robust process instrument for accurate local temperature indication in demanding industrial service. Built in accordance with EN 13190 and designed for harsh and aggressive environments, it offers an all-stainless-steel construction suitable for chemical, petrochemical, oil and gas, energy, and water or wastewater applications. This version features a 0 ... 200 °C dual-scale dial, 4" dial size, 1/2" Male NPT bottom connection, and 80 mm stem length, making it a dependable fixed-stem thermometer for standard bottom-mounted temperature measurement points.

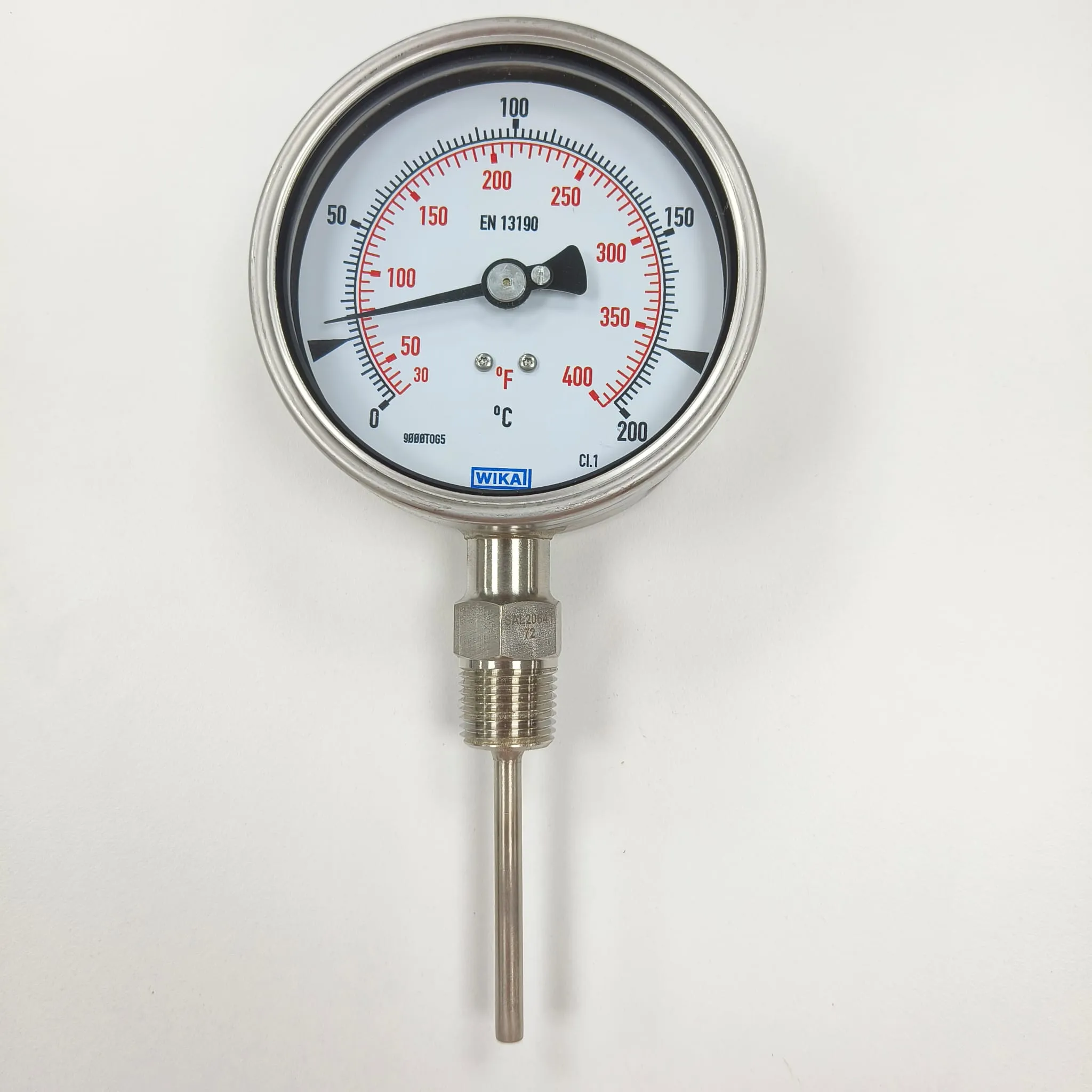

Note: The pointer reading seen in the product images is because the bimetal thermometer begins indicating temperature as soon as the stem is exposed to its surroundings. Therefore, a reading above zero is normal even for a new/unused product. This also confirms that the thermometer is functioning properly.

Applications

  • Bottom-entry mounting on pipelines and tanks.
  • Chemical and petrochemical process lines.
  • Oil and gas skids and utility systems.
  • Energy, boiler and hot-water services.
  • Water and wastewater equipment.

Documents

  • Wika Bimetal Thermometer Datasheet-84095916

    PDF, 46 KB

  • Wika Bimetal Thermometer Model-55 — Datasheet

    PDF, 748 KB

  • Wika Bimetal Thermometer Operating Instructions-1

    PDF, 1.6 MB

  • Wika Bimetal Thermometer Operating Instructions-2

    PDF, 656 KB
