Technical overview
Key Features
- Model S5551 with 6" (160 mm) dial size for enhanced visibility from a distance.
- Scale range 0 ... 200 °C with dual °C/°F dial for local process temperature indication.

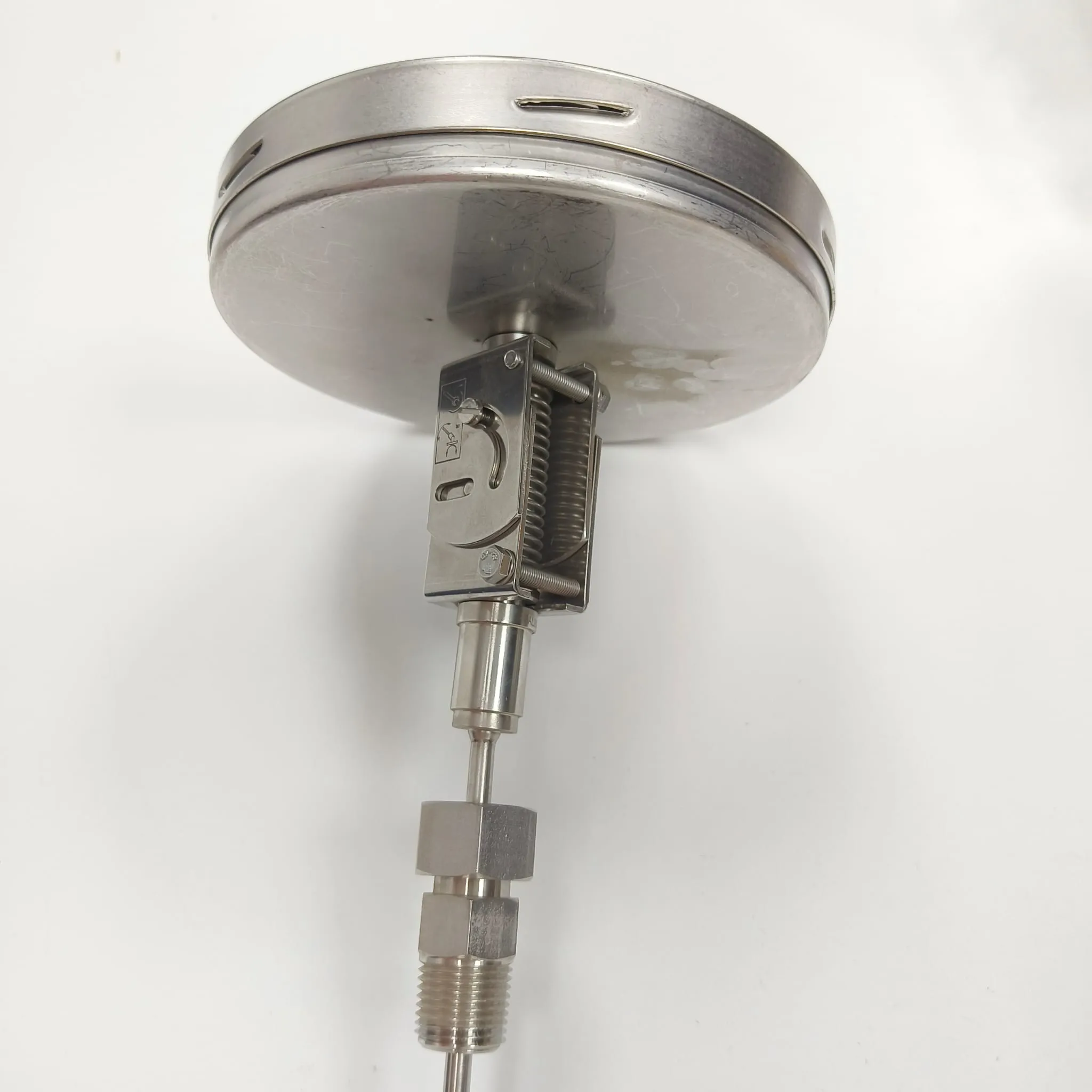

- Back connection design with adjustable stem and dial for convenient alignment after installation.
- Stem and dial assembly can be rotatable through 360° and swivelling through 90°.

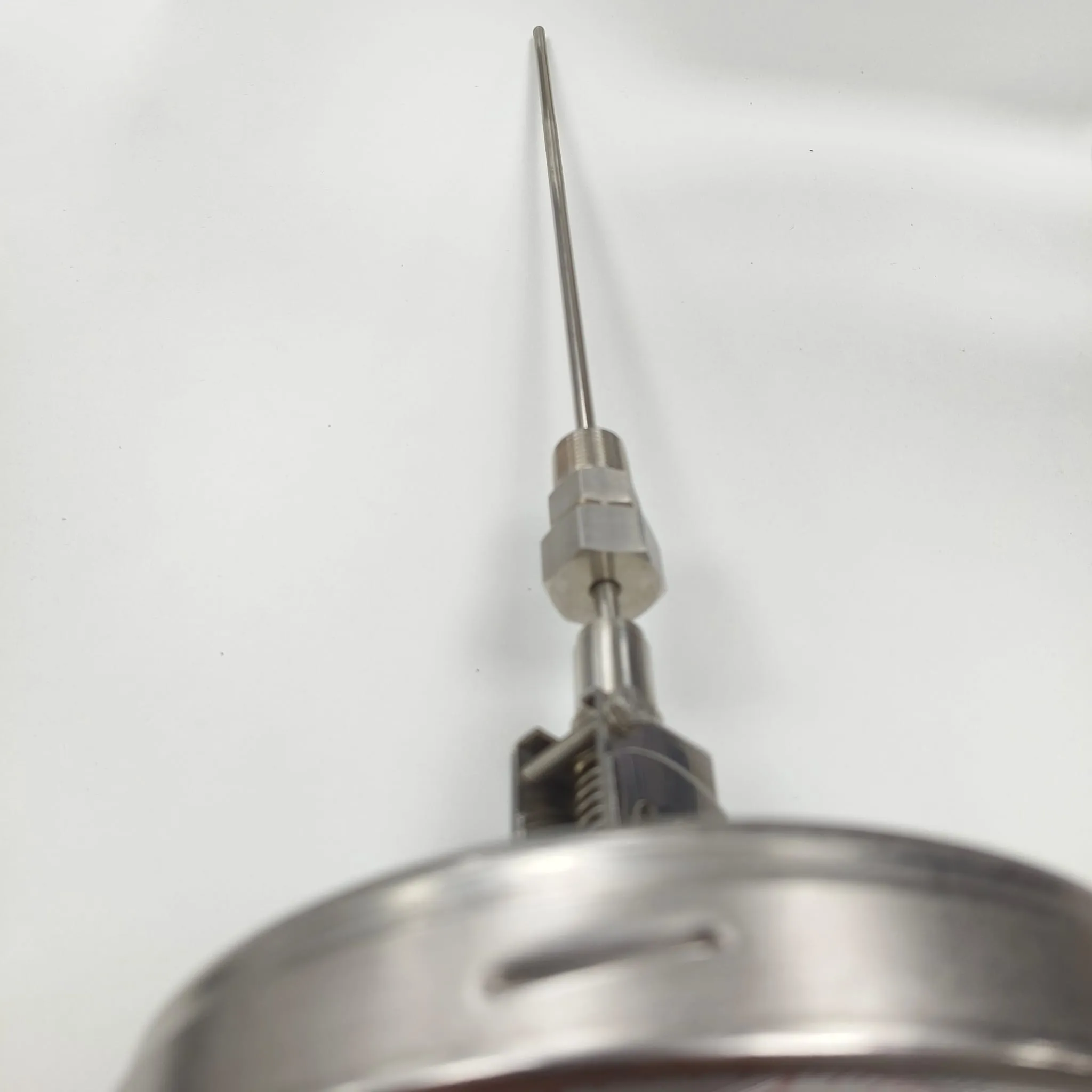

- 1/2" Male NPT process connection with compression fitting sliding on the stem.
- 350 mm insertion length with 6 mm stainless steel stem for deeper immersion applications.
- Accuracy class 1 in accordance with EN 13190.
- All-stainless-steel industrial construction with instrument glass window.
- Bimetal coil measuring element for dependable mechanical operation without external power.
- Outer black scale for °C readings and inner red scale for °F readings.
Applications
- Installations needing adjustable viewing angle.
- Tanks, vessels and pipework with limited access.
- Chemical and petrochemical process duty.
- Oil and gas, energy and utilities.
- Water and wastewater systems.
