WIKA R5502 Bimetal Thermometer, 0...100 °C, 4" Dial Size, 1/2" Male NPT Bottom Connection, 100 mm Stem Length, 84095917
Technical overview
The WIKA R5502 bimetal thermometer is a robust process instrument for accurate local temperature indication in demanding industrial service. Built in accordance with EN 13190 and designed for harsh and aggressive environments, it offers an all-stainless-steel construction suitable for chemical, petrochemical, oil and gas, energy, and water or wastewater applications. This version features a 0 ... 100 °C dual-scale dial, 4" dial size, 1/2" Male NPT bottom connection, and 100 mm stem length, making it a dependable fixed-stem thermometer for standard bottom-mounted temperature measurement points.

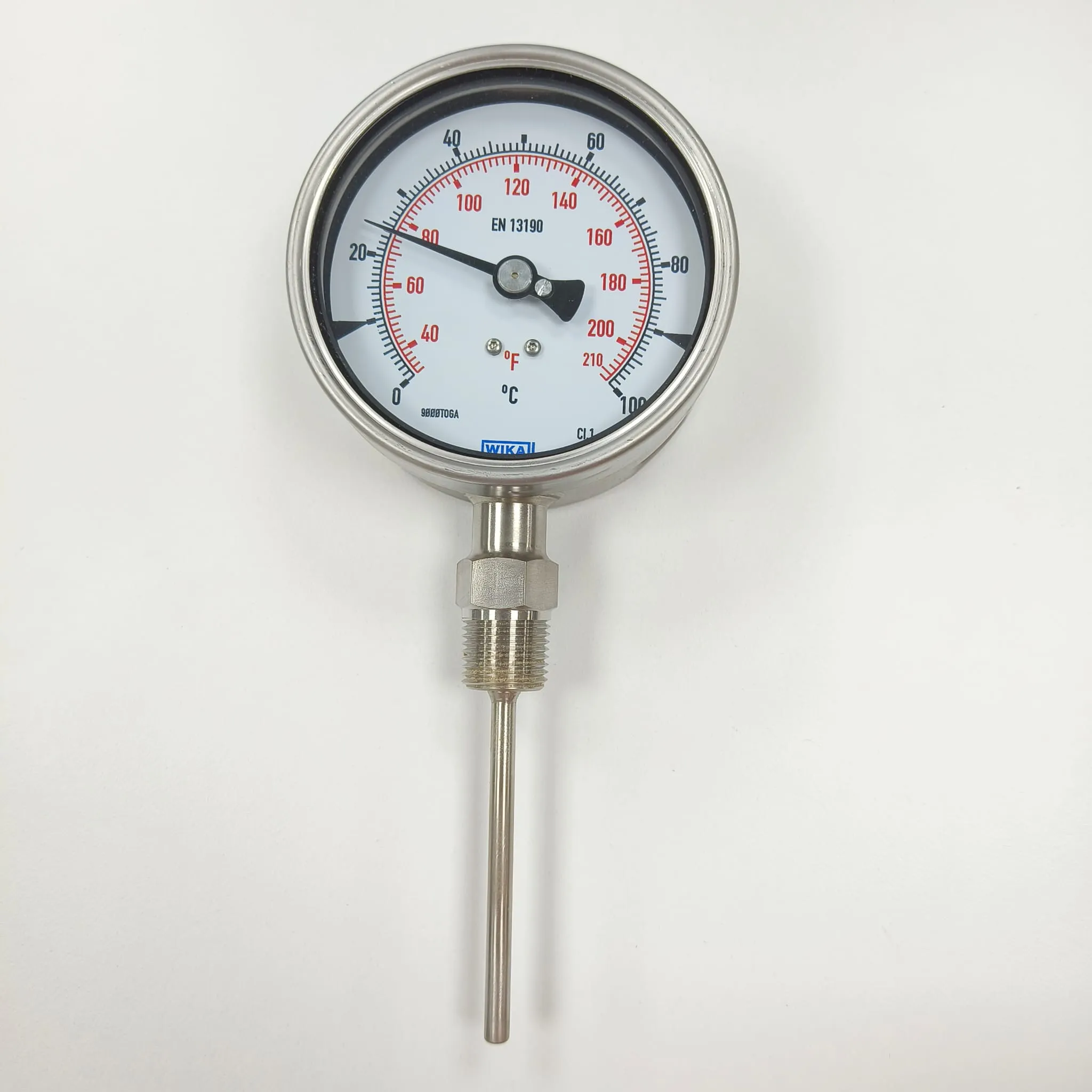

Note: The pointer reading seen in the product images is because the bimetal thermometer begins indicating temperature as soon as the stem is exposed to its surroundings. Therefore, a reading above zero is normal even for a new/unused product. This also confirms that the thermometer is functioning properly.
Key Features
- Model R5502 with 4" (100 mm) dial size for clear local temperature indication.
- Scale range 0 ... 100 °C with dual °C/°F dial for easy reading in process service.

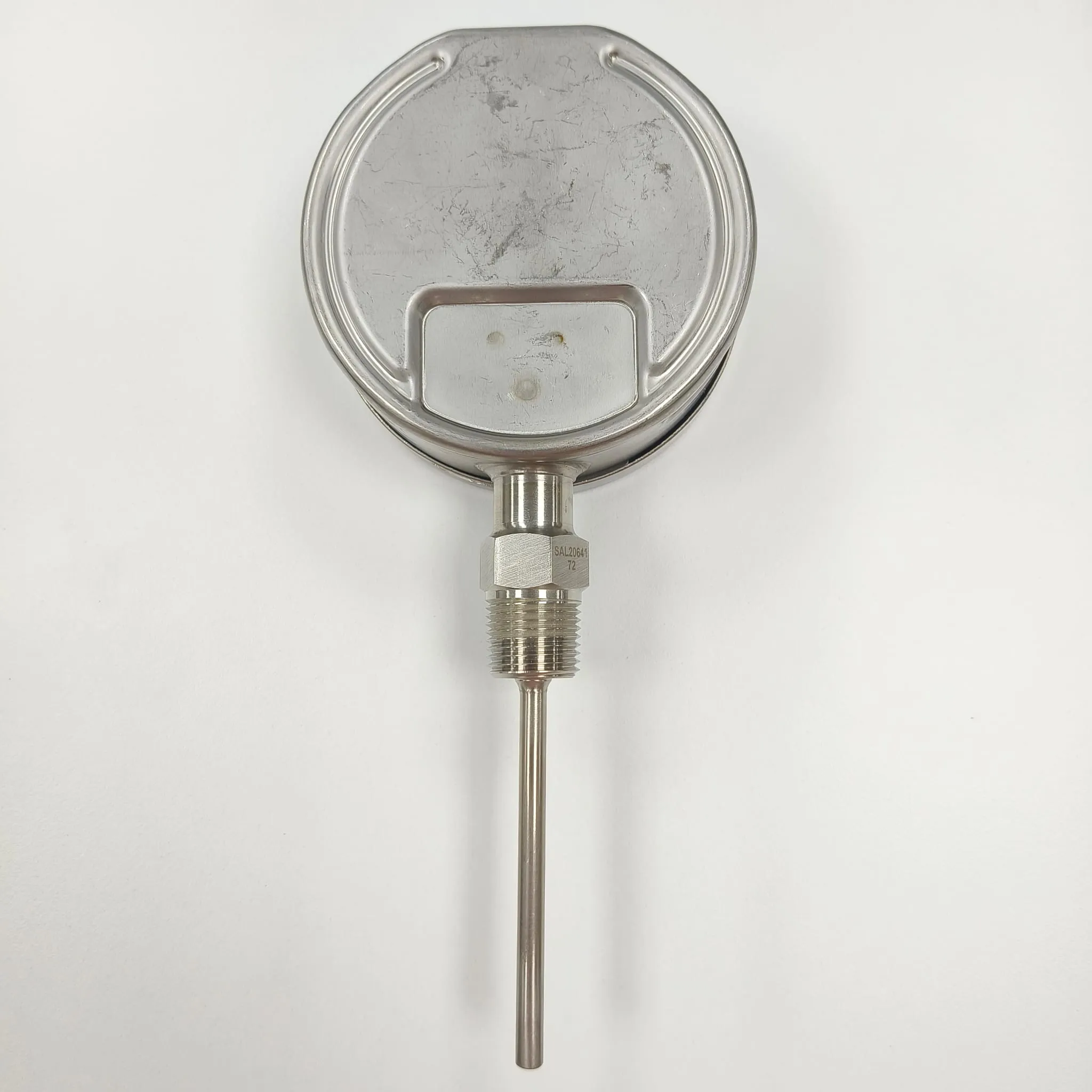

- 1/2" Male NPT male process connection with radial bottom mounting for standard installation.

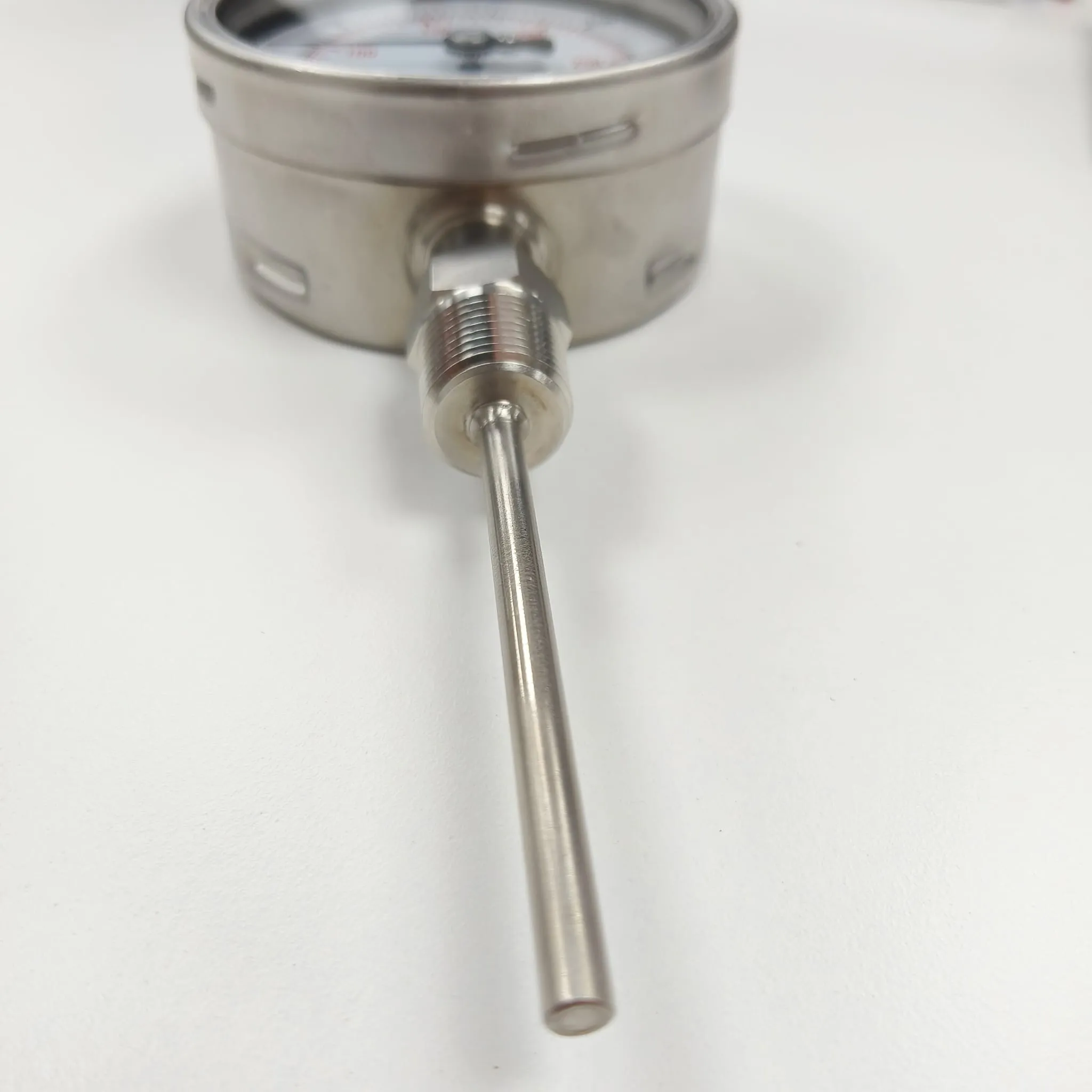

- 100 mm insertion length with 6 mm stainless steel stem for immersion into the measuring point.
- Accuracy class 1 in accordance with EN 13190.
- All-stainless-steel industrial thermometer with stainless steel case and stainless steel wetted parts.
- Instrument glass window with aluminium dial and black pointer.
- Bimetal coil measuring element for reliable mechanical temperature indication.

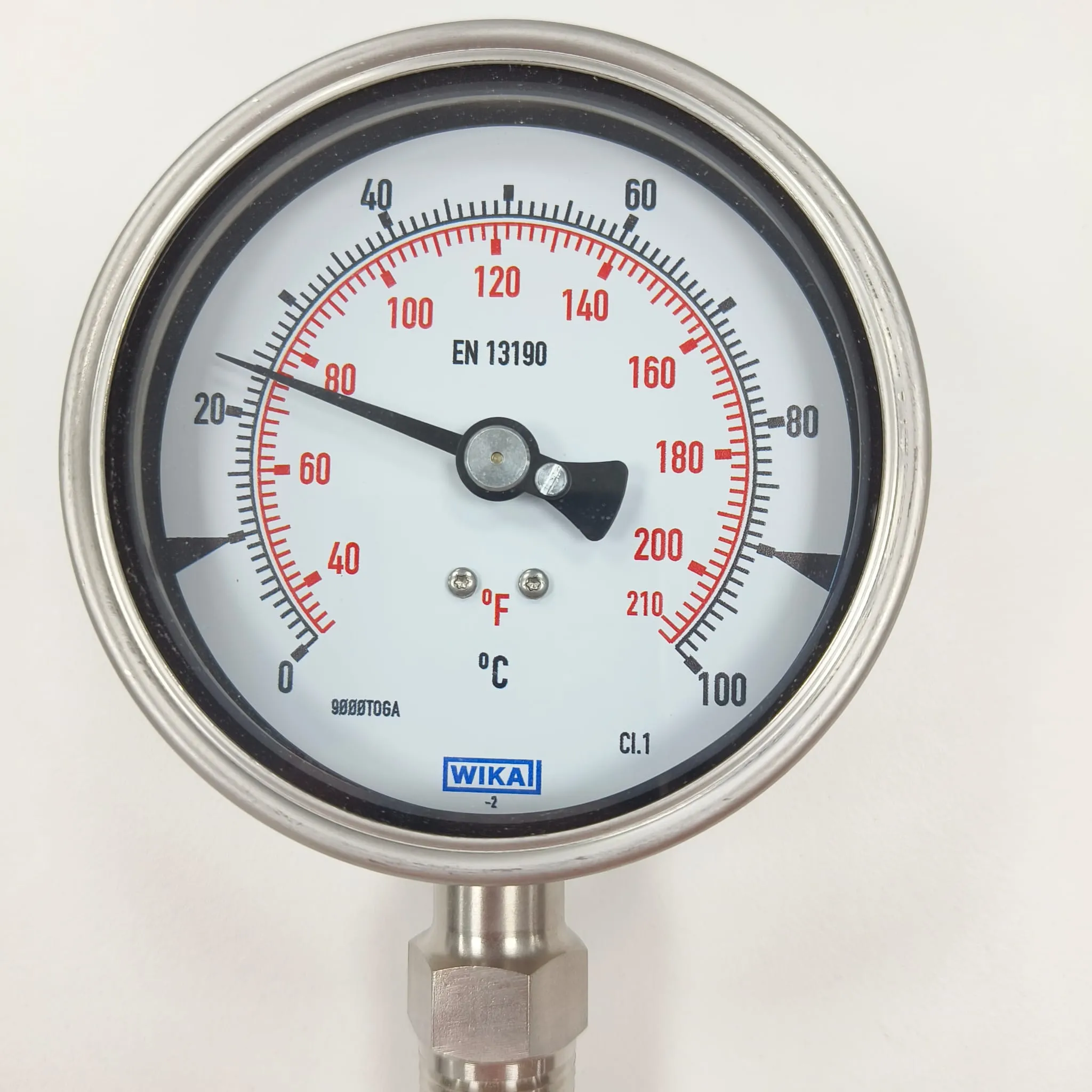

- Outer black scale for °C readings and inner red scale for °F readings.
- Suitable for harsh and aggressive environments in the process industry.
Applications
- Bottom-entry mounting on pipelines and tanks.
- Chemical and petrochemical process lines.
- Oil and gas skids and utility systems.
- Energy, boiler and hot-water services.
- Water and wastewater equipment.
