WIKA Pressure Gauge 213.53.063, 0...600 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 30592046
- Mfr. part no.
- 30592046
- SKU
- PW25-08600
Specifications
| Model | 213.53.063 |
|---|---|
| Measuring System | Bourdon Tube |
| Dial Size | 63 mm / 2.5" |
| Measuring Range | 0...600 bar |
| Secondary Scale | 2nd scale psi |
| Process Connection | 1/4" Male NPT |
| Mounting Position | Lower mount |
| Case Filling | Dry case, prepare for filling |
| Wetted Parts | Copper alloy |
| Case Material | Stainless steel 1.4301 |
| Case Design | Crimp ring case (version 53) |
| Accuracy Class | Class 1.6 |
| Window | Plastic, clear |
Key Features
- Stainless steel case provides strong protection for industrial pressure monitoring.
- 1/4" Male NPT brass lower connection supports common installation points.
- Dual scale dial shows bar as the primary scale with a red psi secondary scale.
- Dry case prepared for liquid filling allows the gauge to be filled when required.
- Clear plastic window and class 1.6 accuracy support easy everyday reading.
- Made in Poland
Description

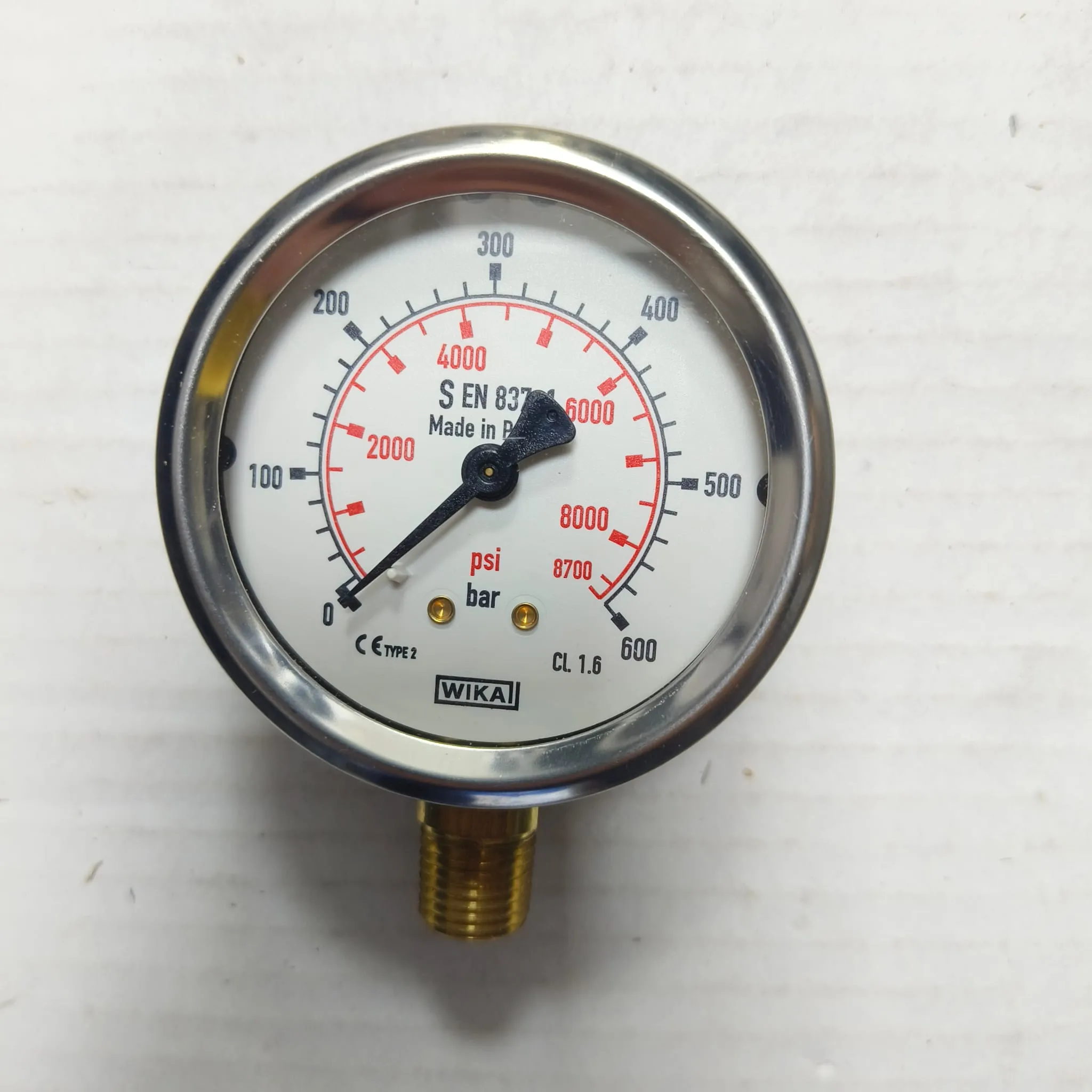

This WIKA 213.53 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is supplied as a dry case and is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...600 bar range and a clear white dial that is easy to read. The dial shows a black primary bar scale with a red secondary psi scale for quick cross reference. This model is a practical choice for reliable pressure indication across a wide range of industrial duties. This gauge can also marked as WIKA's current part number 39607232, which corresponds to the exact matching configuration of this product.
Applications
- Hydraulic systems
- Air compressors
- Pump skids
- Industrial utilities
- Vibration service
