WIKA Pressure Gauge 213.53.063, 0...2000 psi / 0...138 bar, 2.5" Dial, 1/4" Male NPT Back Mount, 30729335
WIKA

WIKA Pressure Gauge 213.53.063, 0...2000 psi / 0...138 bar, 2.5" Dial, 1/4" Male NPT Back Mount, 30729335

Mfr. part no.
30729335
SKU
PW25-BC-02000

Specifications

Model 213.53.063
Measuring System Bourdon Tube
Dial Size 63 mm / 2.5"
Measuring Range 0...2000 psi / 0...138 bar
Secondary Scale 2nd scale bar
Process Connection 1/4" Male NPT
Mounting Position Back mount
Mounting Flange Polished SS front flange
Case Filling Dry case, prepare for filling
Wetted Parts Copper alloy
Case Material Stainless steel 1.4301
Case Design Crimp ring case (version 53)
Accuracy Class Class 1.6
Window Plastic, clear

Key Features

  • Back mount 1/4" NPT connection with polished stainless steel front flange supports panel mounting.
  • Stainless steel case provides strong protection for industrial pressure monitoring.

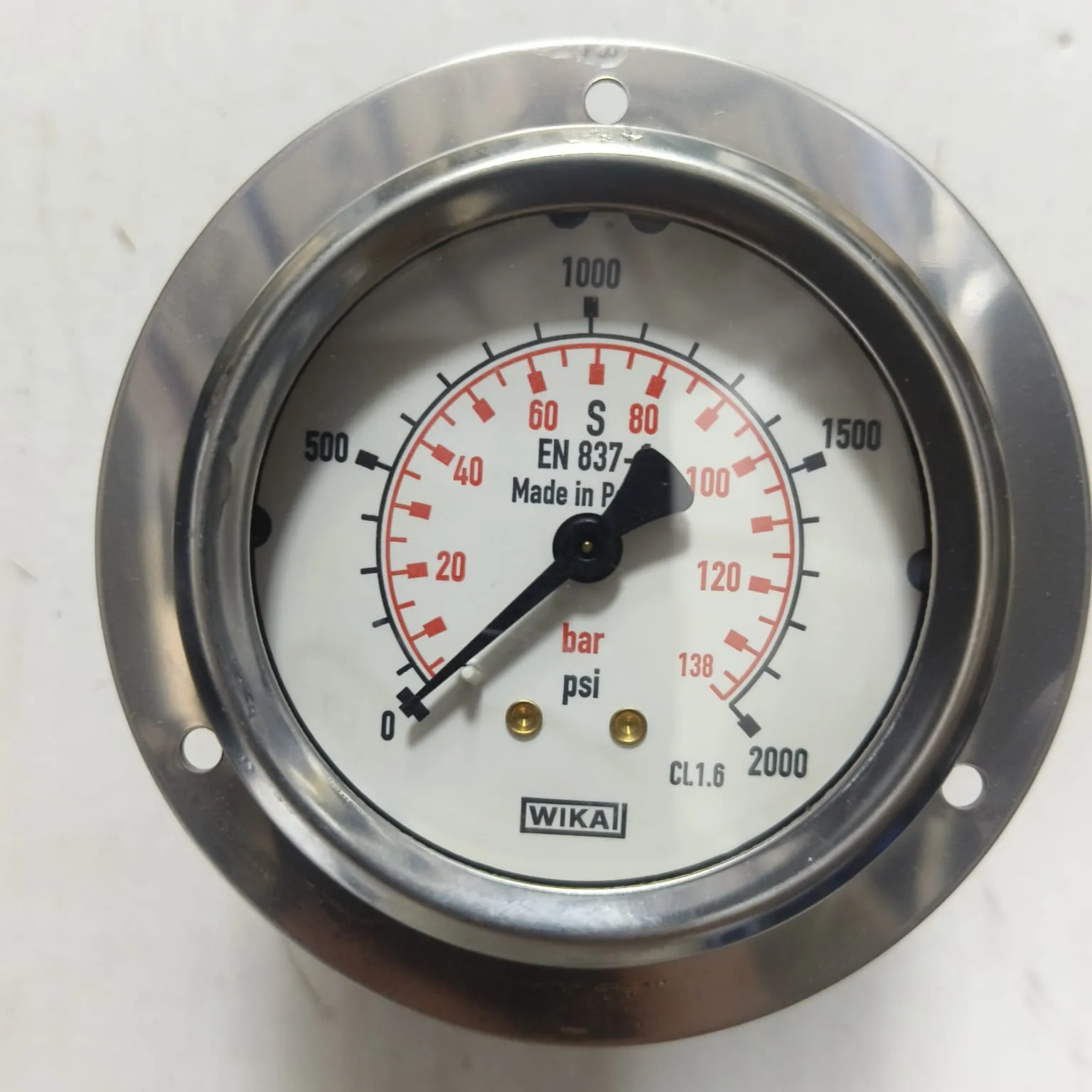

  • Dual scale dial shows psi as the primary scale with a red bar secondary scale.
  • Dry case prepared for liquid filling allows the gauge to be filled when required.
  • Clear plastic window and class 1.6 accuracy support easy everyday reading.
  • Made in Poland

Other versions in this series

Other versions in this series
Part no. Measuring Range Mounting Position Mounting Flange
39939460 0...800 psi / 0...50 bar Lower mount
39939496 0...1000 psi / 0...68 bar Back mount Polished SS front flange
39939461 0...1000 psi / 0...68 bar Lower mount
39997874 0...1500 psi / 0...100 bar Back mount Polished SS front flange
39939462 0...1500 psi / 0...100 bar Lower mount
30729335 (This part) 0...2000 psi / 0...138 bar Back mount Polished SS front flange
39939464 0...2000 psi / 0...138 bar Lower mount
84154645 0...160 bar / 0...2300 psi Back mount Polished SS front flange
39607178 0...160 bar / 0...2300 psi Lower mount
39939498 0...3000 psi / 0...200 bar Back mount Polished SS front flange
39743713 0...3000 psi / 0...200 bar Lower mount
84254733 0...250 bar / 0...3500 psi Back mount Polished SS front flange
39607208 0...250 bar / 0...3500 psi Lower mount

Description

This WIKA 213.53.063 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT back mount connection and a stainless steel case with polished SS front flange for dependable panel installation. The gauge is supplied as a dry case and is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...2000 psi range and a clear white dial that is easy to read. This model is a practical choice for reliable pressure indication across a wide range of industrial duties. This gauge can also marked as WIKA’s current part number 84171227, which corresponds to the exact matching configuration of this product.

Applications

  • Hydraulic systems
  • Air compressors
  • Pump skids
  • Industrial utilities
  • Vibration service

Documents

  • Wika Datasheet-84171227

    PDF, 49 KB

  • Wika-213.53 Model Pressure Gauge — Datasheet

    PDF, 878 KB

  • Wika Operating Instructions for Pressure Gauges

    PDF, 1.3 MB
