Safety/Pressure Relief Valves
RIV 230 Opale Series Pressure Relief Valve with Free Discharge, 2" BSPP Inlet, 0.5–1.5 Bar, 050230000011
RIV

RIV 230 Opale Series Pressure Relief Valve with Free Discharge, 2" BSPP Inlet, 0.5–1.5 Bar, 050230000011

Mfr. part no.
050230000011
SKU
PRV-BRASS-032

Specifications

Series RIV Opale 230
Valve Type Spring operated, free discharge
Inlet Port 2" ISO 228/1 (BSPP)
Body Material Brass (CB754S)
Adjustable Pressure Range 0.5-1.5 bar (7-21 psi)
Maximum Pressure 1.5 bar (21 psi)
Temperature Range 0 to 180°C (without liquid)
Seal Material FKM
Compliance Standards PED 2014/68/EU

Key Features

  • Spring operated relief design supports low-pressure overpressure protection.
  • Adjustable set pressure range is 0.5–1.5 bar (7–21 psi) for on-site setting.
  • Maximum working pressure rating is 1.5 bar (21 psi) at room temperature.

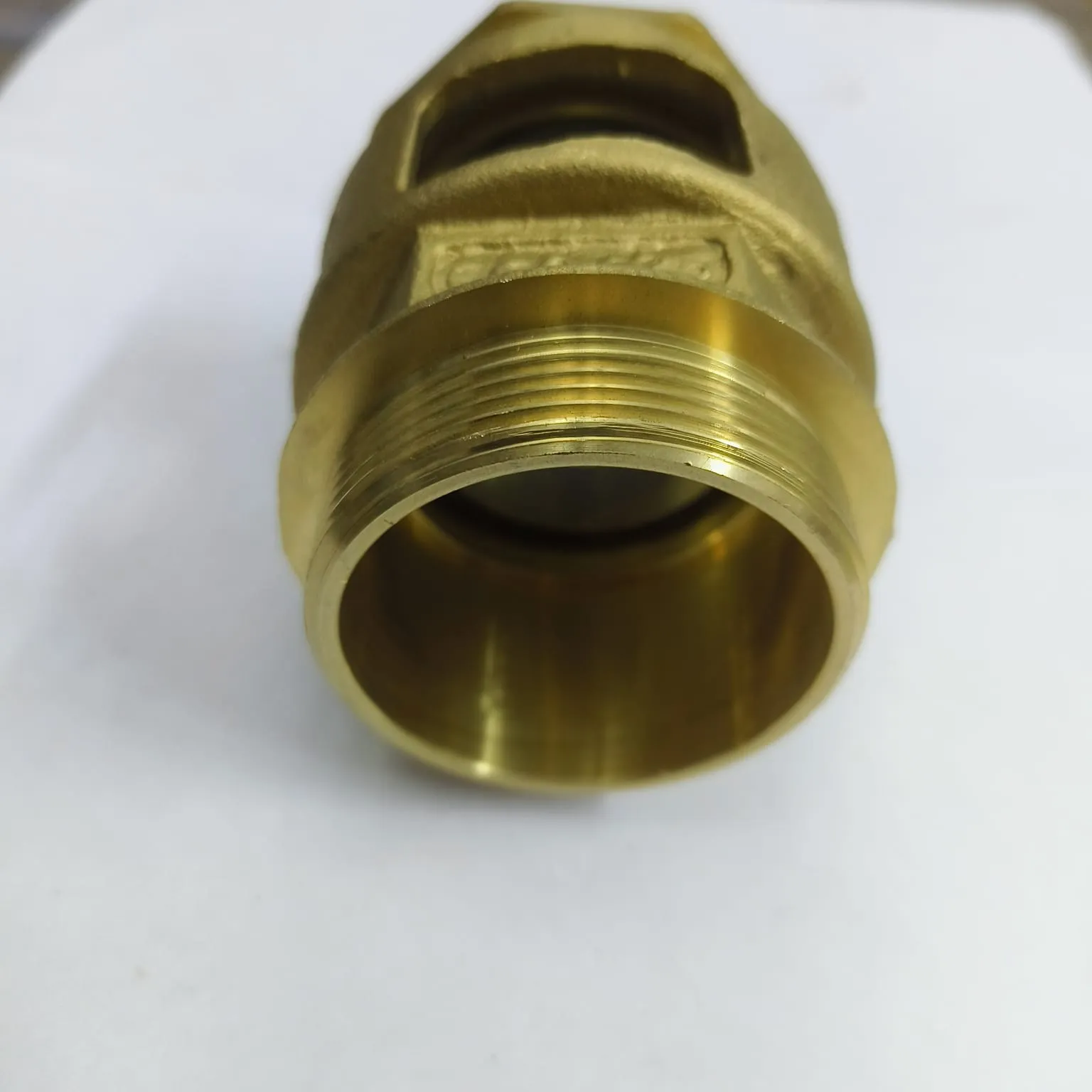

  • Uses a 2" ISO 228/1 (BSPP) threaded inlet for standard installation.
  • Free discharge outlet provides direct venting when the set pressure is reached.

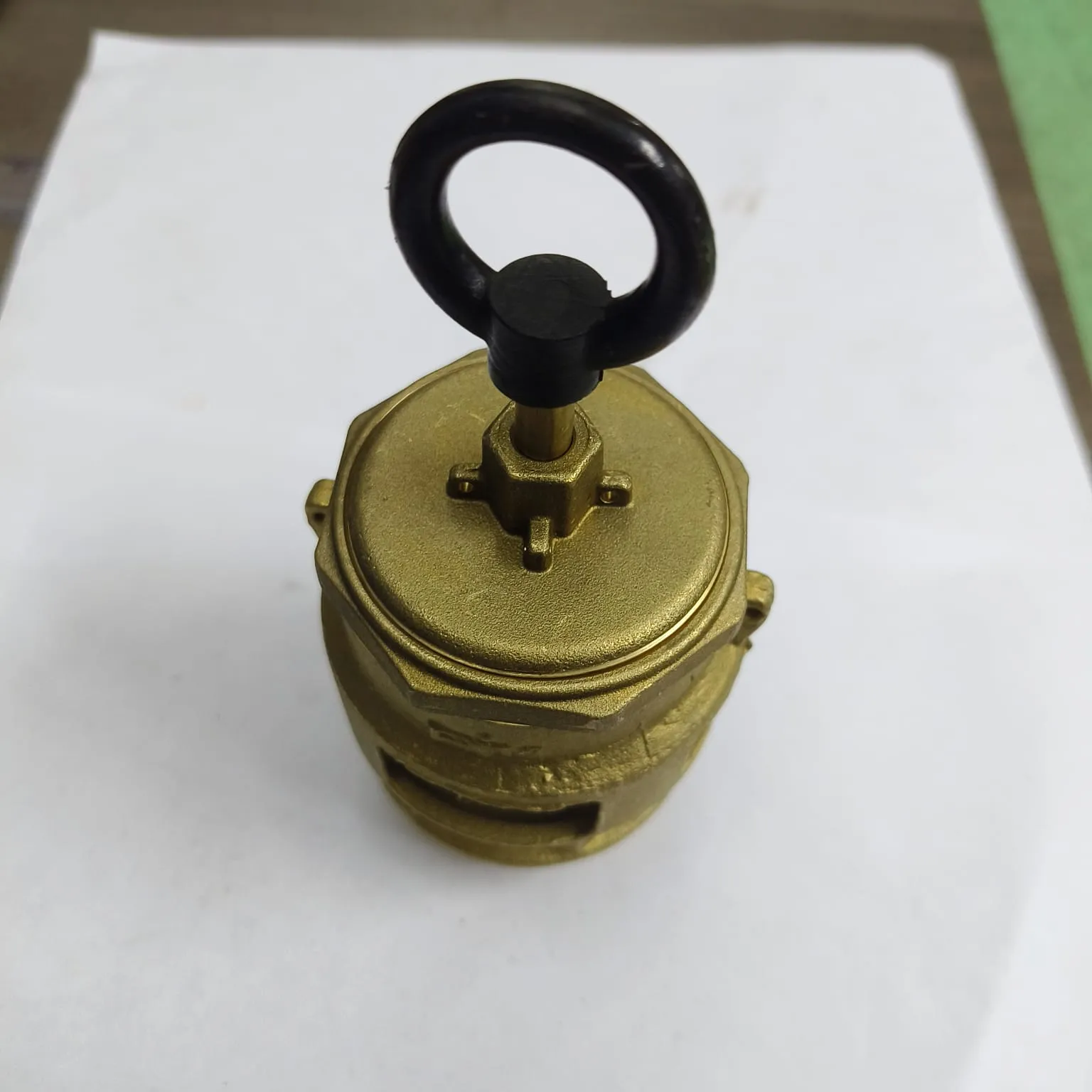

  • Setting can be sealed tamper-proof through the drilled tongues method.
  • Certified in accordance with PED 2014/68/EU.
  • Made in Italy.

Description

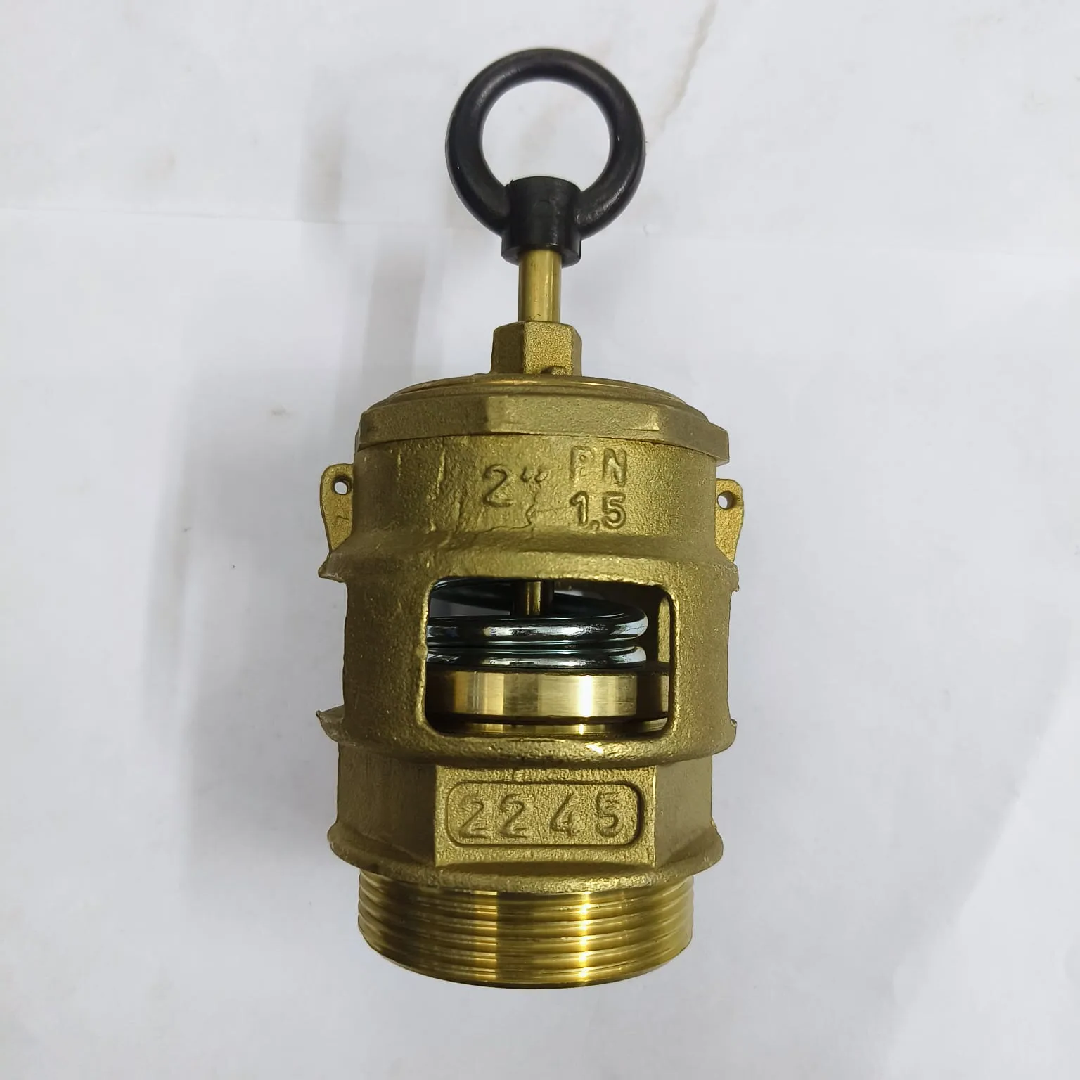

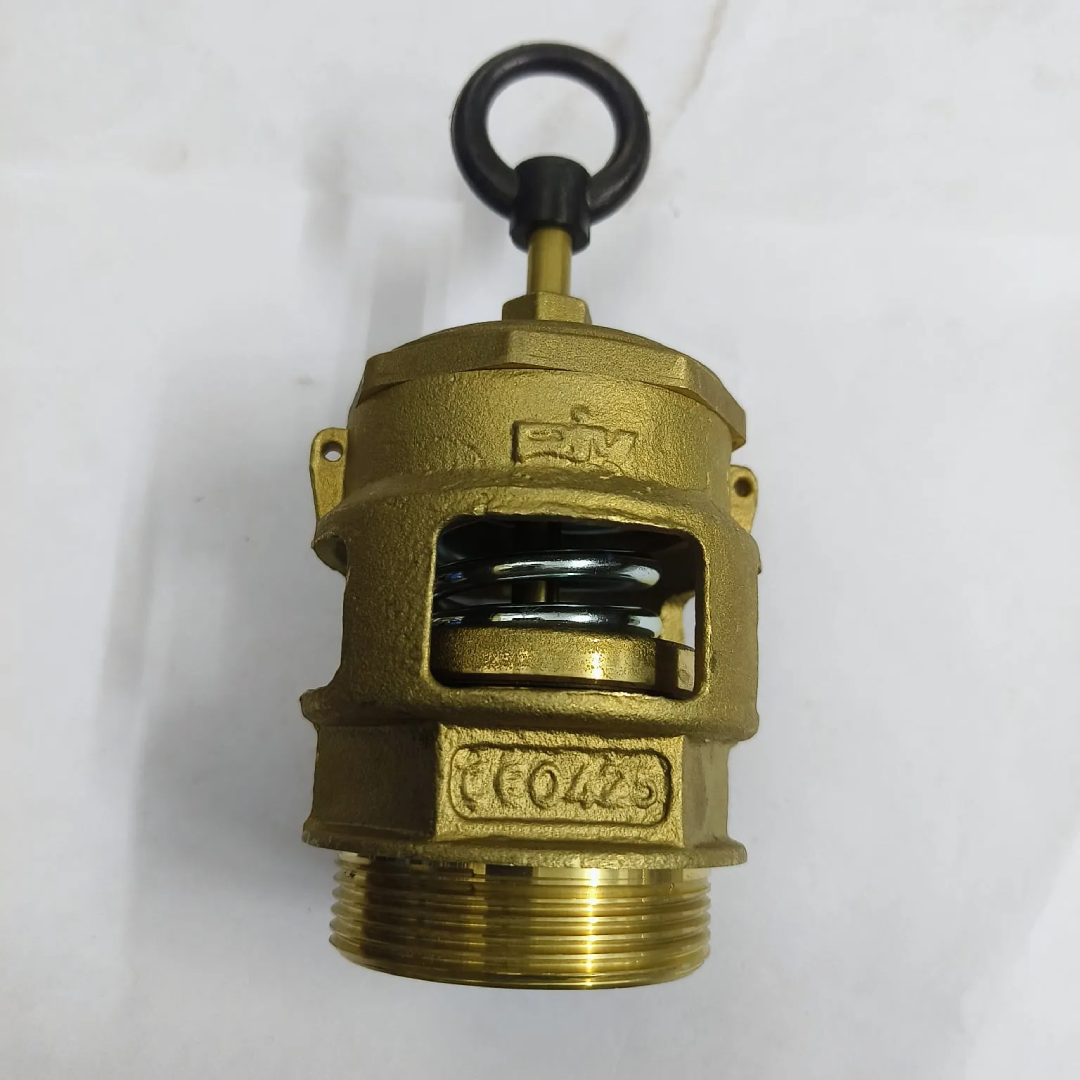

RIV 230 Opale is a spring operated pressure relief valve with free discharge designed for low-pressure protection. It has a 2" ISO 228/1 (BSPP) threaded inlet and releases pressure through free discharge when the set point is reached. The adjustable relief pressure range is 0.5 to 1.5 bar (7–21 psi), and the maximum working pressure rating is 1.5 bar (21 psi) at room temperature. This valve is intended for gaseous discharge and is not suitable for the passage of liquids, especially with solids in suspension.

Documents

  • Datasheet Opale RIV-230

    PDF, 468 KB

  • Riv-230-250 Setting Instruction UK

    PDF, 899 KB
