Pneumatic Solenoid Valves
Janatics DS5 Series Pneumatic Solenoid Valve, 5/2 Way, G 1/4" Port, 24V DC Coil with Connector, DS555SR61-W
Janatics

Janatics DS5 Series Pneumatic Solenoid Valve, 5/2 Way, G 1/4" Port, 24V DC Coil with Connector, DS555SR61-W

Mfr. part no.
DS555SR61-W
SKU
PN-SOL-502-04-24DC-XL

Specifications

Series DS5
Valve Type Spool Type
Valve Function 5/2 way
Port Size G 1/4"
Coil Voltage 24 V DC
Electrical Connection PG9 Coil Connector
Power Consumption 5 W
Working Pressure Range 2 to 10 bar
Ingress Protection IP65

Key Features

  • Uses a 5/2-way pilot-operated spool design for dependable directional control.
  • A single 24 V DC solenoid shifts the valve, while the spring returns it when power is removed.
  • PG9 electrical connector allows straightforward wiring.
  • The G 1/4" threaded ports allow straight forward connection to the pneumatic circuit.
  • Provides a nominal flow rate of 1000 L/min for reliable pneumatic operation.
  • Operates within a working pressure range of 2 to 10 bar.
  • The push-and-turn manual override can be locked during setup, testing or servicing.
  • The IP65-rated coil is protected against dust and water jets when correctly installed.
  • Made in India.

Description

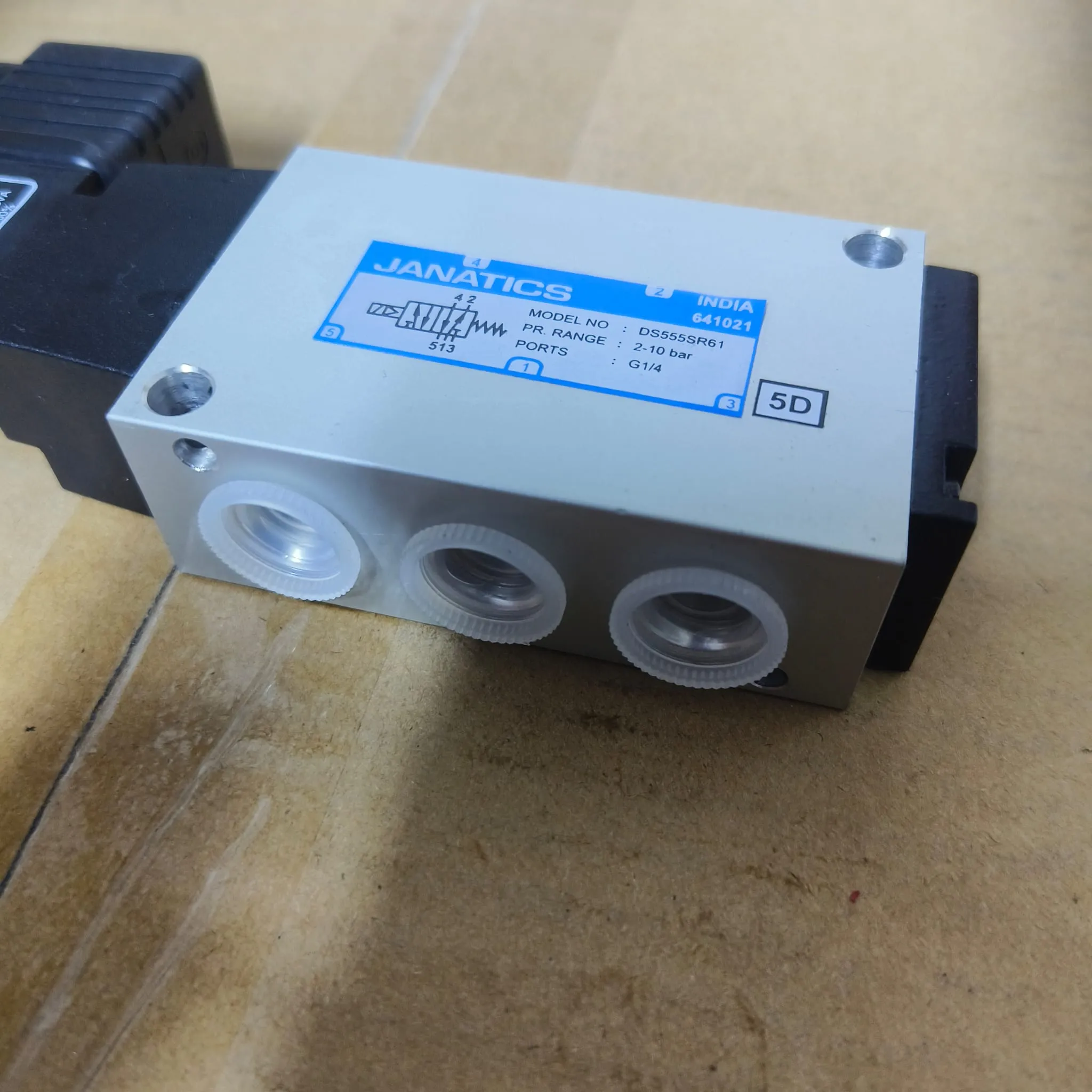

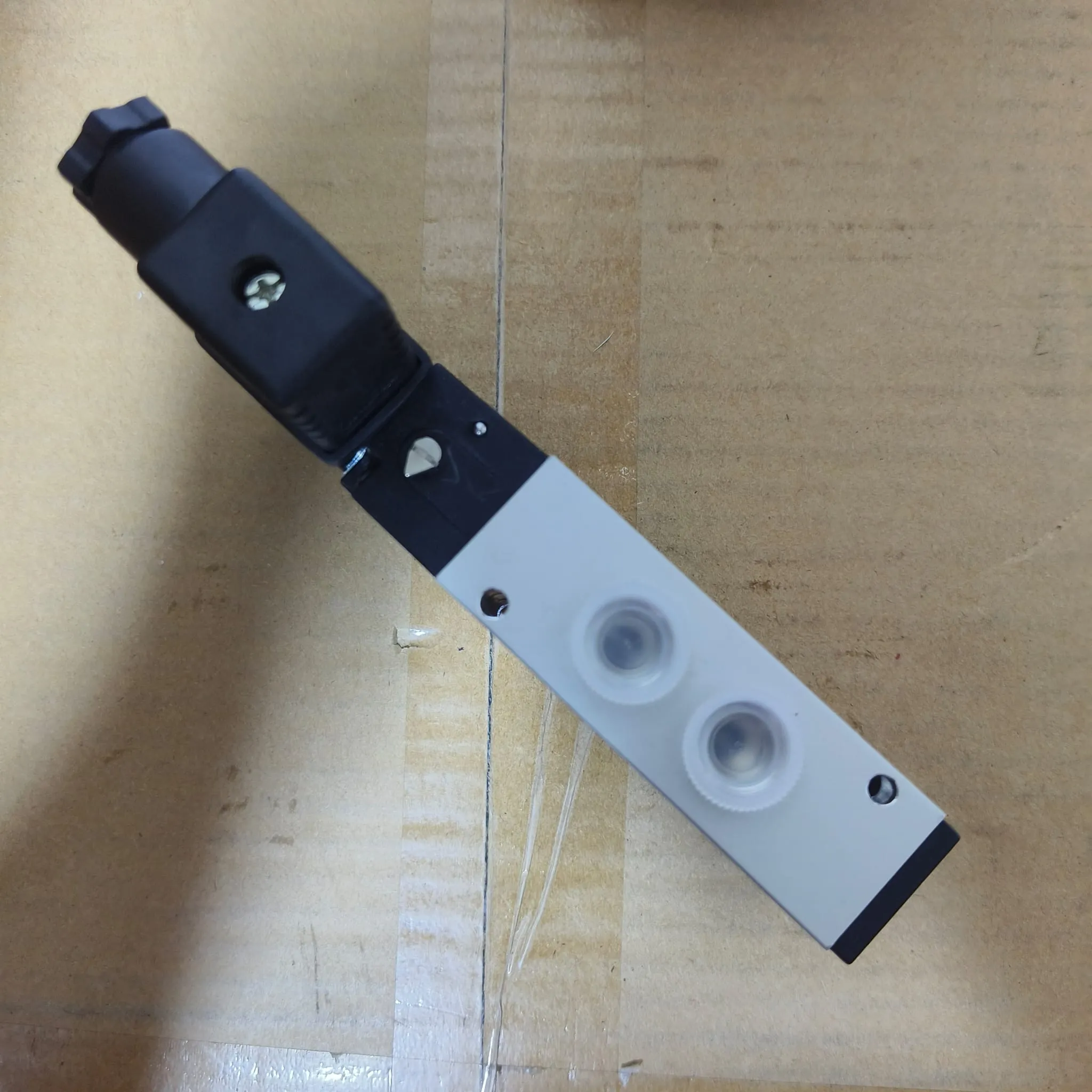

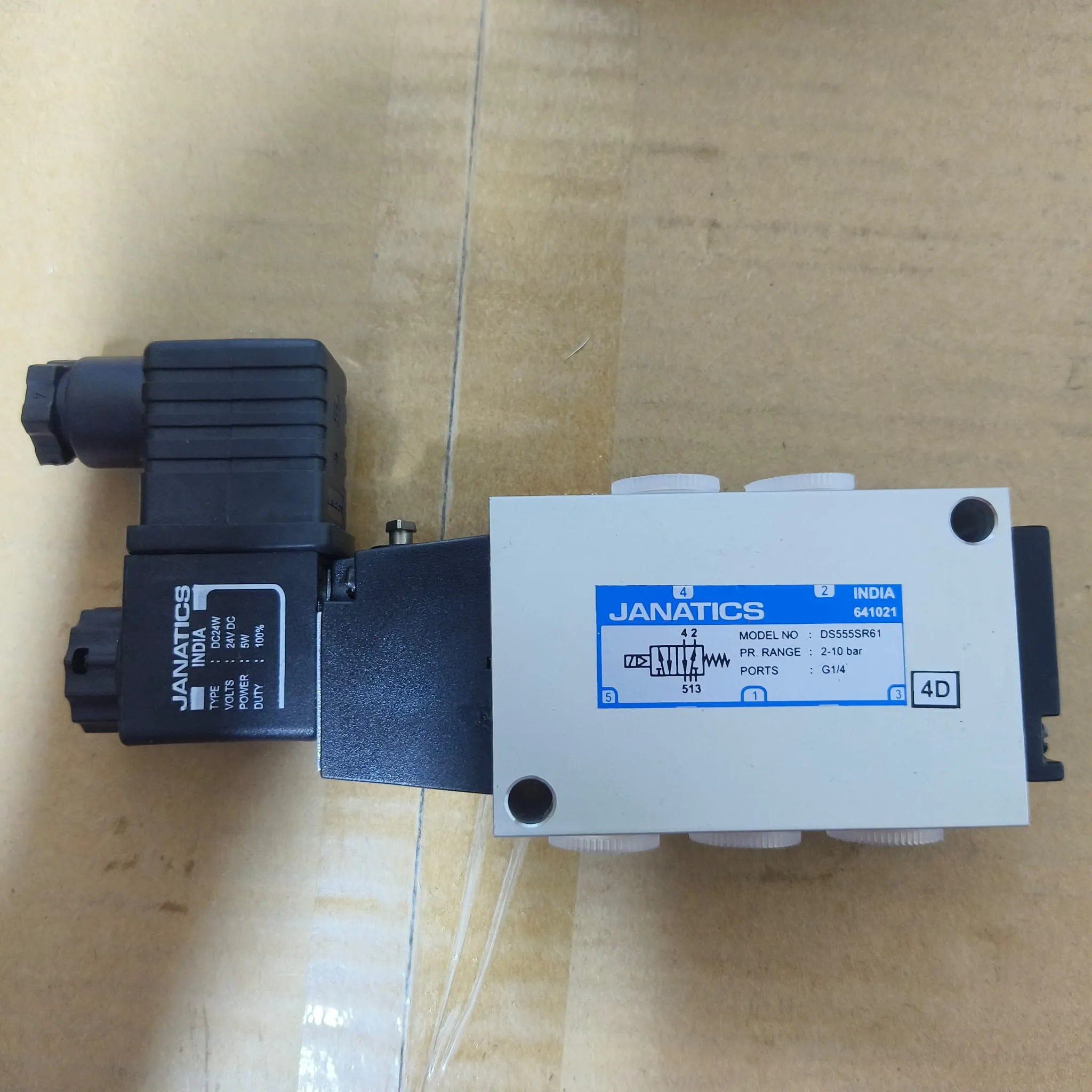

The Janatics DS5 Series provides compact directional control for pneumatic cylinders and actuators used in automated machinery. This 5/2-way valve combines a pilot-operated spool with a single 24 V DC solenoid rated at 5 W and spring return. The valve has G 1/4" connections, 1000 L/min nominal inlet-to-outlet flow and a 2 to 10 bar working pressure range. The 24 V DC solenoid coil is supplied with a PG9 connector for wiring and installation. A push-and-turn locking manual override and IP65 coil protection help with commissioning, and the valve can be mounted individually or on a manifold. It is intended for dry, filtered compressed air in packaging, assembly, material-handling and general actuator-control systems.

Applications

  • Double-acting pneumatic cylinders
  • Rotary pneumatic actuators
  • Machine automation systems
  • Packaging and assembly equipment
  • Pneumatic control panels

Documents

  • DS555SR61 W — Datasheet

    PDF, 1.5 MB

  • Janatics-DS5-5-2 Single Solenoid Valve — Catalog

    PDF, 520 KB
