Janatics DS5 Series Pneumatic Solenoid Valve, 5/2 Way, G 1/4" Port, 220V AC Coil with Connector, DS555SR61-A
All Janatics products
Janatics Pneumatic Solenoid Valves
All Pneumatic Solenoid Valves (every brand)
Technical overview

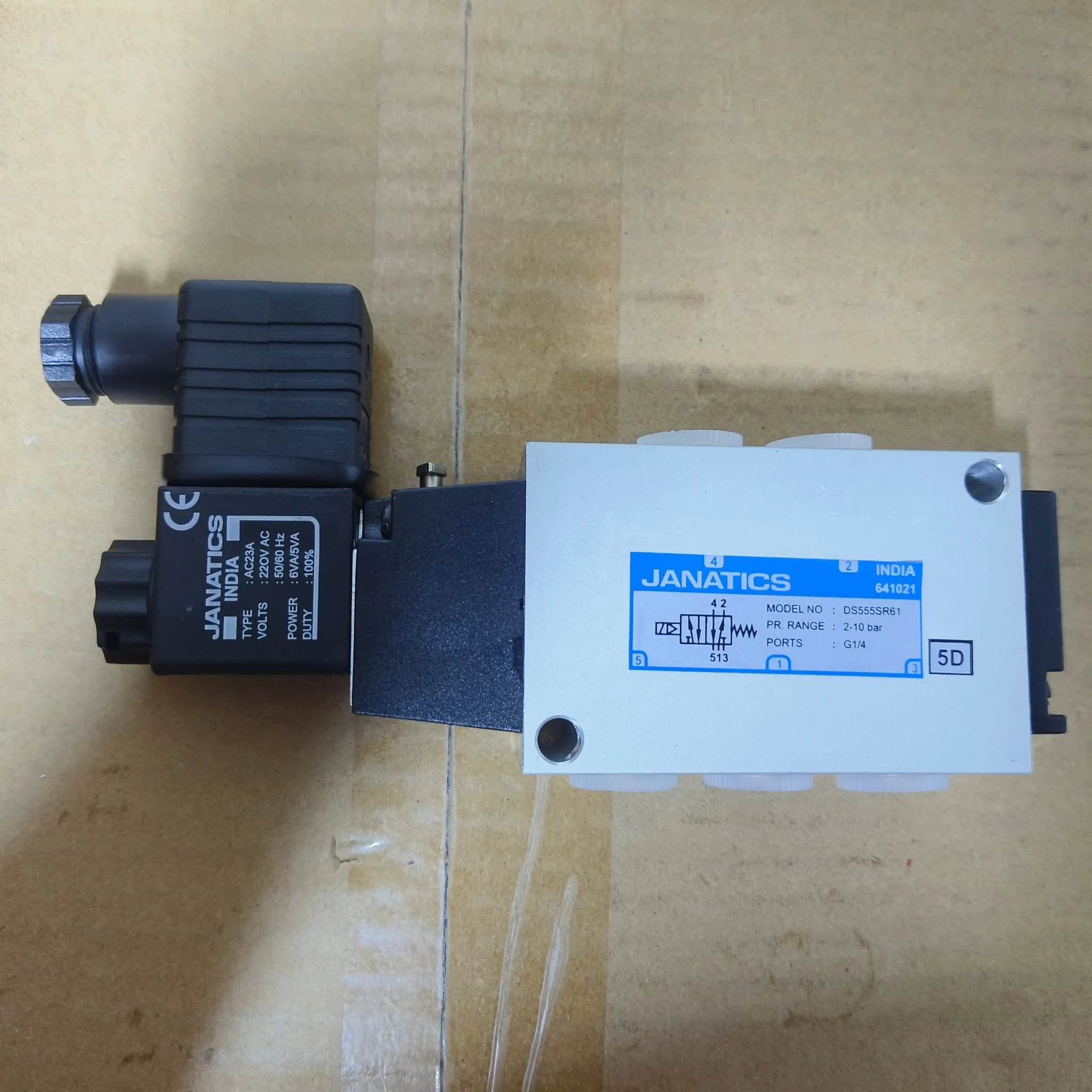

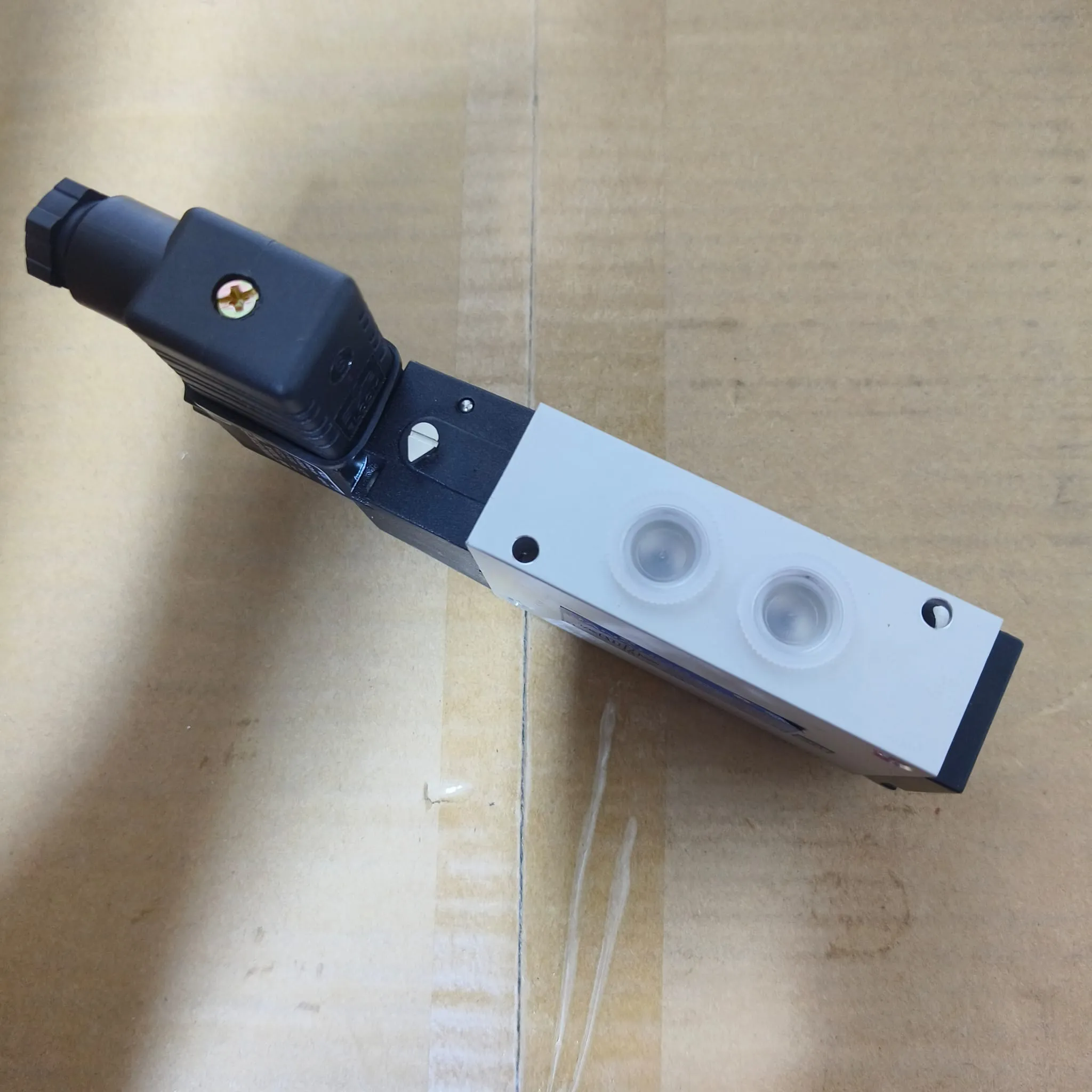

The Janatics DS5 Series provides compact directional control for pneumatic cylinders and actuators used in automated machinery. This 5/2-way valve combines a pilot-operated spool with a single 220 V AC solenoid rated at 6 VA and spring return. The valve has G 1/4" connections, 1000 L/min nominal inlet-to-outlet flow and a 2 to 10 bar working pressure range. The 220 V AC solenoid coil is supplied with a PG9 connector for wiring and installation. A push-and-turn locking manual override and IP65 coil protection help with commissioning, and the valve can be mounted individually or on a manifold. It is intended for dry, filtered compressed air in packaging, assembly, material-handling and general actuator-control systems.
Key Features
- Uses a 5/2-way pilot-operated spool design for dependable directional control.
- A single 220 V AC solenoid shifts the valve, while the spring returns it when power is removed.
- PG9 electrical connector allows straightforward wiring.

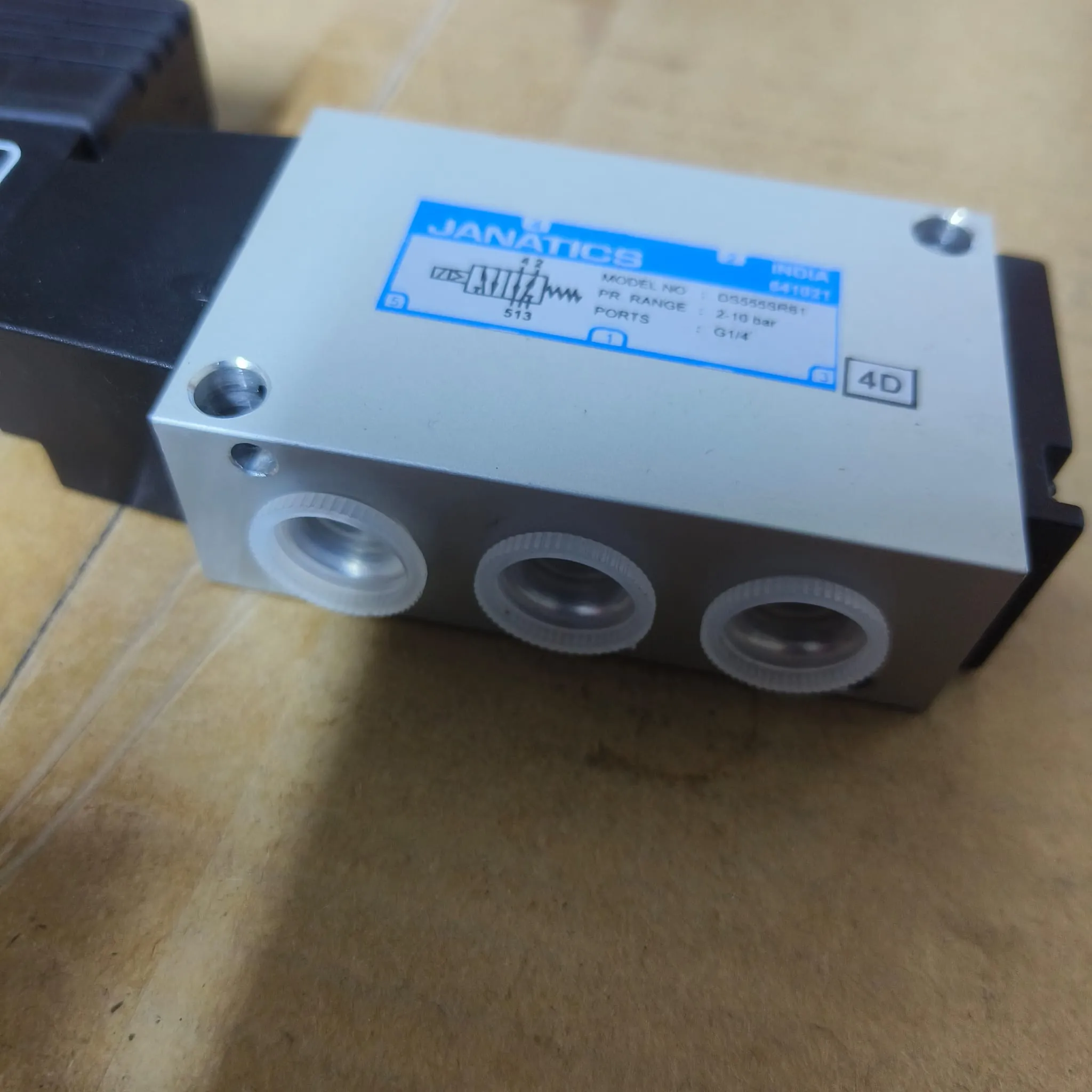

- The G 1/4" threaded ports allow straight forward connection to the pneumatic circuit.
- Provides a nominal flow rate of 1000 L/min for reliable pneumatic operation.
- Operates within a working pressure range of 2 to 10 bar.
- The push-and-turn manual override can be locked during setup, testing or servicing.
- The IP65-rated coil is protected against dust and water jets when correctly installed.
- Made in India.
Applications
- Double-acting pneumatic cylinders
- Rotary pneumatic actuators
- Machine automation systems
- Packaging and assembly equipment
- Pneumatic control panels
Specifications
SeriesDS5
Valve TypeSpool Type
Valve Function5/2 way
Port SizeG 1/4"
Coil Voltage220 V AC
Electrical ConnectionPG9 Coil Connector
Power Consumption6 VA
Working Pressure Range2 to 10 bar
Ingress ProtectionIP65
