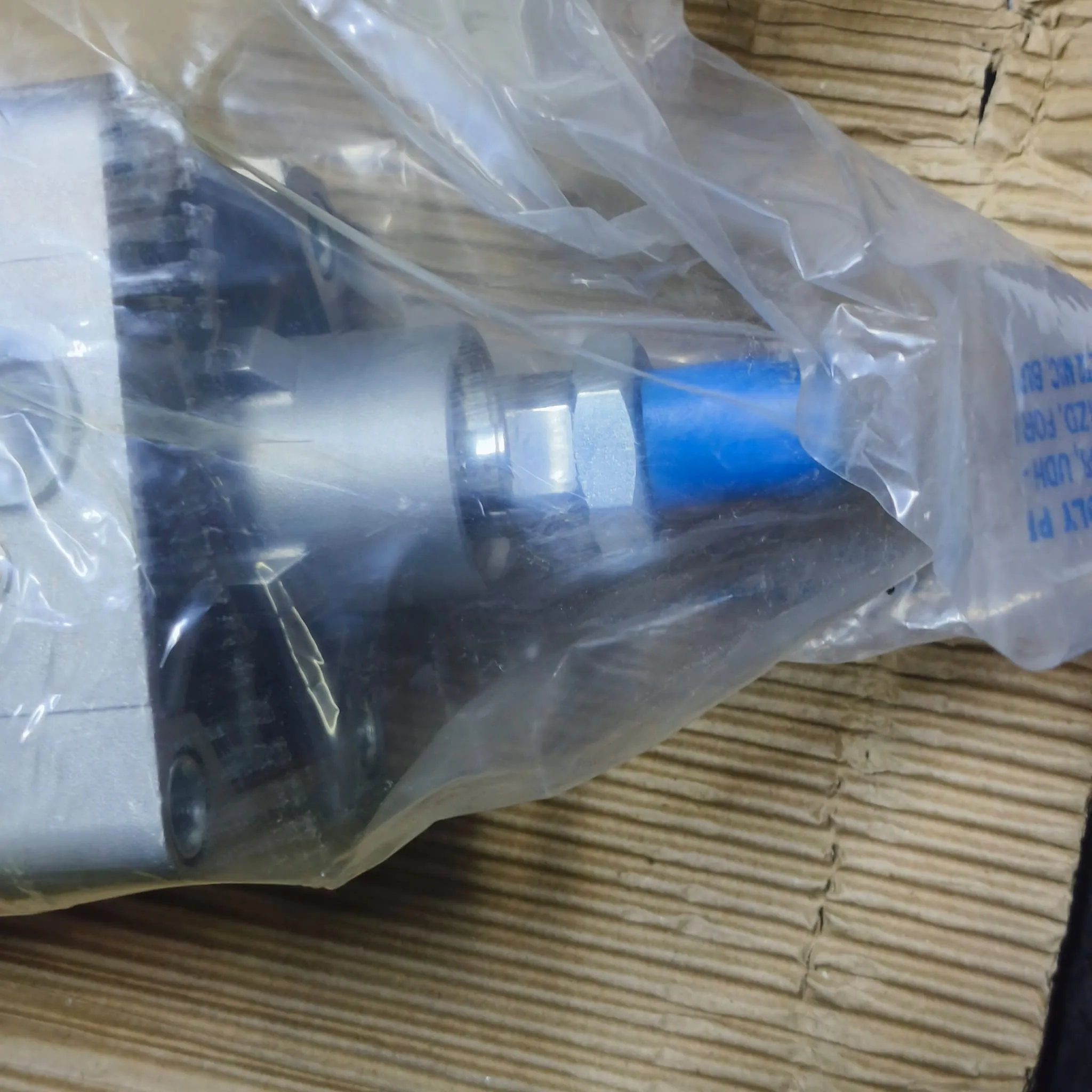

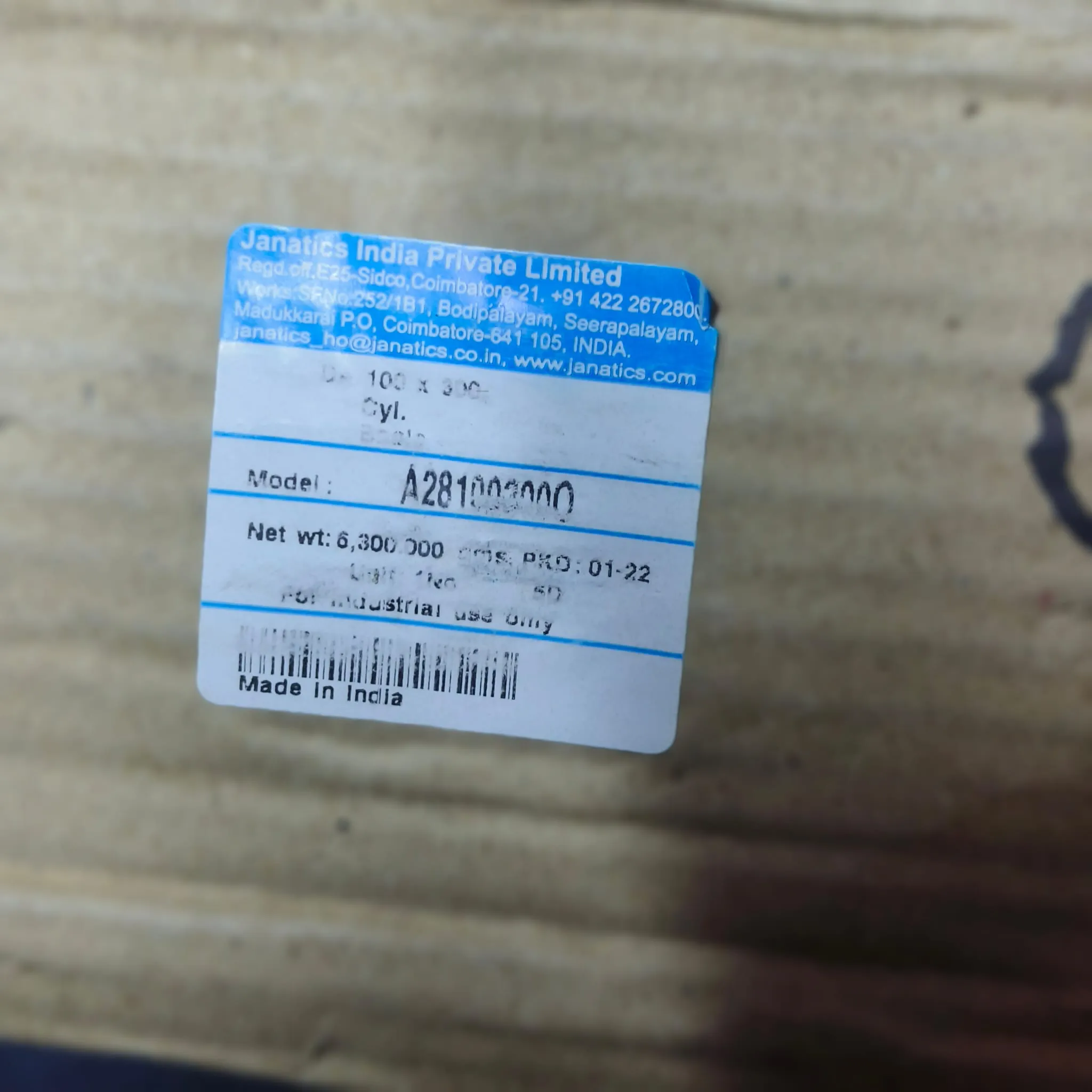

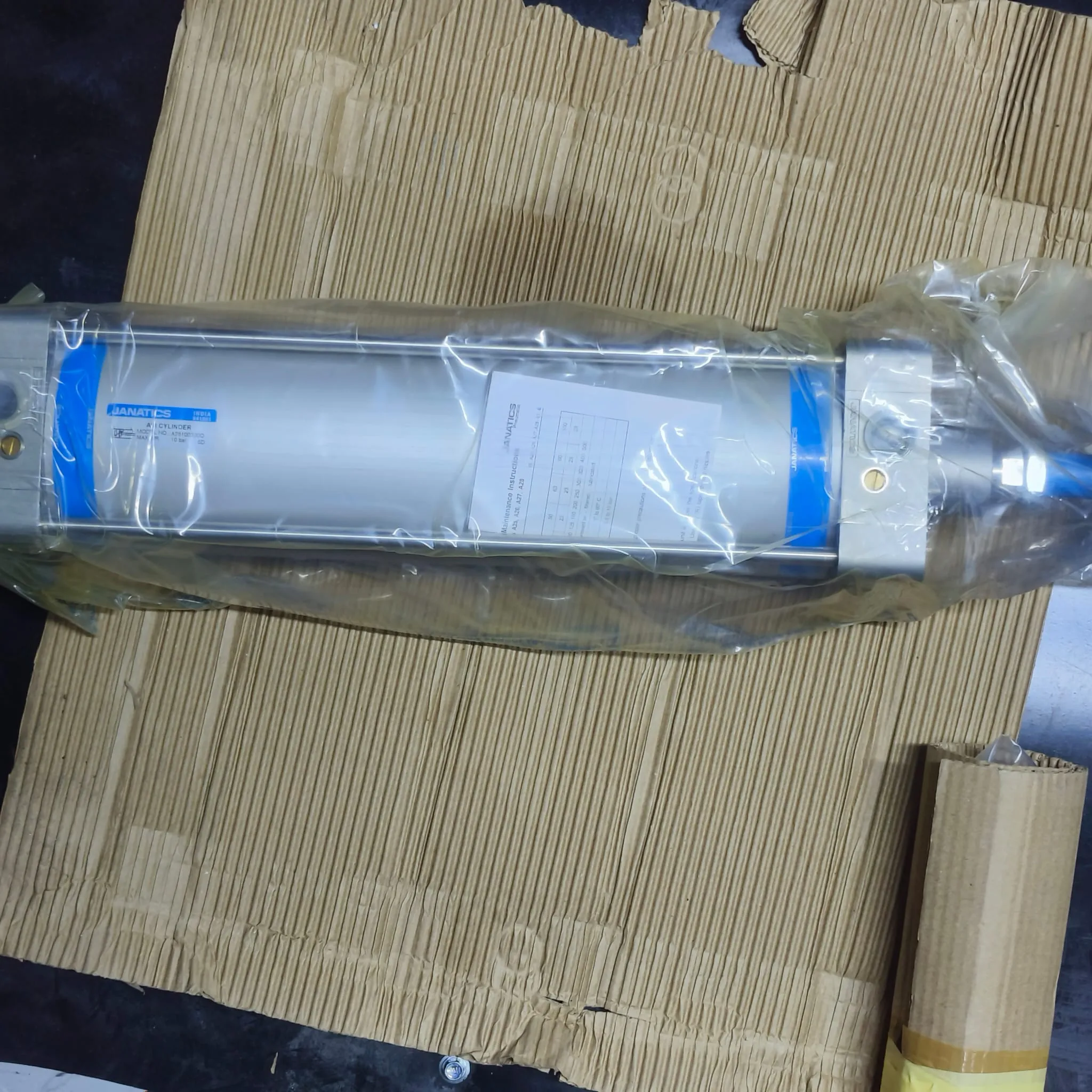

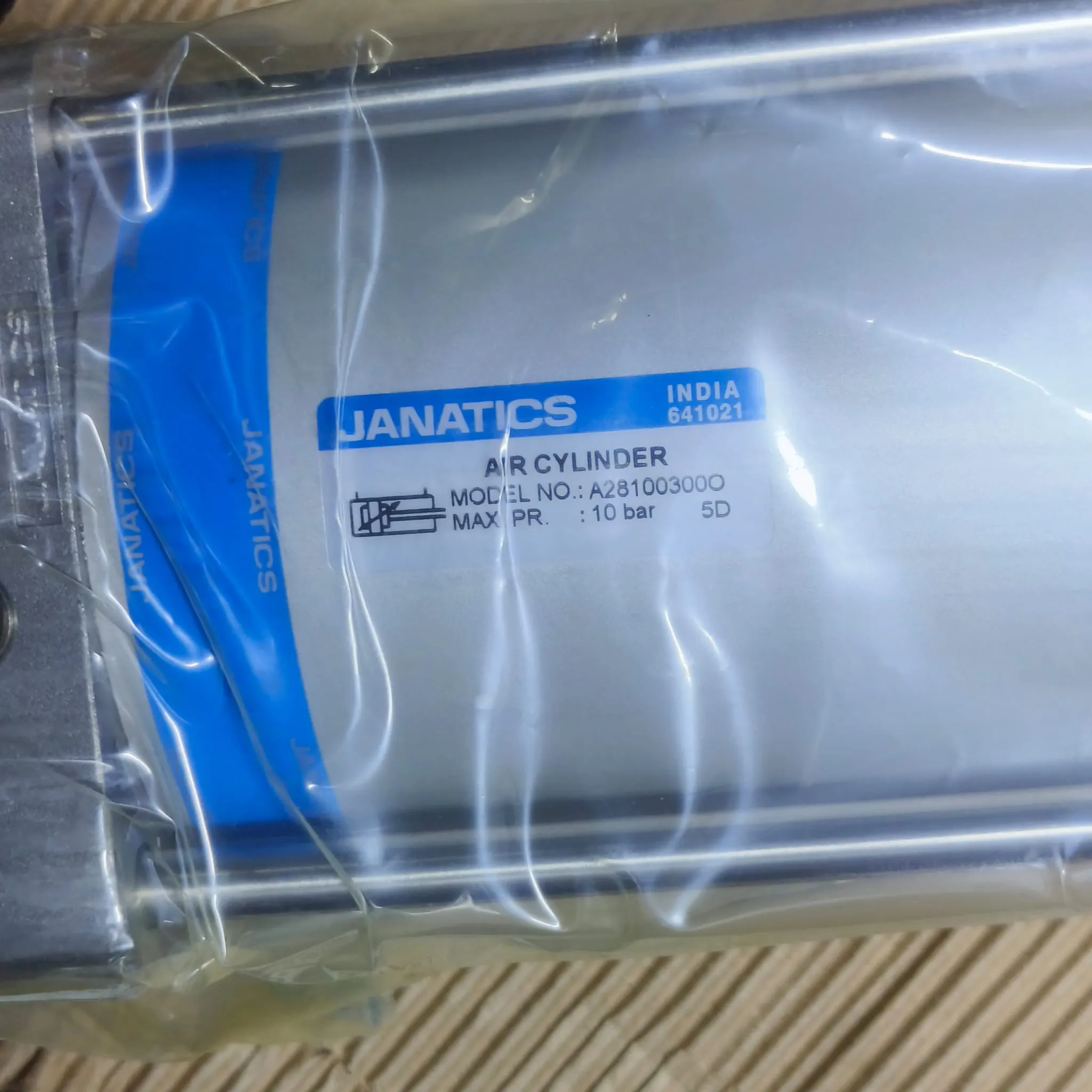

Janatics A28 Series Tie Rod Pneumatic Cylinder, Bore Diameter 100 mm, Stroke 300 mm, Double Acting Non-Magnetic Piston, A28100300O
- Mfr. part no.
- A28100300O
- SKU
- PN-CYLA28-100300
Specifications
| Series | A28 Series |
|---|---|
| Port Size | G1/2 |
| Bore Diameter | 100 mm |
| Stroke Length | 300 mm |
| Action Type | Double Acting |
| Piston Type | Non-Magnetic Piston |
| Cushioning | Adjustable Cushioning |
| Working Pressure Range | 0.5 to 10 bar |
| Ambient Temperature Range | -10 °C to +60 °C |
| Piston Rod Diameter | 25 mm |
| Piston Rod End | M20 × 1.5 Thread |
| Compliance Standards | ISO 15552 / VDMA 24562 |
Key Features
- Tie rod cylinder construction provides dependable linear pneumatic actuation.
- Double acting operation supports controlled forward and return strokes using compressed air.
- Cushioned end travel helps reduce impact during repeated cycling.
- Rigid body construction is suitable for industrial automation environments.
- Compatible mounting arrangements support integration into machine frames and fixtures.
- Made in India.
Description
The Janatics A28 Series is a tie rod type non-magnetic pneumatic cylinder for heavy and general machine movements where position sensing is not needed. It is a double acting linear pneumatic actuator with a 100 mm bore and 300 mm stroke, without magnetic piston feedback, and includes adjustable cushioning at both ends with elastomer pads to help soften the piston impact during cycling. The tie rod construction gives a strong and serviceable cylinder body for industrial installations and wider mounting arrangements. It is suitable for pushing, pulling, clamping, lifting and positioning duties in material handling, packaging machinery, fixtures, conveyors and production equipment, with G3/8 pneumatic air port thread.
Applications
- Machine tools, production machines and automation systems.
- Pressing, lifting, pushing, pulling and positioning operations.
- Material handling, packaging and fixture movement.
- Replacement use in industrial pneumatic actuator assemblies.
