Janatics A27 Series Tie Rod Pneumatic Cylinder, Bore Diameter 100 mm, Stroke 300 mm, Double Acting Magnetic Piston, A27100300O
- Mfr. part no.
- A27100300O
- SKU
- PN-CYLA27-100300
Specifications
| Series | A27 Series |
|---|---|
| Port Size | G1/2 |
| Bore Diameter | 100 mm |
| Stroke Length | 300 mm |
| Action Type | Double Acting |
| Piston Type | Magnetic Piston |
| Cushioning | Adjustable Cushioning |
| Working Pressure Range | 0.5 to 10 bar |
| Ambient Temperature Range | -10 °C to +60 °C |
| Piston Rod Diameter | 25 mm |
| Piston Rod End | M20 × 1.5 Thread |
| Compliance Standards | ISO 15552 / VDMA 24562 |
Key Features
- Tie rod cylinder construction provides dependable linear pneumatic actuation.
- Double acting operation supports controlled forward and return strokes using compressed air.
- Cushioned end travel helps reduce impact during repeated cycling.
- Rigid body construction is suitable for industrial automation environments.
- Compatible mounting arrangements support integration into machine frames and fixtures.
- Made in India.
Description

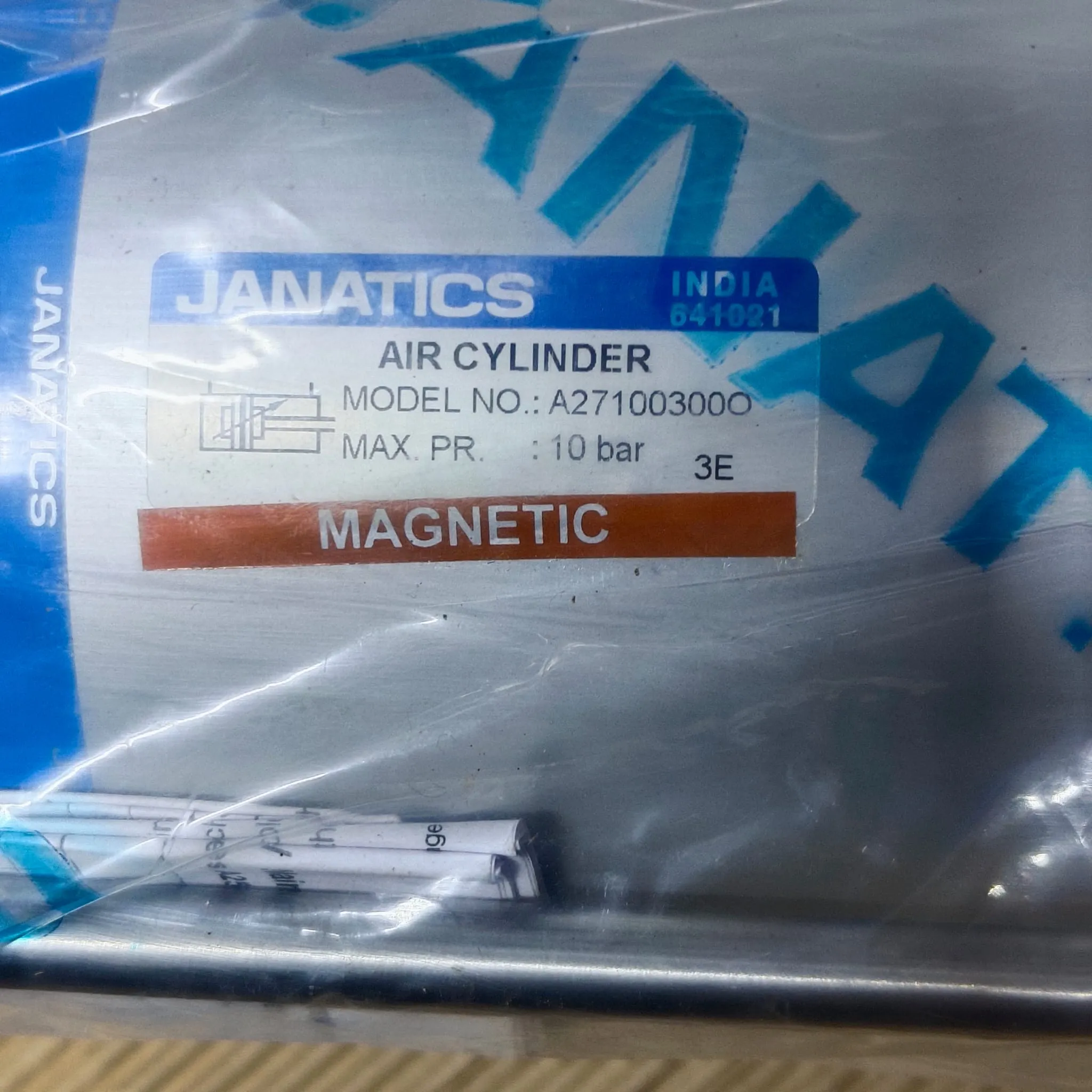

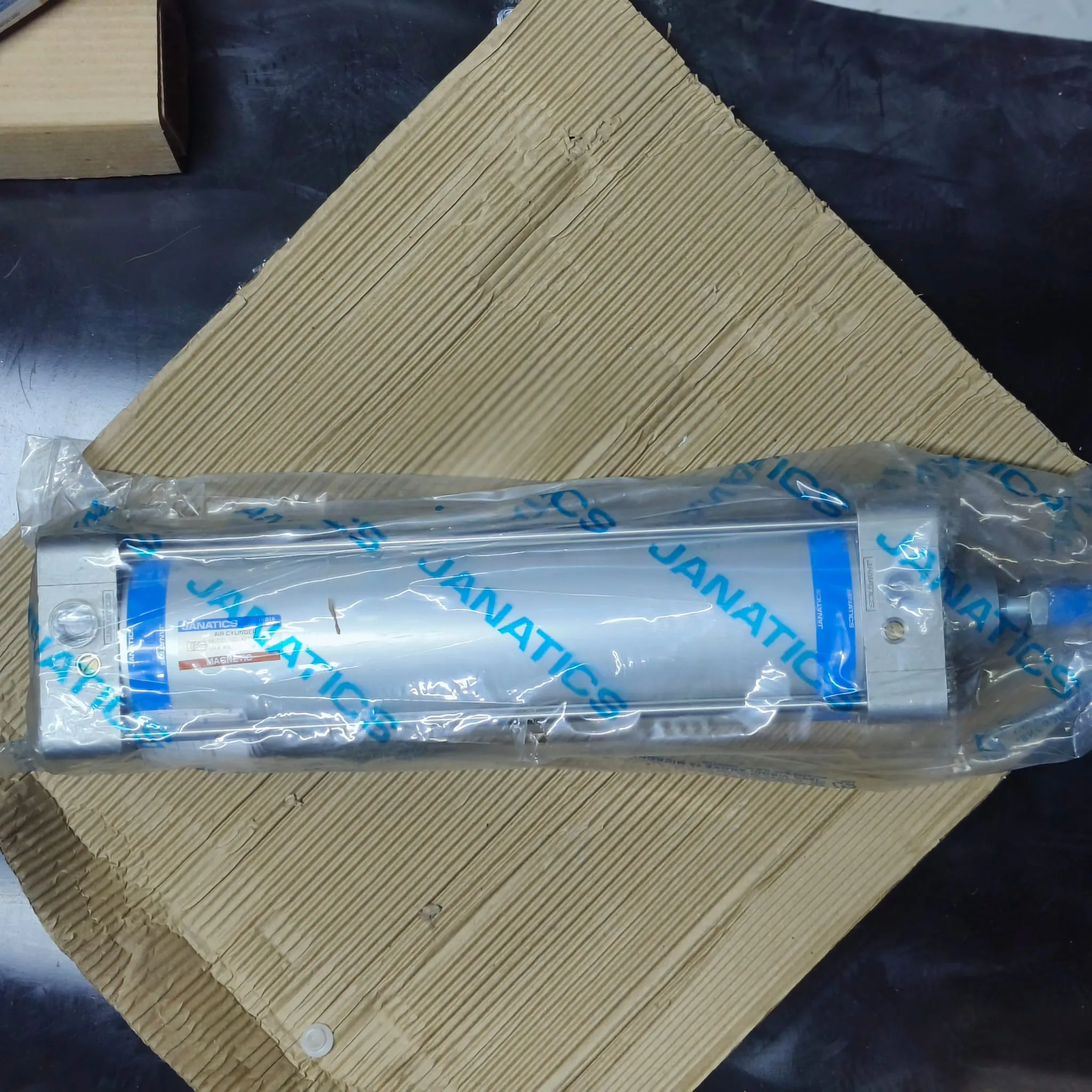

The Janatics A27 Series is a tie rod type magnetic pneumatic cylinder for industrial automation where a robust actuator body and piston position feedback are required. It is a double acting linear pneumatic actuator with a 100 mm bore and 300 mm stroke, with magnetic piston sensing for compatible switches and adjustable cushioning at both ends with elastomer pads for smoother movement at stroke completion. The tie rod design provides dependable cylinder assembly and allows the actuator to be mounted in heavier machine, fixture and handling applications. It is suitable for machine tools, presses, conveyors, material handling systems, fixture movement and other repetitive pneumatic actuator duties, with G3/8 pneumatic air port thread.
Applications
- Machine tools, production machines and automation systems.
- Pressing, lifting, pushing, pulling and positioning operations.
- Material handling, packaging and fixture movement.
- Replacement use in industrial pneumatic actuator assemblies.
