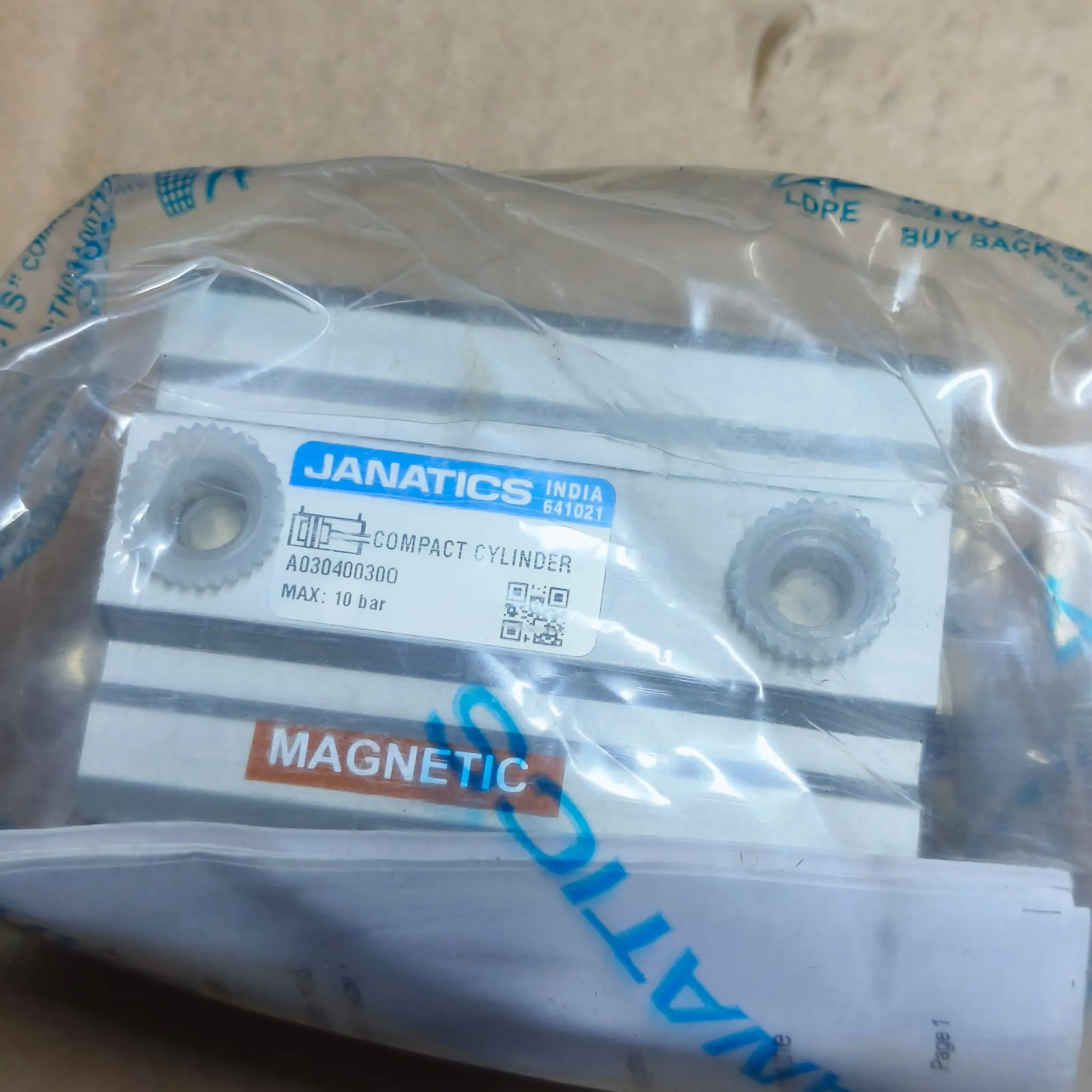

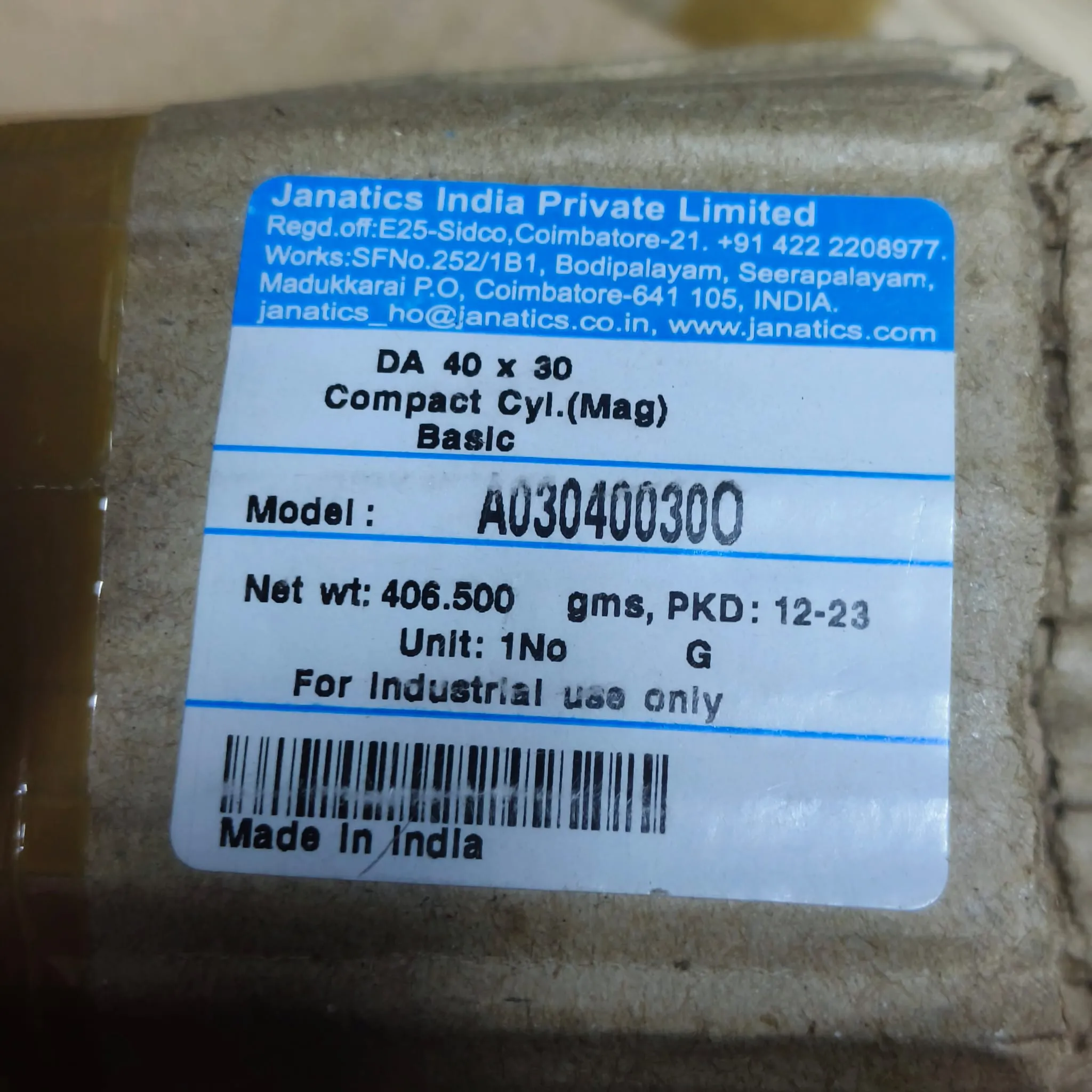

Janatics A03 Series Compact Pneumatic Cylinder, Bore Diameter 40 mm, Stroke 30 mm, Double Acting Magnetic Piston, A03040030O
Technical overview
The Janatics A03 Series is a compact magnetic pneumatic cylinder for applications where the actuator must fit close to the machine frame or fixture. It is a double acting linear pneumatic actuator with a 40 mm bore and 30 mm stroke, designed for short and controlled push-pull movement in tight pneumatic automation spaces. The compact, lightweight body gives useful clamping force for its size, with magnetic piston position detection for compatible external sensors, and elastomer end cushioning to reduce impact at the end of stroke. It is suitable for jigs, fixtures, SPMs, packaging machines, light machine automation and other compressed-air actuator duties where a compact cylinder is preferred, with G1/8 pneumatic air port thread.
Key Features
- Compact body design supports pneumatic actuation in restricted installation spaces.
- Double acting operation provides controlled forward and return movement using compressed air.
- Magnetic piston construction allows external position sensing with compatible sensors.
- Elastomer end cushioning helps reduce impact at the end of stroke.
- Suitable for machine automation, clamping and light-duty handling systems.
- Made in India.
Applications
- Compact machine automation and special purpose machinery.
- Clamping, pushing, lifting and transfer mechanisms.
- Packaging, assembly and small fixture actuation.
- Replacement use in pneumatic actuator systems requiring a short cylinder body.
Specifications
SeriesA03 Series
Port SizeG1/8
Bore Diameter40 mm
Stroke Length30 mm
Action TypeDouble Acting
Piston TypeMagnetic Piston
CushioningElastomer End Cushioning
Working Pressure Range0.5 to 10 bar
Ambient Temperature Range-10 °C to +60 °C
Piston Rod Diameter16 mm

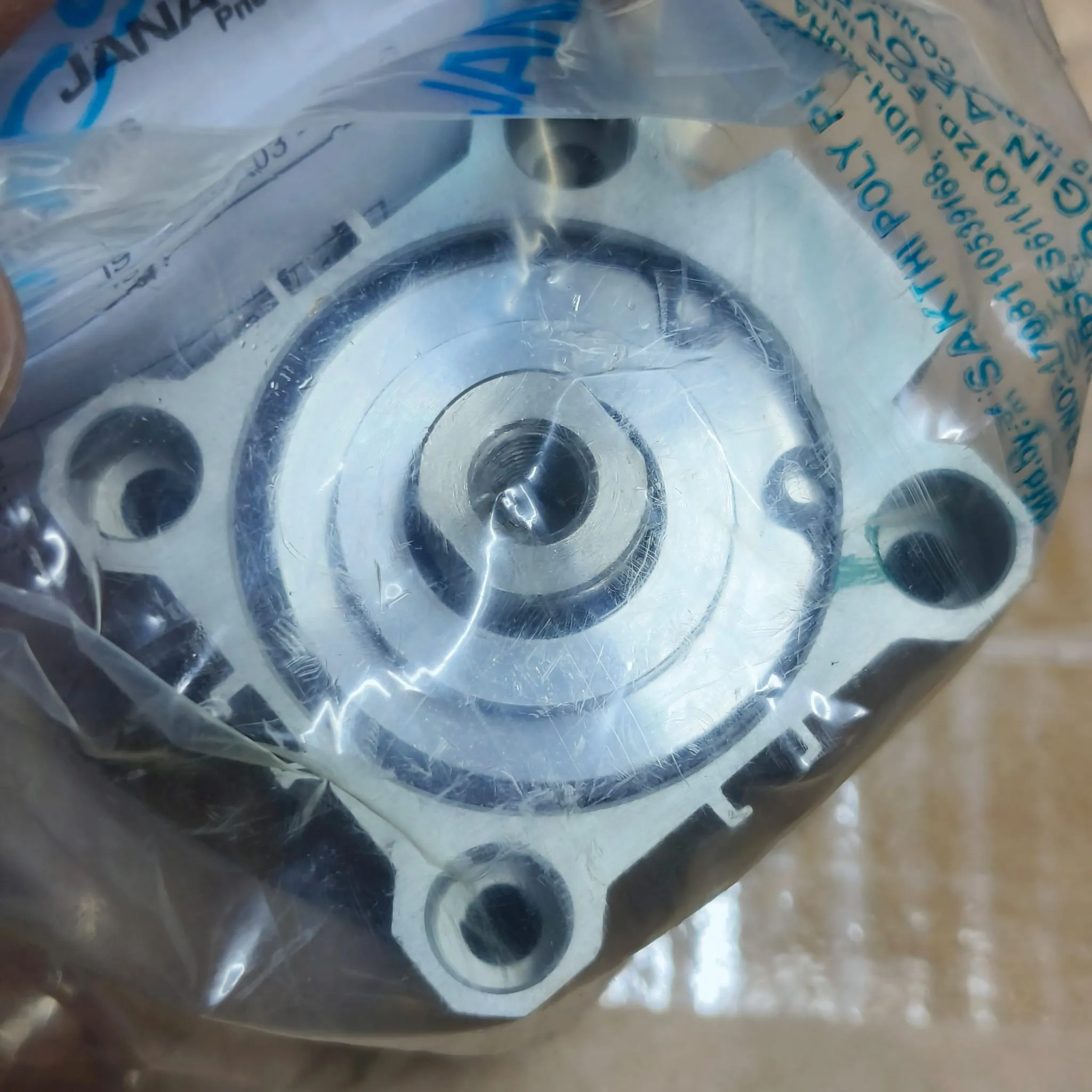

Piston Rod EndM12 × 1.25 Female Thread
