DK-LOK VH36 Series High Pressure Check Valve, 6,000 psig, 1/4" Tube OD Connections, SS316, VH36A-D-4T-3-S
Part no. VH36A-D-4T-3-S
In stock, 5 available
| Series | VH36B |
|---|---|
| Connection Size | 3/8" Tube OD |
| Maximum Pressure | 6,000 psig |
| Nominal Cracking Pressure | 3 psig |
| Body Material | 316 stainless steel (SS316) |
| Seal Material | FKM (Viton) |
| Temperature Range | -10 to 400 °F (-23 to 204 °C) |
| Part no. | Maximum Pressure | Connection Size |
|---|---|---|
| VH36B-F-8N-3-S | 4,900 psig | 1/2" Female NPT |
| VH36B-F-6N-3-S | 5,300 psig | 3/8" Female NPT |
| VH36B-D-6T-3-S (This part) | 6,000 psig | 3/8" Tube OD |
| VH36B-D-8T-3-S | 6,000 psig | 1/2" Tube OD |
| VH36B-F-4N-10K-3-S | 10,000 psig | 1/4" Female NPT |
| VH36B-F-6N-10K-3-S | 10,000 psig | 3/8" Female NPT |
| VH36B-F-8N-10K-3-S | 10,000 psig | 1/2" Female NPT |
| VH36B-F-12N-10K-3-S | 10,000 psig | 3/4" Female NPT |
| VH36B-F-16N-10K-3-S | 10,000 psig | 1" Female NPT |

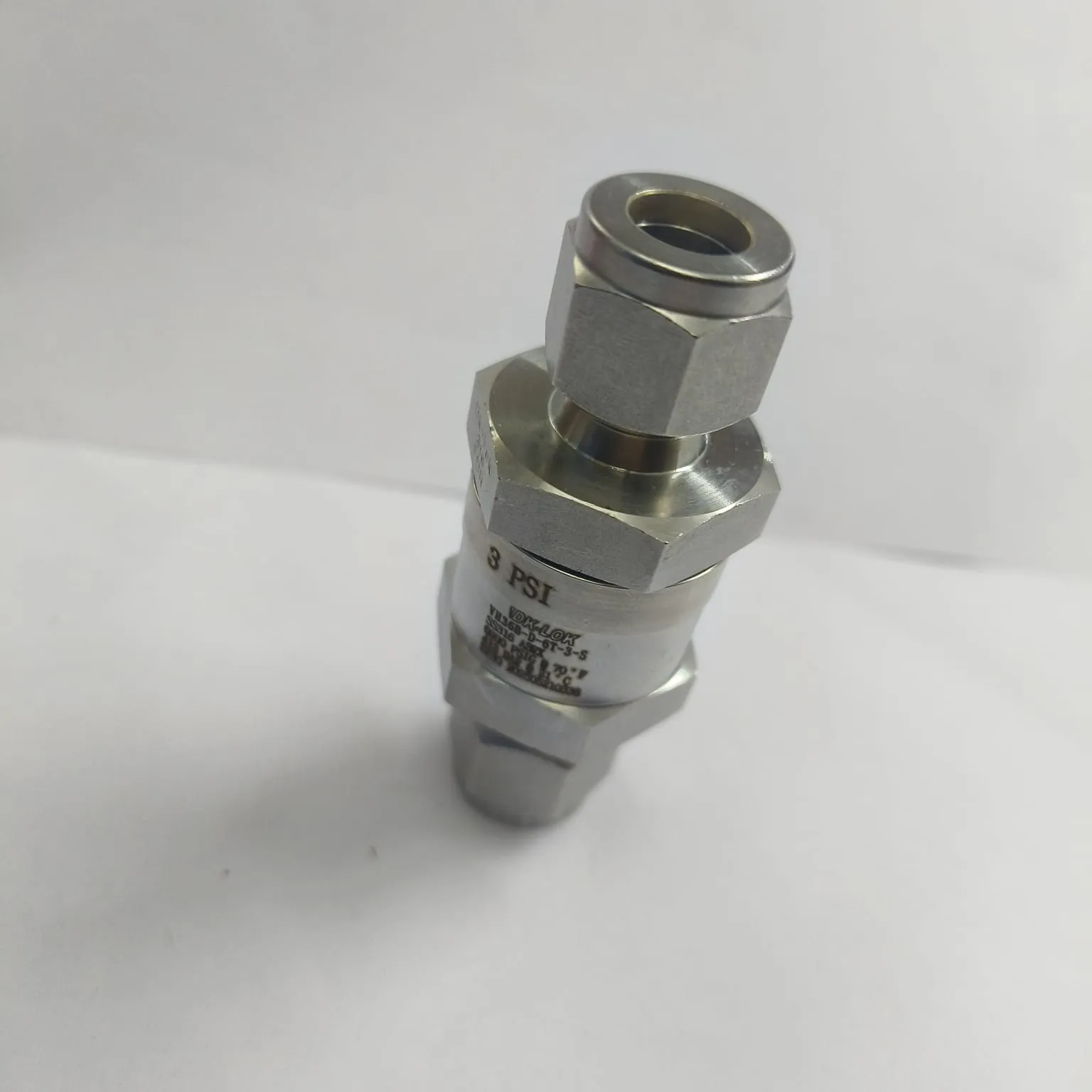

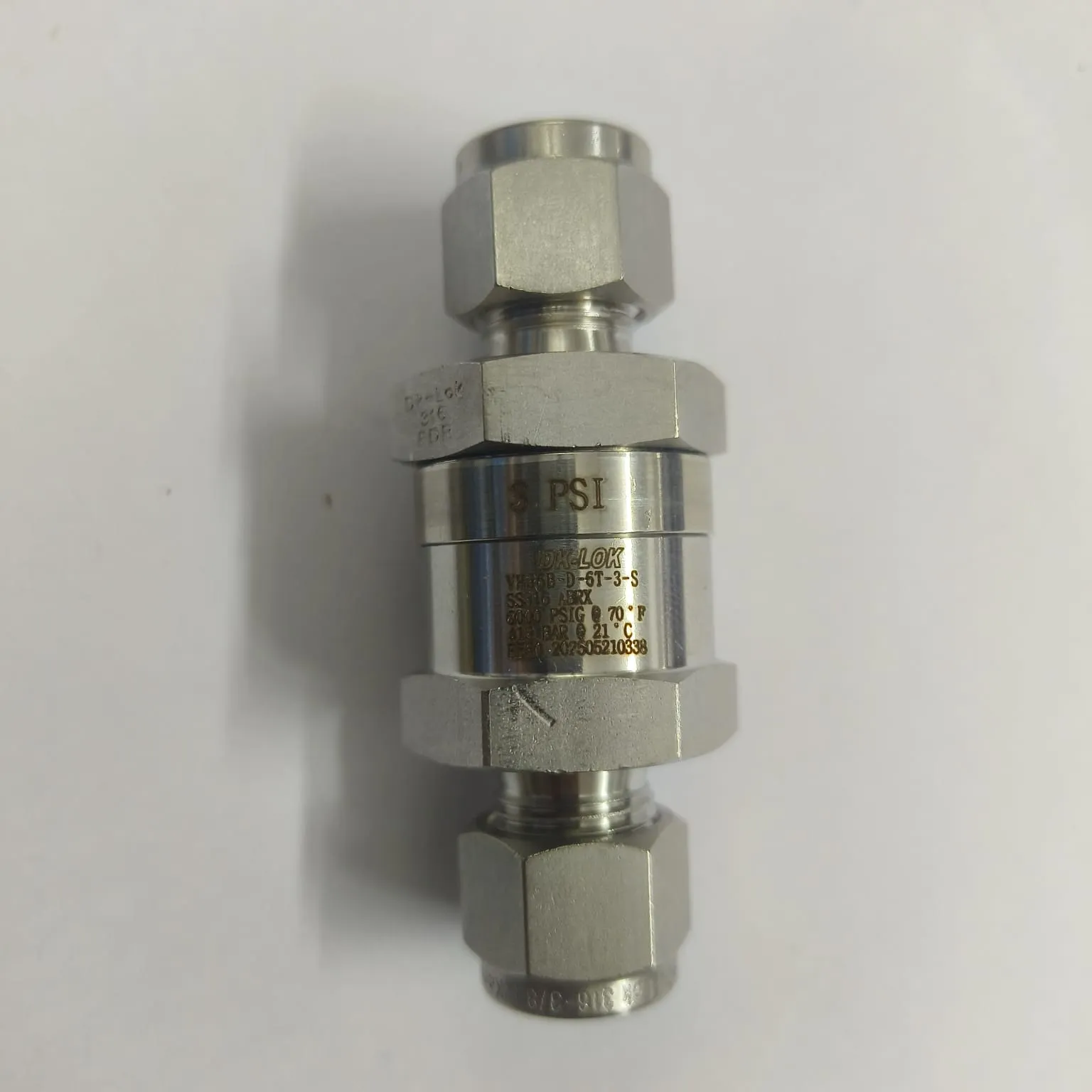

DK-LOK VH36B high pressure check valve (VH36B-D-6T-3-S) is designed for backflow prevention in high-pressure service. This SS316 check valve is rated up to 6,000 psig and uses a fixed nominal cracking pressure of 3 psig to open and allow forward flow while closing automatically when pressure reverses. The valve is suitable for compact panel or inline installation where reliable sealing, repeatable opening pressure, and corrosion resistance are required.
