Check Valves

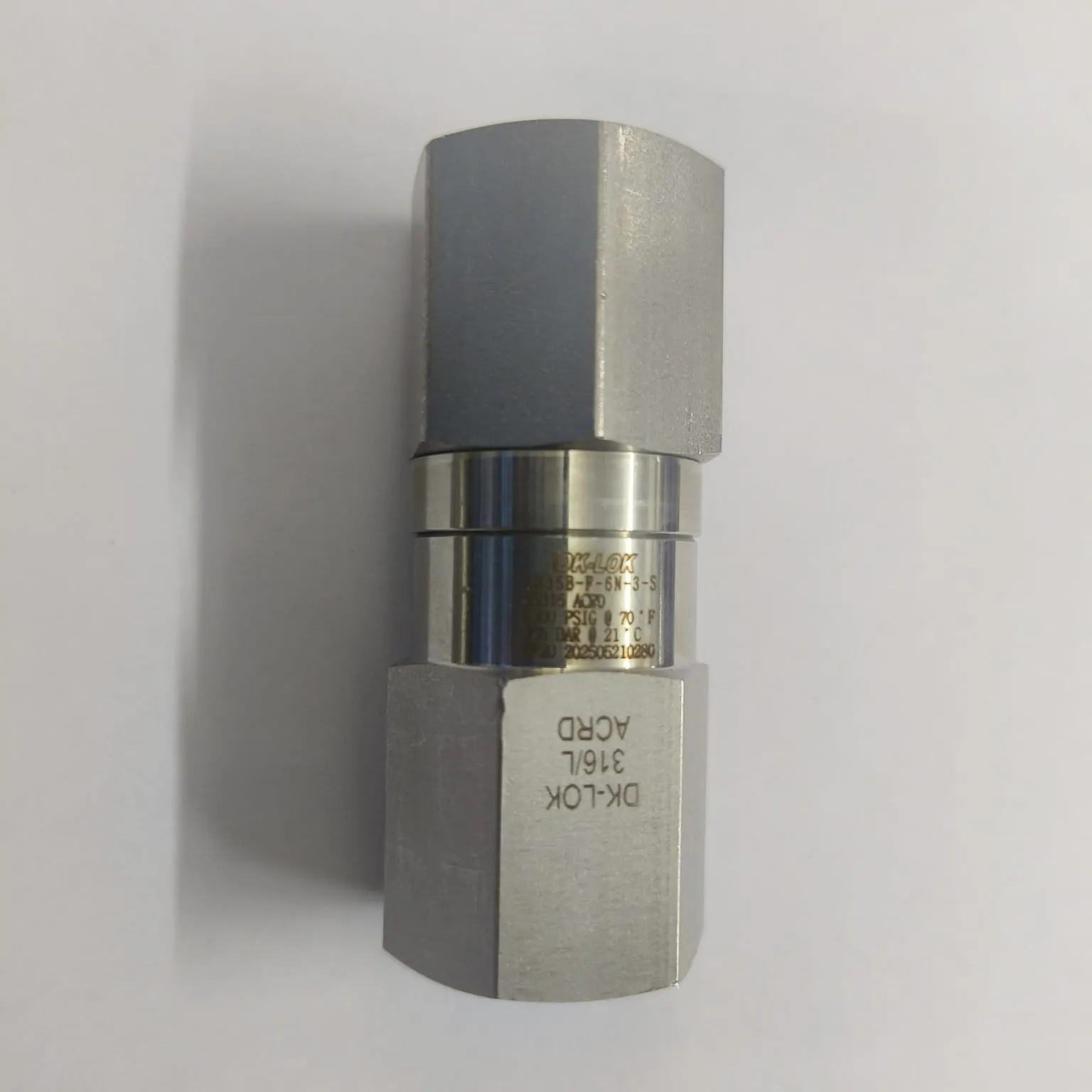

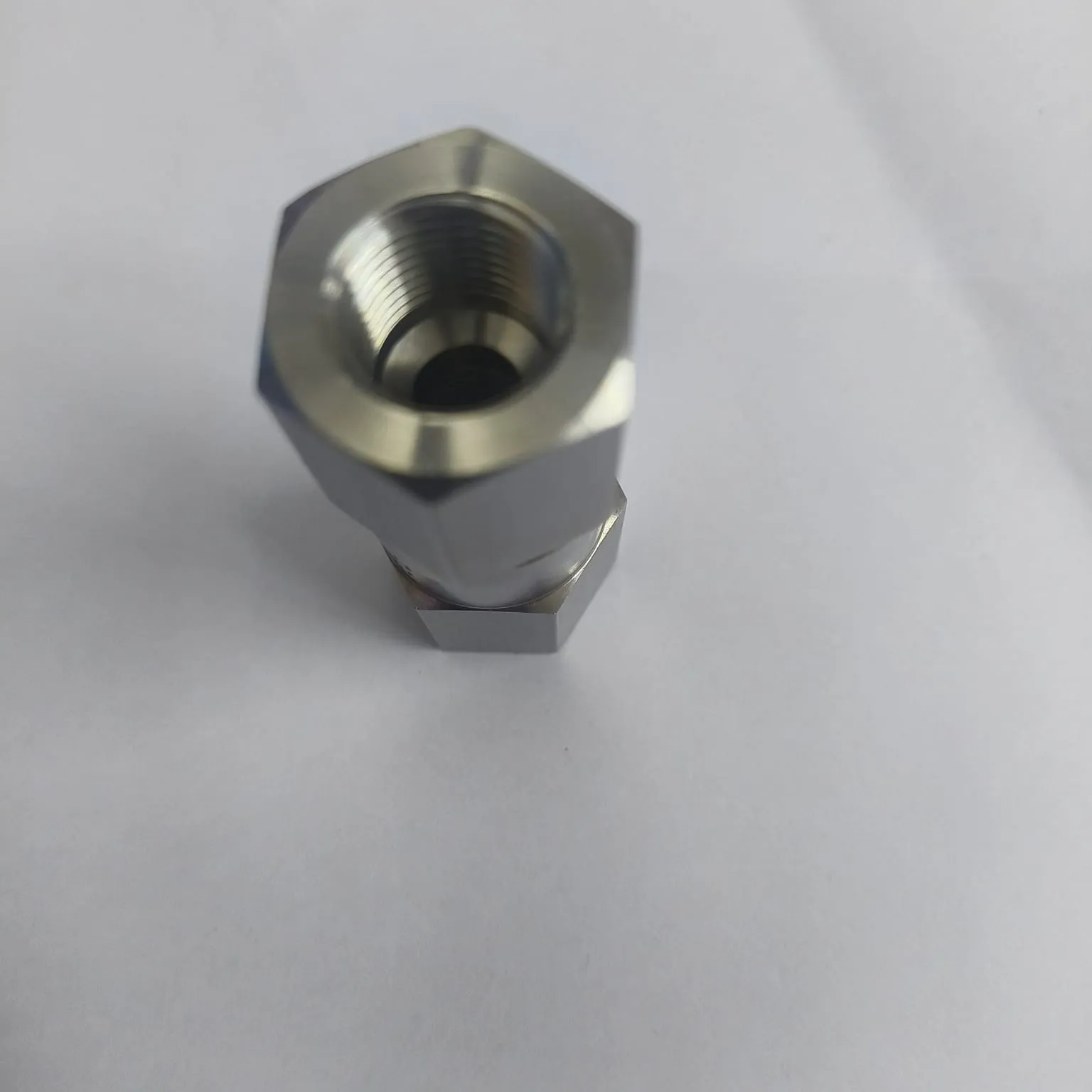

DK-LOK VH36 Series High Pressure Check Valve, 5,300 psig, 3/8" Female NPT Connections, SS316, VH36B-F-6N-3-S
DK-LOK

DK-LOK VH36 Series High Pressure Check Valve, 5,300 psig, 3/8" Female NPT Connections, SS316, VH36B-F-6N-3-S

Mfr. part no.
VH36B-F-6N-3-S
SKU
DK-SSCV-5.3K-06

Specifications

Series VH36B
Connection Size 3/8" Female NPT
Maximum Pressure 5,300 psig
Nominal Cracking Pressure 3 psig
Body Material 316 stainless steel (SS316)
Seal Material FKM (Viton)
Temperature Range -10 to 400 °F (-23 to 204 °C)

Key Features

  • Max working pressure 5,300 psig
  • Nominal cracking pressure 3 psig
  • SS316 stainless steel construction for corrosion resistance
  • Compact inline body for instrumentation and hydraulic routing
  • Female NPT end connections for secure installation

Description

DK-LOK VH36B high pressure check valve (VH36B-F-6N-3-S) is designed for backflow prevention in high-pressure service. This SS316 check valve is rated up to 5,300 psig and uses a fixed nominal cracking pressure of 3 psig to open and allow forward flow while closing automatically when pressure reverses. The valve is suitable for compact panel or inline installation where reliable sealing, repeatable opening pressure, and corrosion resistance are required.

Applications

  • Instrumentation impulse lines and gauge isolation
  • Hydraulic power units and high-pressure test stands
  • Sampling systems and utility distribution manifolds
  • Backflow protection for pumps, regulators, and transmitters

Documents

  • DK LOK-VH36 Series Check Valves — Catalog

    PDF, 1.5 MB
