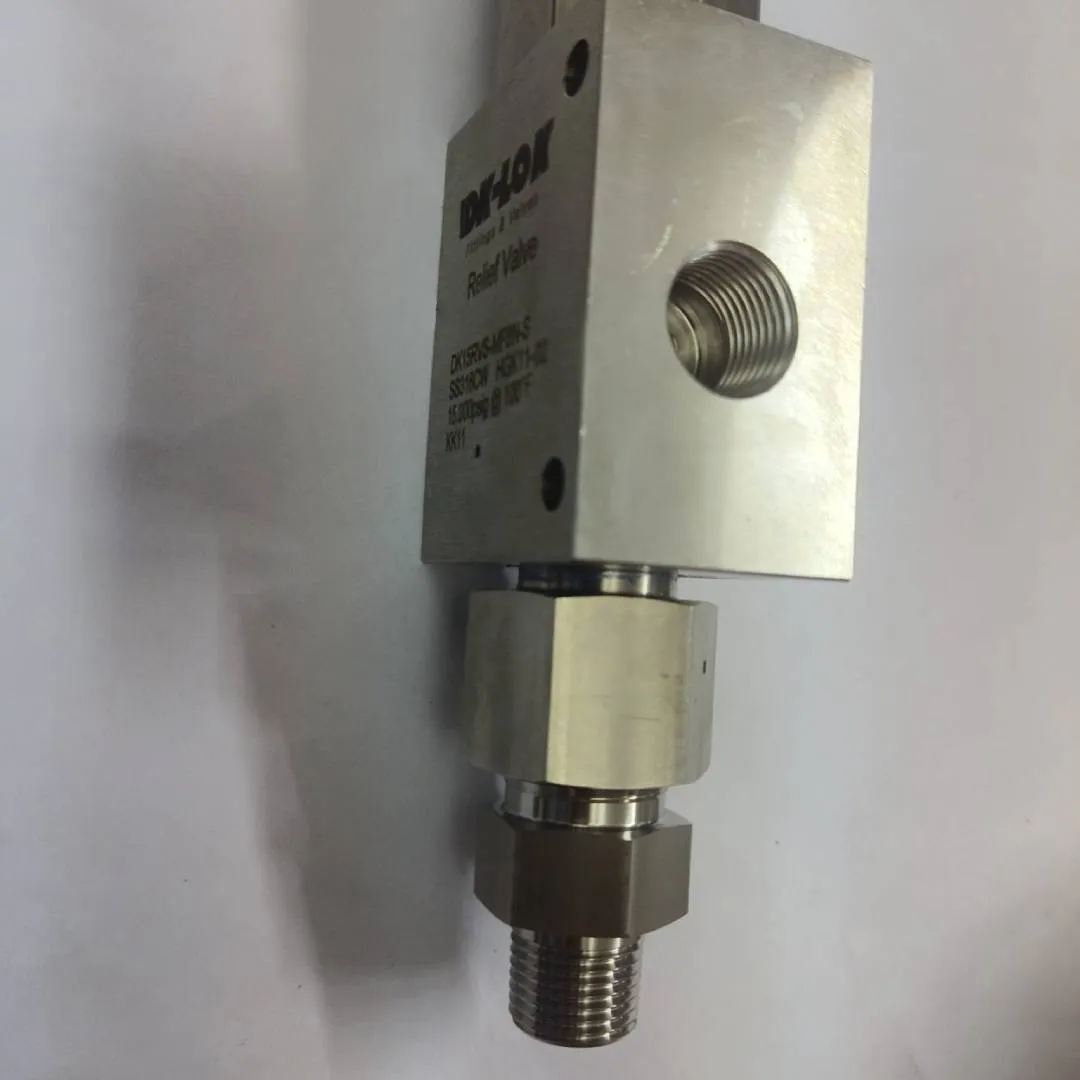

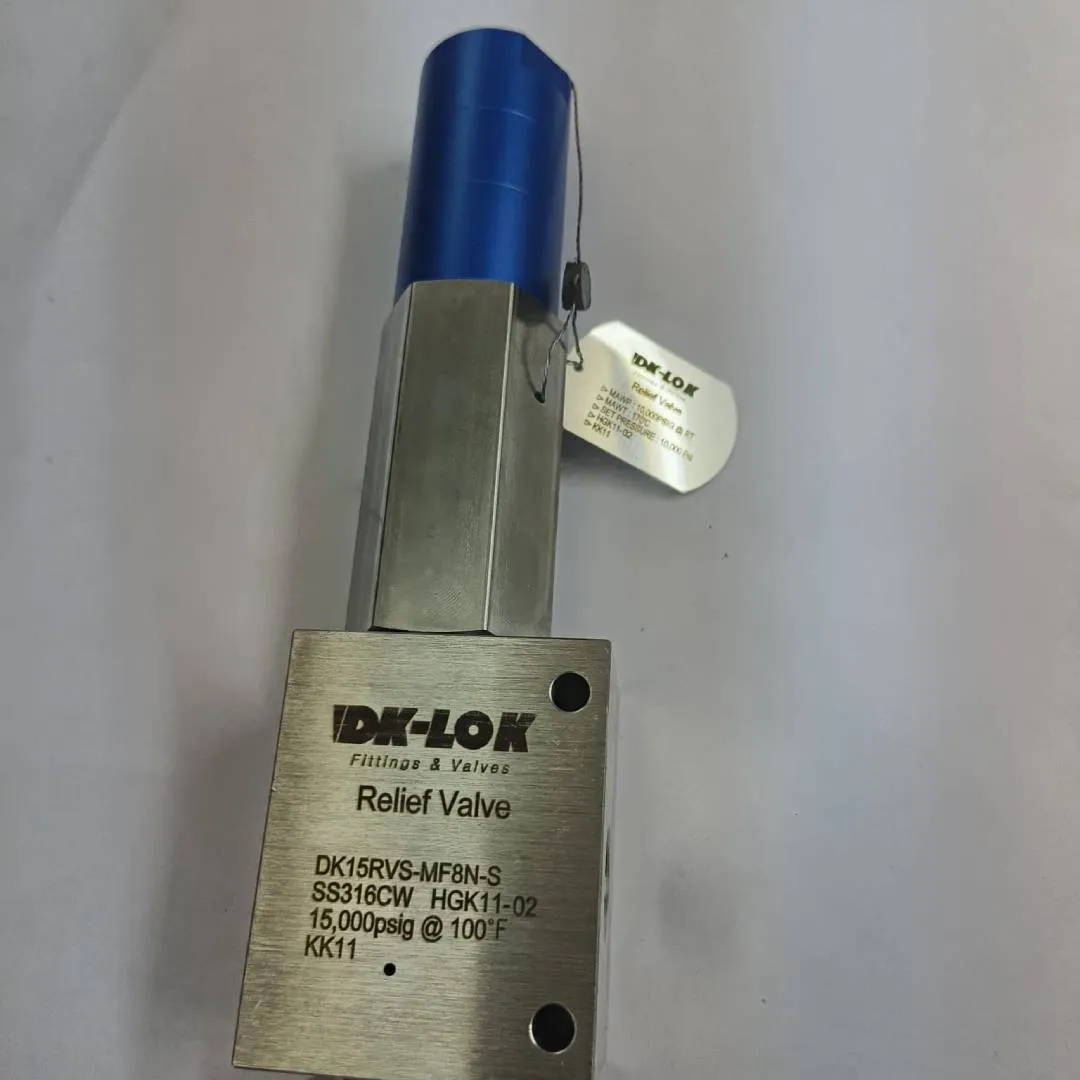

DK-LOK High-Pressure Relief Valve, Factory Set Pressure 10,000 psig, 1/2" Male x Female NPT Connections, SS316, DK15RVS-MF8N-S
All DK-LOK products
DK-LOK Safety/Pressure Relief Valves
All Safety/Pressure Relief Valves (every brand)
Technical overview
DK-LOK DK-RVS high pressure relief valve is a factory-set safety valve that discharges excess pressure when the system exceeds the set point, protecting instruments and downstream devices. This valve supplied is made in SS316 with 1/2" male x female NPT end connections (MF8N) and is factory set at 10,000 psig. It uses spring code KK11, which covers an adjustable spring range of 10,000–15,000 psig, allowing controlled setting within the spring range when required. The valve is sealed with a pressure tag after setting and is suitable for high-pressure hydraulic systems and test bench applications where stable relief and dependable reseal performance are required.
Key features

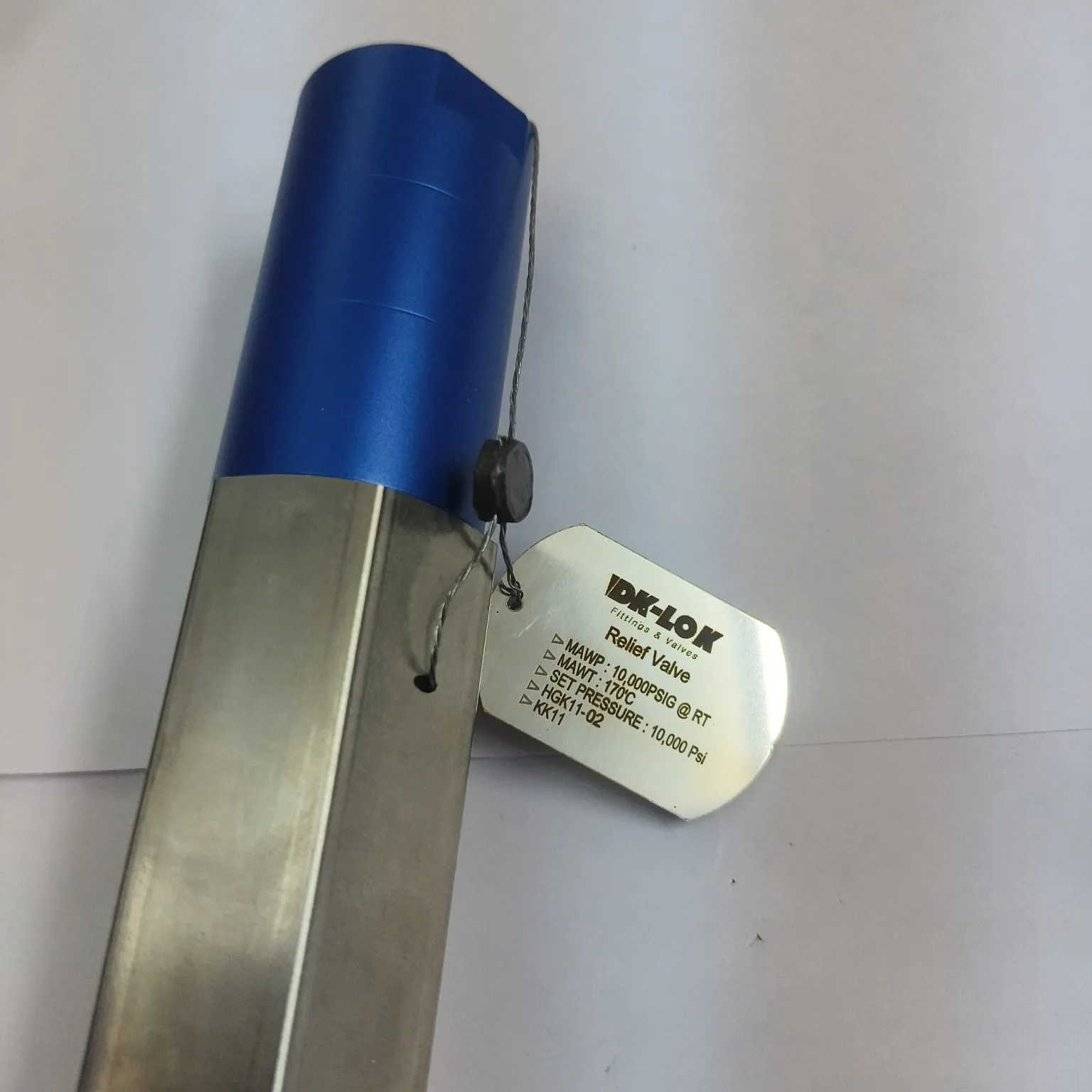

- Factory set and sealed with pressure tag
- Set cracking pressure 10,000 psig (factory set)
- Spring code KK11 with spring range 10,000–15,000 psig
- 1/2" male x female NPT end connections (MF8N)
- High-pressure relief protection for instruments and downstream devices
- Durable stainless steel construction for demanding service
Applications
- High-pressure hydraulic systems
- Pressure test benches and calibration rigs
- Protection of pumps, gauges, and pressure instruments
- Process skids and high-pressure utility lines
Specifications
SeriesDK-RVS High Pressure (Factory Set)
Connection Size1/2" Male x Female NPT (MF8N)
Body Material316 stainless steel
Nominal Cracking Pressure10,000 psig
Cracking Pressure Range10,000–15,000 psig
AdjustmentAdjustable within spring range
Accuracy±8%
Inlet Port9/16" (with adapter)
Temperature RangeUp to 170°C
Seat DesignMetal-to-metal contact
Seal MaterialViton
