Alco UN Series High-Pressure Needle Valve, 1/4" Female NPT, 10000 psi, SS316, UN2NS
Technical overview

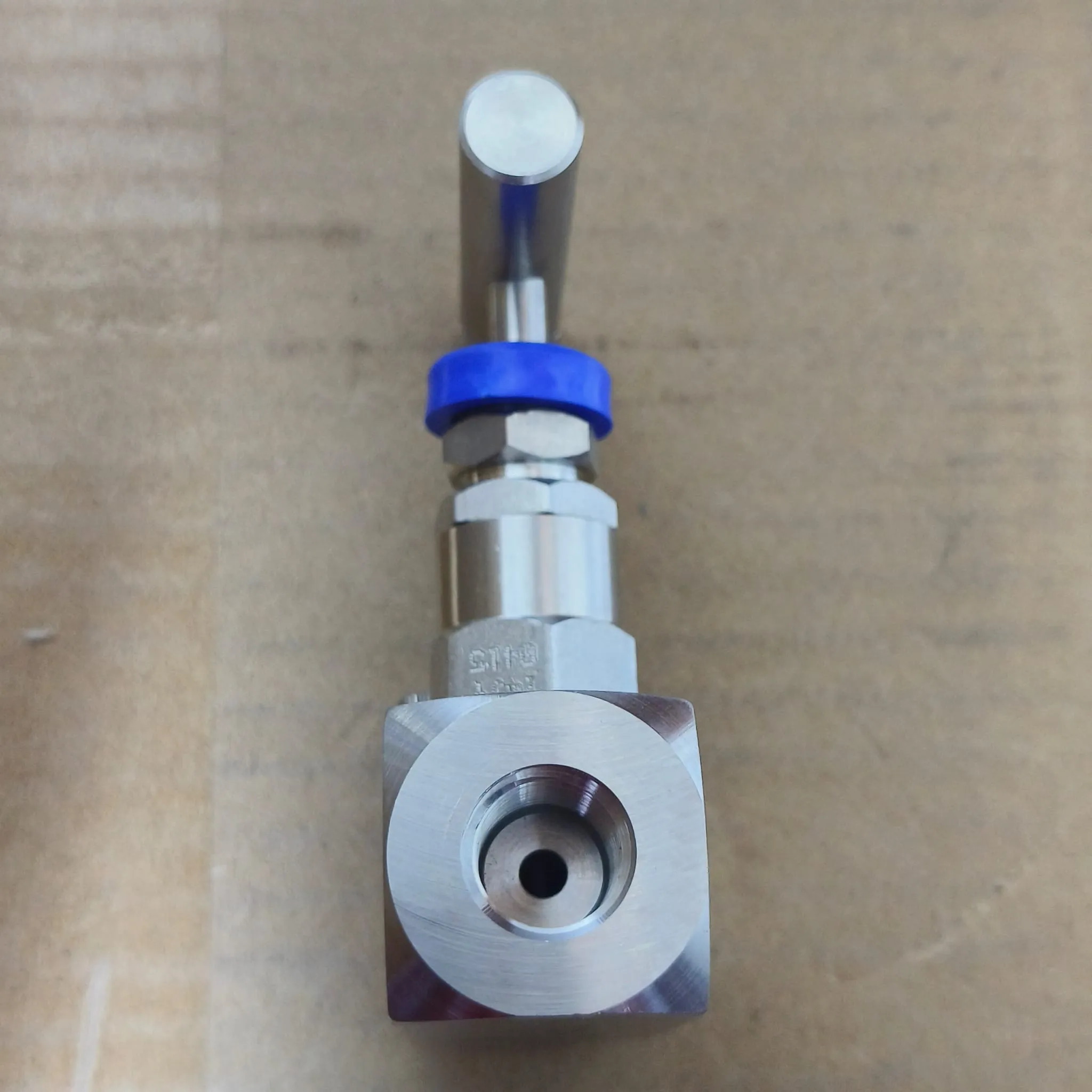

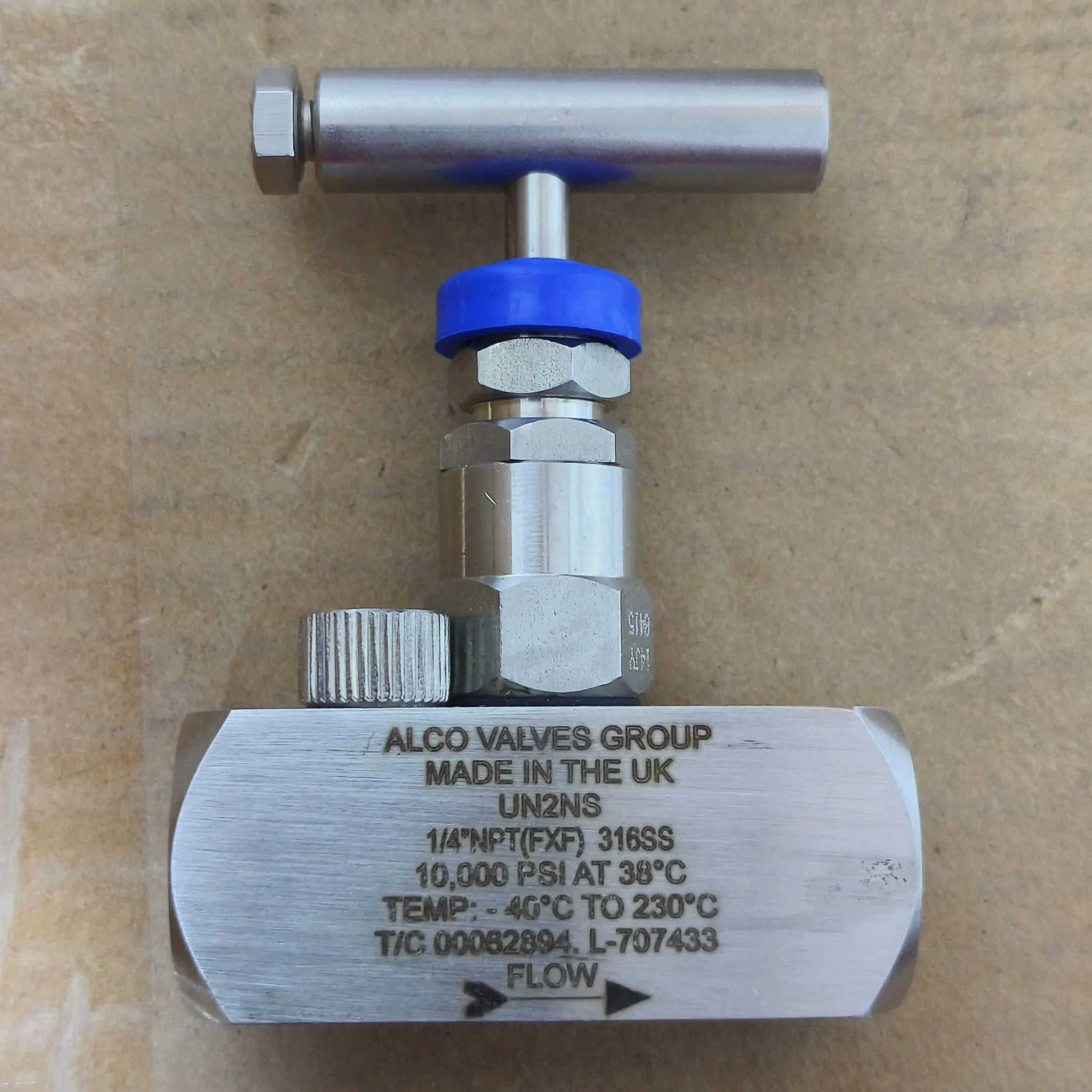

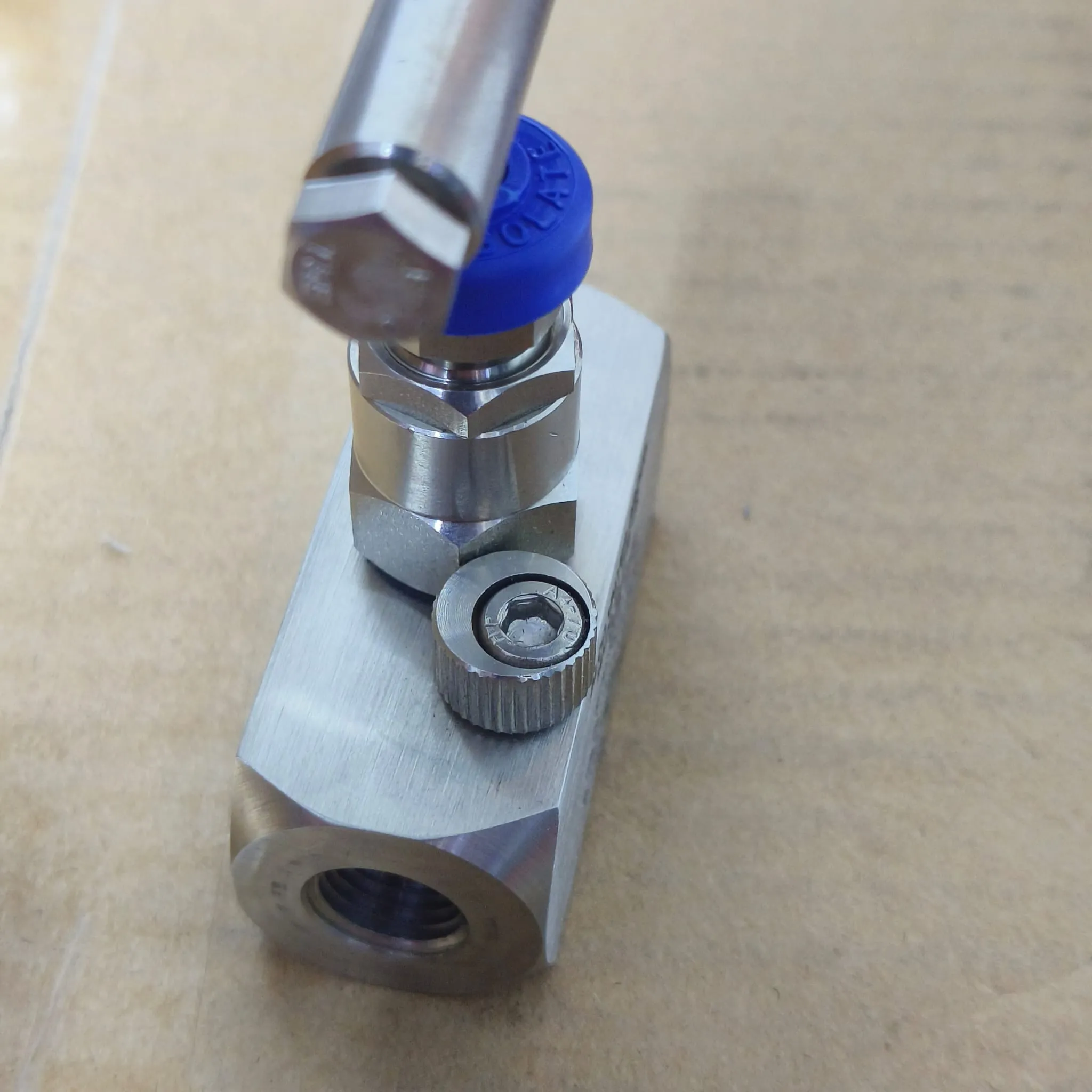

The Alco UN2NS is a 1/4" female NPT high-pressure needle valve rated to 10,000 psi at 38°C, with an operating temperature range of -40 to +230°C. It uses an SS316 straight-pattern body, metal-to-metal seat, hardened 17-4PH non-rotating tip, RTFE packing and a stainless steel T-bar handle. This compact valve is intended for precise throttling and positive isolation in demanding gauge, transmitter, sampling and high-pressure instrumentation lines.
Key Features
- Rated to 10000 psi at 38°C
- 1/4" Female NPT end connection
- Compact SS316 straight-pattern body
- Metal-to-metal seat for positive shutoff
- Hardened non-rotating tip helps reduce wear
- RTFE packing with back-sealing stem
- Made in UK.
Applications
- Gauge and pressure transmitter isolation
- Sampling panels and analyzer lines
- Chemical injection and dosing skids
- Hydraulic and pneumatic control lines
- High-pressure process isolation and throttling
Specifications
SeriesUN Series
Maximum Pressure10000 psi @ 38°C
Temperature Range-40 to +230°C
Connection Size1/4" Female NPT
Valve PatternStraight / inline
Body Material316 Stainless Steel
Packing MaterialRTFE
Orifice Size4 mm
Stem TipHardened non-rotating 17-4PH
