Needle Valves

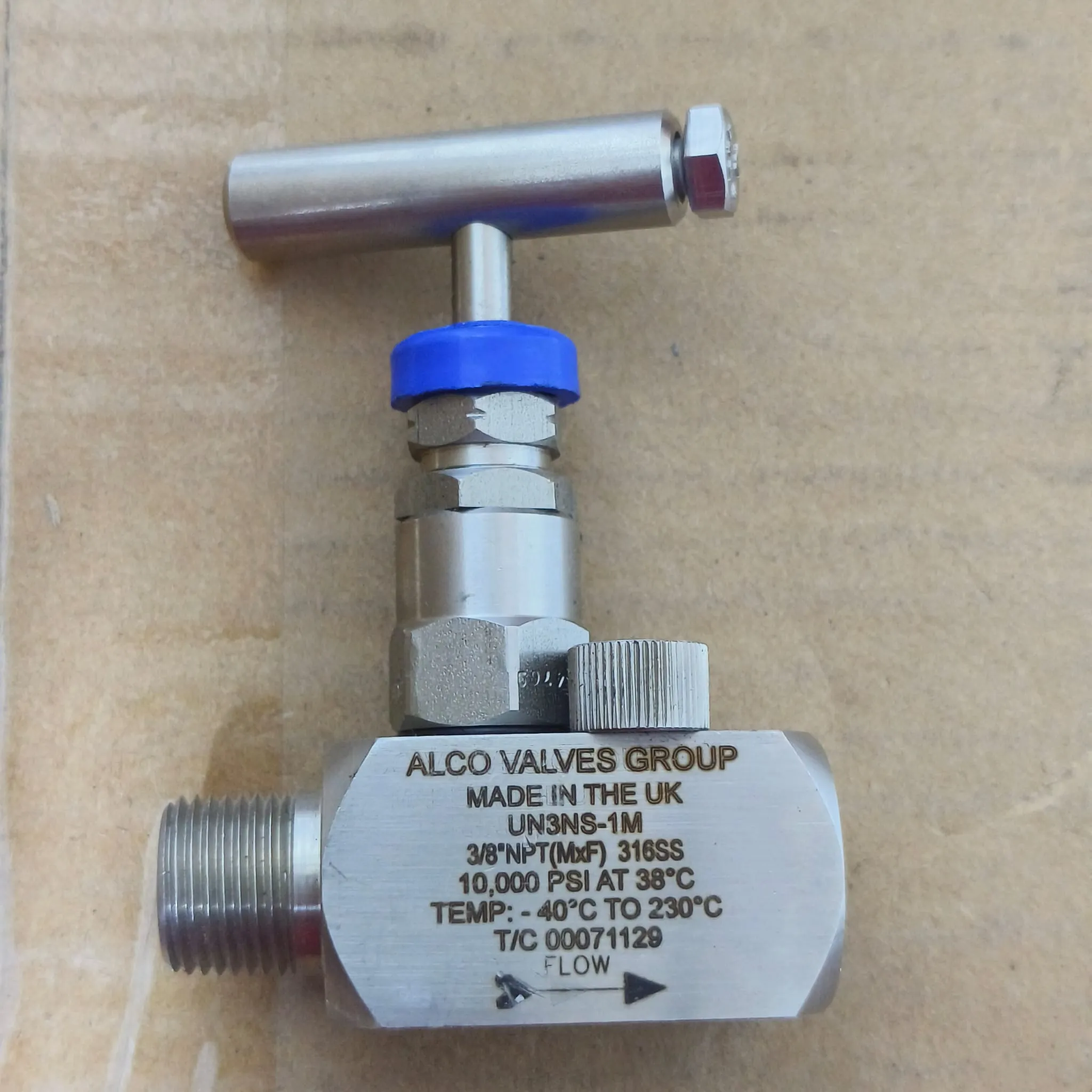

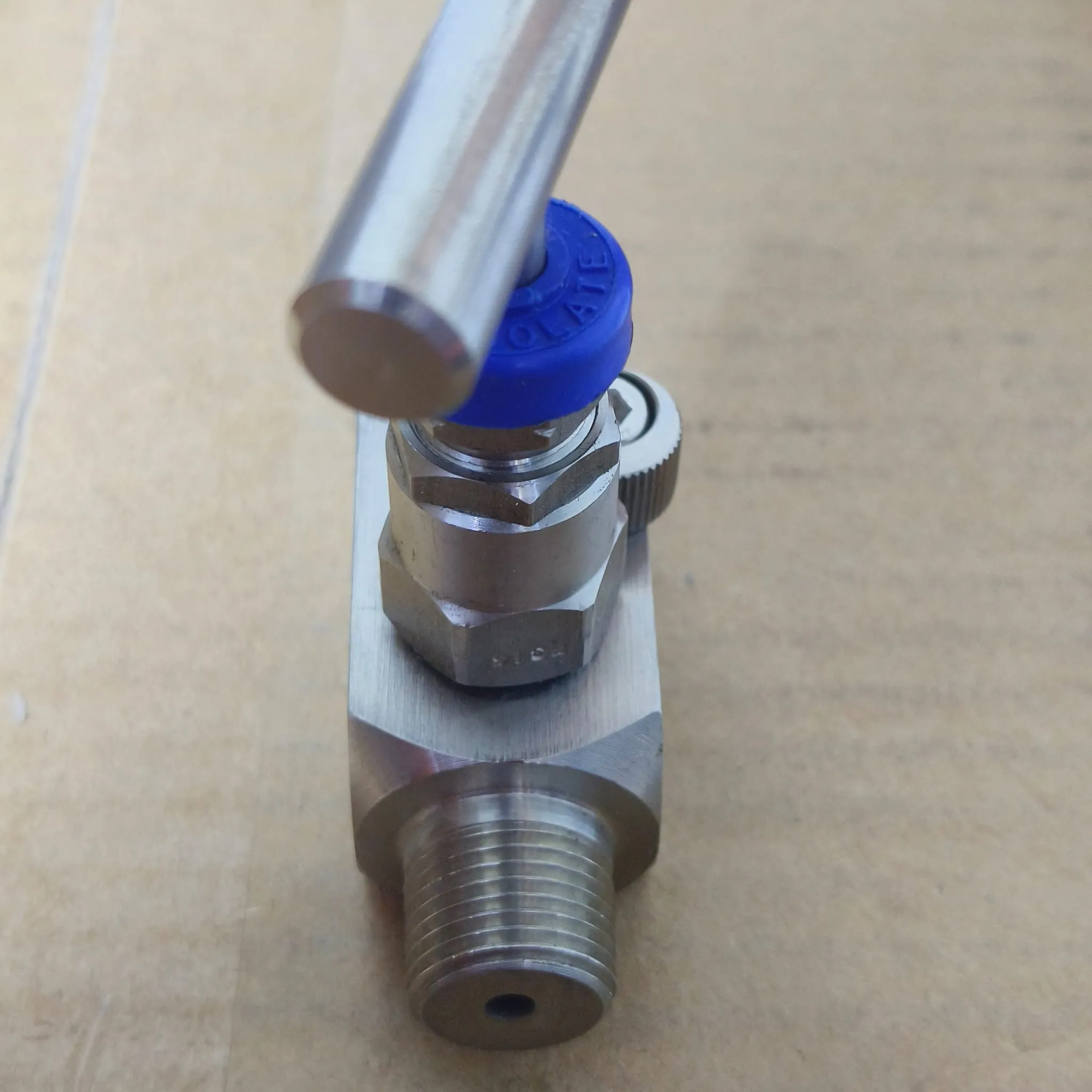

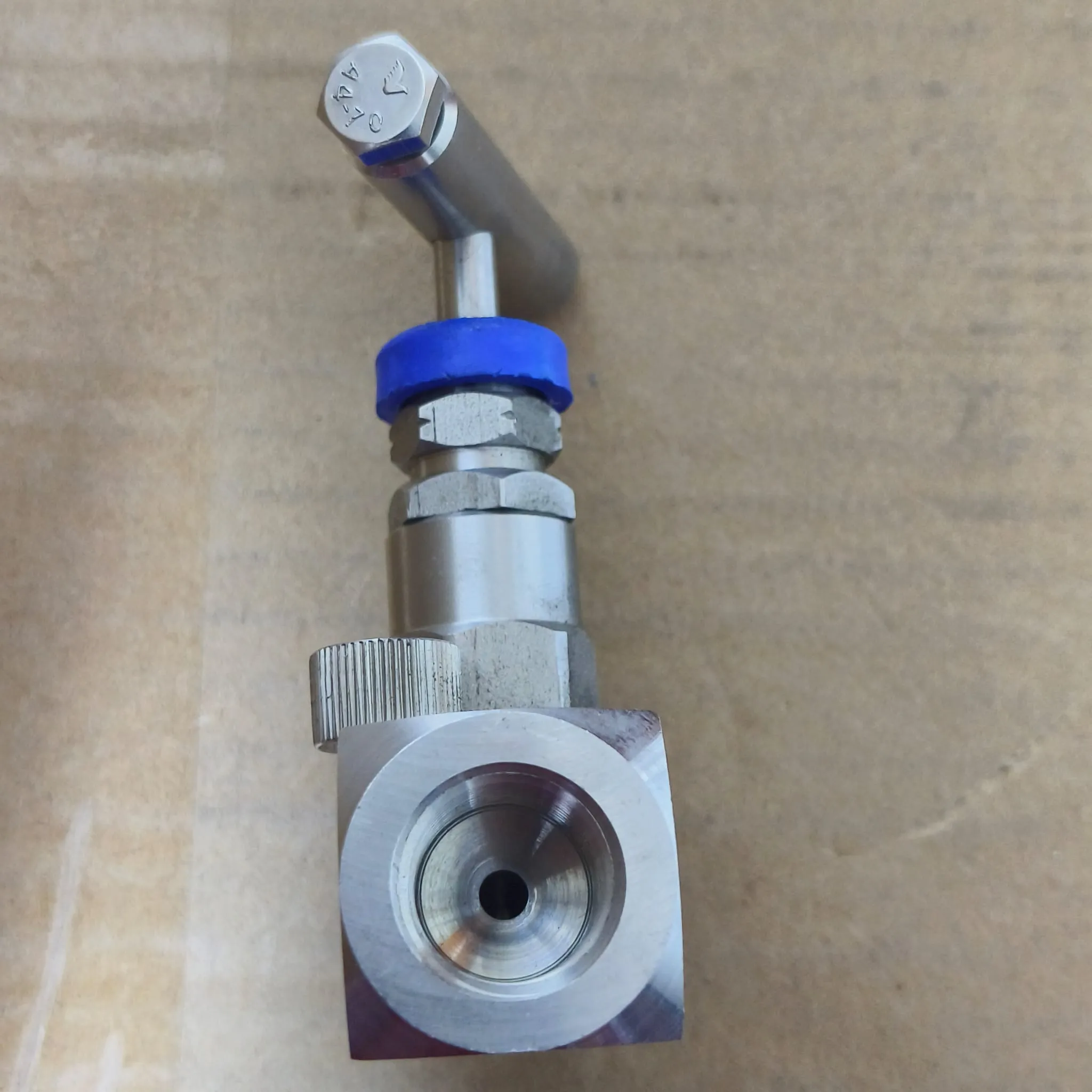

Alco UN Series High-Pressure Needle Valve, 3/8" Male x Female NPT, 10000 psi, SS316, UN3NS-1M
Alco

Alco UN Series High-Pressure Needle Valve, 3/8" Male x Female NPT, 10000 psi, SS316, UN3NS-1M

Mfr. part no.
UN3NS-1M
SKU
NV-UK-10K-MF-06

Specifications

Series UN Series
Maximum Pressure 10000 psi @ 38°C
Temperature Range -40 to +230°C
Connection Size 3/8" Male x Female NPT
Valve Pattern Straight / inline
Body Material 316 Stainless Steel
Packing Material RTFE
Orifice Size 4 mm
Stem Tip Hardened non-rotating 17-4PH

Key Features

  • Rated to 10000 psi at 38°C
  • 3/8" Male x Female NPT end connection
  • Compact SS316 straight-pattern body
  • Metal-to-metal seat for positive shutoff
  • Hardened non-rotating tip helps reduce wear
  • RTFE packing with back-sealing stem
  • Made in UK.

Description

The Alco UN3NS-1M is a 3/8" male x female NPT high-pressure needle valve rated to 10,000 psi at 38°C, with an operating temperature range of -40 to +230°C. It combines an SS316 straight-pattern body with a metal-to-metal seat, hardened 17-4PH non-rotating tip, RTFE packing and a stainless steel T-bar handle. It is well suited to compact gauge assemblies, instrument panels, sampling systems and process lines requiring a male inlet and female outlet.

Applications

  • Gauge and pressure transmitter isolation
  • Sampling panels and analyzer lines
  • Chemical injection and dosing skids
  • Hydraulic and pneumatic control lines
  • High-pressure process isolation and throttling

Documents

  • Alco Needle Valves UN Series — Datasheet

    PDF, 204 KB

  • Alco Valves RTG Range — Catalog

    PDF, 3.2 MB
