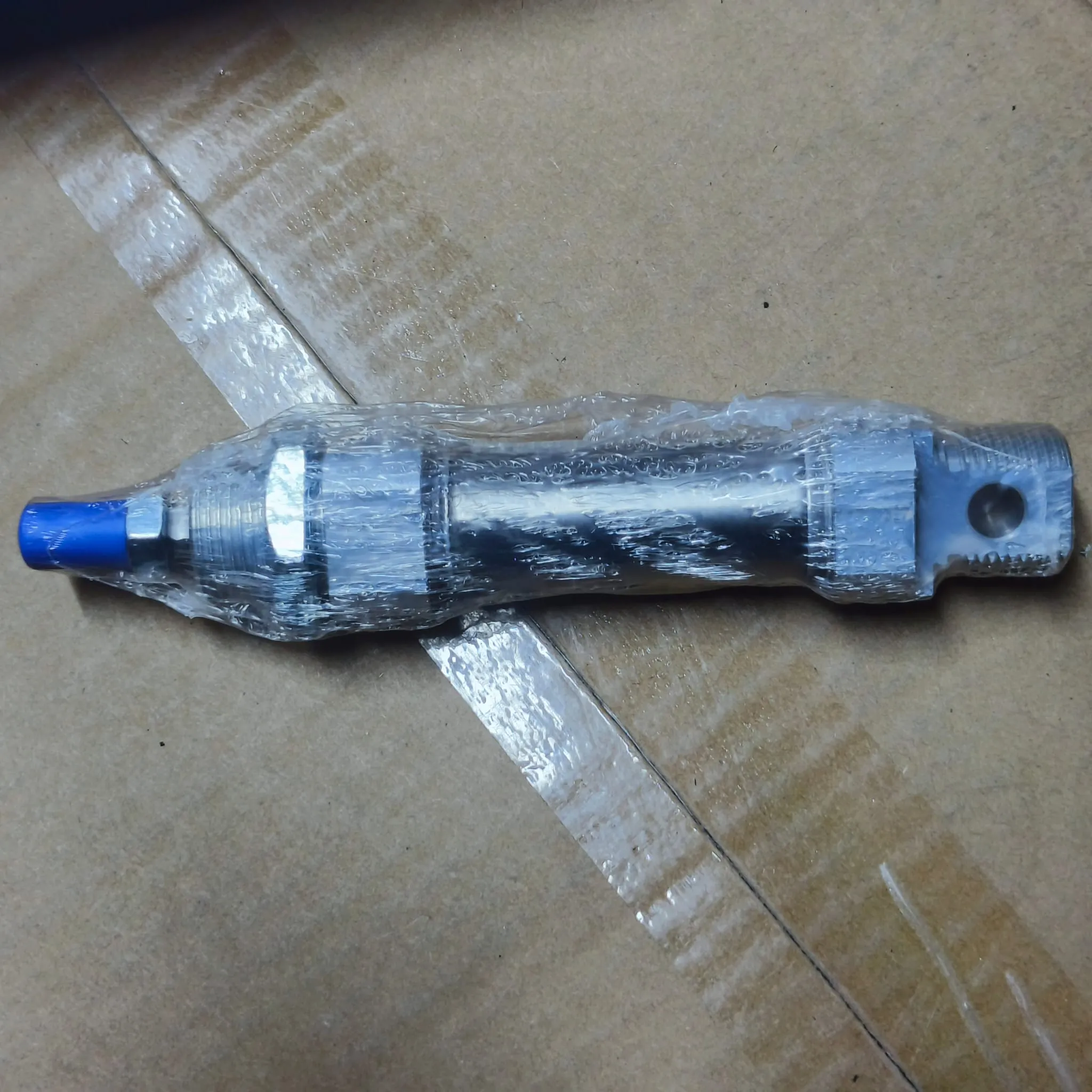

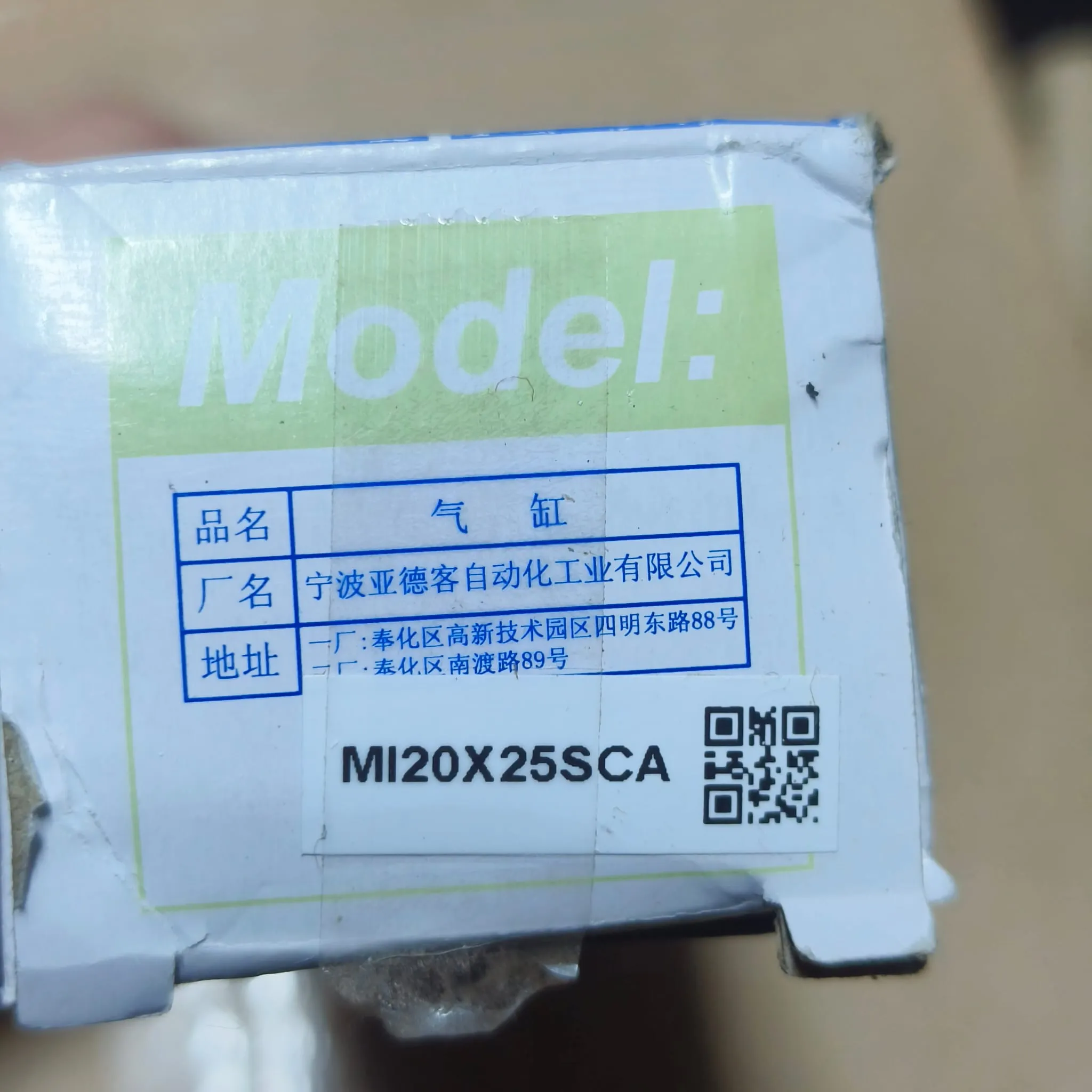

Airtac MI Series Stainless Steel Mini Pneumatic Cylinder, Bore Diameter 20 mm, Stroke 25 mm, Double Acting Magnetic Piston, MI20X25SCA
Technical overview
The Airtac MI Series is a stainless steel mini pneumatic cylinder for compact automation where a round-body ISO-style actuator is required. It is a double acting linear pneumatic actuator with a 20 mm bore and 25 mm stroke, with magnet for piston position detection and fixed bumper pads to reduce the impact when the cylinder changes direction. The stainless steel piston rod and barrel construction helps the cylinder suit general working environments, while the riveted rolling packed cover structure gives a reliable compact assembly. It is suitable for small machine motion, light clamping, indexing, pushing, packaging equipment and general pneumatic actuator use, with G1/8 pneumatic air port thread.
Key Features
- ISO 6432 style stainless steel round body construction suits compact pneumatic actuator installations.
- Double acting operation provides controlled extension and retraction using compressed air.
- Magnetic piston supports position sensing with compatible magnetic switches.
- Fixed front and rear bumper pads help reduce impact at direction change.
- Riveted rolled construction provides a reliable connection between covers and cylinder body.
Applications
- Compact automation systems and small pneumatic machines.
- Push, pull, transfer, sorting and positioning mechanisms.
- Packaging, assembly and material-handling equipment.
- Replacement use in ISO 6432 style mini pneumatic actuator systems.
Specifications
SeriesMI Series
Port SizeG1/8
Bore Diameter20 mm
Stroke Length25 mm
Action TypeDouble Acting
Piston TypeMagnetic Piston
CushioningBumper
Working Pressure Range0.1 to 1.0 MPa
Ambient Temperature Range-20 °C to +70 °C
Piston Rod Diameter8 mm
Piston Rod EndM8 × 1.25 Thread
Compliance StandardsISO 6432
