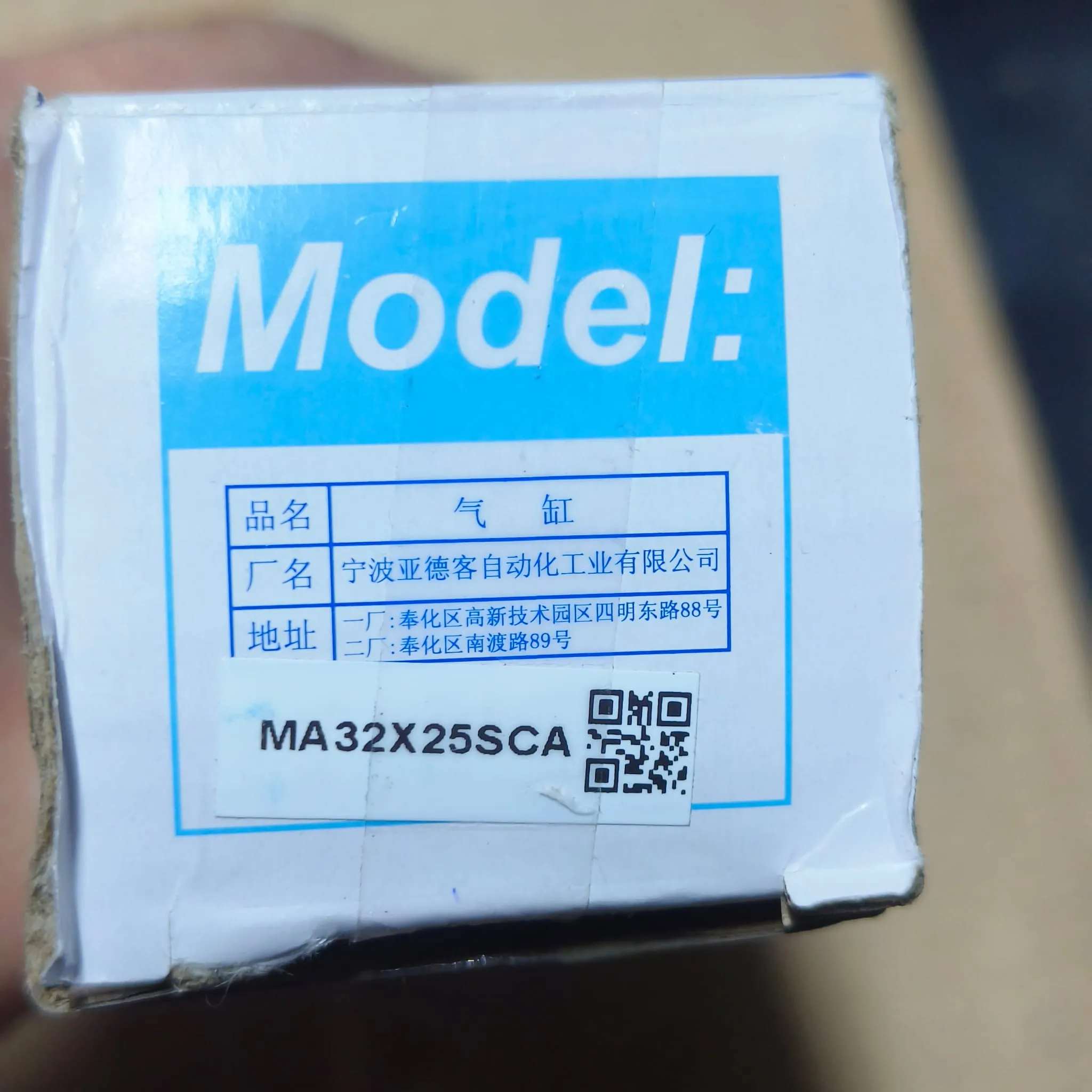

Airtac MA Series Stainless Steel Mini Pneumatic Cylinder, Bore Diameter 32 mm, Stroke 25 mm, Double Acting Magnetic Piston, MA32X25SCA
Technical overview

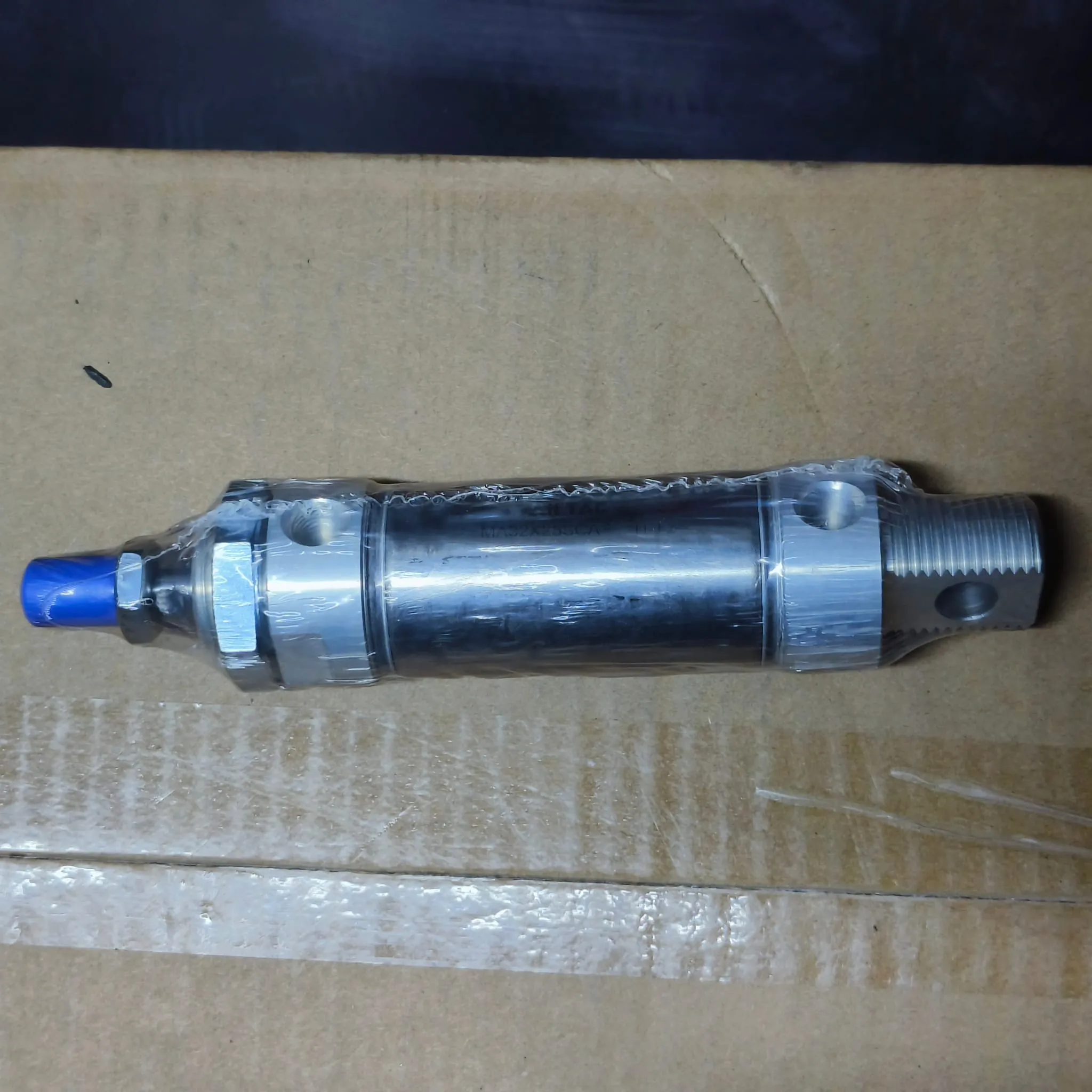

The Airtac MA Series is a stainless steel mini pneumatic cylinder for short-stroke automation where compact size, corrosion-resistant body construction and simple mounting are important. It is a double acting linear pneumatic actuator with a 32 mm bore and 25 mm stroke, with magnet for piston position detection and a fixed bumper at the cover to reduce direction-change impact. The high-precision stainless steel cylinder tube and riveted rolling packed structure provide a strong compact body for repetitive compressed-air movement. It is suitable for light machine automation, small fixtures, packaging systems, part pushing, indexing and other compact pneumatic actuator applications, with G1/8 pneumatic air port thread.
Key Features
- Stainless steel round body construction supports compact pneumatic actuator installations.
- Double acting operation provides powered extension and retraction using compressed air.
- Magnetic piston allows position sensing with compatible magnetic switches.
- Fixed bumper design helps reduce impact during direction change.
- Multiple mounting options support flexible installation in machinery and automation systems.
Applications
- Compact machine automation and light pneumatic motion control.
- Push, pull, transfer and positioning mechanisms.
- Packaging machines, assembly fixtures and small handling equipment.
- Replacement use in round-body pneumatic actuator systems.
Specifications
SeriesMA Series
Port SizeG1/8
Bore Diameter32 mm
Stroke Length25 mm
Action TypeDouble Acting
Piston TypeMagnetic Piston
CushioningBumper
Working Pressure Range0.1 to 1.0 MPa
Ambient Temperature Range-20 °C to +70 °C
Piston Rod Diameter12 mm
Piston Rod EndM10 × 1.25 Thread
