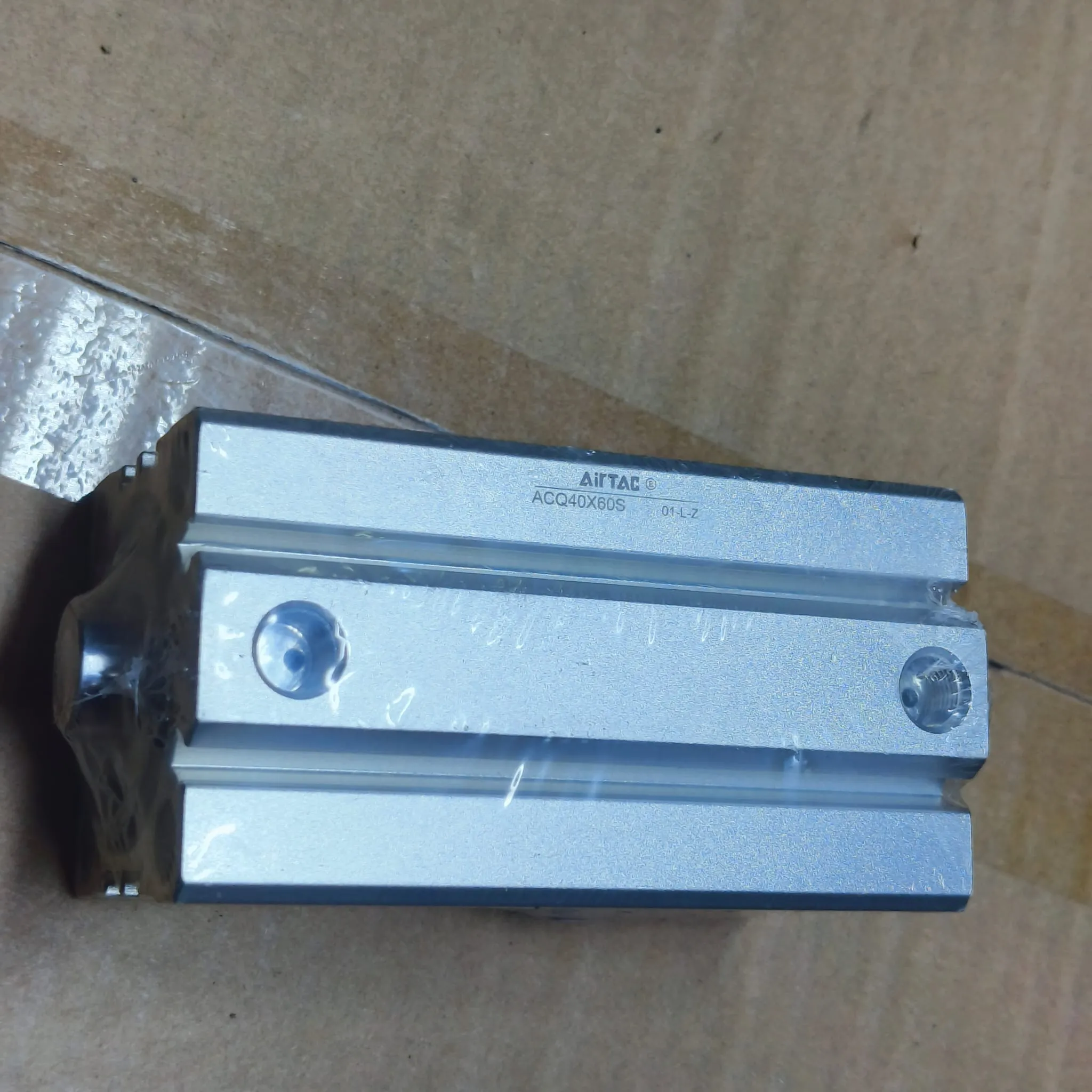

Airtac ACQ Series Compact Pneumatic Cylinder, Bore Diameter 40 mm, Stroke 60 mm, Double Acting Magnetic Piston, ACQ40X60S
Technical overview
The Airtac ACQ Series is a compact magnetic pneumatic cylinder for short-stroke linear movement where the actuator must fit close to the machine frame, fixture or clamping station. This double acting linear pneumatic actuator uses a 40 mm bore and 60 mm stroke, with a magnetic piston for sensor feedback and a compact square body designed for space-saving installation. The series uses a hard-anodized aluminium compact body with rubber bumper cushioning for routine end-stroke damping in compressed-air automation service. It is suitable for compact clamping, pushing, stopping, positioning and small automation mechanisms.
Key Features
- Compact square body helps save space in short-stroke pneumatic installations.
- Magnetic piston supports cylinder position sensing with compatible switches.
- Double acting operation provides powered extension and retraction.
- Hard-anodized aluminium compact body supports routine industrial use.
- Rubber bumper cushioning provides basic end-stroke impact reduction.
Applications
- Compact automation equipment and short-stroke machine motion.
- Clamping, pushing and stopping mechanisms.
- Fixture movement and part positioning.
- Packaging machinery and small machine frames.
- Compressed-air actuator applications where installation space is limited.
Specifications
SeriesACQ Series
Port SizePT1/8
Bore Diameter40 mm
Stroke Length60 mm
Action TypeDouble Acting
Piston TypeMagnetic Piston
CushioningBumper
Working Pressure Range0.1 to 1.0 MPa
Ambient Temperature Range-20 °C to +80 °C
Piston Rod Diameter16 mm
Piston Rod EndFemale Thread
Body MaterialHard-Anodized Aluminium
Compliance StandardsJIS Standard
Documentation
Airtac-ACQ-Series-Cylinders-Datasheet
Download
