Airtac 092 Series Coil with Connector, 220V AC, for Pneumatic Solenoid Valves, CDA092A
Technical overview

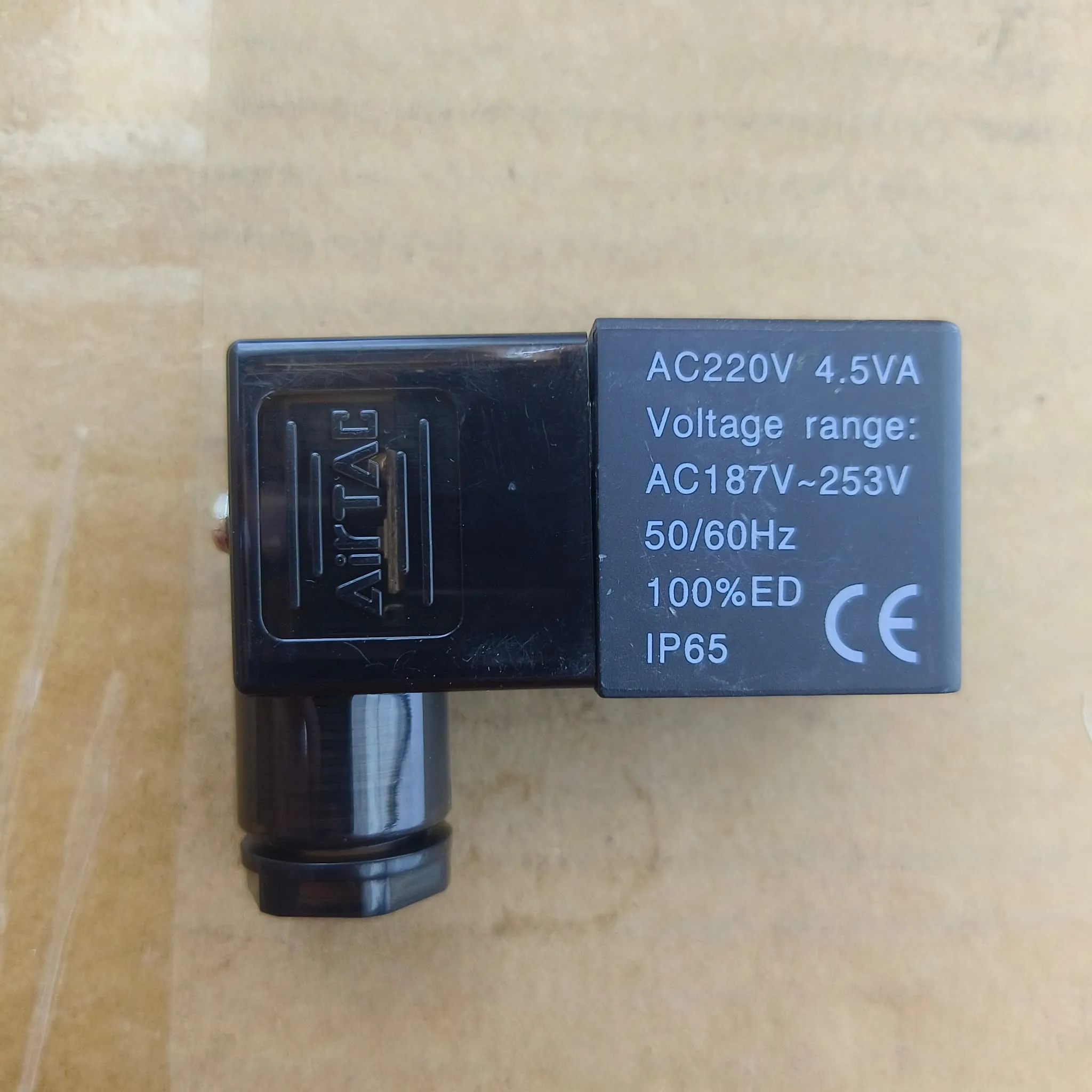

Built for dependable electrical actuation of compatible Airtac pneumatic solenoid valves, this set combines the CDA092A 220 V AC terminal coil with the correctly matched 4V210-005-P2 AC connector and its red LED indicator. The 9.0 mm coil operates from 187-253 V AC at 50/60 Hz, consumes 4.5 VA and is rated for 100% ED continuous duty. With the connector fitted, the assembly provides IP65 protection, carries CE marking and is suitable for Airtac 3V1, 3V200/300, 4V200/300/400, 4M200/300 and ESV200/300/400/600 Series pneumatic solenoid valves.
Key Features

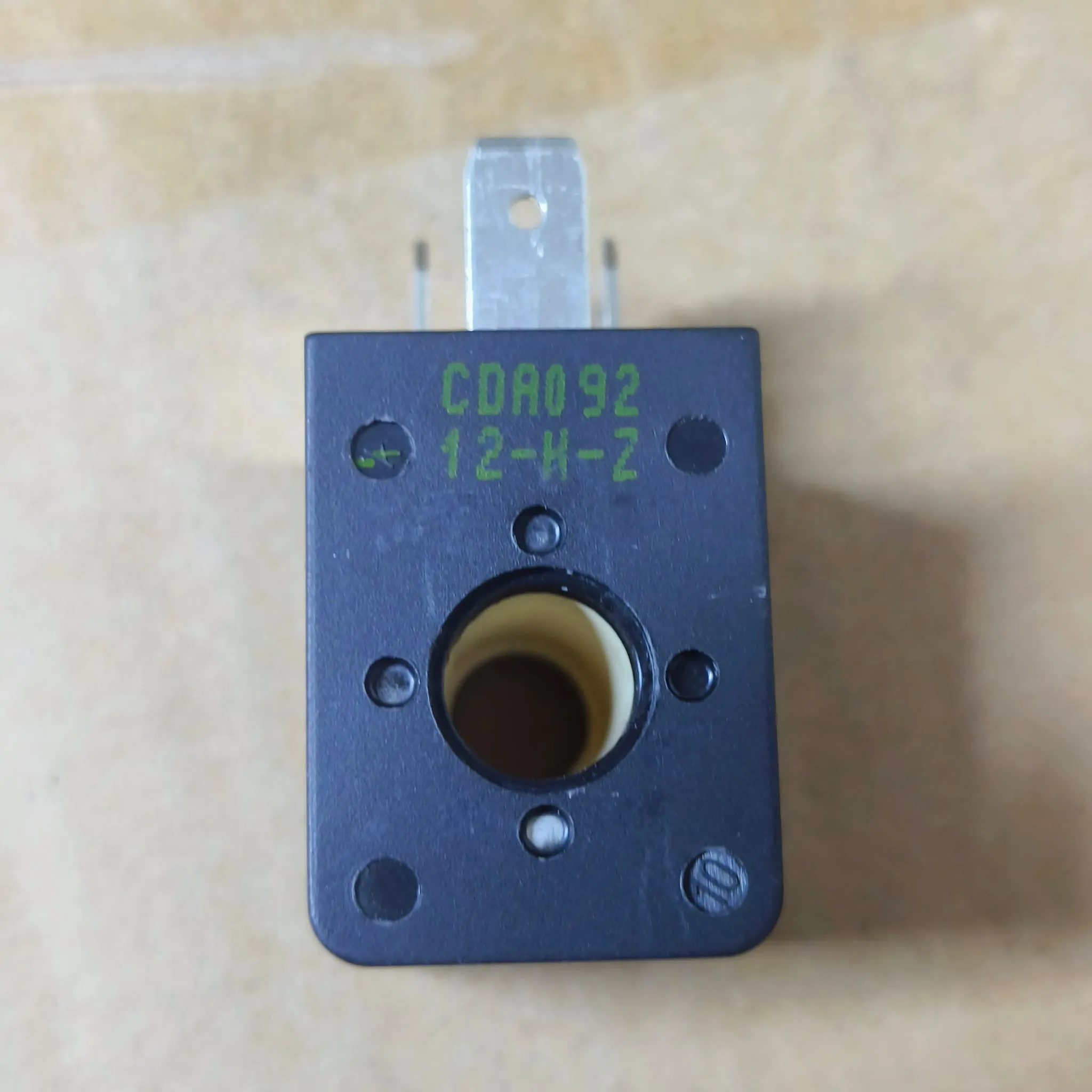

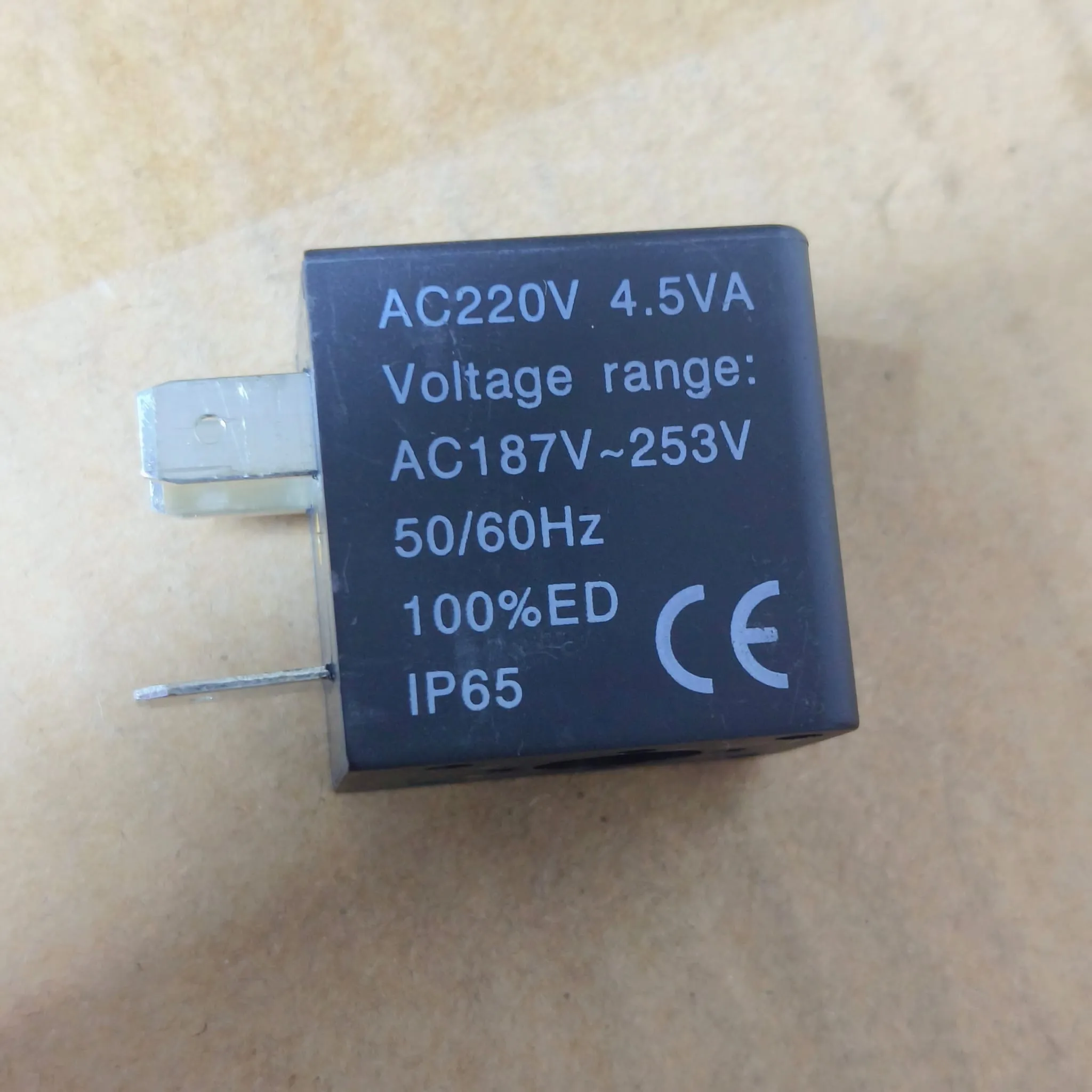

- 220 V AC terminal coil with 9.0 mm bore.
- 4.5 VA power consumption at 50/60 Hz.

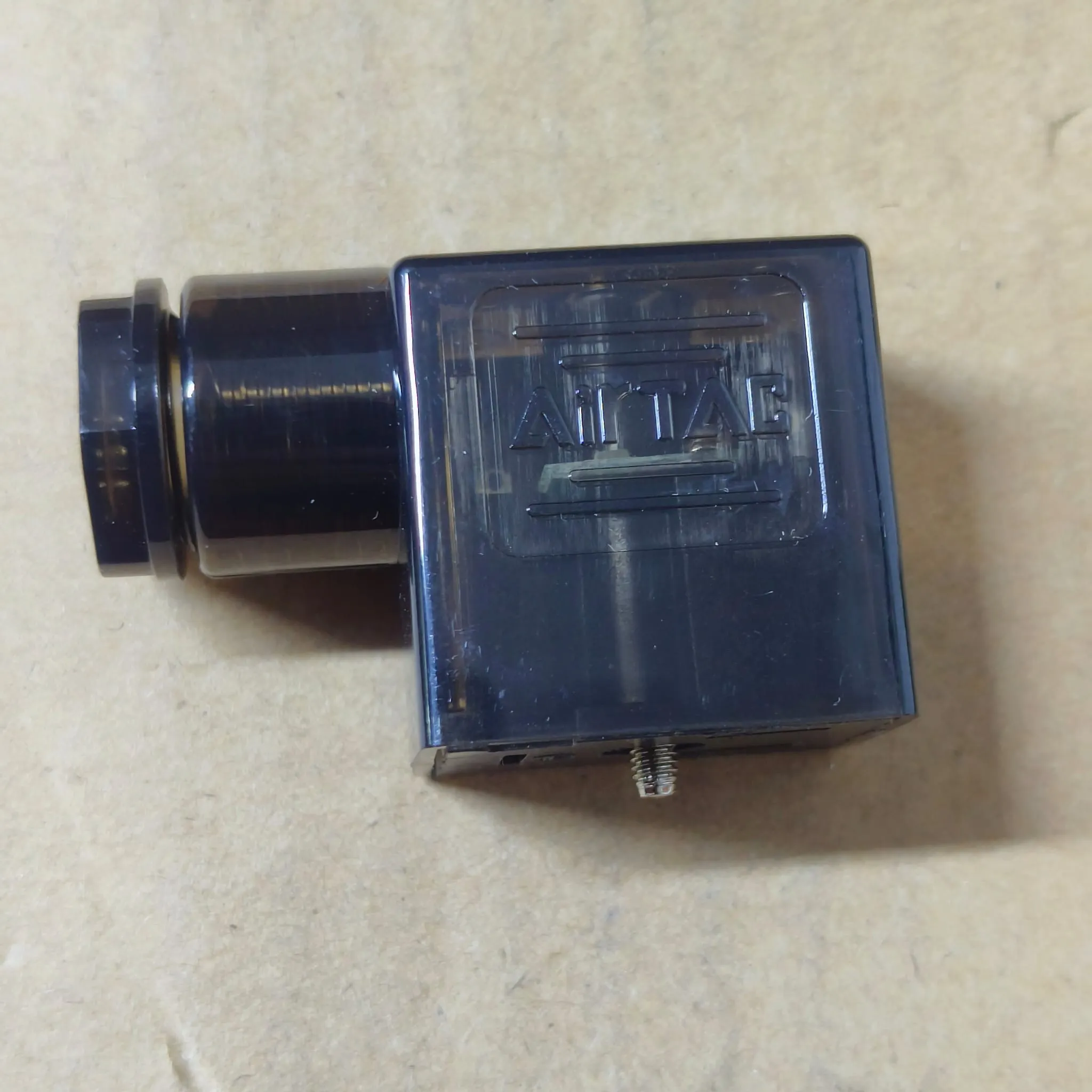

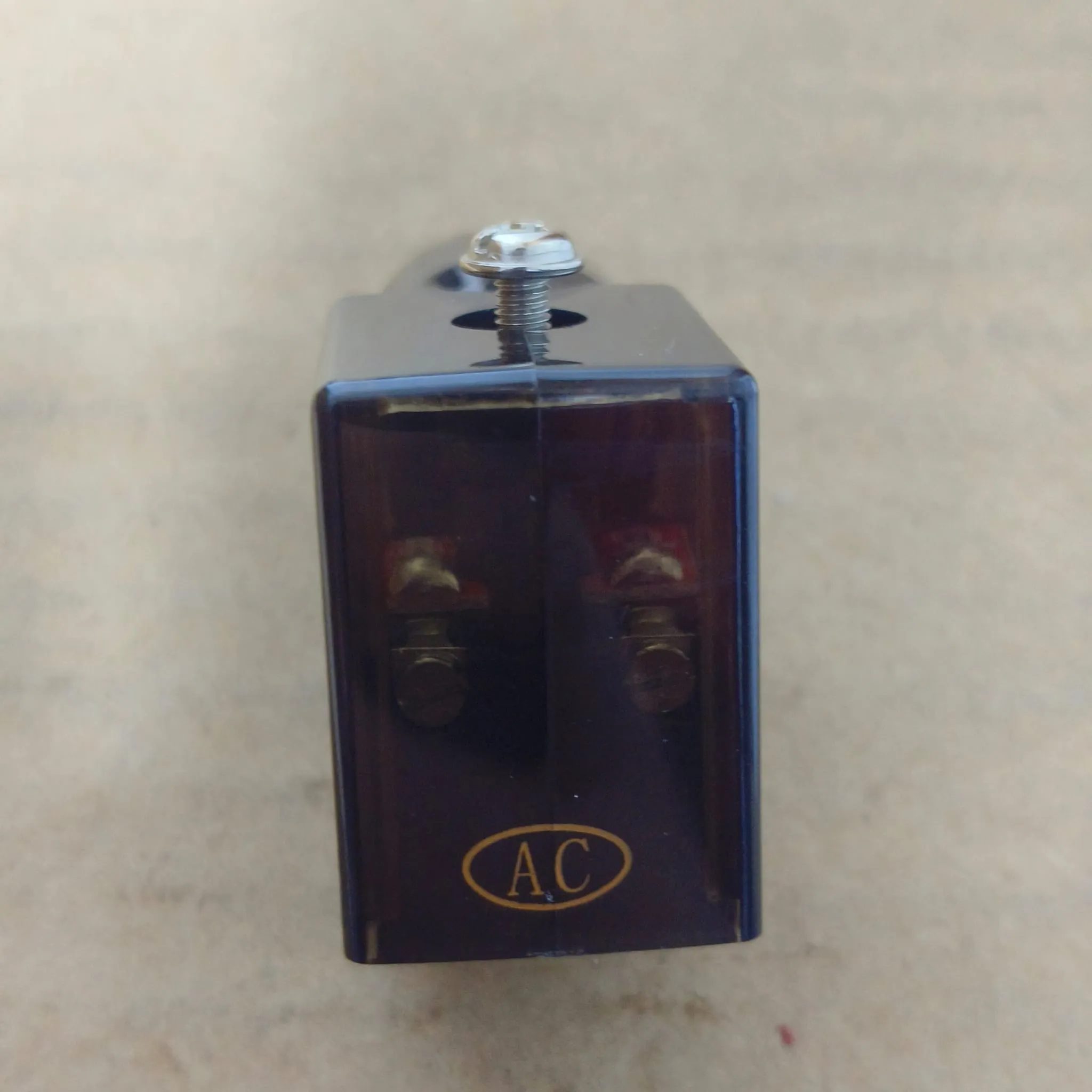

- Supplied with 4V210-005-P2 AC connector and red LED.
- 100% ED continuous duty and IP65 with connector fitted.
Specifications
Product TypeCoil with Connector
Coil Voltage220 V AC
Power Supply187-253 V AC
Power Consumption4.5 VA
Frequency50/60 Hz
Inside Diameter9.0 mm
Electrical Connection3 blade terminals
Duty Cycle100% ED
Ingress ProtectionIP65
Connector Type4V210-005-P2, AC, Red LED
Compatible Valve Series3V1, 3V200/300, 4V200/300/400, 4M200/300, ESV200/300/400/600
Documentation
Airtac_Solenoid_Coils-Connectors_Datasheet
Download
