Pneumatic Solenoid Coils
Airtac 092 Series Coil with Connector, 110V AC, for Pneumatic Solenoid Valves, CDA092C
Airtac

Airtac 092 Series Coil with Connector, 110V AC, for Pneumatic Solenoid Valves, CDA092C

Mfr. part no.
CDA092C
SKU
PN-SOL-COIL-110AC

Specifications

Product Type Coil with Connector
Coil Voltage 110 V AC
Power Supply 93.5-126.5 V AC
Power Consumption 4.5 VA
Frequency 50/60 Hz
Inside Diameter 9.0 mm
Electrical Connection 3 blade terminals
Duty Cycle 100% ED
Ingress Protection IP65
Connector Type 4V210-005-P2, AC, Red LED
Compatible Valve Series 3V1, 3V200/300, 4V200/300/400, 4M200/300, ESV200/300/400/600

Key Features

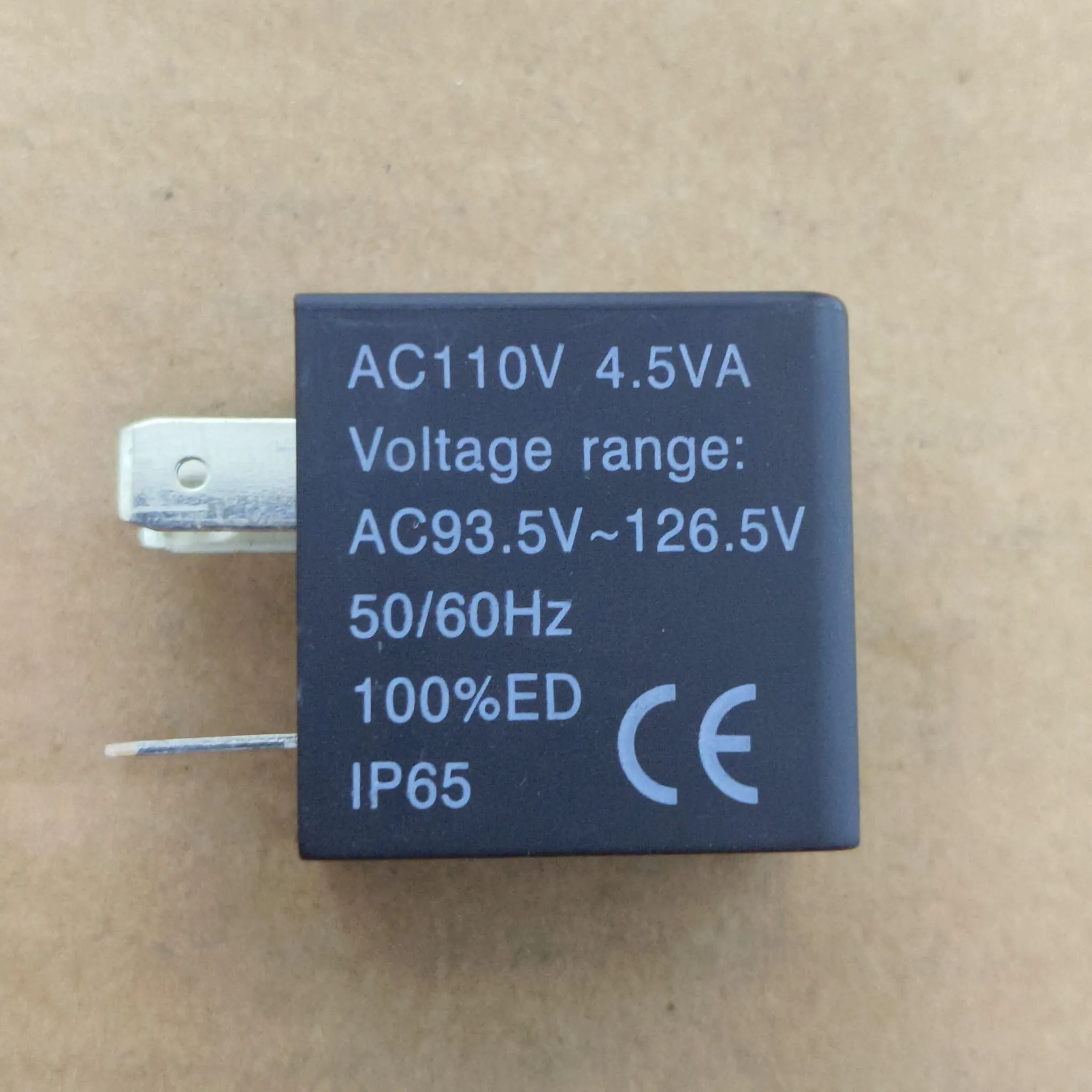

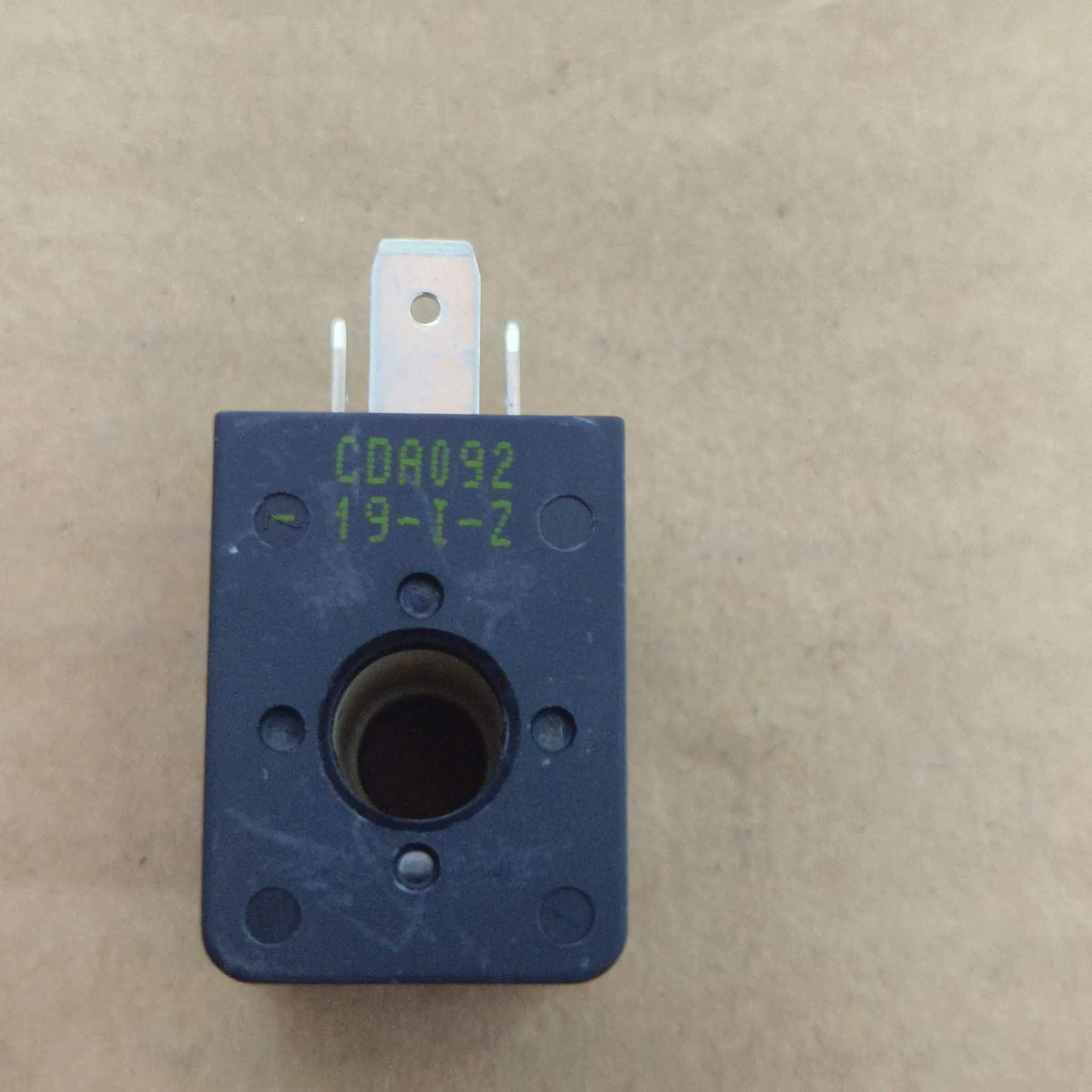

  • 110 V AC terminal coil with 9.0 mm bore.
  • 4.5 VA power consumption at 50/60 Hz.

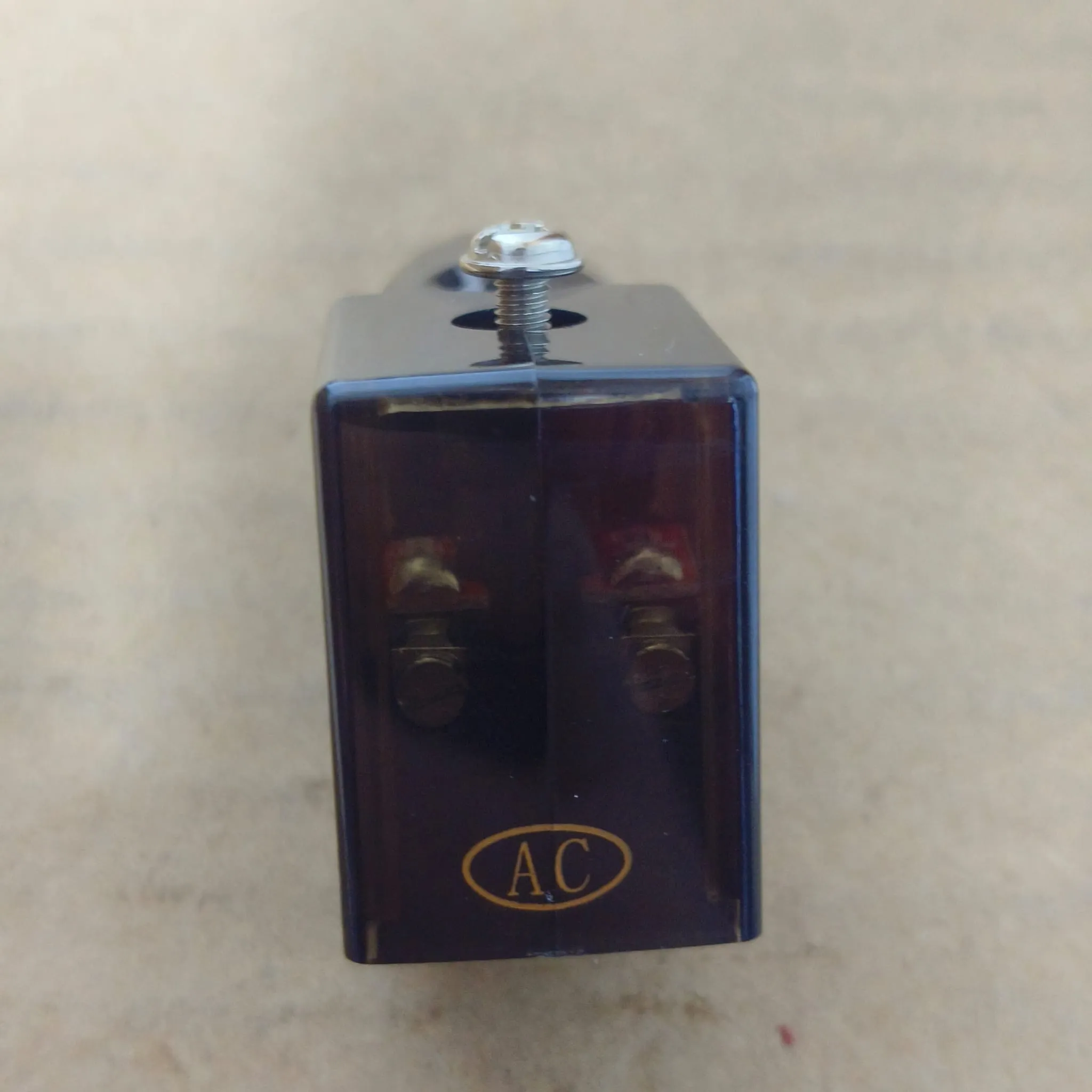

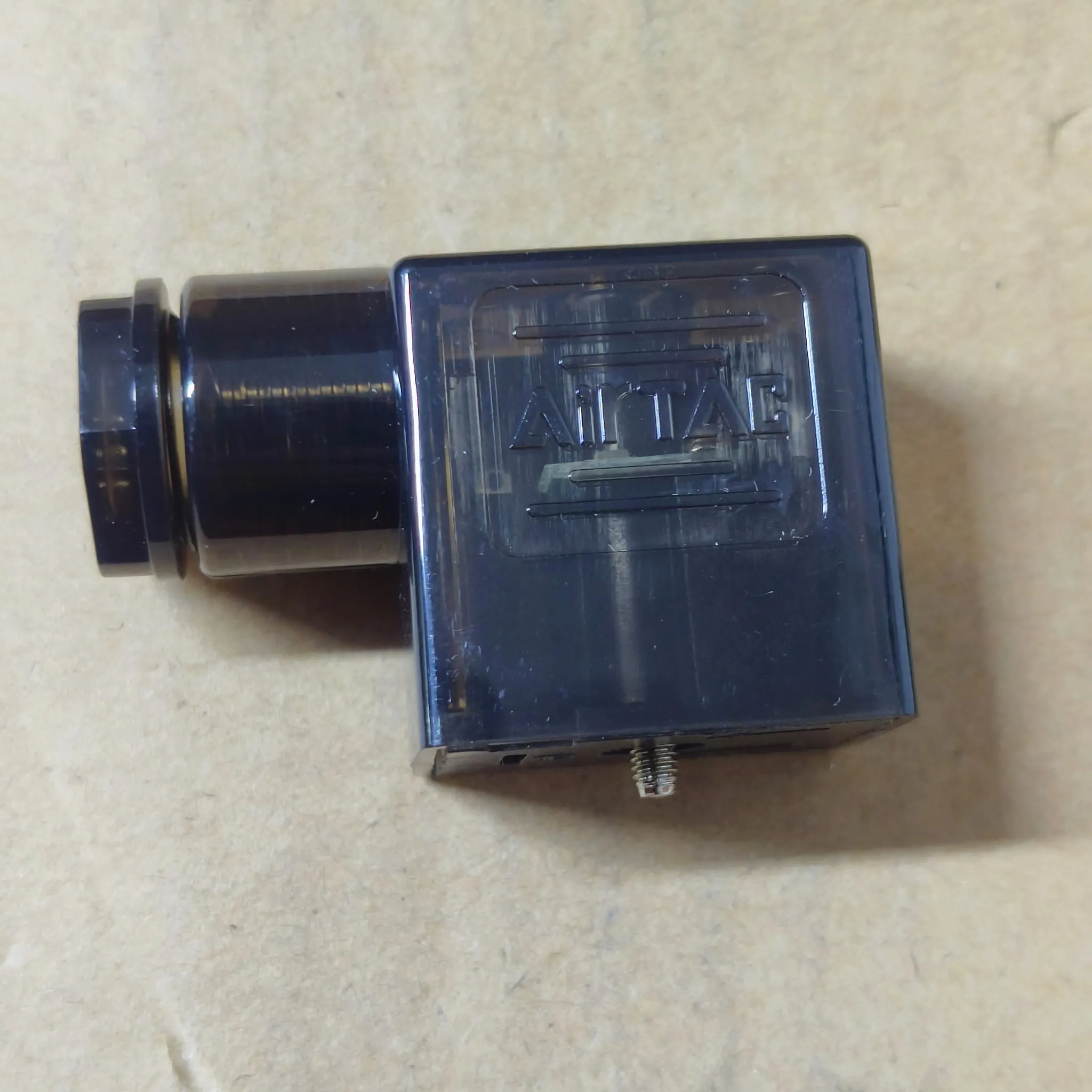

  • Supplied with 4V210-005-P2 AC connector and red LED.
  • 100% ED continuous duty and IP65 with connector fitted.

Description

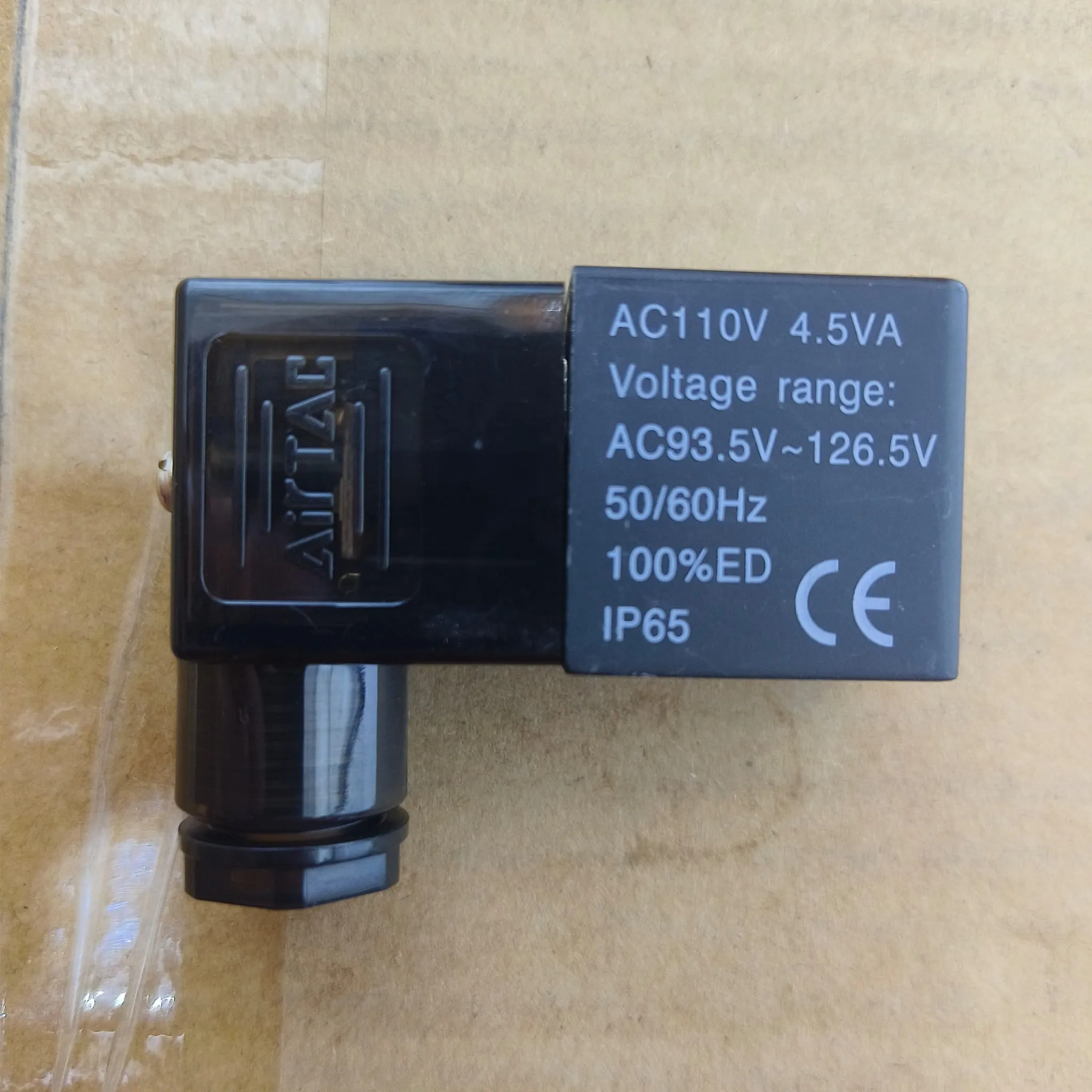

Built for dependable electrical actuation of compatible Airtac pneumatic solenoid valves, this set combines the CDA092C 110 V AC terminal coil with the correctly matched 4V210-005-P2 AC connector and its red LED indicator. The 9.0 mm coil operates from 93.5-126.5 V AC at 50/60 Hz, consumes 4.5 VA and is rated for 100% ED continuous duty. With the connector fitted, the assembly provides IP65 protection, carries CE marking and is suitable for Airtac 3V1, 3V200/300, 4V200/300/400, 4M200/300 and ESV200/300/400/600 Series pneumatic solenoid valves.

Documents

  • Airtac Solenoid Coils Connectors — Datasheet

    PDF, 981 KB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

ASCO (Emerson) 400127-098

ASCO CM22 spade-plug solenoid coil, 2,5/3 W class

ASCO 400127-098 is a CM22 spade-plug coil rated 115 V/50 Hz - 120 V/60 Hz, 2,5 W holding, insulation class F, which ASCO lists for its 108, 109, 189 banjo and 551 series valves. This Airtac CDA092C is listed against it as an electrical counterpart, not as a mechanical drop-in. It is nominally 110 V AC (93,5-126,5 V) at 4,5 VA, temperature classification B rather than class F, and its PHI 9,0 mm coil bore and 4V210-005-P2 connector are made for Airtac 3V1, 3V200/300, 4V200/300/400, 4M200/300 and ESV200/300/400/600 valves. Check the coil bore and terminal arrangement against your valve before ordering.

We carry CDA092C as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
