Airtac 092 Series Coil with Connector, 12V DC, for Pneumatic Solenoid Valves, CDA092F
Technical overview

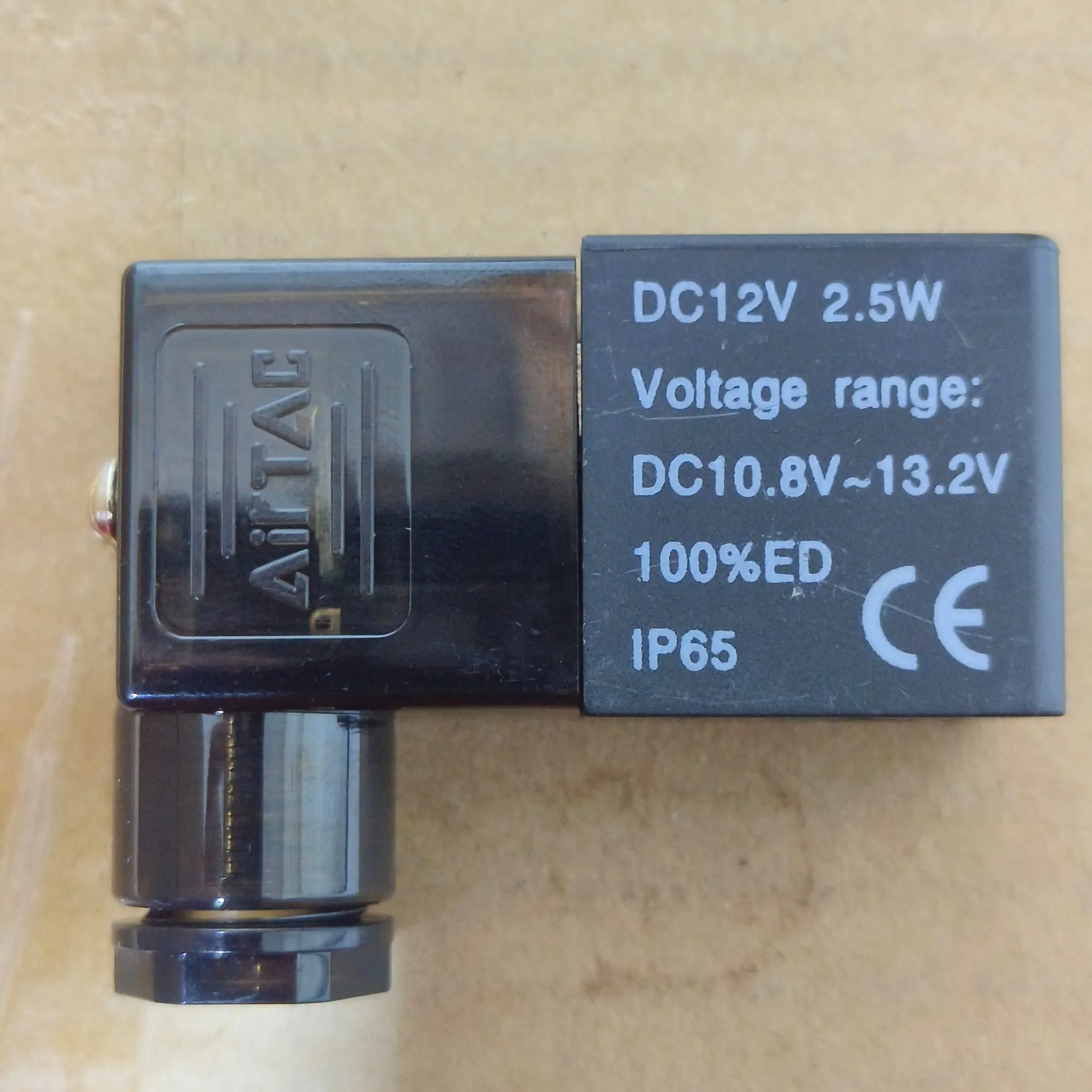

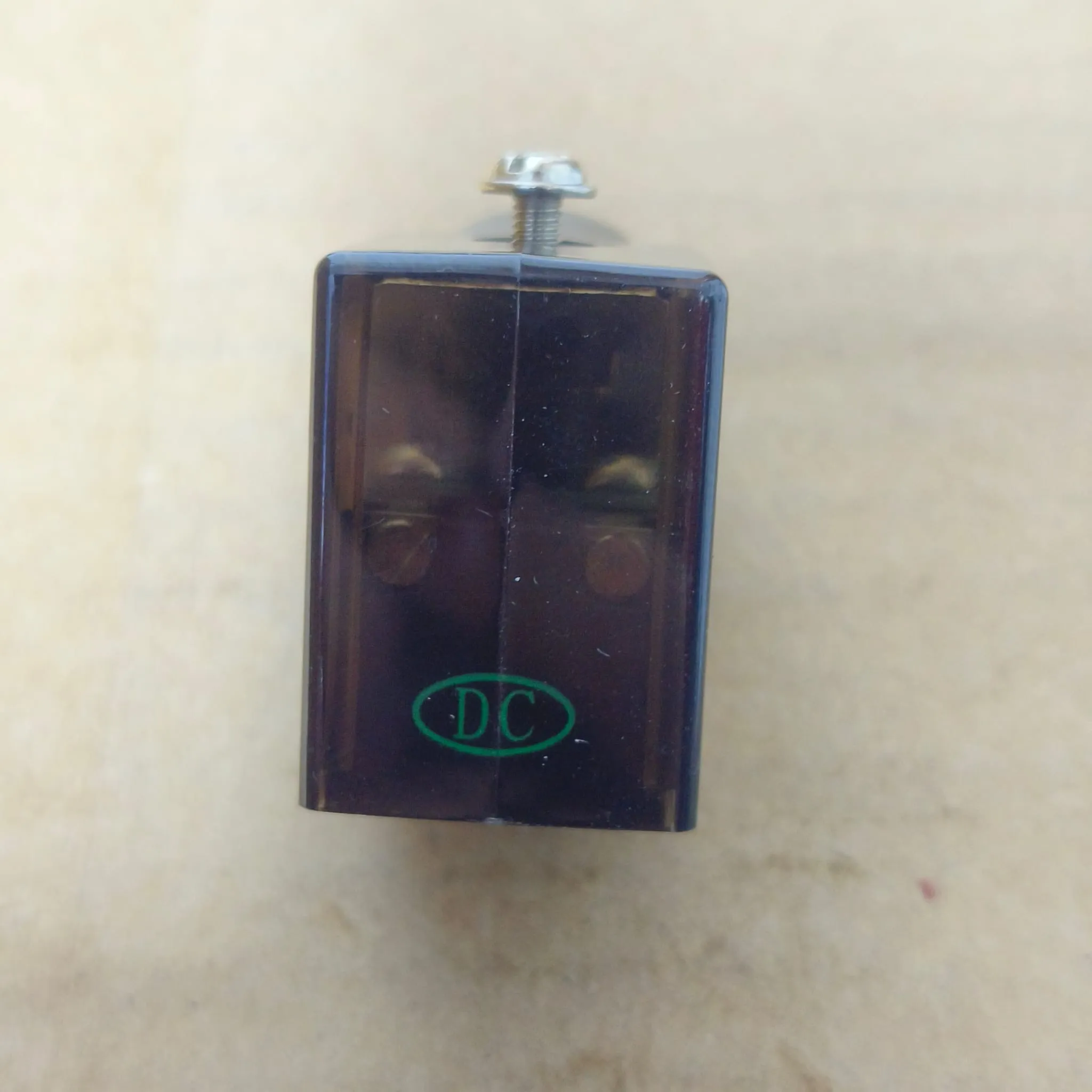

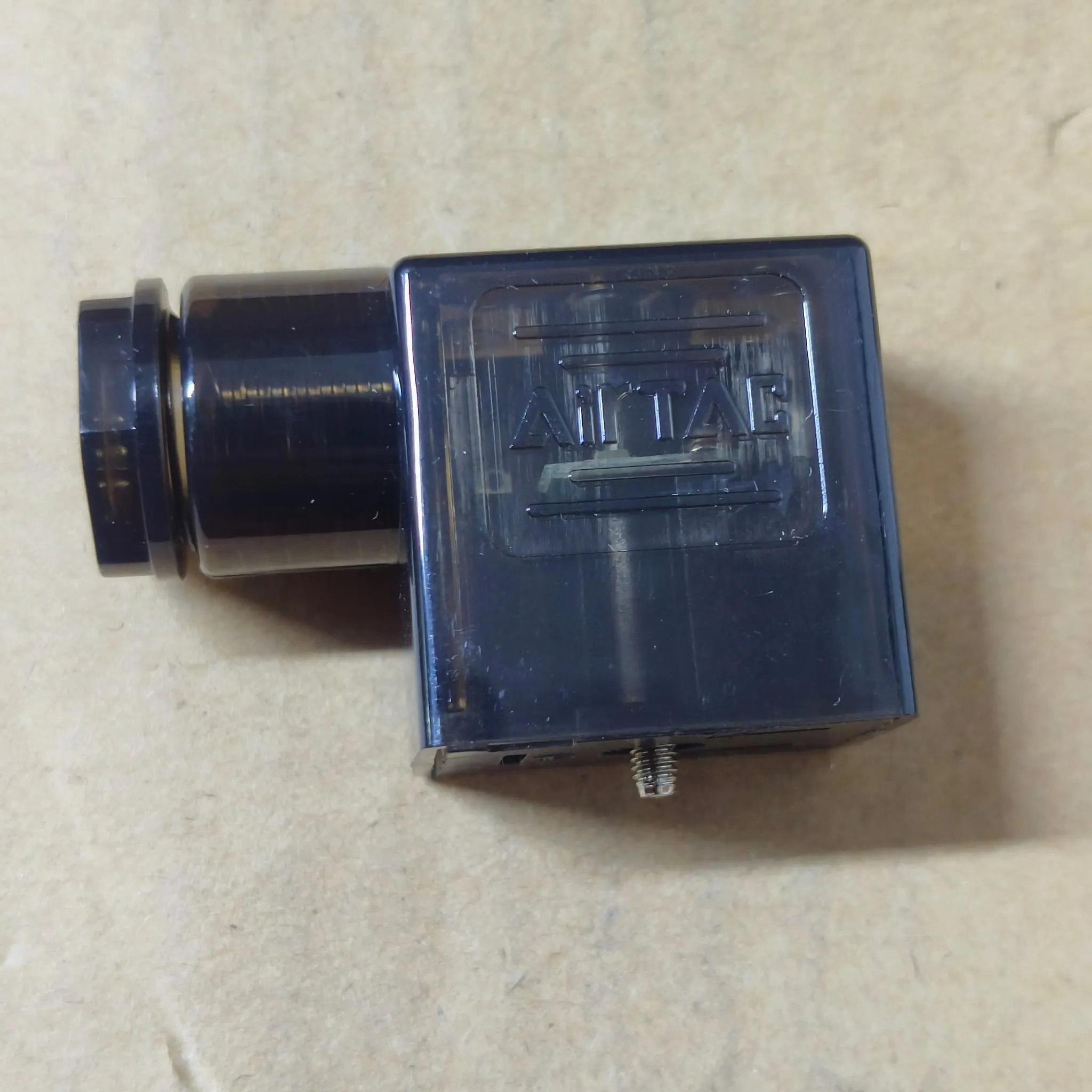

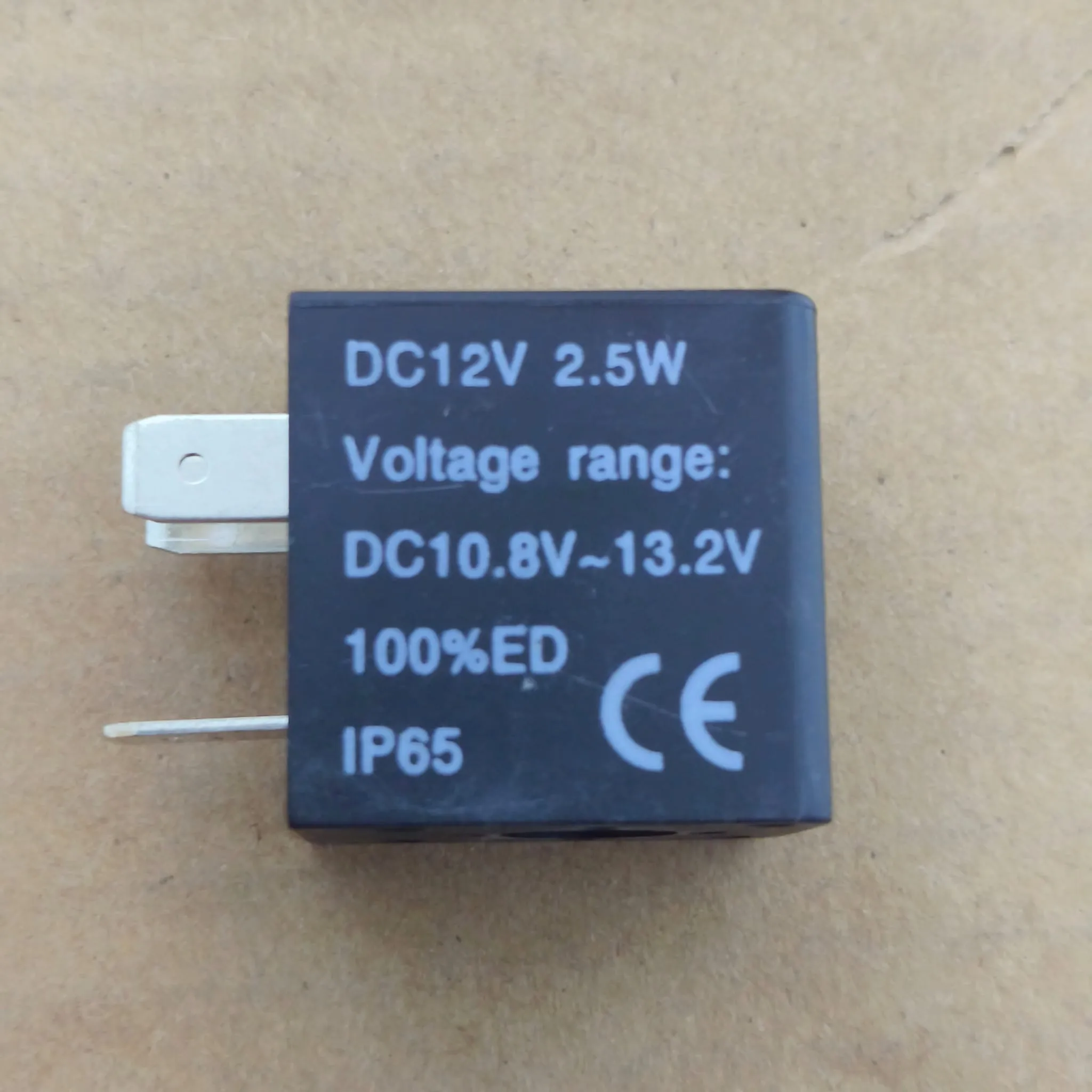

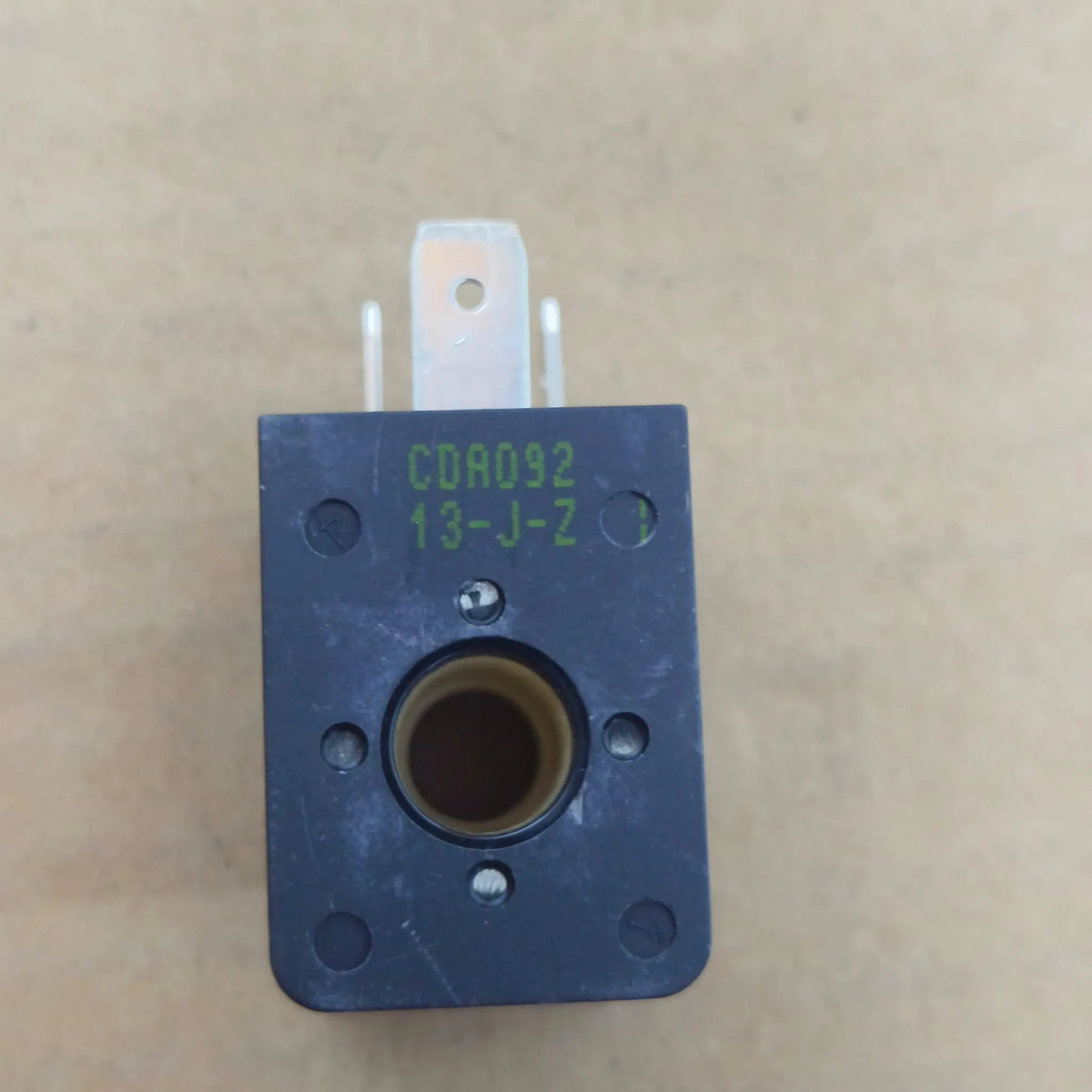

Built for dependable electrical actuation of compatible Airtac pneumatic solenoid valves, this set combines the CDA092F 12 V DC terminal coil with the correctly matched 4V210-005-P3 DC connector and its green LED indicator. The 9.0 mm coil operates from 10.8-13.2 V DC, consumes 2.5 W and is rated for 100% ED continuous duty. Its polarity-marked terminals identify terminal 1 as positive and terminal 2 as negative. With the connector fitted, the assembly provides IP65 protection, carries CE marking and is suitable for Airtac 3V1, 3V200/300, 4V200/300/400, 4M200/300 and ESV200/300/400/600 Series pneumatic solenoid valves.
Key Features
- 12 V DC terminal coil with 9.0 mm bore.
- 2.5 W power consumption with polarity-marked terminals.
- Supplied with 4V210-005-P3 DC connector and green LED.
- 100% ED continuous duty and IP65 with connector fitted.
Specifications
Product TypeCoil with Connector
Coil Voltage12 V DC
Power Supply10.8-13.2 V DC
Power Consumption2.5 W
Pin Assignment1 positive, 2 negative
Inside Diameter9.0 mm
Electrical Connection3 blade terminals
Duty Cycle100% ED
Ingress ProtectionIP65
Connector Type4V210-005-P3, DC, Green LED
Compatible Valve Series3V1, 3V200/300, 4V200/300/400, 4M200/300, ESV200/300/400/600
