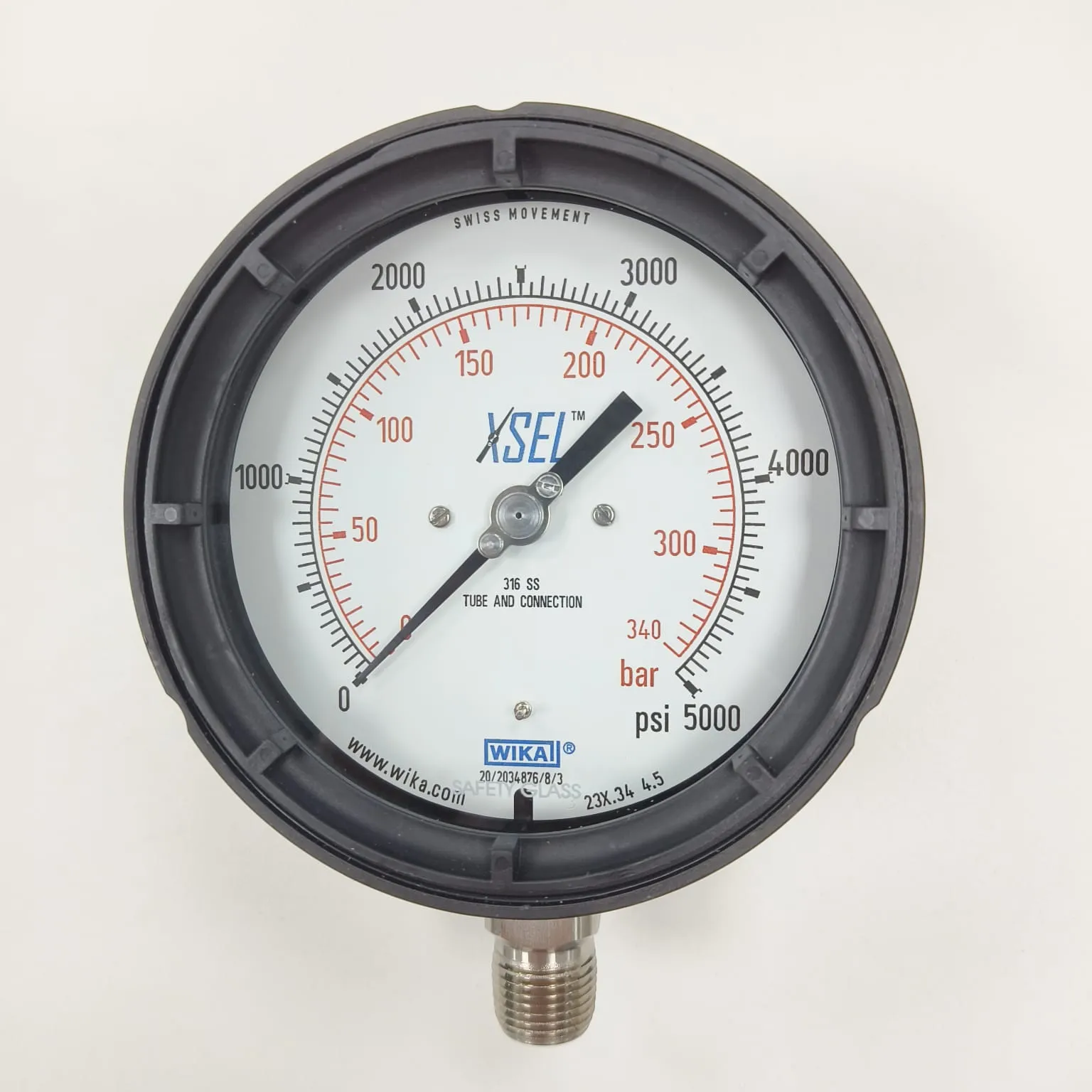

WIKA XSEL Phenolic Process Pressure Gauge 232.34, 0...5000 psi / 0...340 bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676
Technical overview
This WIKA 232.34 4.5 XSEL Bourdon tube phenolic process pressure gauge is a safety pattern gauge built for demanding process service where operator protection and long term reliability matter. It provides a 0 to 5000 psi / 340 bar measurement range with Dual scale in psi and bar, using a 4.5" dial and a 1/2 NPT Bottom connection. The design follows the XSEL safety concept with a solid front and blow out back, and the laminated safety glass window helps protect the dial in harsh environments. The case is Black Fiberglass Reinforced Thermoplastic (Pocan B4225), while the measuring system is stainless steel with Measuring System 316L wetted parts for corrosion resistance. This gauge can be identified under WIKA’s current part number 50095595, which corresponds to the exact matching configuration of this product.
Key Features
- Stainless steel 316L measuring system with stainless tube and connection for corrosive service
- Solid-front phenolic-style thermoplastic safety case with blow-out back protection
- 4.5 in nominal size dial with 0 to 5000 psi measuring range and dual scale psi and bar
- Laminated safety glass window with adjustable pointer and stop pin at 6 o'clock
- IP65 ingress protection for outdoor and washdown environments
- Stainless steel restrictor with 0.6 mm orifice to help damp pressure spikes
- Dial QR code for easy access to instrument specific information and documents
- Includes: Certificate of calibration and operating and installation instructions paperwork in the box
- Made in USA
Applications
- Highly dynamic pressure loads, pulsation and vibration
- Chemical and petrochemical processing plants
- Power plants and utilities, mining and heavy industry
- Onshore and offshore skid packages and general plant construction
- Aggressive gaseous or liquid media that are not highly viscous or crystallising
