Process Gauges
WIKA XSEL Phenolic Process Pressure Gauge 232.34, 0...160 psi / 0...11 bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 50403460
WIKA

WIKA XSEL Phenolic Process Pressure Gauge 232.34, 0...160 psi / 0...11 bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 50403460

Mfr. part no.
50403460
SKU
PW45-PG-00160

Specifications

Case Material Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
Measuring System Bourdon Tube
Case Filling Dry Case, Prepared for filling
Dial Size 115 mm / 4.5"
Measuring Range 0...160 psi
Process Connection 1/2" Male NPT
Mounting Position Lower mount
Window Laminated Safety Glass
Accuracy Class +/- 0.5% ASME B40.100 Grade 2A
Ingress Protection IP65
Secondary Scale 2nd scale bar
Model 232.34
Gauge Type Phenolic Process Pressure Gauge
Case Design Solid Front Safety Pattern with Blow-Out Back
Wetted Parts SS316

Key Features

  • Stainless steel 316L measuring system with stainless tube and connection for corrosive service

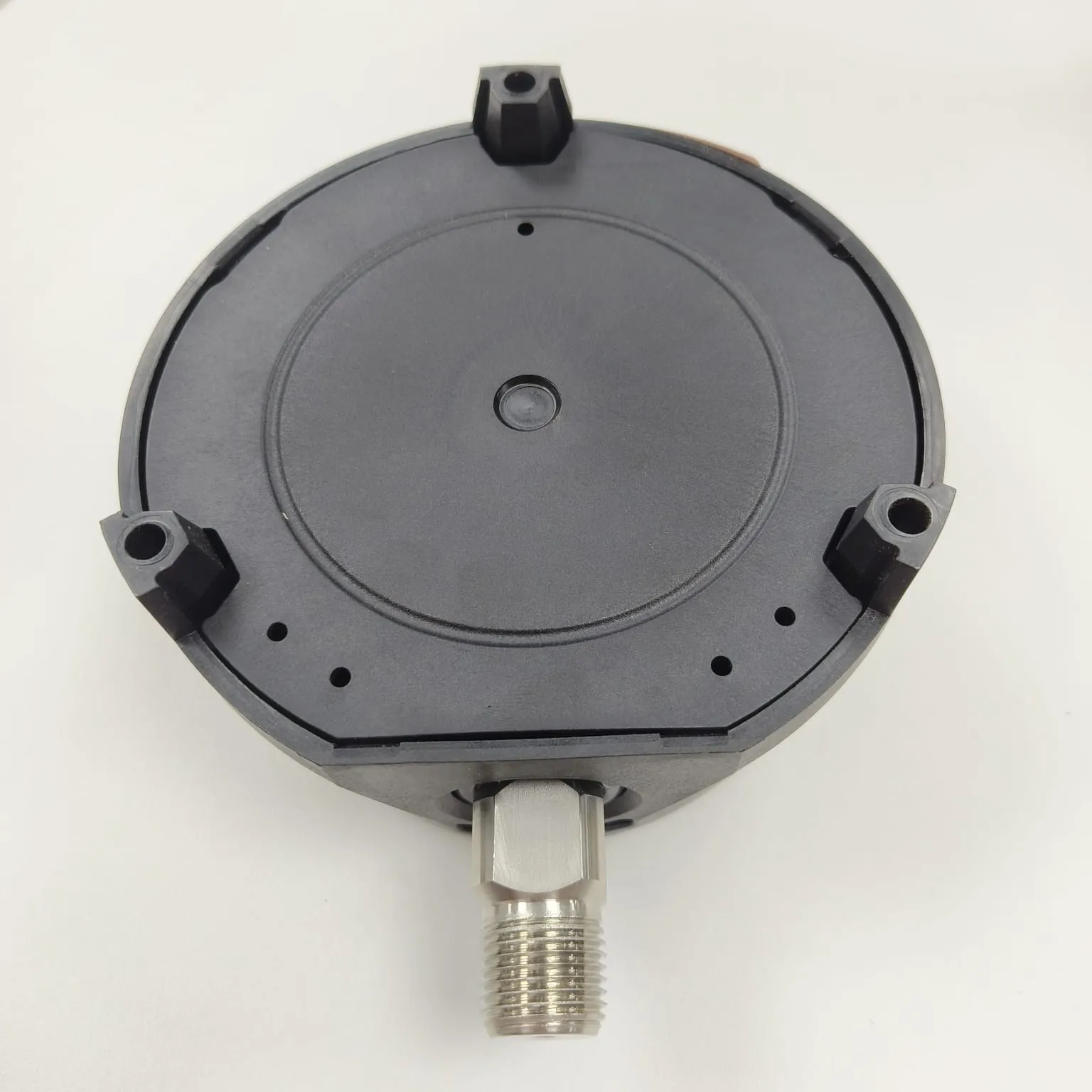

  • Solid-front phenolic-style thermoplastic safety case with blow-out back protection

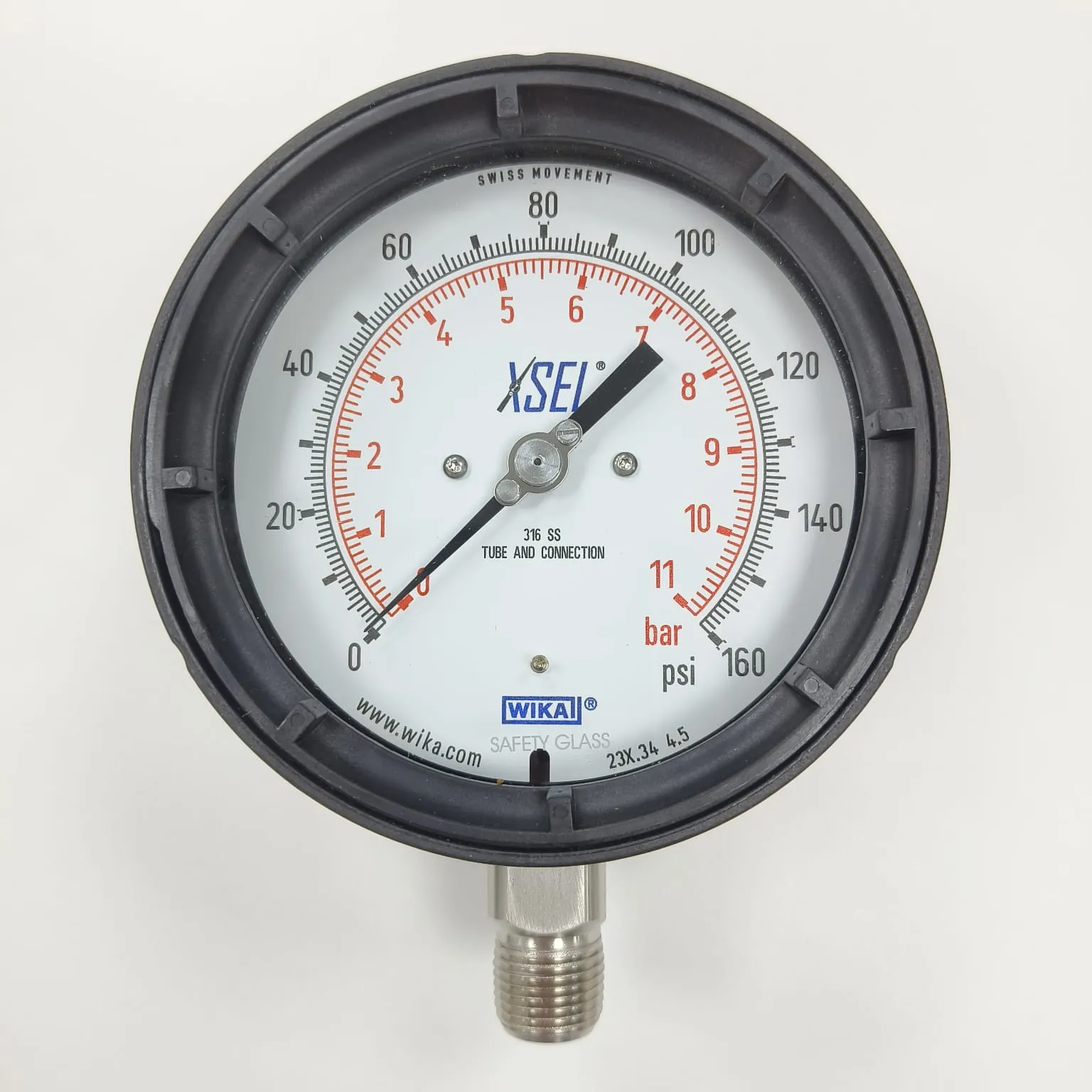

  • 4.5 in nominal size dial with 0 to 160 psi measuring range and dual scale psi and bar
  • Laminated safety glass window with adjustable pointer and stop pin at 6 o'clock
  • IP65 ingress protection for outdoor and washdown environments

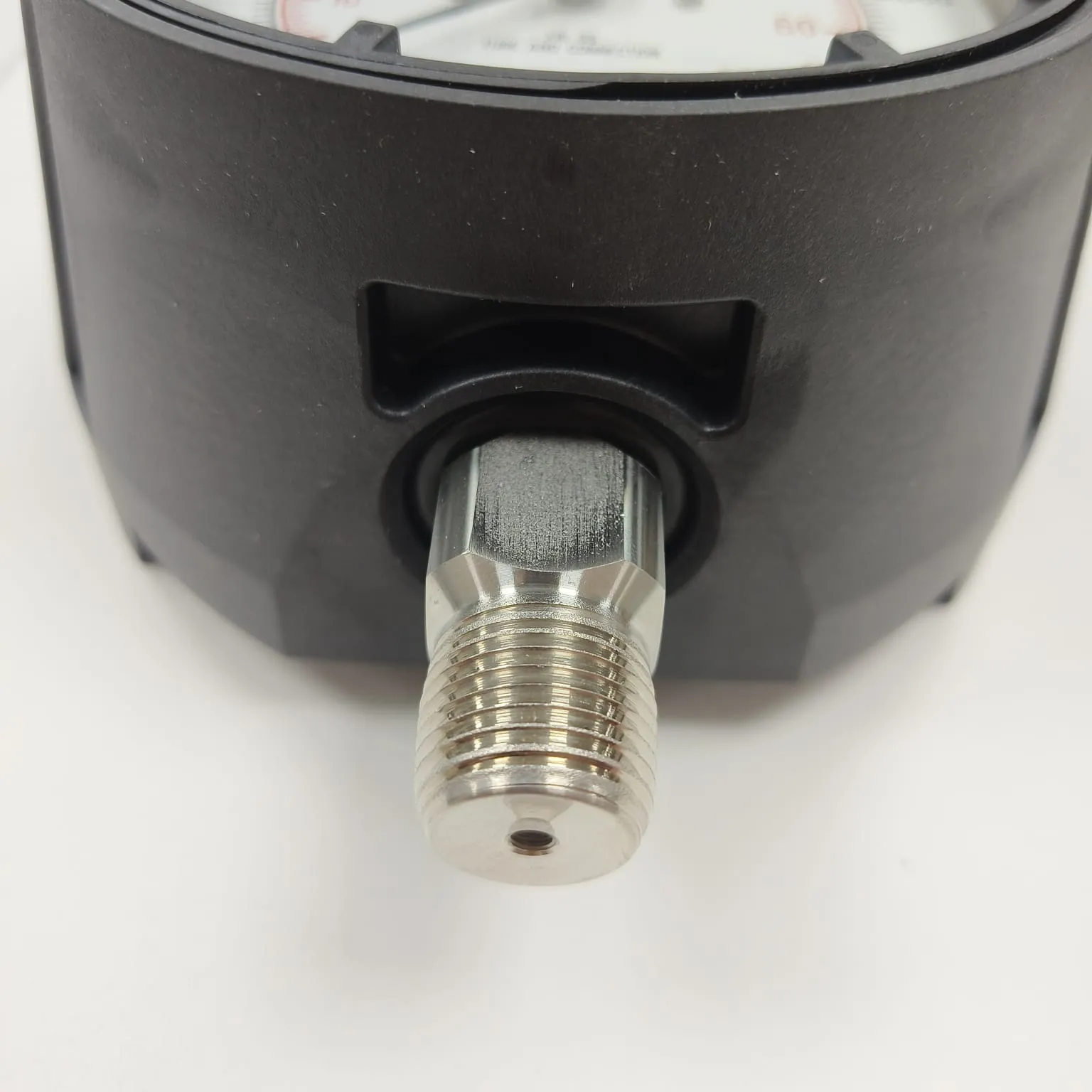

  • Stainless steel restrictor with 0.6 mm orifice to help damp pressure spikes
  • Dial QR code for easy access to instrument specific information and documents
  • Made in USA

Description

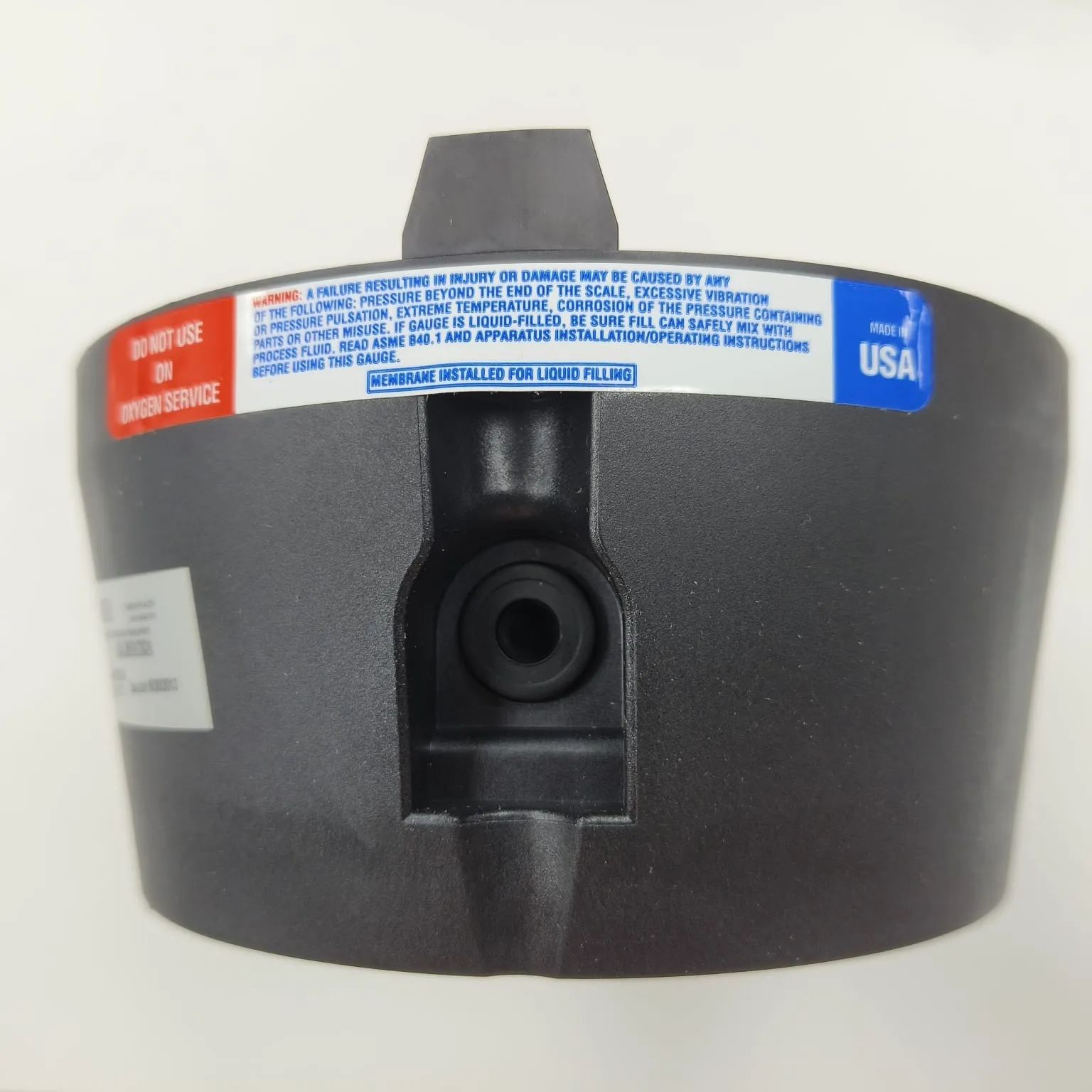

This WIKA 232.34 4.5 XSEL Bourdon tube phenolic process pressure gauge is a safety pattern gauge built for demanding process service where operator protection and long term reliability matter. It provides a 0 to 160 psi / 11 bar measurement range with Dual scale in psi and bar, using a 4.5" dial and a 1/2 NPT Bottom connection. The design follows the XSEL safety concept with a solid front and blow out back, and the laminated safety glass window helps protect the dial in harsh environments. The case is Black Fiberglass Reinforced Thermoplastic (Pocan B4225), while the measuring system is stainless steel with Measuring System 316L wetted parts for corrosion resistance. The gauge is supplied without and prepared for filling for liquid filling when required, and it is supplied in US-Standard execution.

Applications

  • Highly dynamic pressure loads, pulsation and vibration
  • Chemical and petrochemical processing plants
  • Power plants and utilities, mining and heavy industry
  • Onshore and offshore skid packages and general plant construction
  • Aggressive gaseous or liquid media that are not highly viscous or crystallising

Documents

  • Wika Datasheet-50403460

    PDF, 50 KB

  • Wika XSEL Process Gauge Model-232.34-4.5 — Datasheet

    PDF, 731 KB

  • Wika Model-232.34-4.5 Operating — Instructions

    PDF, 756 KB
