Technical overview

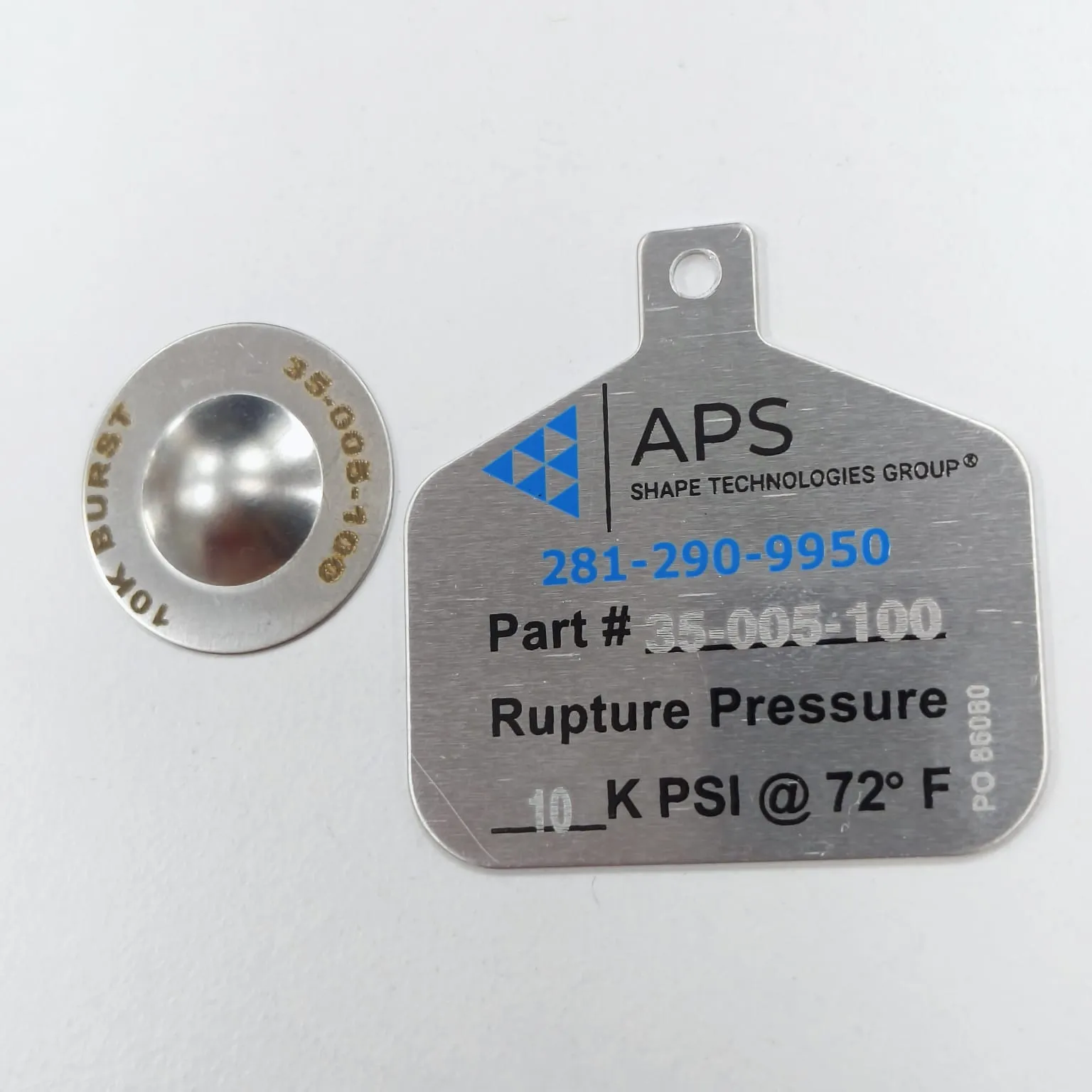

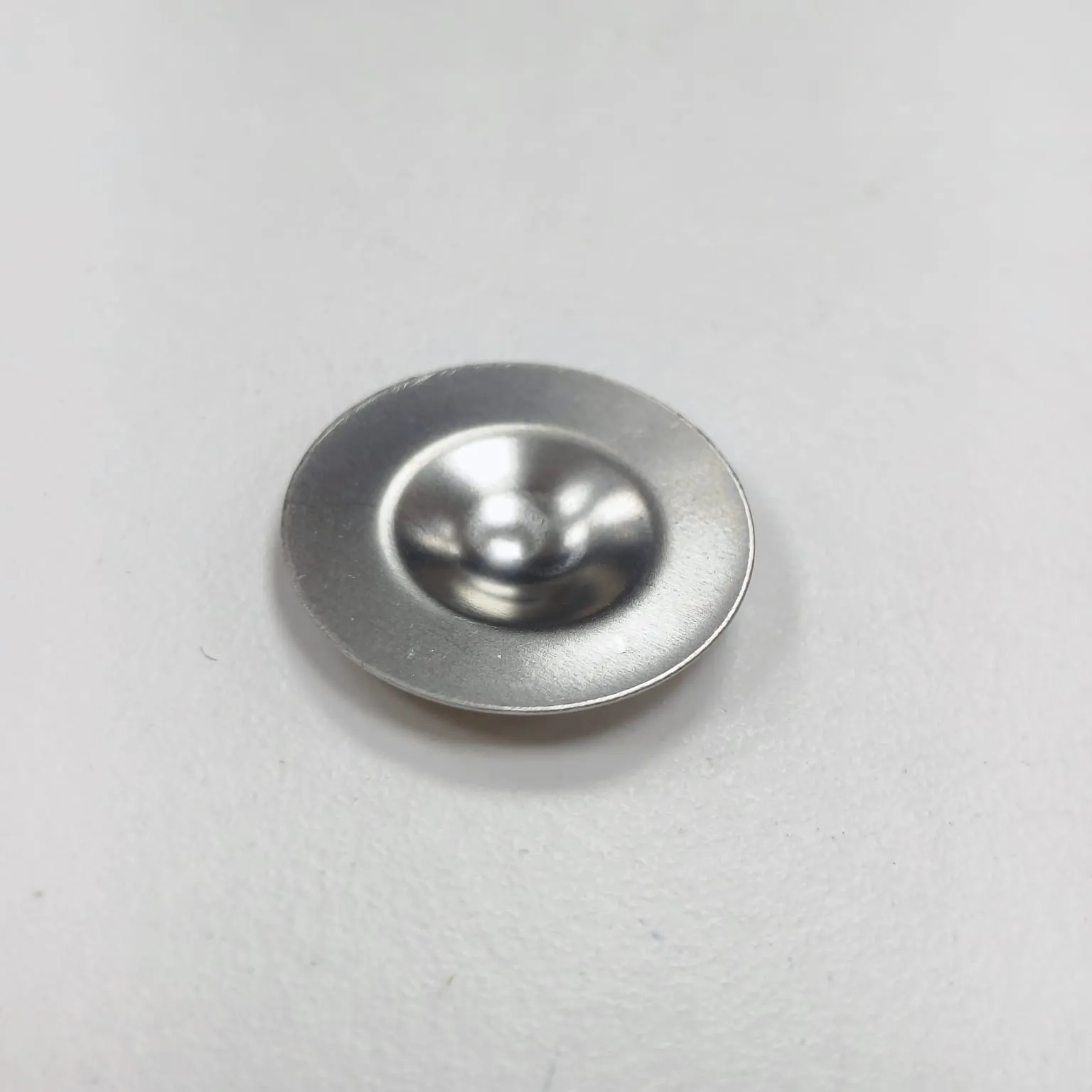

APS 35-005-100 is a 10,000 psi burst rupture disc in 1/2" STD configuration with a 0.875" disc diameter. This disc is intended for use in compatible APS-style 15K rupture disc holder assemblies, where it serves as a sacrificial pressure relief component for positive displacement pump systems. It is suitable for industrial water blasting and related high-pressure fluid applications where dependable overpressure protection is required.
Key Features
- Preset 10,000 psi burst rating
- 1/2" STD disc size with 0.875" diameter
- For compatible APS-style 15K rupture disc holders
- Helps protect pumps and pressure systems from overpressure
Specifications
Burst Pressure10,000 psi
Disc Style1/2" STD
Outside Diameter0.875"
Holder CompatibilityAPS-style 15K rupture disc holder
Documentation
APS-15K-PSI-Rutpure-Disc-Datasheet
Download
