Advanced Pressure Systems (APS) Rupture Disc, 14,800 psi Burst Pressure, 1/2" STD, 35-005-148
All Advanced Pressure Systems (APS) products
Advanced Pressure Systems (APS) Rupture Discs & Holders
All Rupture Discs & Holders (every brand)
Technical overview

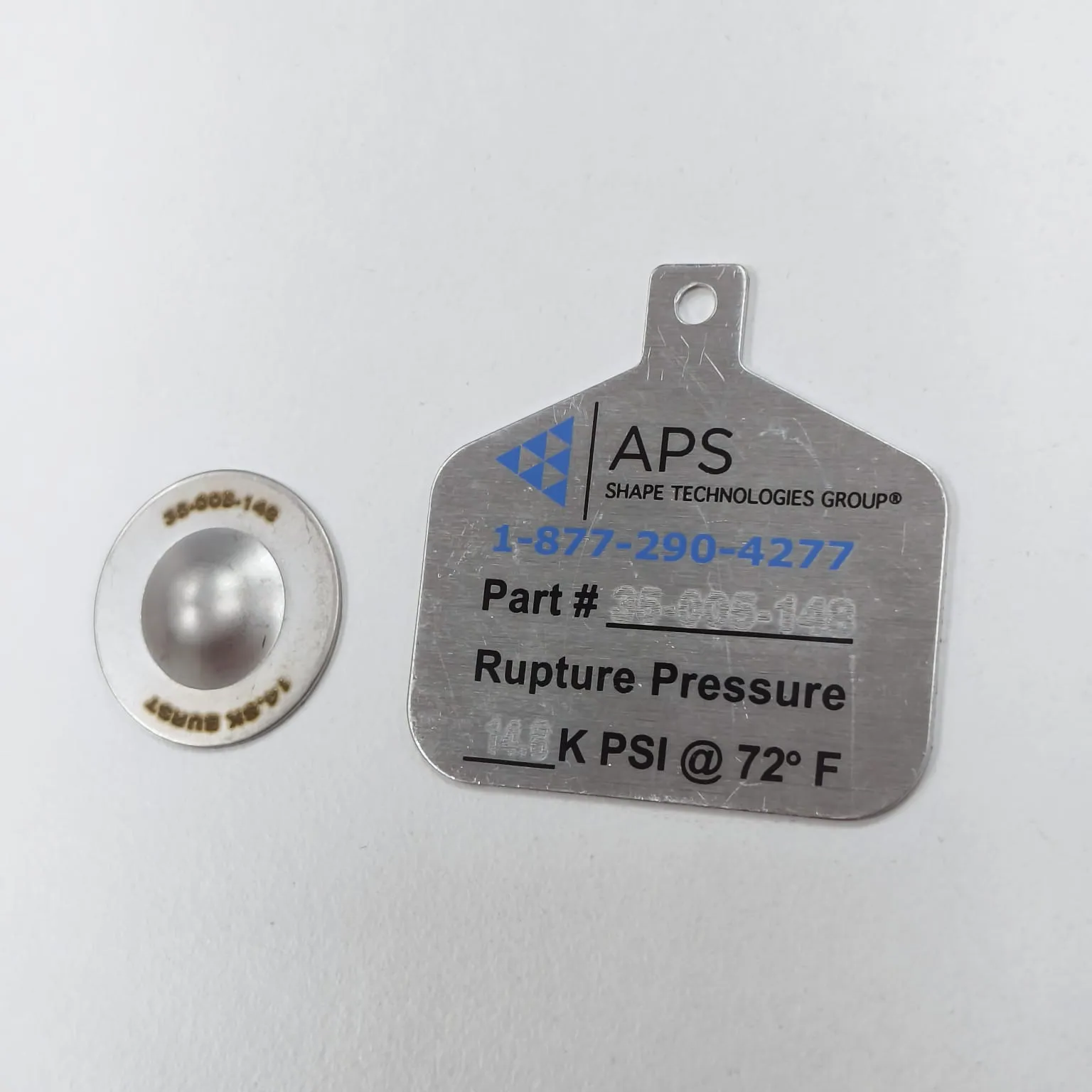

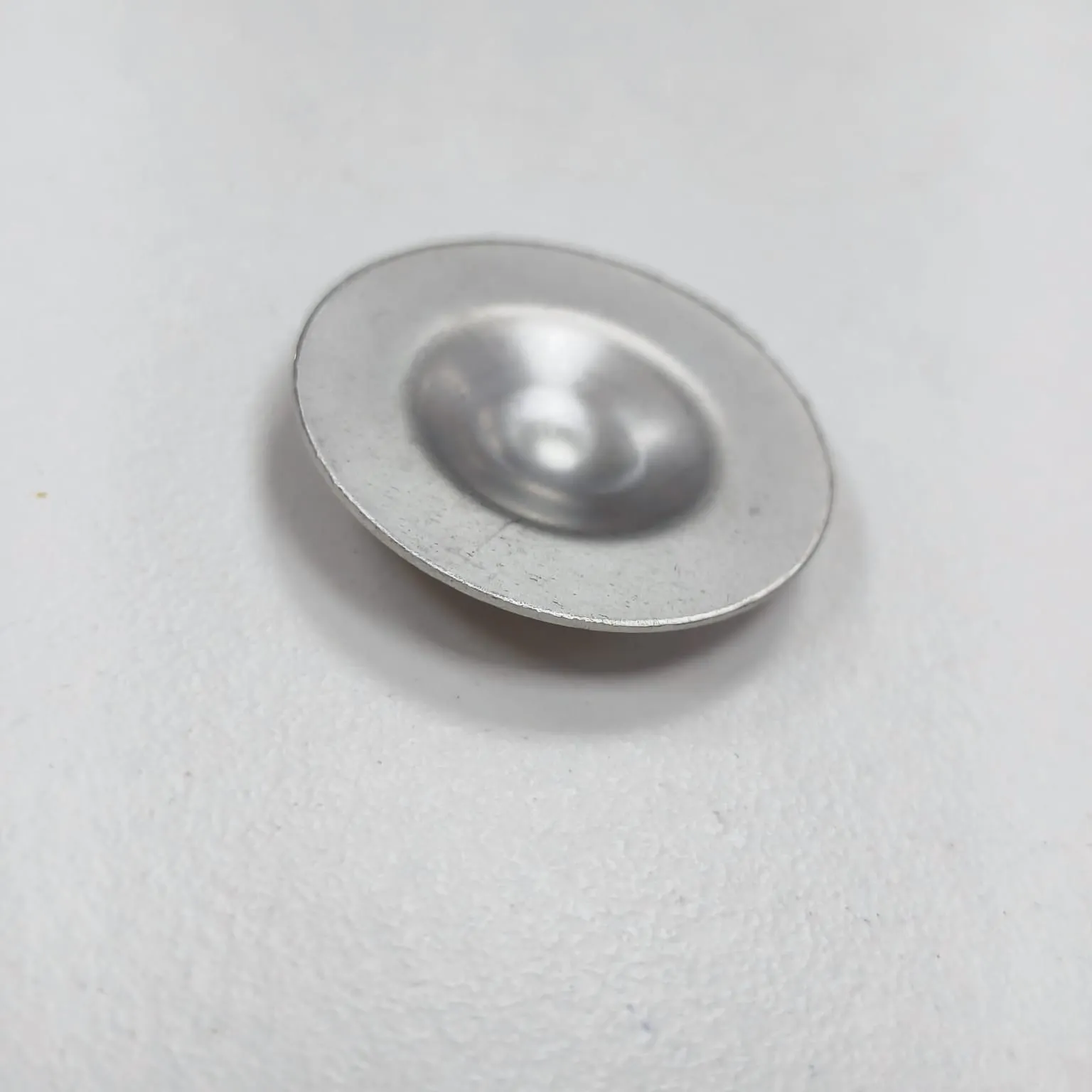

APS 35-005-148 is a 14,800 psi burst rupture disc in 1/2" STD configuration with a 0.875" disc diameter. This disc is intended for use in compatible APS-style 15K rupture disc holder assemblies, where it provides controlled overpressure relief for positive displacement pump systems. It is well suited for water blasting and other demanding high-pressure service applications that require a precise burst disc replacement.
Key Features
- Preset 14,800 psi burst rating
- 1/2" STD disc size with 0.875" diameter
- For compatible APS-style 15K rupture disc holders
- Supports safe pressure relief in water blasting systems
Specifications
Burst Pressure14,800 psi
Disc Style1/2" STD
Outside Diameter0.875"
Holder CompatibilityAPS-style 15K rupture disc holder
Documentation
APS-15K-PSI-Rutpure-Disc-Datasheet
Download
