Bourdon Tube Pressure Gauges

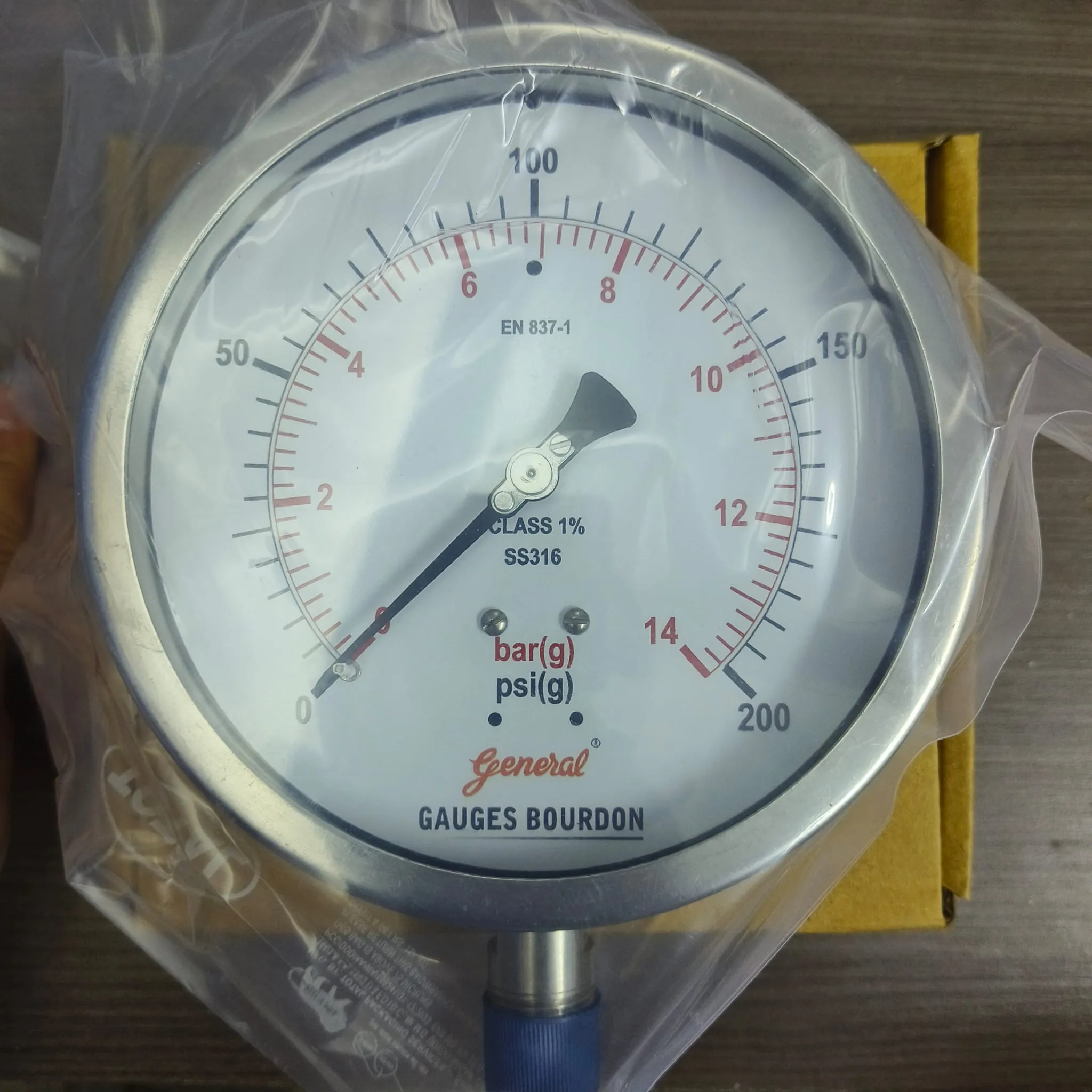

General Instruments Pressure Gauge BSPG-V, 0...200 psi, 2nd Scale bar, 6" Dial, 1/2" Male NPT Lower Mount, SS Body & Parts, BSPG-V-150-S4S-S6S-S6S-S4S-T15NTM-(0-200)-PSI/BAR-DUS
General Instruments

General Instruments Pressure Gauge BSPG-V, 0...200 psi, 2nd Scale bar, 6" Dial, 1/2" Male NPT Lower Mount, SS Body & Parts, BSPG-V-150-S4S-S6S-S6S-S4S-T15NTM-(0-200)-PSI/BAR-DUS

Mfr. part no.
BSPG-V-150-S4S-S6S-S6S-S4S-T15NTM-(0-200)-PSI/BAR-DUS
SKU
PS600-00200-GG

Specifications

Model BSPG-V
Measuring System Bourdon Tube
Dial Size 150 mm / 6"
Measuring Range 0...200 psi
Secondary Scale 2nd scale bar
Process Connection 1/2" Male NPT
Mounting Position Lower mount
Case Filling Dry case, prepared for filling
Wetted Parts SS316
Case Material SS304
Accuracy Class Class 1.0
Window Shatterproof glass
Over Range 130% FSD
Pressure Gauge Standard EN 837-1
Ambient Temperature Range -20...+60°C
Blow Out Disc Provided on top of case (Neoprene)

Key Features

  • 6" / 150 mm dial for clear process pressure indication.
  • Primary psi scale with 2nd scale bar reference.
  • 1/2" Male NPT process connection for industrial installation.
  • SS Body & Parts with SS304 case and SS316 wetted parts.
  • Dry case, prepared for filling where vibration damping is required.
  • Class 1.0 accuracy with EN 837-1 pressure gauge standard.
  • Made in India.

Description

General Instruments pressure gauge Model BSPG-V is designed for reliable local pressure indication in demanding industrial service. The gauge uses a 6" / 150 mm dial with a 1/2" Male NPT lower connection for direct process installation. Stainless Steel Made, with shatterproof glass window, SS316 wetted parts and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is 0...200 psi with 2nd scale bar, accuracy class is Class 1.0, and the process gauge design is suitable for hydraulic lines, pneumatic systems, pump skids, compressor systems and general process duties.

Applications

  • Hydraulic and pneumatic pressure monitoring.
  • Pump, compressor and utility line pressure indication.
  • Industrial process skids and equipment panels.
  • General plant maintenance and replacement gauge requirements.

Documents

  • General Pressure Gauges BSPG-100-150 mm Dial — Datasheet

    PDF, 201 KB
