Festo

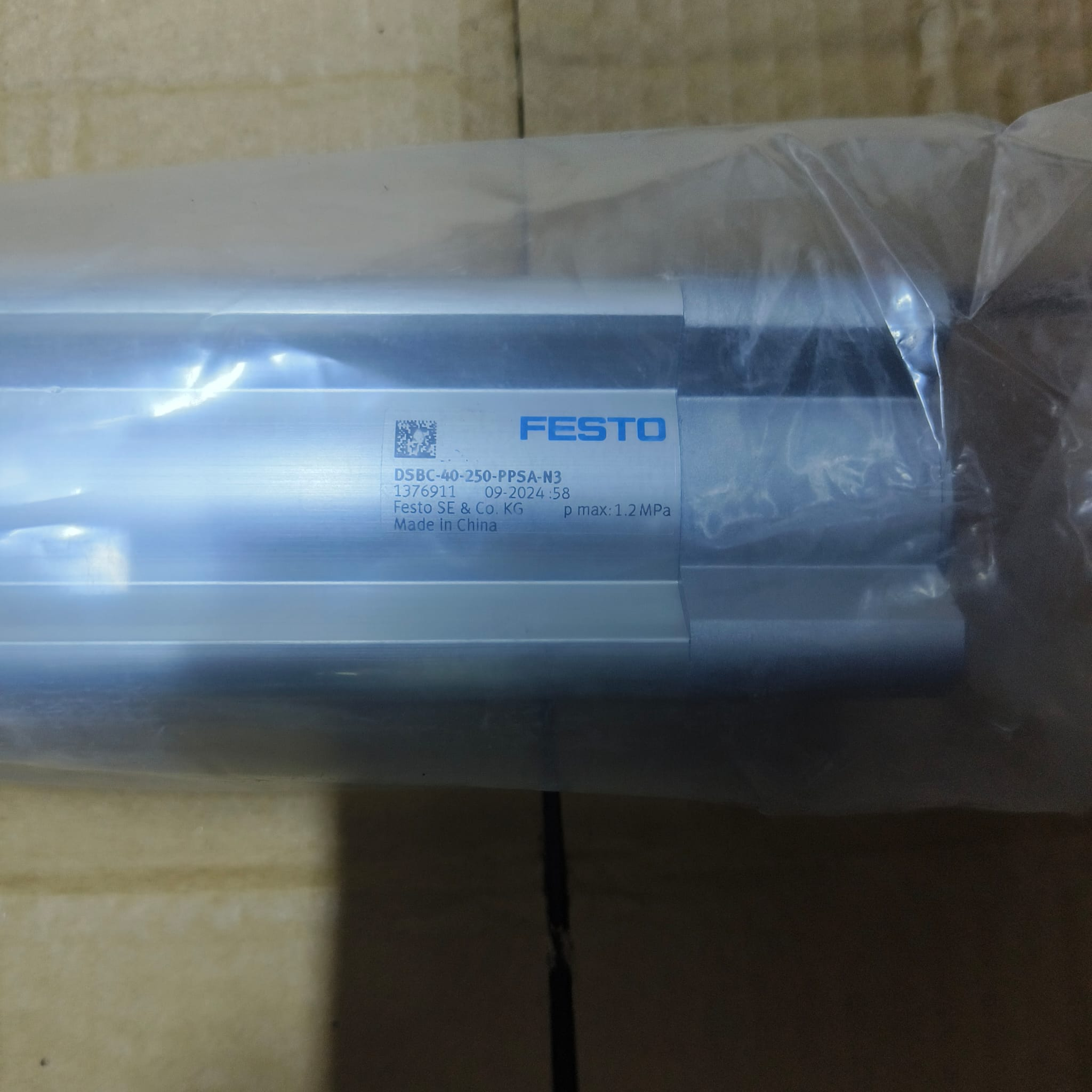

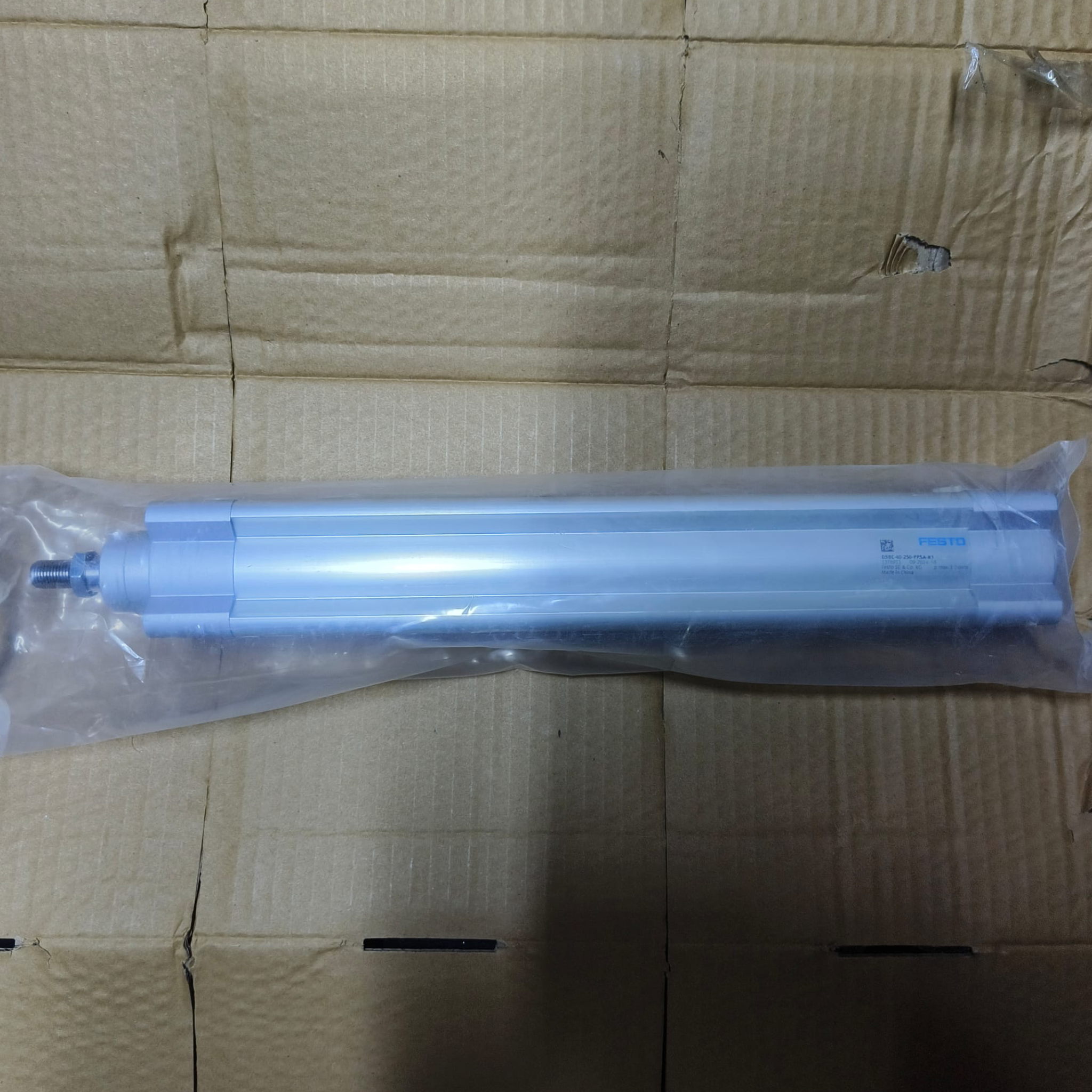

Festo DSBC Series ISO Pneumatic Cylinder, Bore Diameter 40 mm, Stroke 250 mm, Double Acting with Proximity Switch Detection, DSBC-40-250-PPSA-N3 / 1376911
- Mfr. part no.
- DSBC-40-250-PPSA-N3 / 1376911
- SKU
- PN-DSBC-40-250-PPSA-N31376911
Specifications
| Series | DSBC Series |
|---|---|
| Port Size | G1/4 |
| Bore Diameter | 40 mm |
| Stroke Length | 250 mm |
| Action Type | Double Acting |
| Cushioning | Self-adjusting Pneumatic |
| Working Pressure Range | 0.6 to 12 bar |
| Position Detection | Via Proximity Switch |

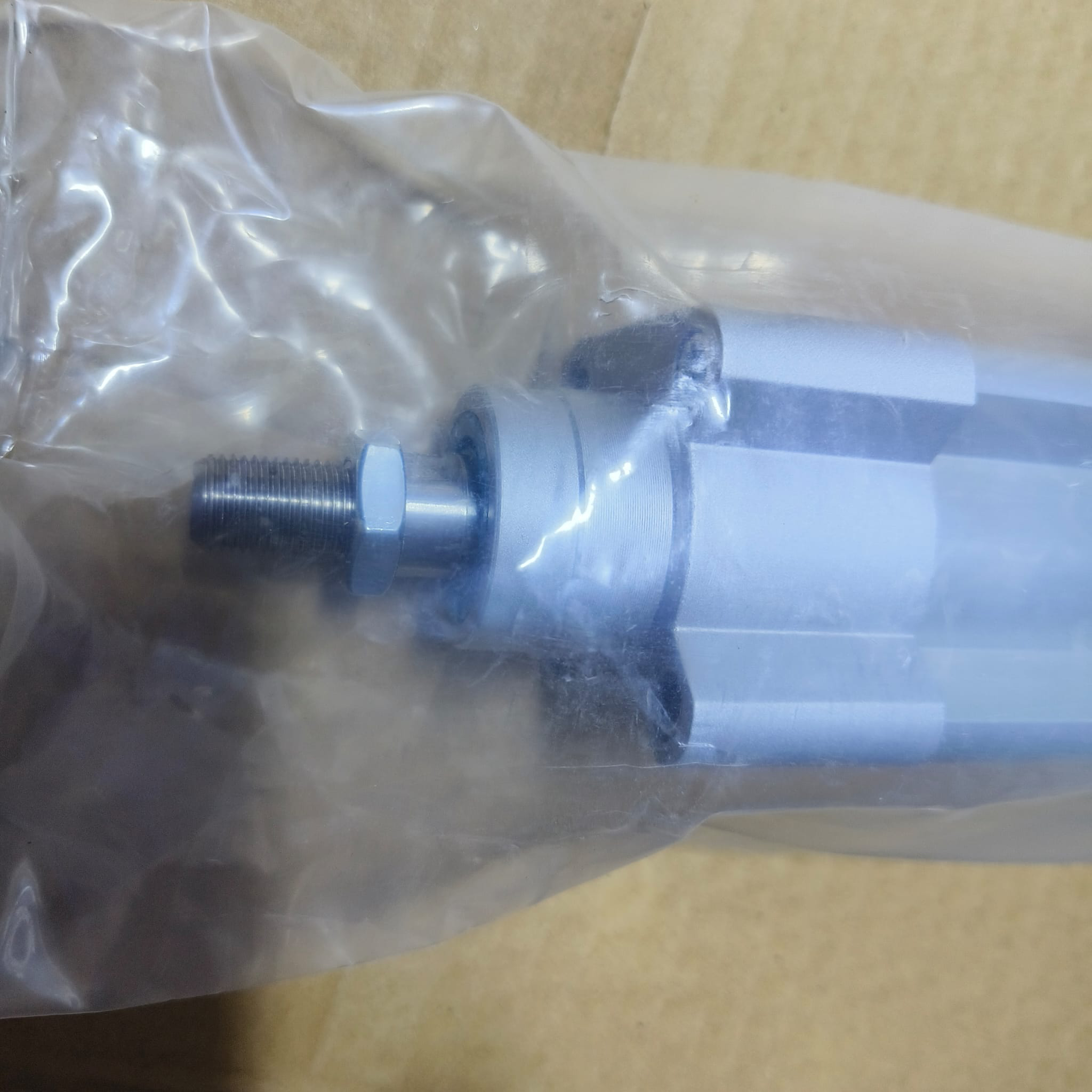

| Piston Rod End | M12 × 1.25 Male Thread |
| Compliance Standards | ISO 15552 |
| Ambient Temperature Range | -20 °C to +80 °C |
| Body Material | Anodised Aluminium |
Key Features
- ISO 15552 profile cylinder design for machine automation and industrial pneumatic systems.
- Double acting operation provides controlled extension and return motion using compressed air.
- Self-adjusting pneumatic end-position cushioning helps reduce impact at both stroke ends.
- Proximity-switch position detection supports actuator feedback in automated equipment.
- Profile barrel construction with aluminium covers and high-alloy steel piston rod supports reliable service.
Description
The Festo DSBC Series is an ISO 15552 profile pneumatic cylinder for controlled linear movement in automation systems, handling equipment and machine frames where a robust compressed-air actuator is required. This double acting linear pneumatic actuator uses a 40 mm piston diameter and 250 mm stroke, with a G1/4 pneumatic connection, M12 × 1.25 male piston-rod thread, single-ended piston rod and proximity-switch position detection. The cylinder is built with a profile barrel design, smooth-anodised aluminium cylinder barrel, coated die-cast aluminium covers, high-alloy steel piston rod and self-adjusting pneumatic end-position cushioning for smoother operation at both ends. It is suitable for general machine automation, material handling, clamping, pushing, positioning and compressed-air actuator applications requiring an ISO profile cylinder.
Applications
- Industrial automation and machine-building linear movement.
- Material handling, pushing, clamping and positioning duties.
- Packaging equipment, process machinery and transfer systems.
- Compressed-air actuator applications requiring ISO 15552 cylinder dimensions.
- Automation systems using proximity sensors for piston position feedback.
