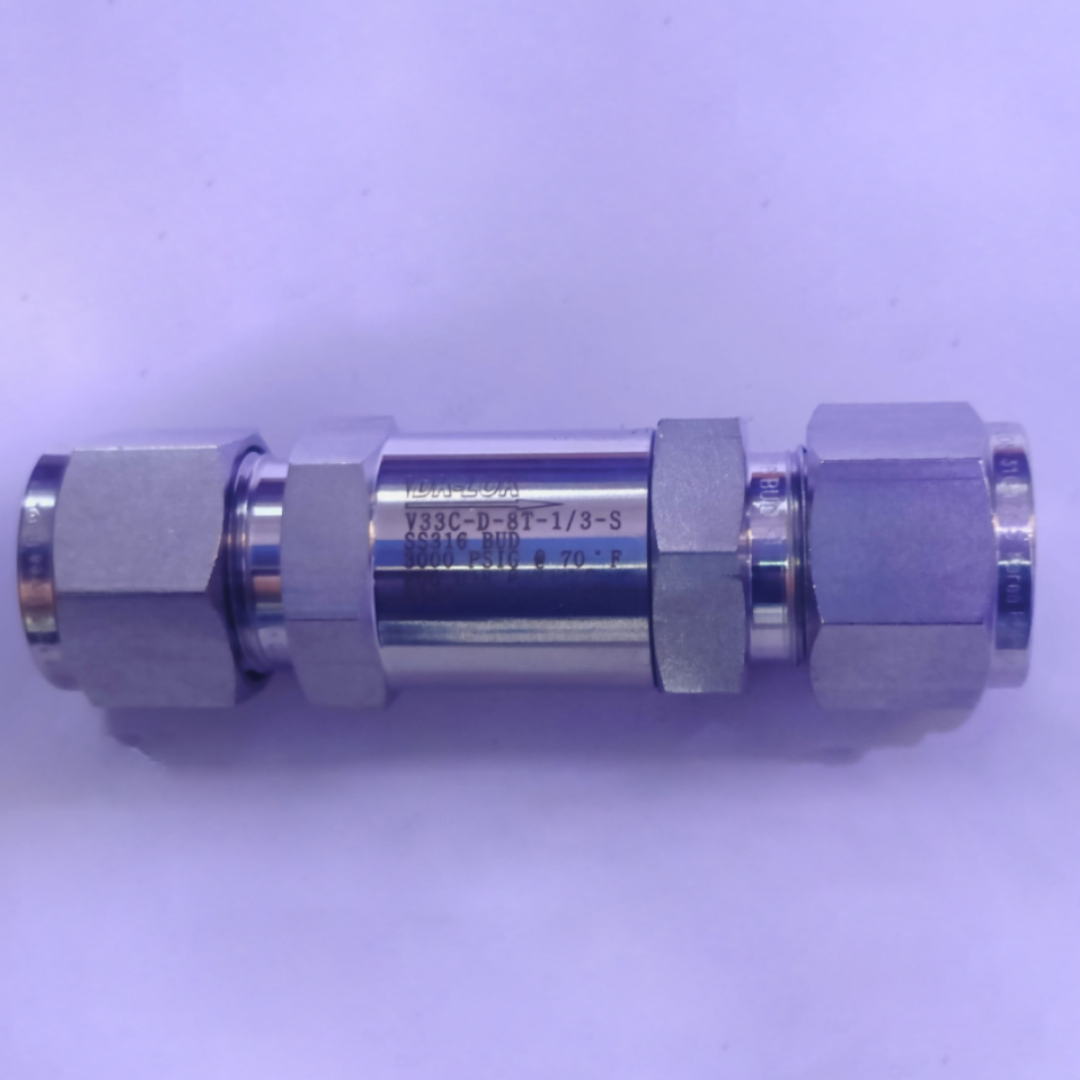

DK-LOK V33C Series Poppet Check Valve, 3000 psi, 1/2" Tube OD Connections, SS316, V33C-D-8T-1/3-S
DK-LOK

DK-LOK V33C Series Poppet Check Valve, 3000 psi, 1/2" Tube OD Connections, SS316, V33C-D-8T-1/3-S

Mfr. part no.
V33C-D-8T-1/3-S
SKU
DK-SSCV-3K-08

Specifications

Series V33C
Connection Size 1/2" Tube OD
Nominal Cracking Pressure 1/3 psi
Maximum Pressure 3000 psig
Body Material 316 stainless steel (SS316)
Seal Material FKM (Viton)
Orifice Size 10.0 mm (0.39 in)

Key Features

  • Fixed low cracking pressure designator 1/3 psi for sensitive flow start
  • Spring-loaded poppet helps prevent reverse flow and protects downstream equipment
  • DK-LOK tube fitting end connections for secure tubing installation
  • SS316 body for corrosion resistance in industrial fluids
  • Factory tested for cracking and reseal performance

Description

The DK-LOK V33C series poppet check valve is built to prevent reverse flow and support stable one-way operation in process tubing and instrumentation circuits. This fixed-cracking configuration uses DK-LOK tube fitting end connections and a spring-loaded poppet with FKM sealing for consistent shutoff. SS316 construction suits industrial fluids in chemical processing, power generation, and oil and gas applications where dependable backflow protection is required.

Applications

  • Instrument impulse lines and sampling systems
  • Hydraulic and pneumatic utility circuits
  • Chemical processing and general process tubing
  • Power generation and oil and gas service lines

Documents

  • DK LOK Datasheet-V33C D-8T-13 S

    PDF, 127 KB

  • DK LOK Check Valves-3000 PSI — Catalog

    PDF, 742 KB
