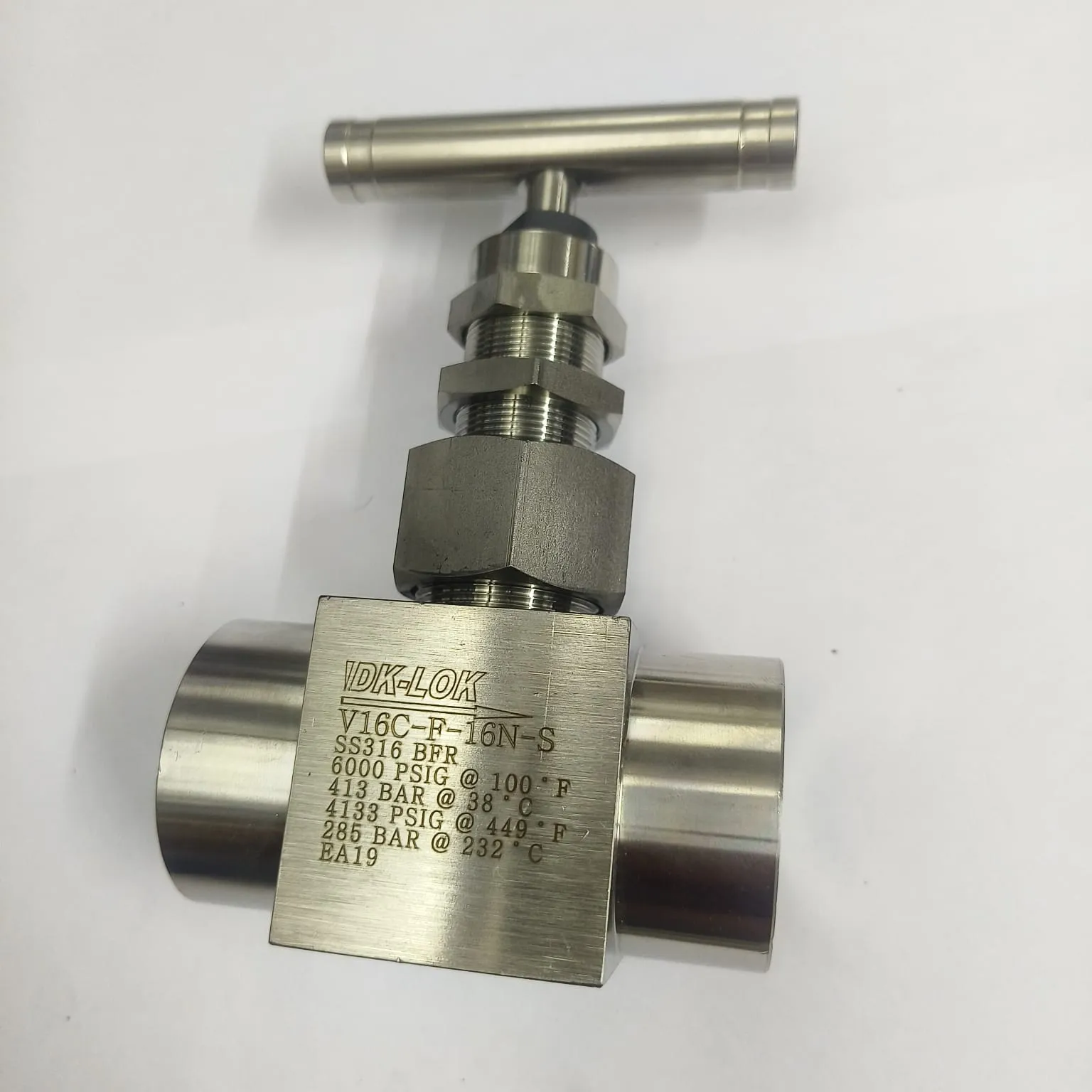

DK-LOK V16 Series Needle Valve, 6000 psi, 1" Female NPT Connections, SS316, V16C-F-16N-S
Technical overview
The DK-LOK V16 series severe service needle valve with 1" female NPT connections is designed for accurate flow control and positive isolation up to 6000 psi. Its non-rotating stem tip and packing below the stem threads help reduce galling and protect the stem from system media, while the union bonnet construction supports maintenance and long service life. Ideal for instrumentation manifolds, chemical injection, sampling, and hydraulic/pneumatic control circuits where stable adjustment and dependable shutoff are essential.
Key Features
- Pressure rating up to 6000 psi @ 100°F (38°C)
- Severe service bonnet design for dependable shutoff and control
- Non-rotating stem tip helps reduce galling and improves sealing
- Packing located below stem threads to isolate threads from system media
- SS316 construction suitable for many corrosive services
Applications
- Instrumentation isolation for gauges and pressure transmitters
- Sampling panels and analyzer lines
- Chemical injection and dosing skids
- Hydraulic and pneumatic control circuits
- General high-pressure process isolation and throttling
Specifications
SeriesV16 Severe Service Union Bonnet
Maximum Pressure6,000 psig @ 100°F (38°C)
Connection Size1" Female NPT x 1" Female NPT
Valve PatternInline
Body MaterialStainless Steel 316
Packing MaterialPTFE
Orifice Size11.1 mm
HandleSS316 Bar Handle
