Swagelok SS-600-3
Swagelok Gaugeable Tube Fittings — Union Tee (configuration suffix -3), 316 SS
Swagelok SS-600-3 — 3/8 in union tee, 316 stainless, gaugeable tube fitting. Direct equivalent of our DK-LOK DT-6-S.
Tube-to-Tube Fittings
DK-LOK

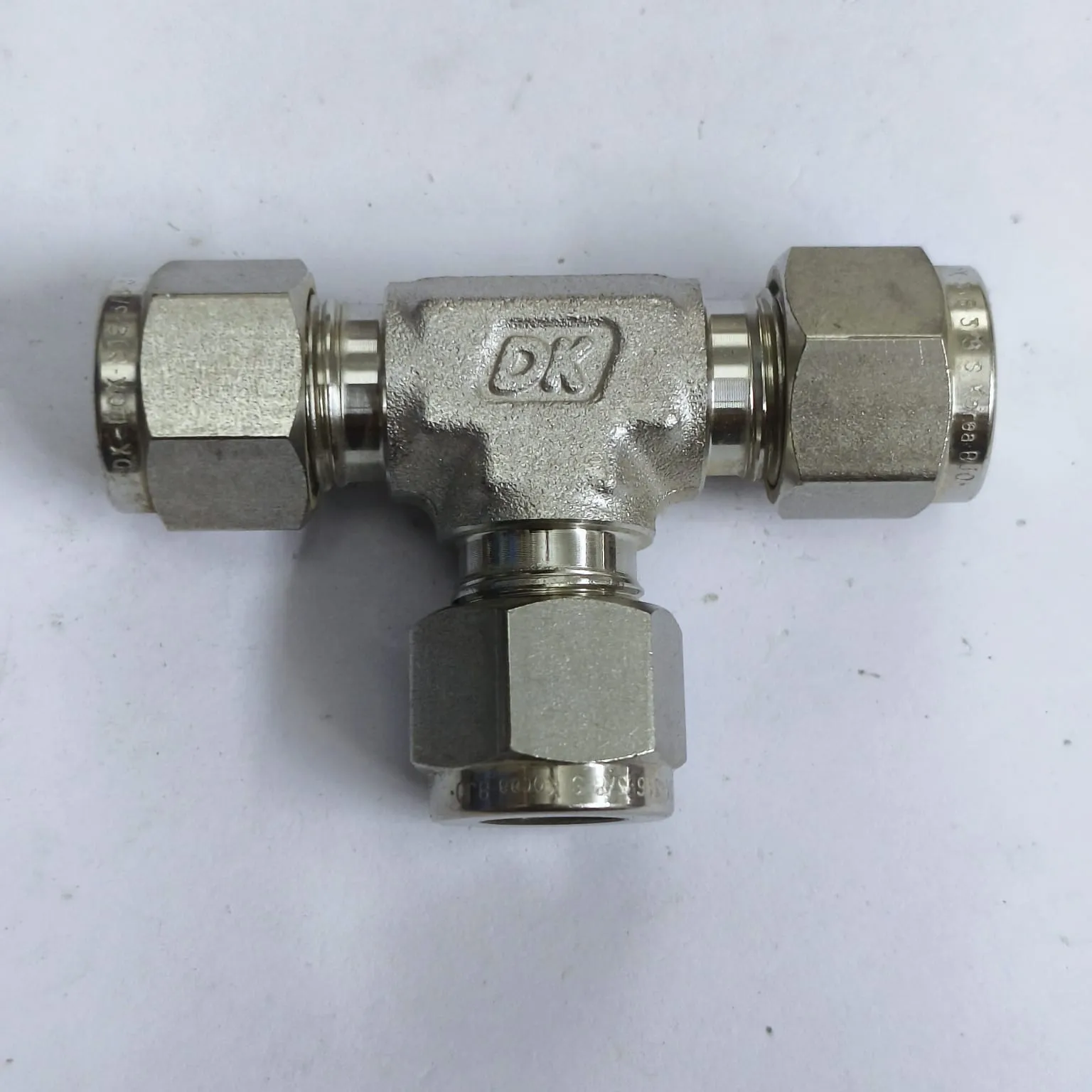

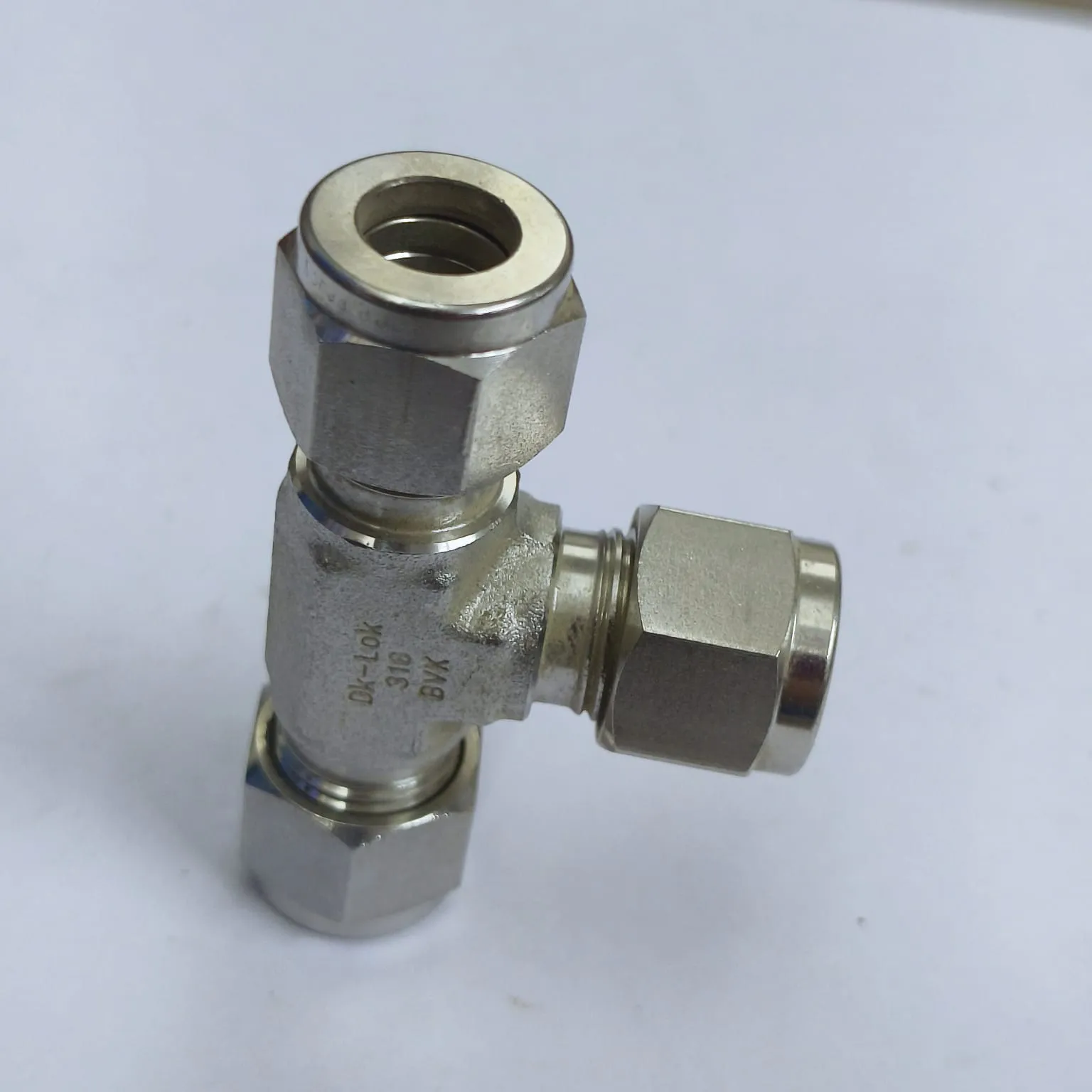

DK-LOK Compression Tube Tee Fitting, 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD, SS316, DT-6-S
- Mfr. part no.
- DT-6-S
- SKU
- DK-VD8606
Specifications
| Connection Size (End 1) | 3/8" Tube OD |
|---|---|
| Connection Size (End 2) | 3/8" Tube OD |
| Connection Size (End 3) | 3/8" Tube OD |
| Body Material | 316 stainless steel |
| Ferrule Design | Double ferrule (front & back ferrules) |
Key Features
- Tee configuration to split or combine flow paths in tubing systems
- Double-ferrule design (front & back ferrules) for secure tube grip and leak-tight sealing
- SS316 stainless steel construction for corrosion resistance
- Suitable for instrumentation and process tubing service
Description
DK-LOK DT Series tube tee fitting with 3/8" Tube OD configuration, manufactured from 316 stainless steel with a proven double-ferrule design (front and back ferrules) for strong tube grip and leak-tight sealing. Suitable for instrumentation and process tubing systems where vibration and pressure cycling are present. Part number: DT-6-S.
Applications
- Instrumentation and control lines
- Hydraulic and pneumatic tubing systems
- Process and utility service lines
- General industrial fluid and gas handling
Documents
-
PDF, 6.2 MB Download
DK Lok Compression Tube Fittings — Catalog
PDF, 6.2 MB
Cross-reference
The closest equivalents from other brands, with the differences stated so you can check before you order.
Parker Hannifin 6ET6-316
Parker A-LOK Series Union Tee — ET, 316 SS (Instrumentation Products Division)
Parker Hannifin 6ET6-316 — A-LOK 3/8 in union tee, 316 stainless, double ferrule all ends. Direct equivalent of our DK-LOK DT-6-S.
We carry DT-6-S as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
