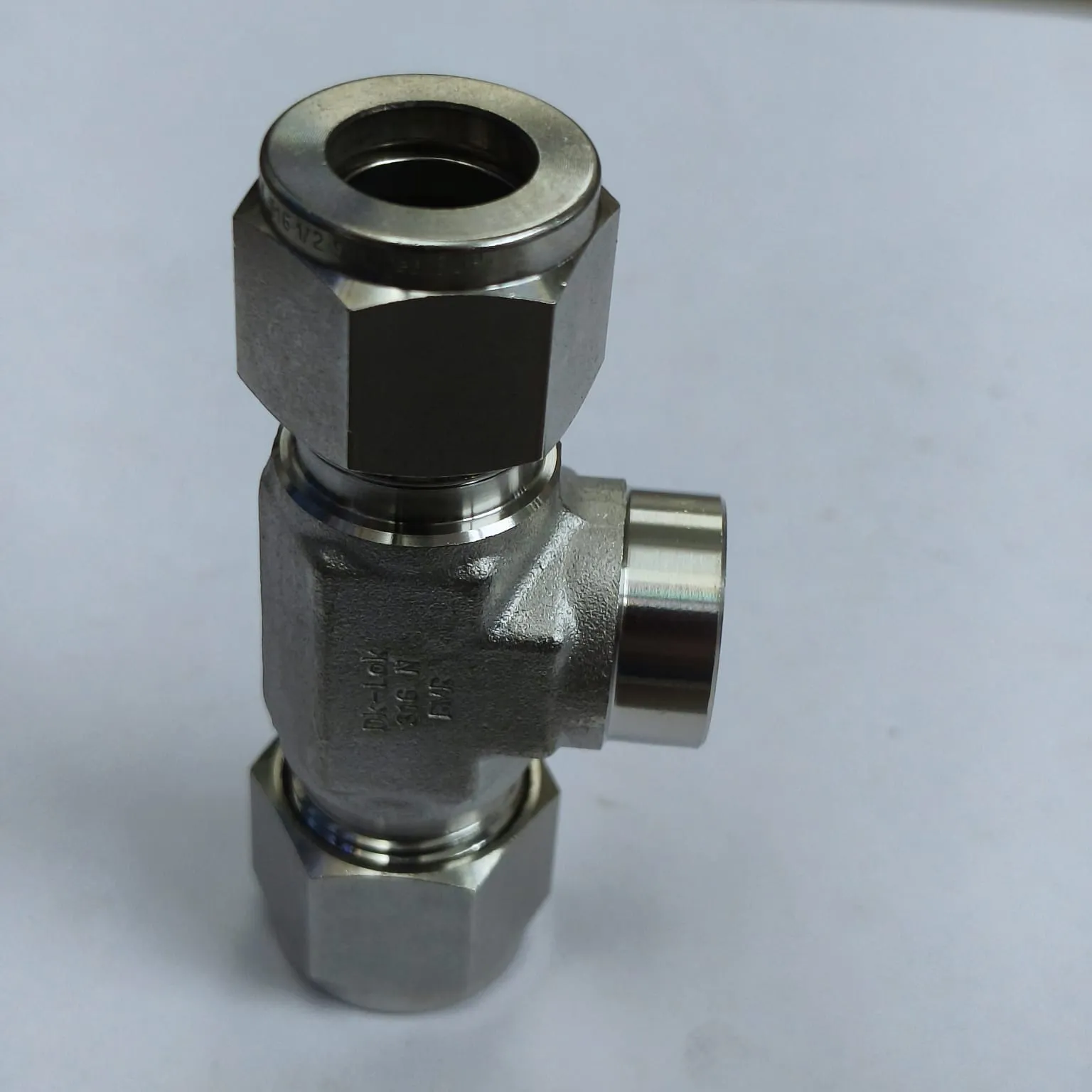

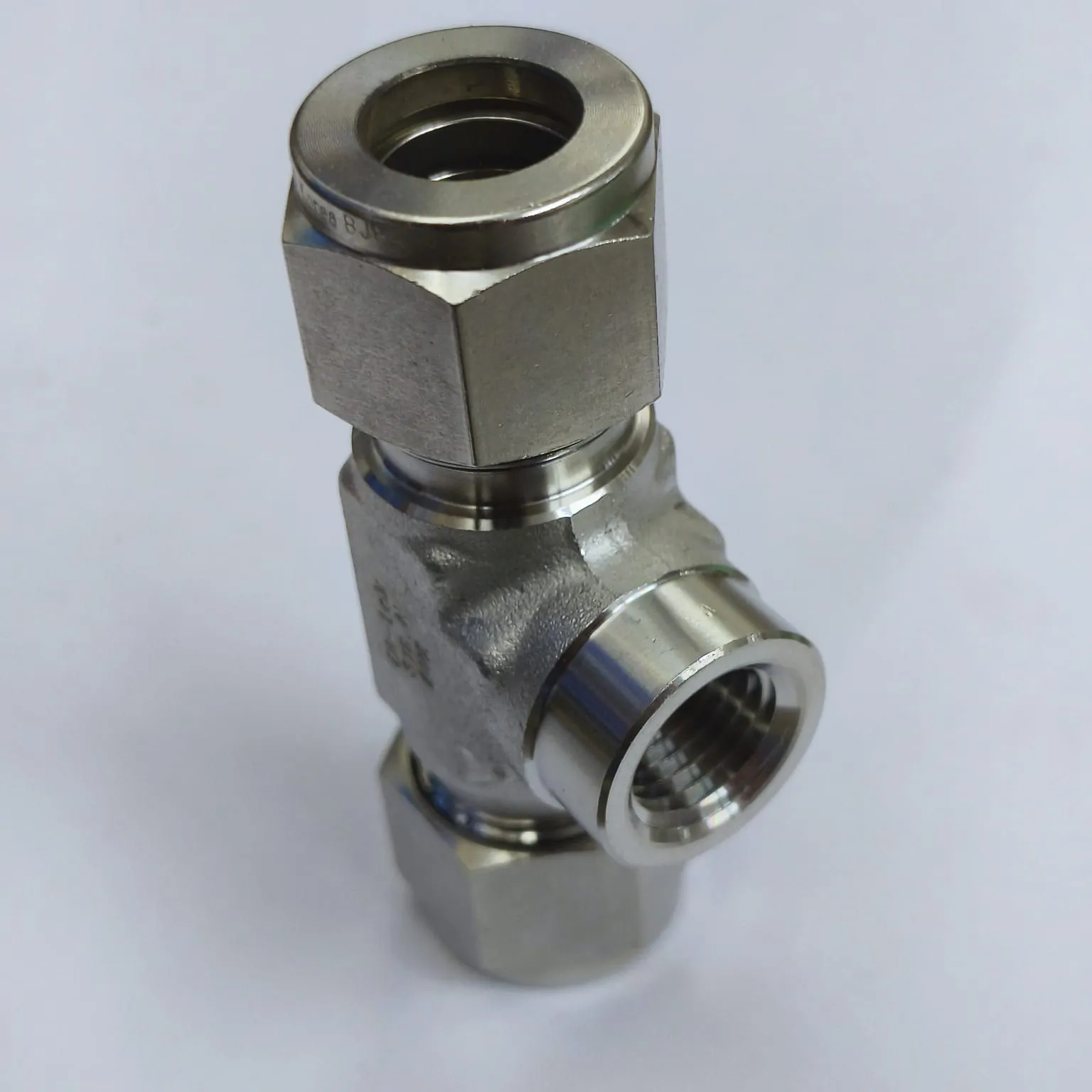

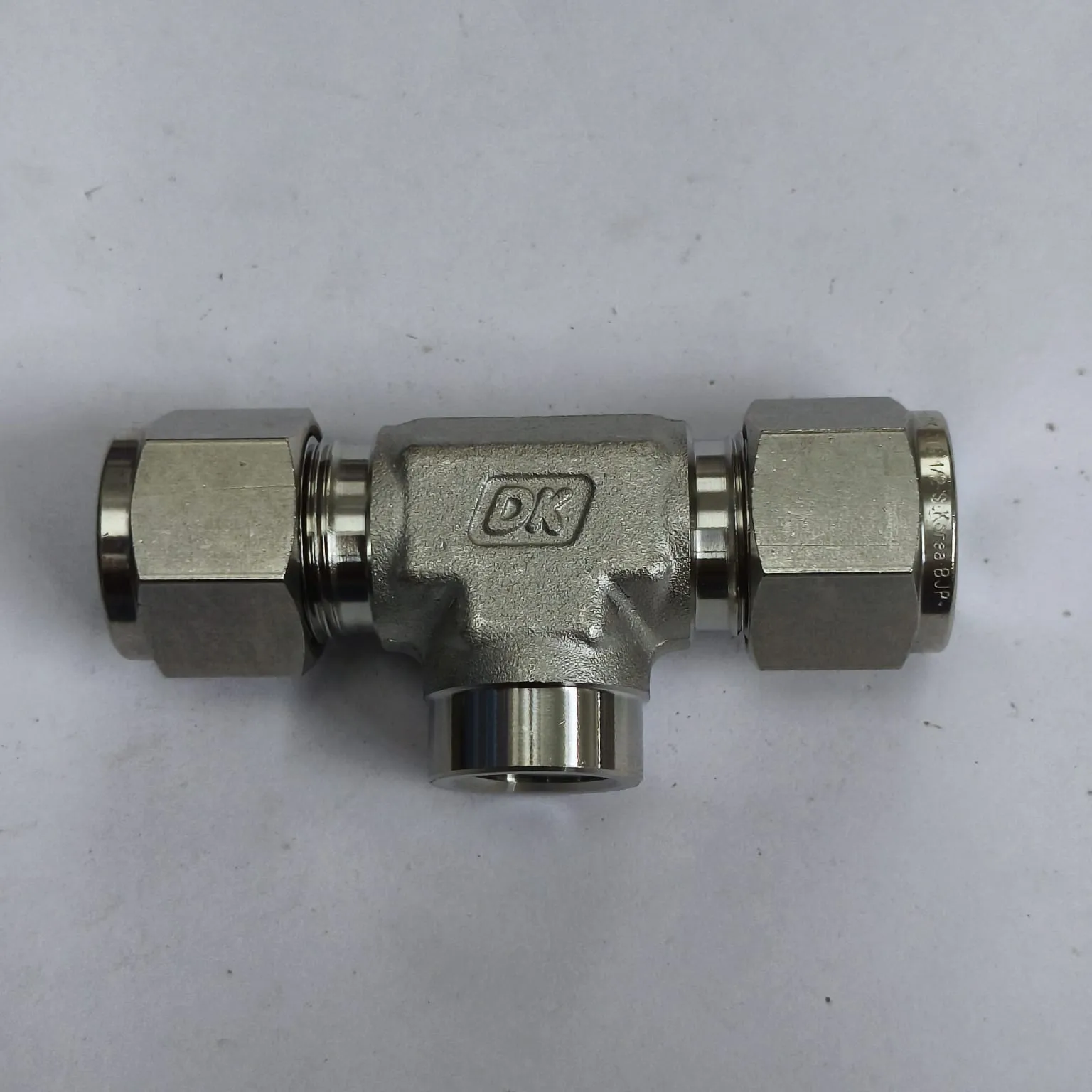

DK-LOK Compression Tube Tee Fitting, 1/2" Tube OD x 1/2" Tube OD x 1/4" Female NPT, SS316, DTBF-8-4N-S
All DK-LOK products
DK-LOK Tube-to-Female Thread Fittings
All Tube-to-Female Thread Fittings (every brand)
Technical overview
DK-LOK DTBF Series compression reducing tee fitting with 1/2" Tube OD x 1/2" Tube OD x 1/4" Female NPT connections, manufactured from SS316/316L stainless steel. This tube-to-tube tee with a female NPT branch provides a secure, leak-tight joint using a standard double-ferrule design (front ferrule seals, rear ferrule grips the tube) for reliable service in instrumentation and general tubing applications.
Key Features
- Tee configuration to split or combine flow paths in tubing systems
- Double-ferrule design (front & back ferrules) for secure tube grip and leak-tight sealing
- SS316 stainless steel construction for corrosion resistance
- Suitable for instrumentation and process tubing service
Applications
- Instrumentation and control lines
- Hydraulic and pneumatic tubing systems
- Process and utility service lines
- General industrial fluid and gas handling
Specifications
Connection Size (End 1)1/2" Tube OD
Connection Size (End 2)1/2" Tube OD
Connection Size (End 3)1/4" Female NPT
Body Material316 stainless steel
Ferrule DesignStandard double ferrule (front & back ferrules)
