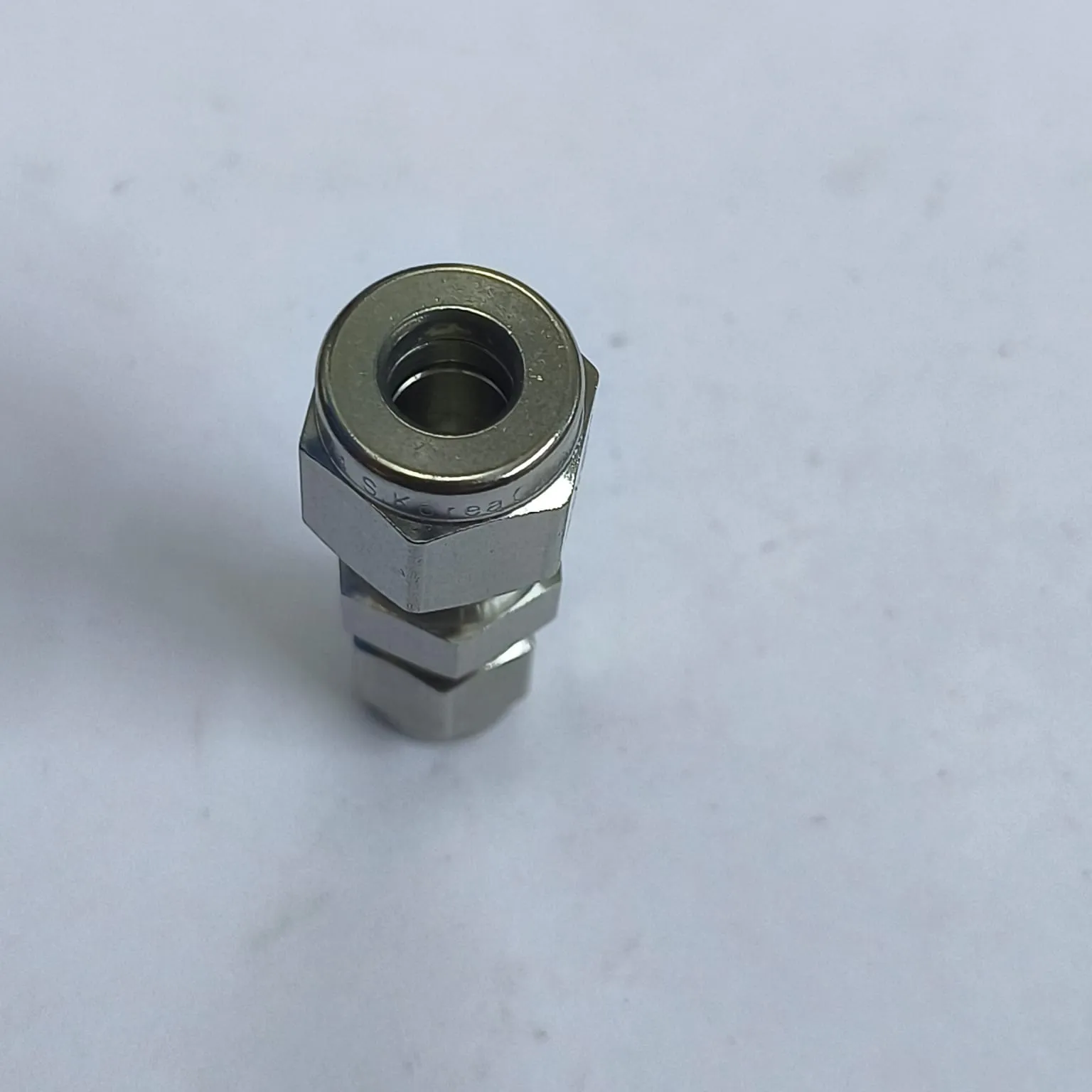

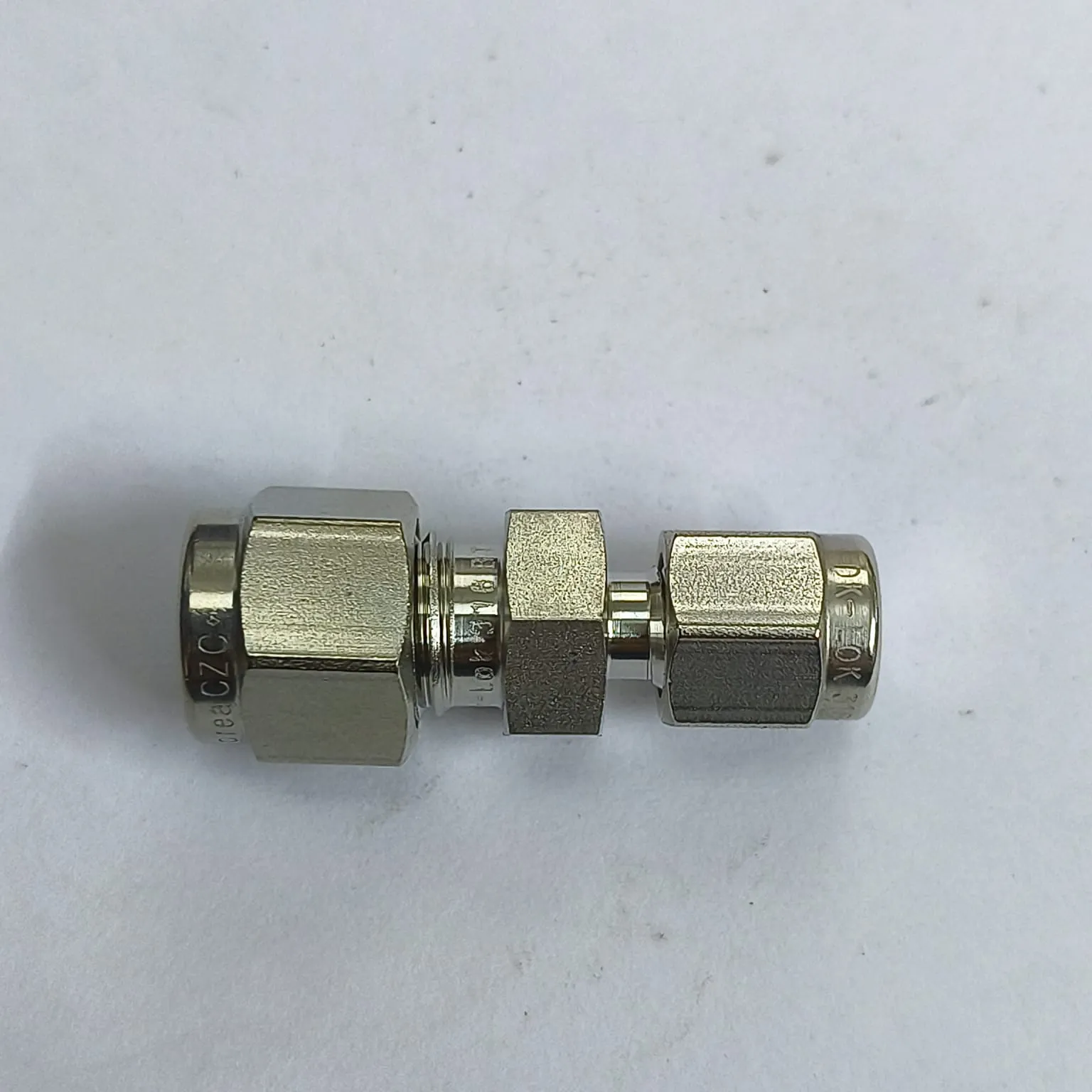

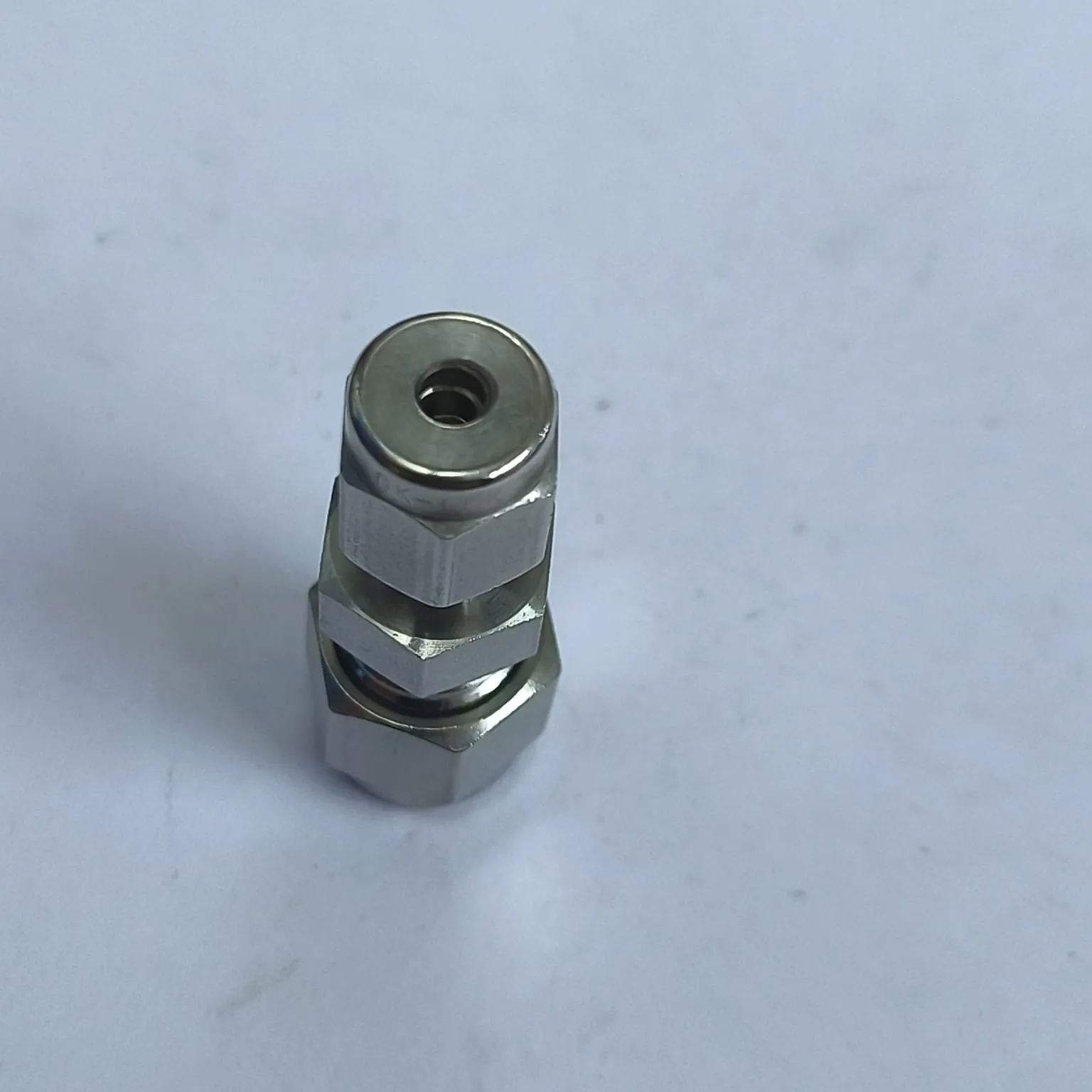

DK-LOK Compression Tube Straight Reducing Fitting, 1/4" Tube OD x 1/8" Tube OD, SS316, DUR-4-2-S
Technical overview
DK-LOK DUR Series straight reducing union fitting with a 1/4" tube end and a 1/8" tube end to connect different tube OD sizes. Manufactured from SS316 stainless steel with a proven double ferrule design (front and back ferrules) to provide a strong grip, vibration resistance, and leak‑tight sealing in instrumentation and process tubing systems. Suitable for high-pressure service when installed per Dk-lok tube fitting make-up instructions.
Key Features
- Double-ferrule design (front & back ferrules) for secure tube grip and leak-tight sealing
- SS316 stainless steel body, nut and ferrules for corrosion resistance
- Straight-body configuration for clean, compact routing
Applications
- Instrumentation and control lines
- Hydraulic and pneumatic tubing systems
- Process and utility piping interface (tube to NPT where applicable)
- General industrial fluid & gas service
Specifications
Connection Size (End 1)1/4" Tube OD
Connection Size (End 2)1/8" Tube OD
Body Material316 stainless steel
Ferrule DesignDouble ferrule (front & back ferrules)
Documentation
DK-Lok-Compression-Tube-Fittings-Catalog
Download
