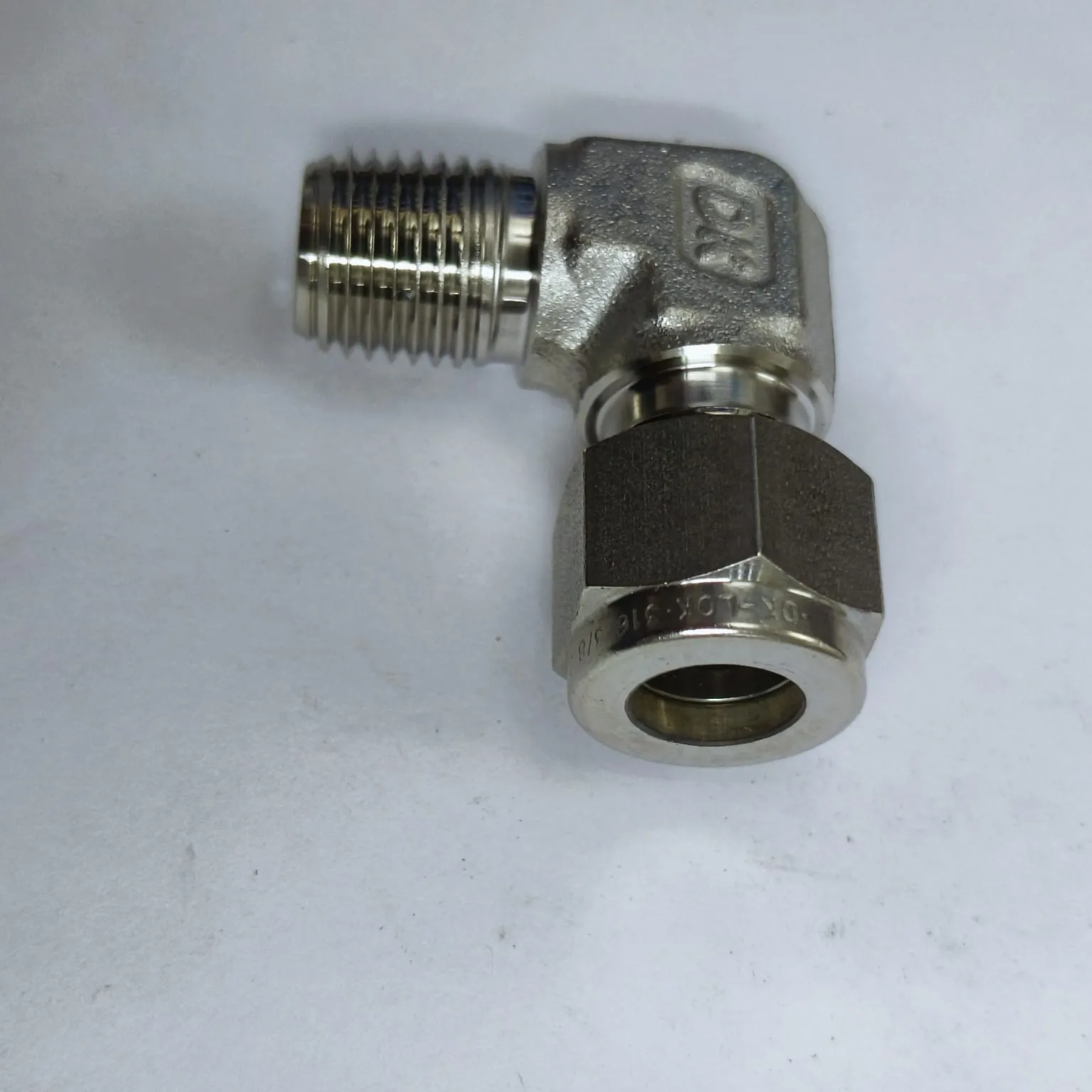

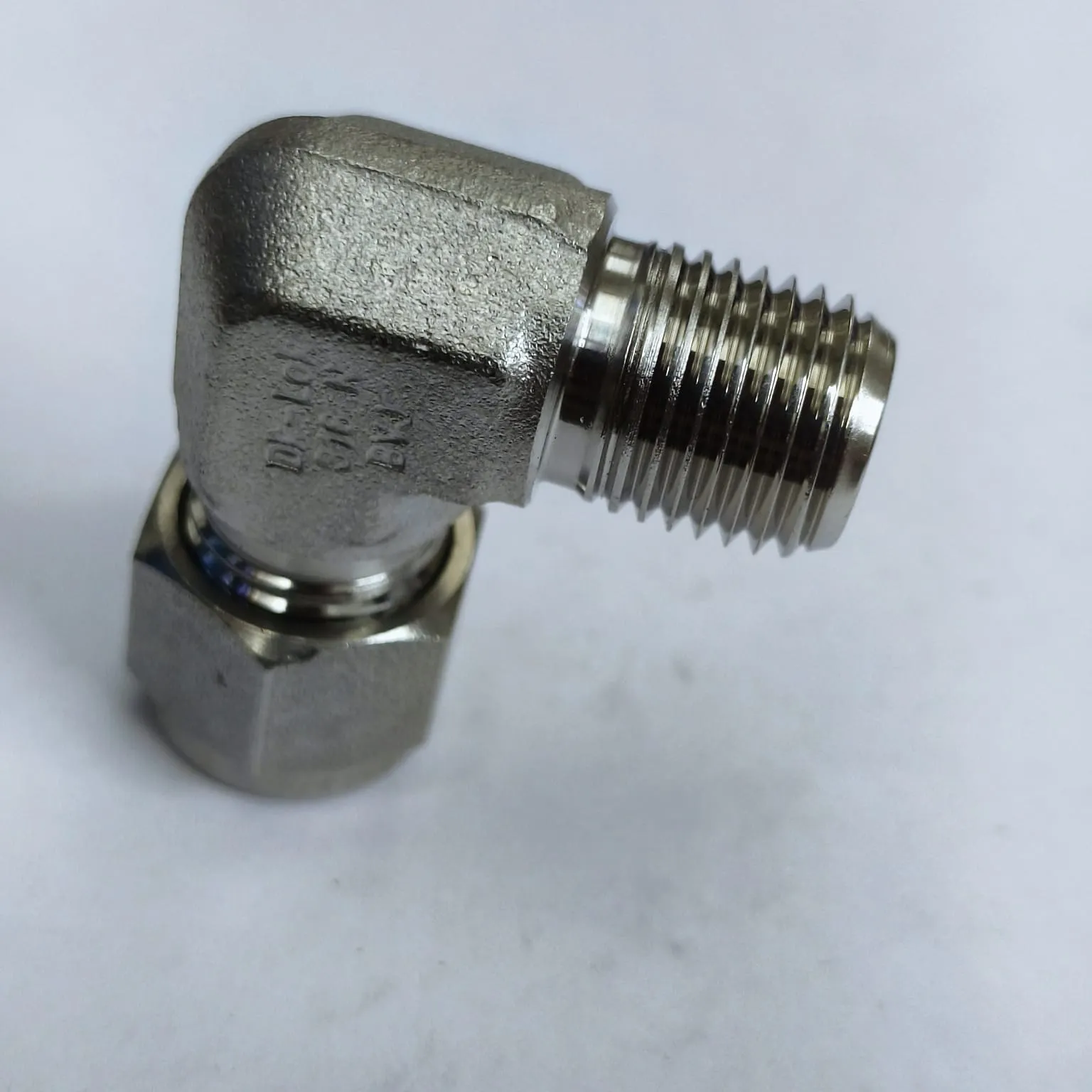

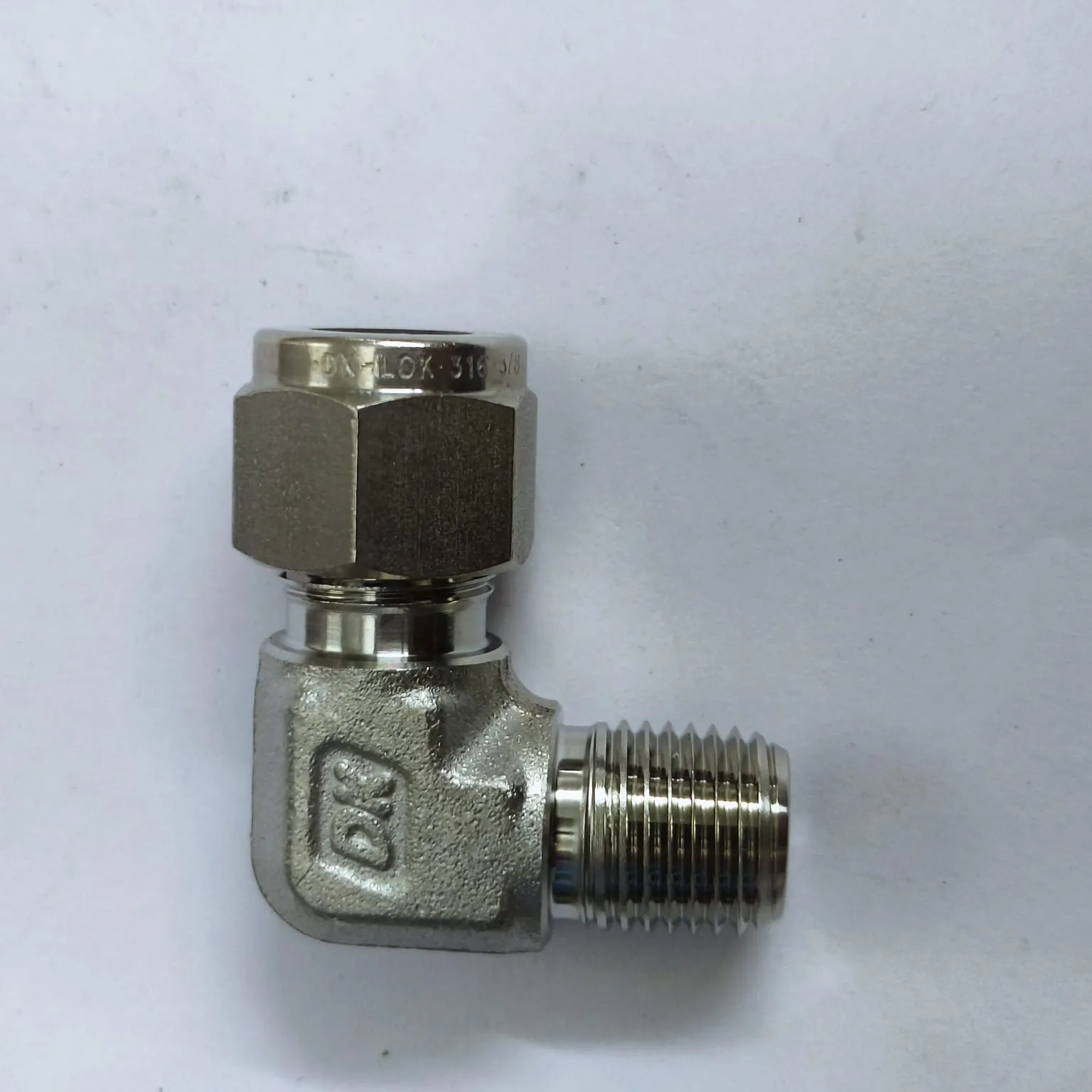

DK-LOK Compression Tube 90° Elbow Fitting, 3/8" Tube OD x 1/4" Male NPT, SS316, DLM-6-4N-S
All DK-LOK products
DK-LOK Tube-to-Male Thread Fittings
All Tube-to-Male Thread Fittings (every brand)
Technical overview
DK-LOK DLM Series 90° tube-to-male NPT elbow fitting with 3/8" Tube OD x 1/4" Male NPT configuration, manufactured from 316 stainless steel with a proven double-ferrule design (front and back ferrules) for strong tube grip and leak-tight sealing. Suitable for instrumentation and process tubing systems where vibration and pressure cycling are present. Part number: DLM-6-4N-S.
Key Features
- 90° elbow body for compact routing and reduced tubing stress
- Double-ferrule design (front & back ferrules) for secure tube grip and leak-tight sealing
- SS316 stainless steel body, nut and ferrules for corrosion resistance
- Designed for repeatable make-up and easy installation with standard tools
Applications
- Instrumentation and control lines
- Hydraulic and pneumatic tubing systems
- Process and utility service lines
- General industrial fluid and gas handling
Specifications
Connection Size (End 1)3/8" Tube OD
Connection Size (End 2)1/4" Male NPT
Body Material316 stainless steel
Ferrule DesignDouble ferrule (front & back ferrules)
Documentation
DK-Lok-Compression-Tube-Fittings-Catalog
Download
