Technical overview
Key Features

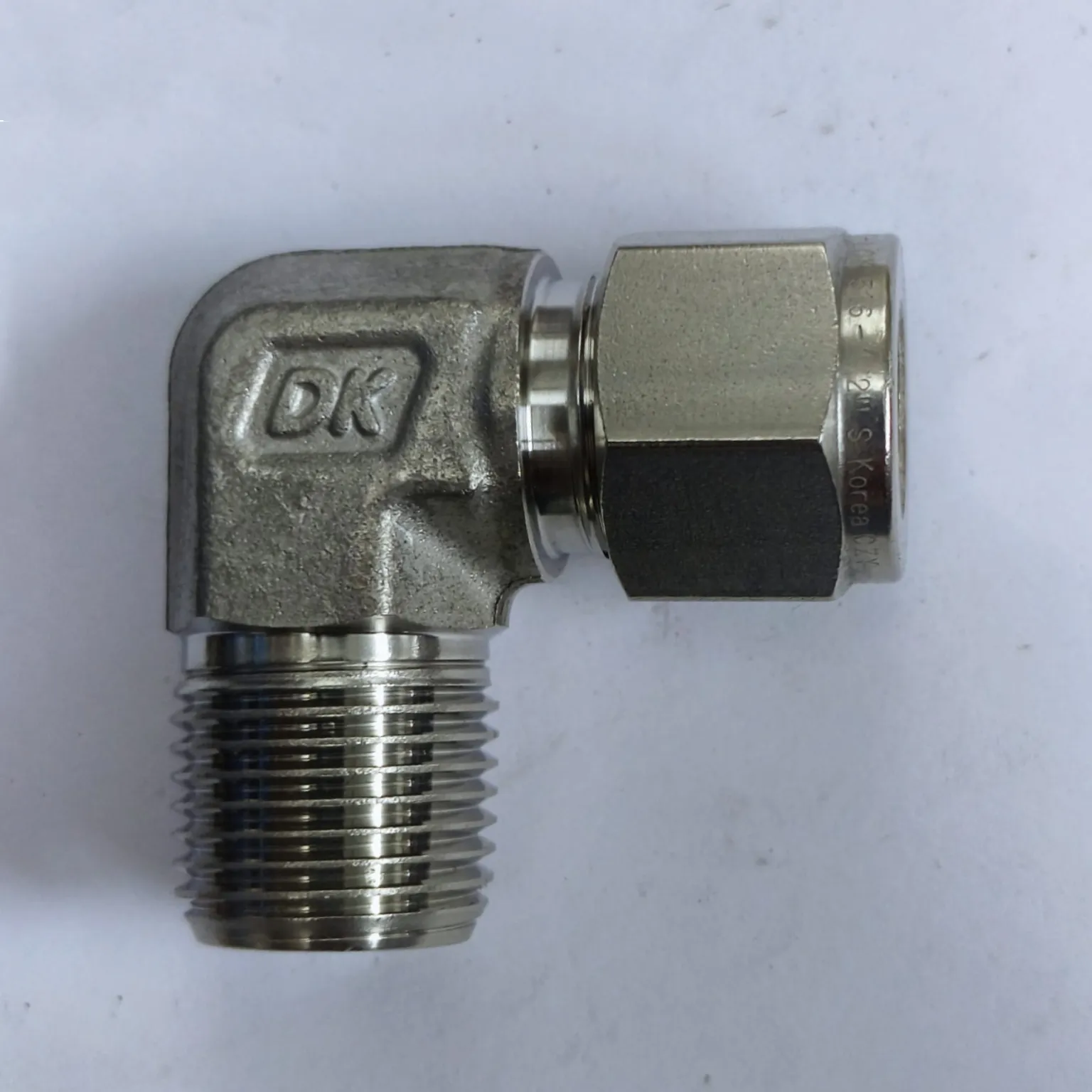

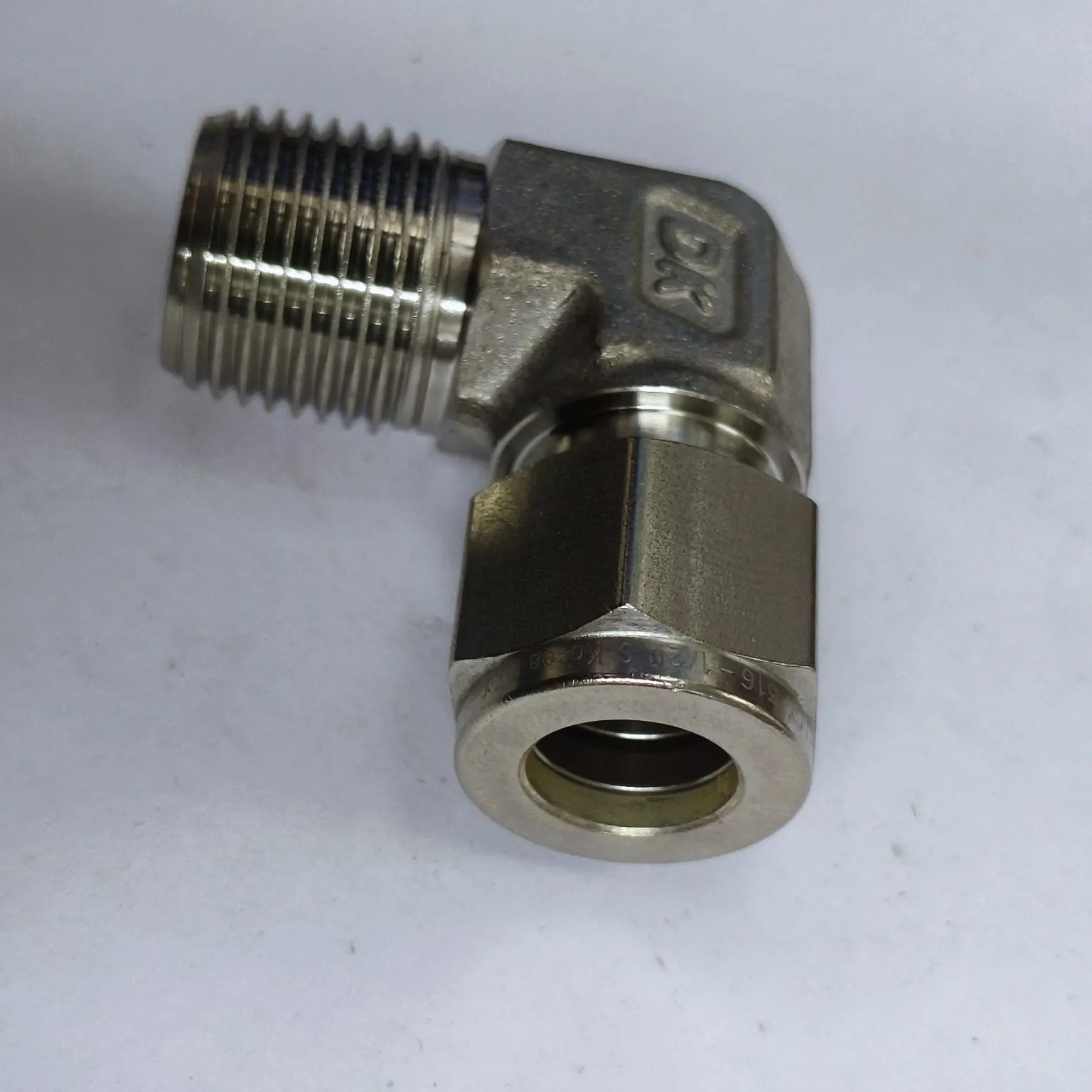

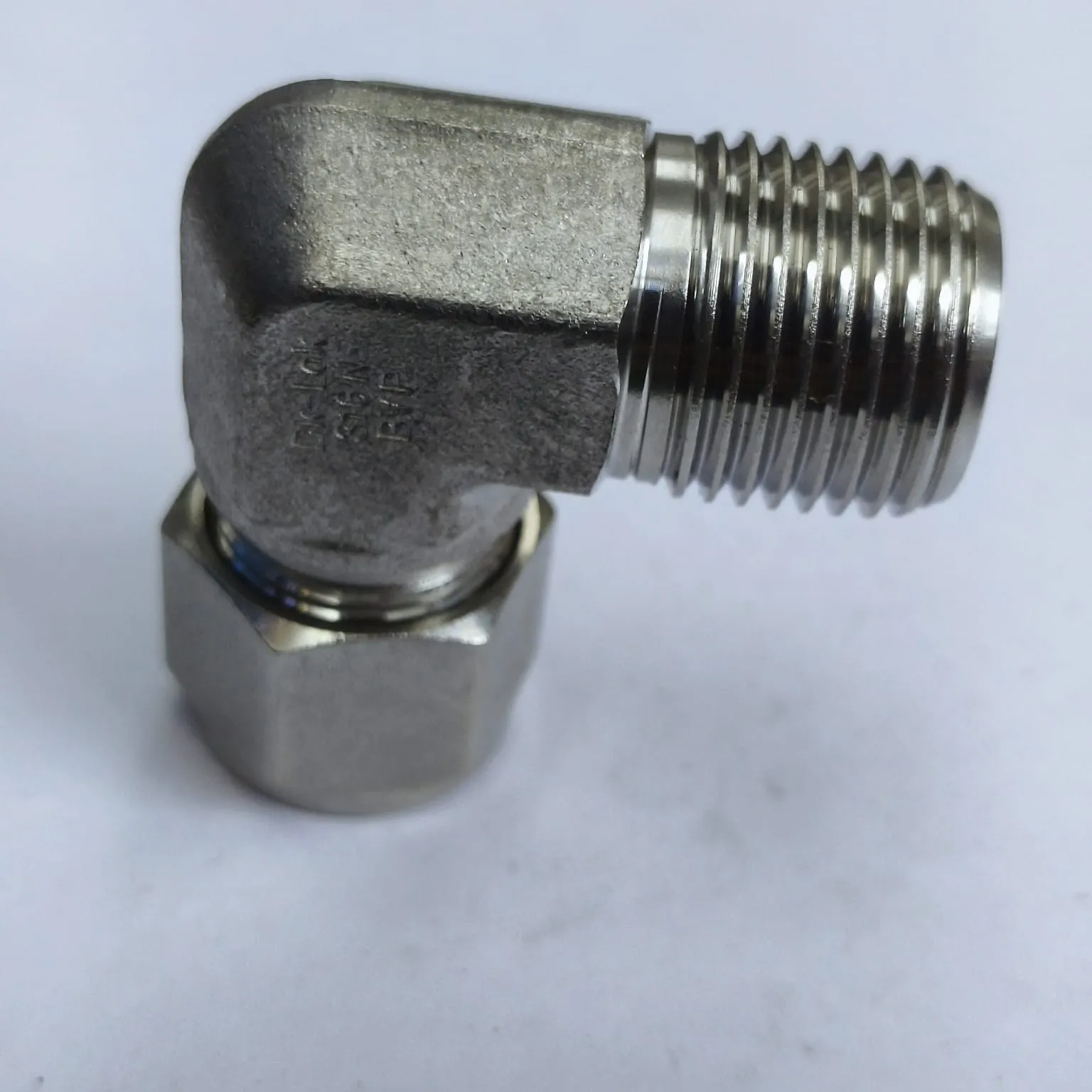

- 90° elbow body for compact routing and reduced tubing stress
- Double-ferrule design (front & back ferrules) for secure tube grip and leak-tight sealing
- SS316 stainless steel body, nut and ferrules for corrosion resistance
- Designed for repeatable make-up and easy installation with standard tools
Applications
- Instrumentation and control lines
- Hydraulic and pneumatic tubing systems
- Process and utility service lines
- General industrial fluid and gas handling
