Tube-to-Female Thread Fittings

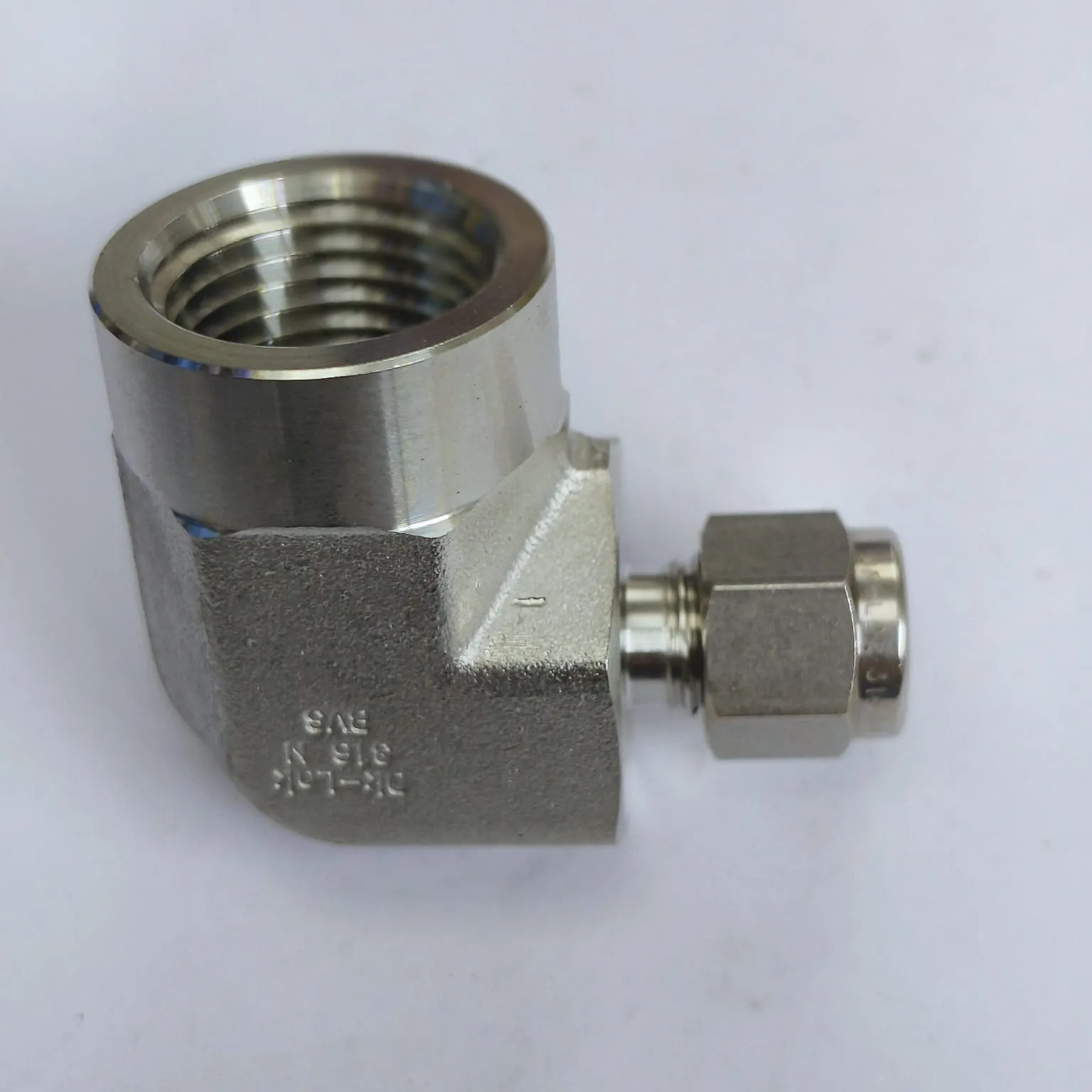

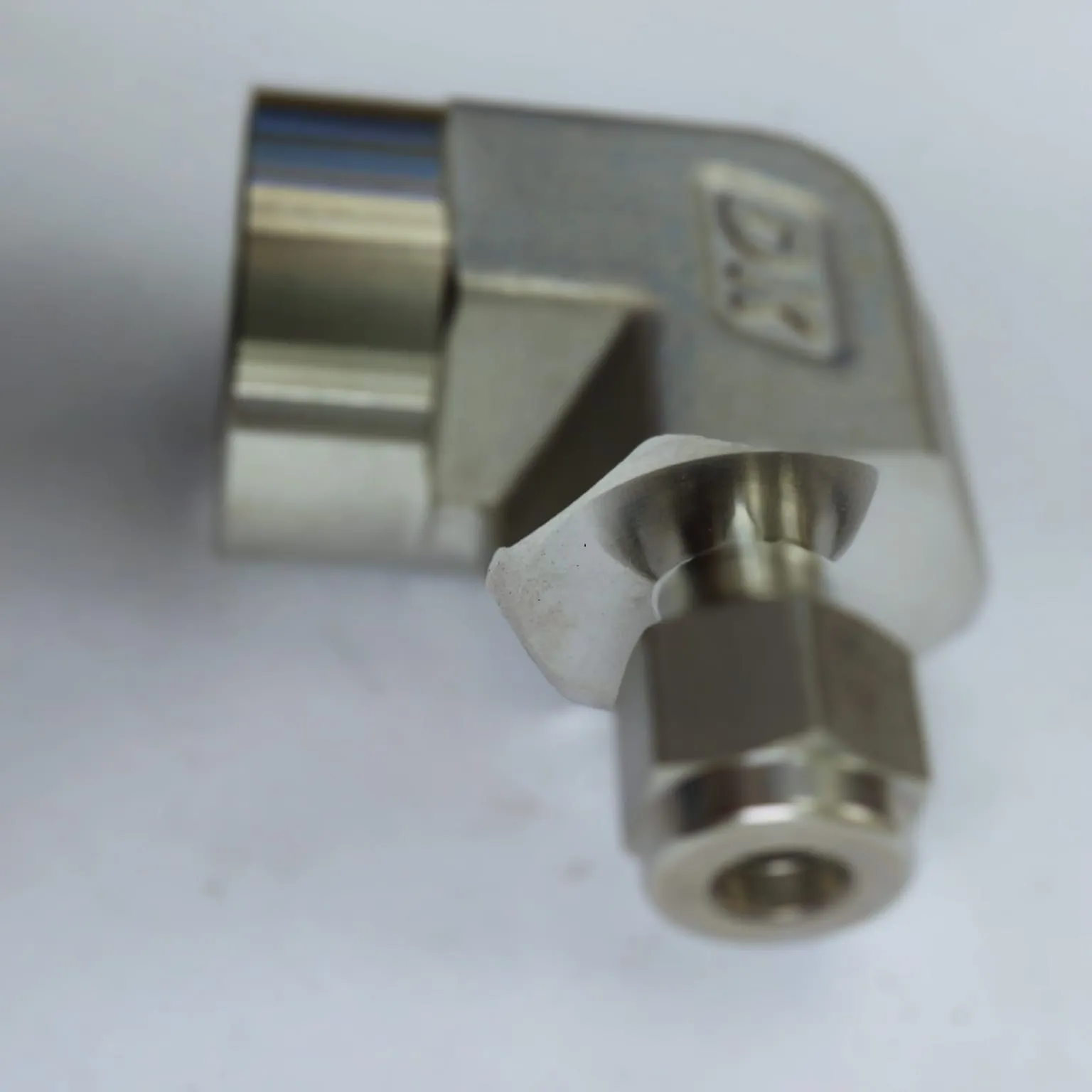

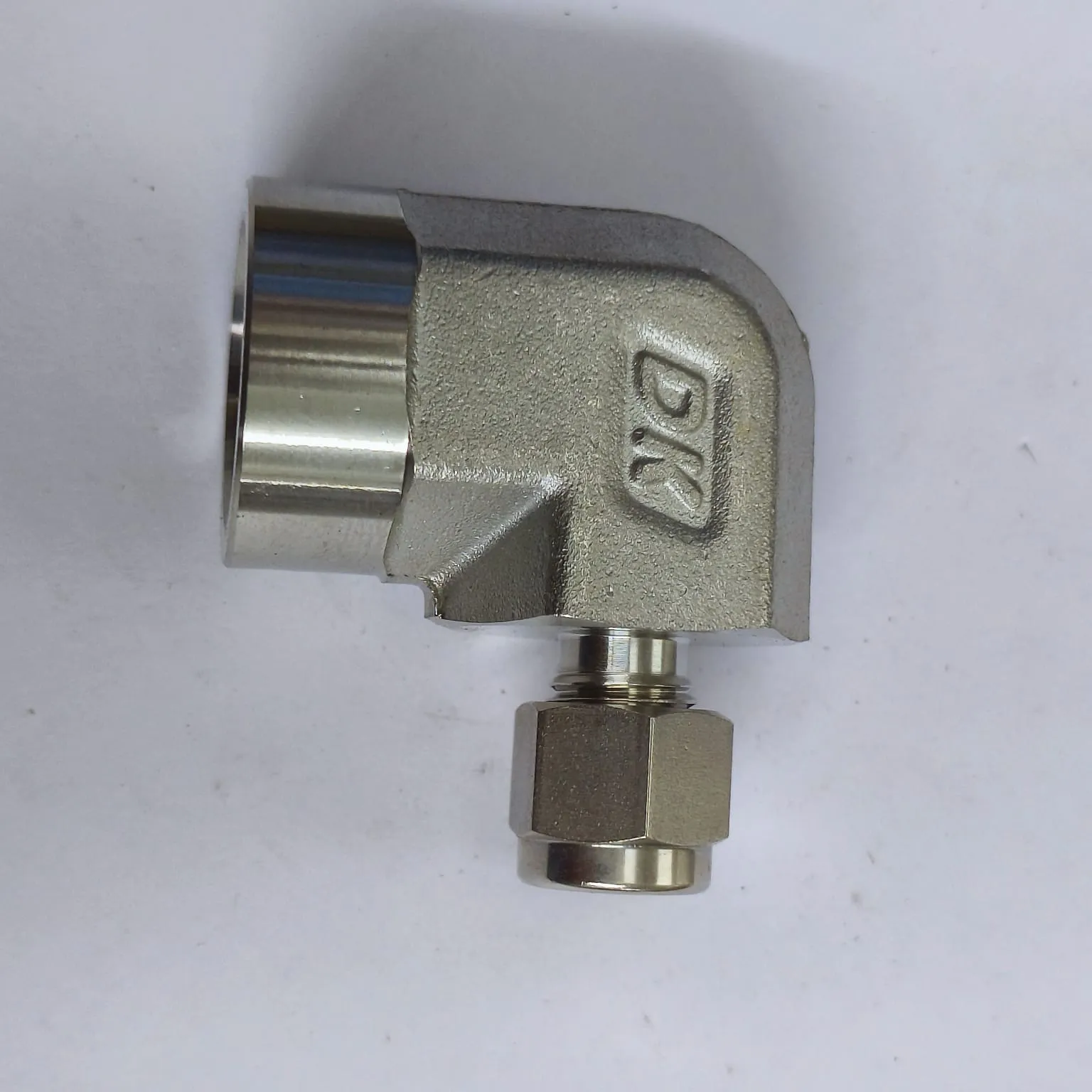

DK-LOK Compression Tube 90° Elbow Fitting, 1/4" Tube OD x 1/2" Female NPT, SS316, DLF-4-8N-S
DK-LOK

DK-LOK Compression Tube 90° Elbow Fitting, 1/4" Tube OD x 1/2" Female NPT, SS316, DLF-4-8N-S

Mfr. part no.
DLF-4-8N-S
SKU
DK-VB36860804

Specifications

Connection Size (End 1) 1/4" Tube OD
Connection Size (End 2) 1/2" Female NPT
Body Material 316 stainless steel
Ferrule Design Double ferrule (front & back ferrules)

Key Features

  • 90° elbow body for compact routing and reduced tubing stress
  • Double-ferrule design (front & back ferrules) for secure tube grip and leak-tight sealing
  • SS316 stainless steel body, nut and ferrules for corrosion resistance
  • Designed for repeatable make-up and easy installation with standard tools

Description

DK-LOK DLF Series 90° tube-to-female NPT elbow fitting with 1/4" Tube OD x 1/2" Female NPT configuration, manufactured from 316 stainless steel with a proven double-ferrule design (front and back ferrules) for strong tube grip and leak-tight sealing. Suitable for instrumentation and process tubing systems where vibration and pressure cycling are present. Part number: DLF-4-8N-S.

Applications

  • Instrumentation and control lines
  • Hydraulic and pneumatic tubing systems
  • Process and utility service lines
  • General industrial fluid and gas handling

Documents

  • DK Lok Compression Tube Fittings — Catalog

    PDF, 6.2 MB
