BMETERS WDE-K50 Woltmann Water Meter, 2" (DN50) PN16 Flanged Connection, 40 m³/h Flow Rate, IP68, Dry Dial
Technical overview

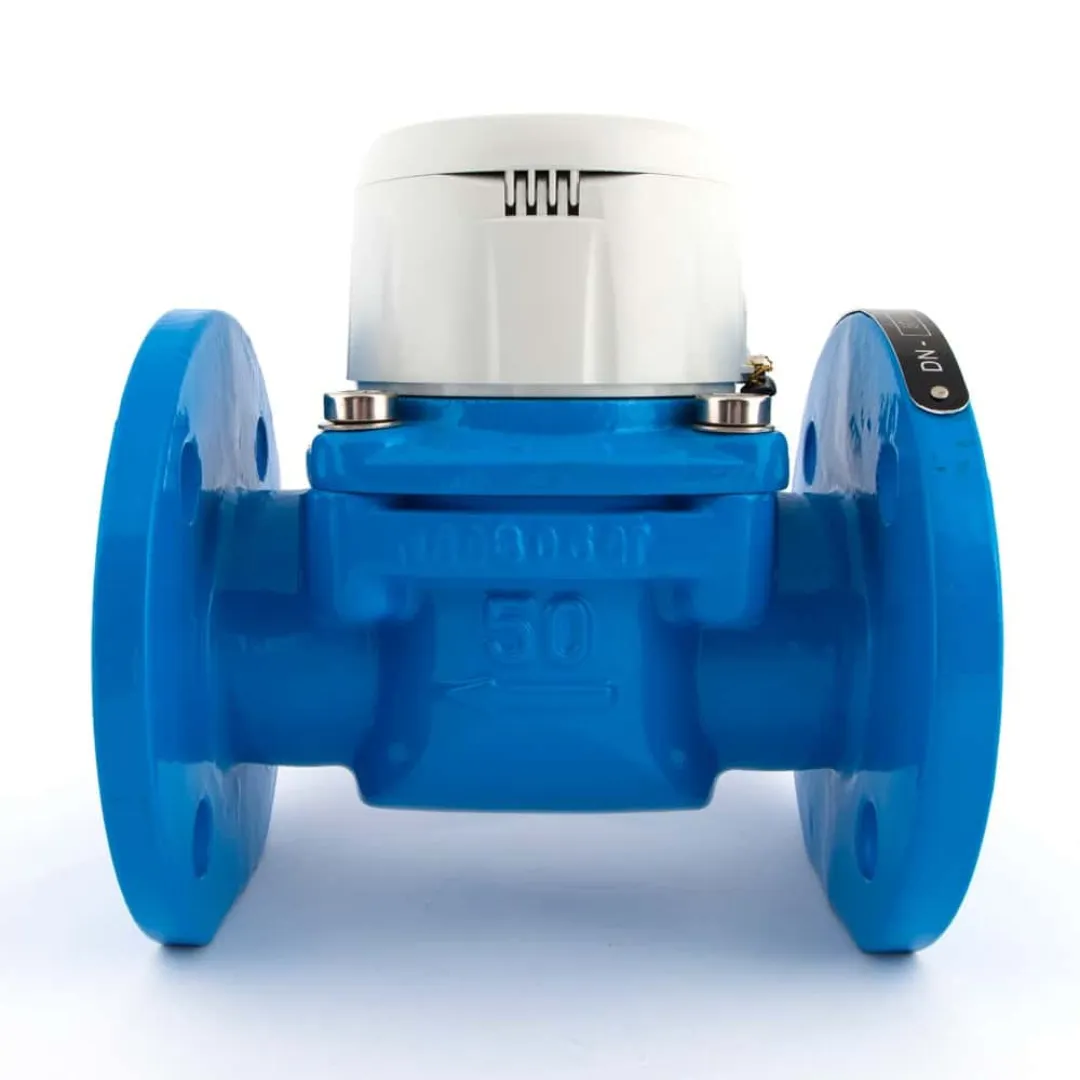

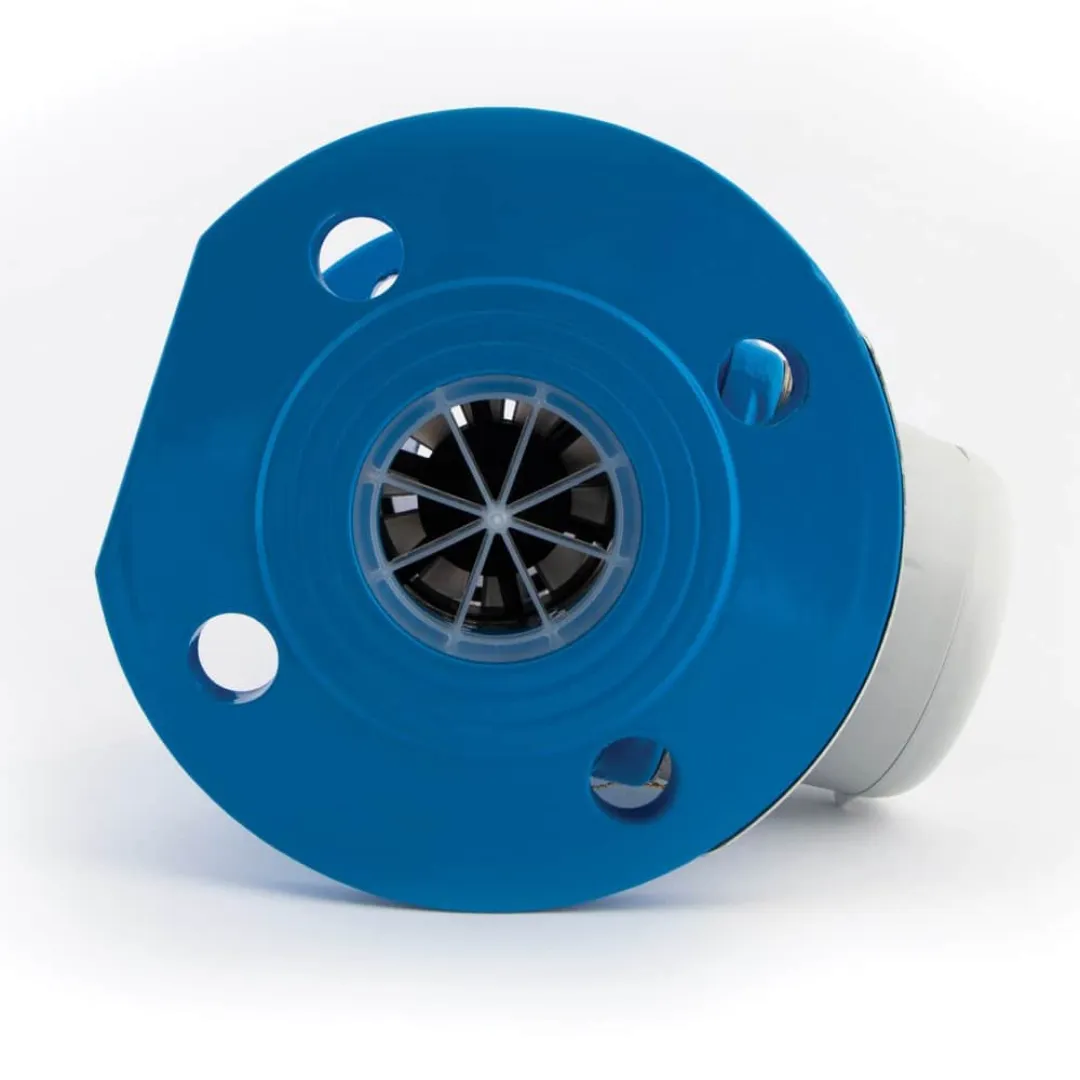

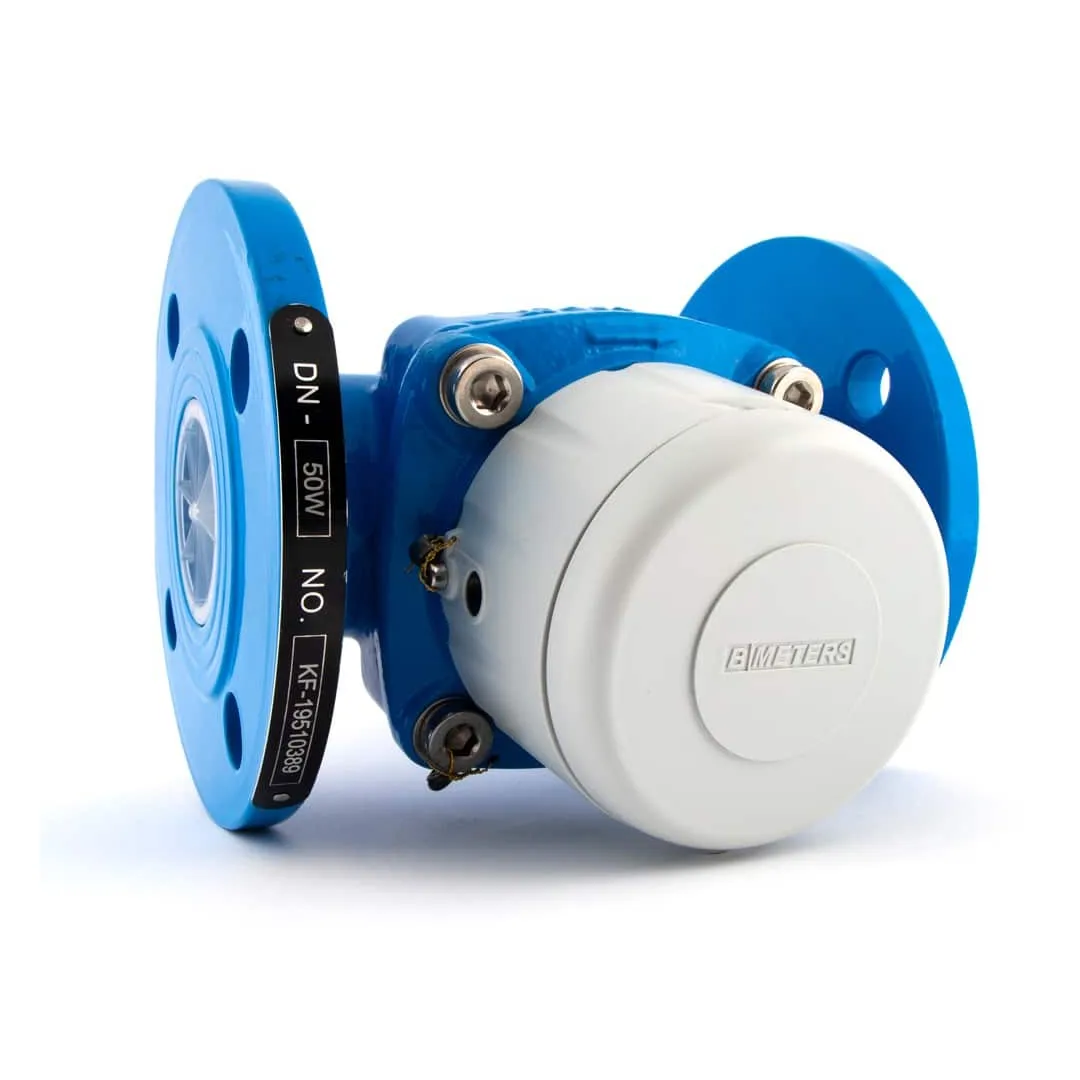

The BMETERS WDE-K50 is a horizontal Woltmann water meter built for higher flow cold water measurement in utility, commercial and industrial systems. This version is marked T50 and R100 with MID metrology approval, and is supplied with a PN16 flanged connection according to ISO 7005-2 / EN 1092-2 as. It features a sealed dry dial register with magnetic transmission, IP68 protection, anti-magnetic fraud protection, removable insert construction, and pre-equipment for add-on remote reading modules such as wired M-BUS, wireless M-BUS, pulse and LoRa. Construction includes a cast iron body together with a removable internal measuring insert, anti-magnetic ring and O-ring sealing elements. For this DN50 size, the permanent flow rate Q3 is 40 m³/h, and the laying length is 200 mm.
Key Features
- Horizontal Woltmann measuring principle
- PN16 flanged connection to ISO 7005-2 / EN 1092-2
- T50 cold water version with R100 metrology
- Sealed dry dial register with magnetic transmission
- IP68 protection, anti-magnetic fraud protection and removable insert construction
- Made in Italy
Applications
- Utility water distribution networks
- Industrial water lines
- Commercial high flow metering points
- Remote reading ready installations
Specifications
ModelWDE-K50 (Woltmann Water Meter)
Connection SizeDN50 / 2"
Connection TypePN16 Flanged
Body MaterialCast iron
Connection StandardISO 7005-2 / EN 1092-2
Permanent Flow Rate (Q3)40 m³/h
Minimum Flow Rate (Q1)0.40 m³/h
Measuring RatioR100 H / V
Ingress ProtectionIP68
Transmission TypeMagnetic
Maximum Pressure16 bar

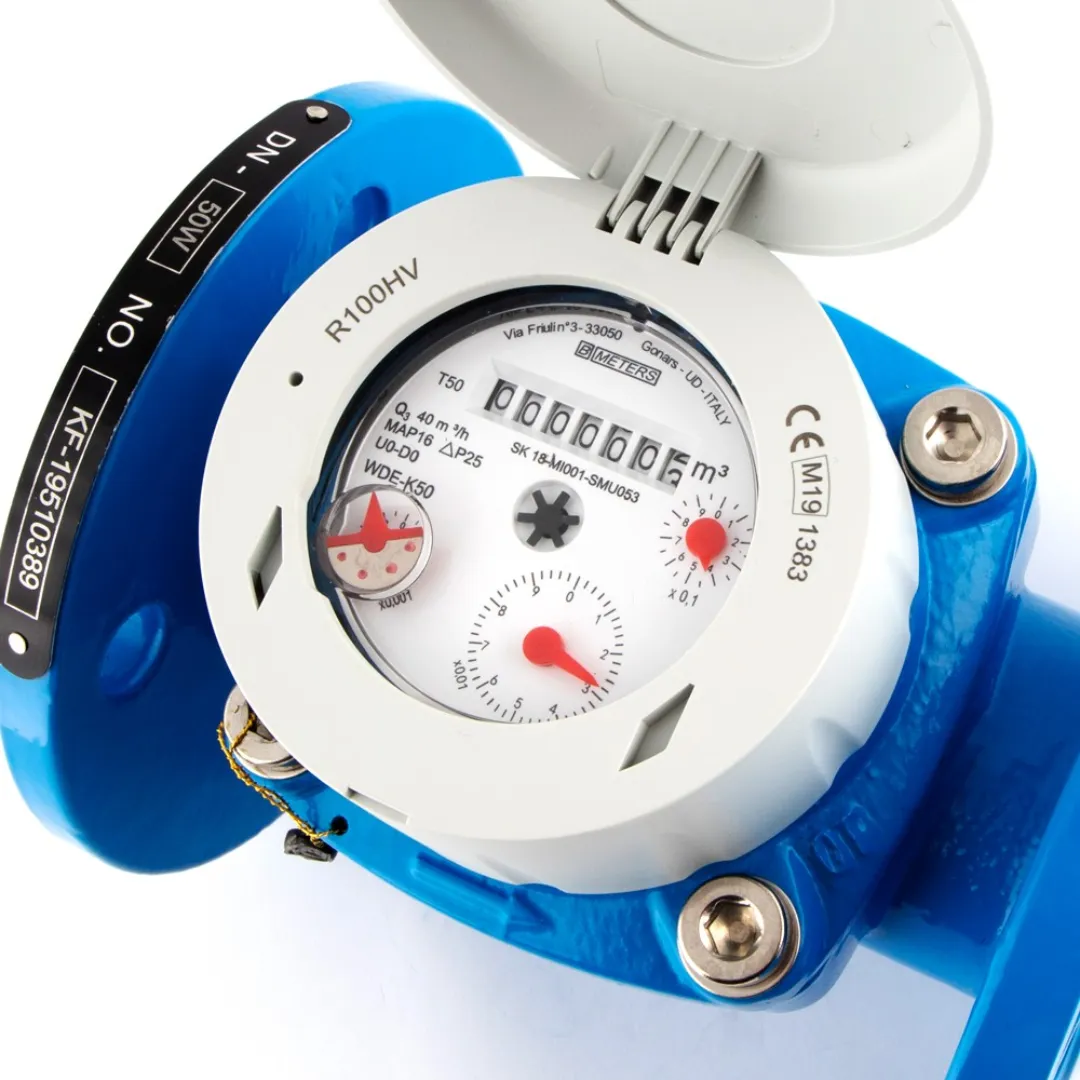

Display Type360° rotating dry dial
Permissible Medium Temperature+0.1...50°C
