In stock, 52 available
| Model | GMDM-I (Multi Jet Water Meter) |
|---|---|
| Connection Size | DN40 / 1-1/2" |
| Connection Type | BSPP Threaded |
| Body Material | Brass |
| Connection Standard | EN ISO 228-1:2003 |
| Permanent Flow Rate (Q3) | 16 m³/h |
| Minimum Flow Rate (Q1) | 160 L/h |
| Measuring Ratio | R100 H / R50 V |
| Ingress Protection | IP68 |
| Transmission Type | Magnetic |
| Maximum Pressure | 16 bar |
| Display Type | 360° rotating dry dial |
| Permissible Medium Temperature | +0.1...50°C |
| Product | Connection Size | Permanent Flow Rate (Q3) | Minimum Flow Rate (Q1) |
|---|---|---|---|
| BMETERS GMDM-I Multi Jet Water Meter, 1/2" (DN15) BSPP Threaded Connection, 2.5 m³/h Flow Rate, IP68, Dry Dial | DN15 / 1/2" | 2.5 m³/h | 25 L/h |
| BMETERS GMDM-I Multi Jet Water Meter, 3/4" (DN20) BSPP Threaded Connection, 4 m³/h Flow Rate, IP68, Dry Dial | DN20 / 3/4" | 4 m³/h | 40 L/h |
| BMETERS GMDM-I Multi Jet Water Meter, 1" (DN25) BSPP Threaded Connection, 6.3 m³/h Flow Rate, IP68, Dry Dial | DN25 / 1" | 6.3 m³/h | 63 L/h |
| BMETERS GMDM-I Multi Jet Water Meter, 1-1/4" (DN32) BSPP Threaded Connection, 10 m³/h Flow Rate, IP68, Dry Dial | DN32 / 1-1/4" | 10 m³/h | 100 L/h |
| BMETERS GMDM-I Multi Jet Water Meter, 1-1/2" (DN40) BSPP Threaded Connection, 16 m³/h Flow Rate, IP68, Dry Dial (This part) | DN40 / 1-1/2" | 16 m³/h | 160 L/h |
| BMETERS GMDM-I Multi Jet Water Meter, 2" (DN50) BSPP Threaded Connection, 25 m³/h Flow Rate, IP68, Dry Dial | DN50 / 2" | 25 m³/h | 250 L/h |

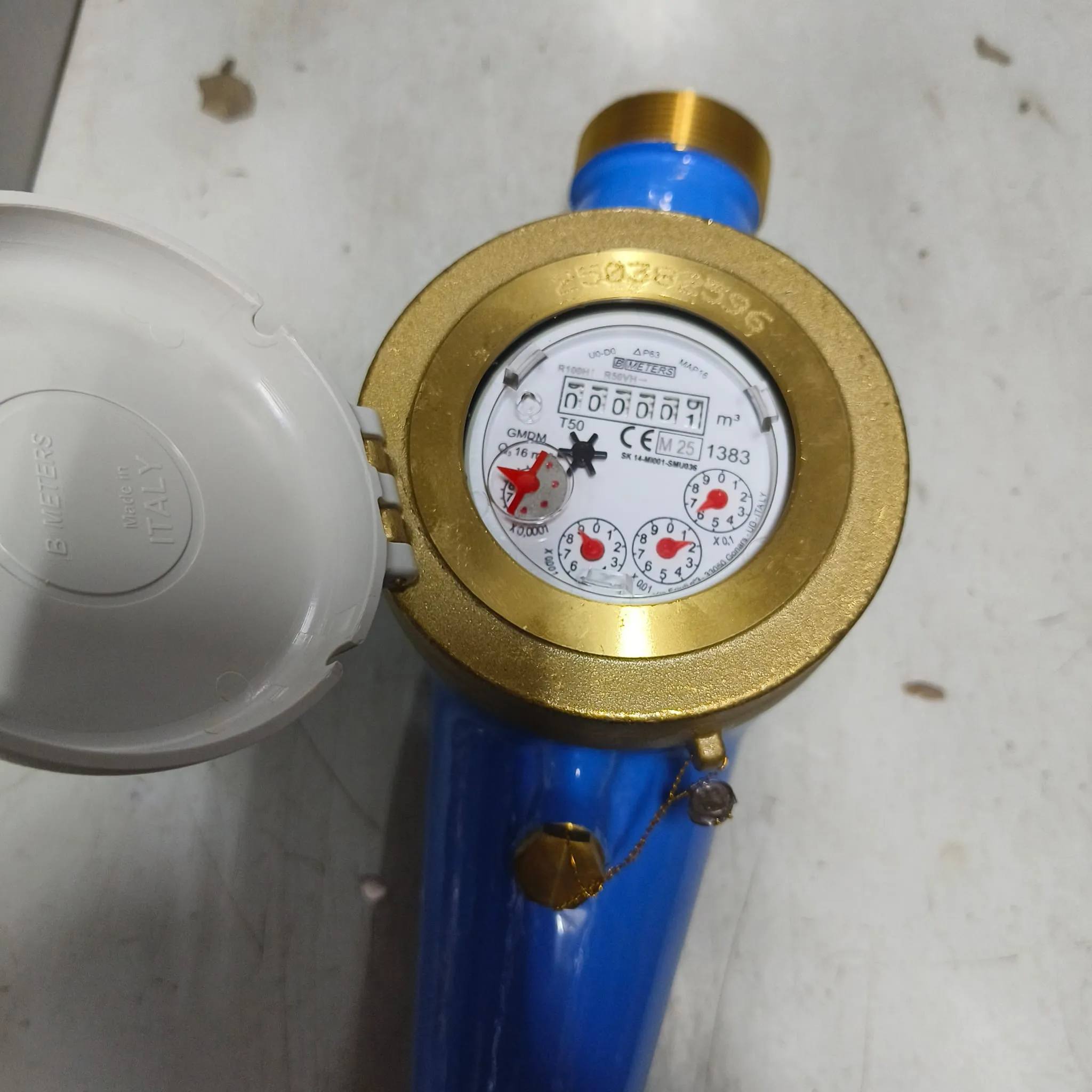

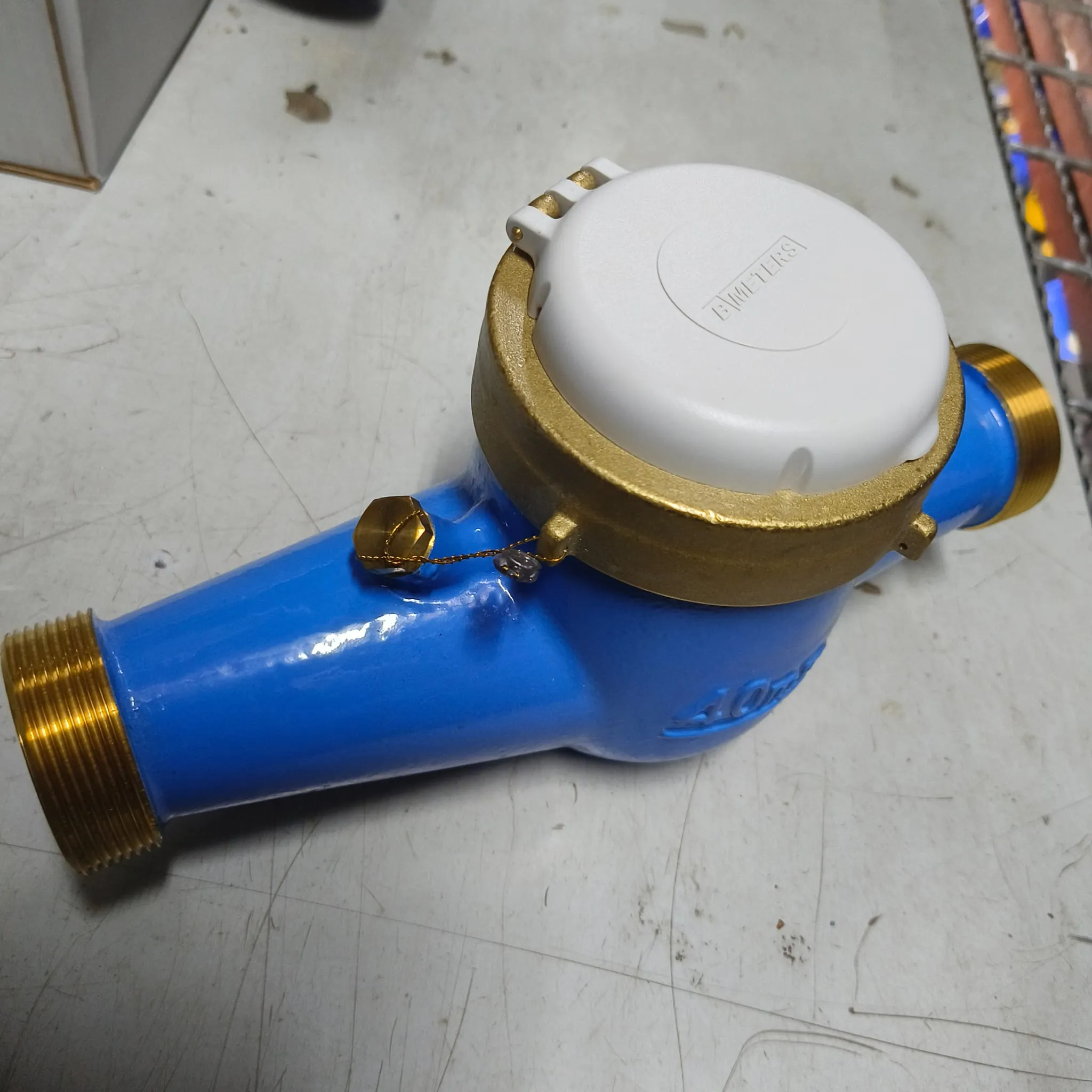

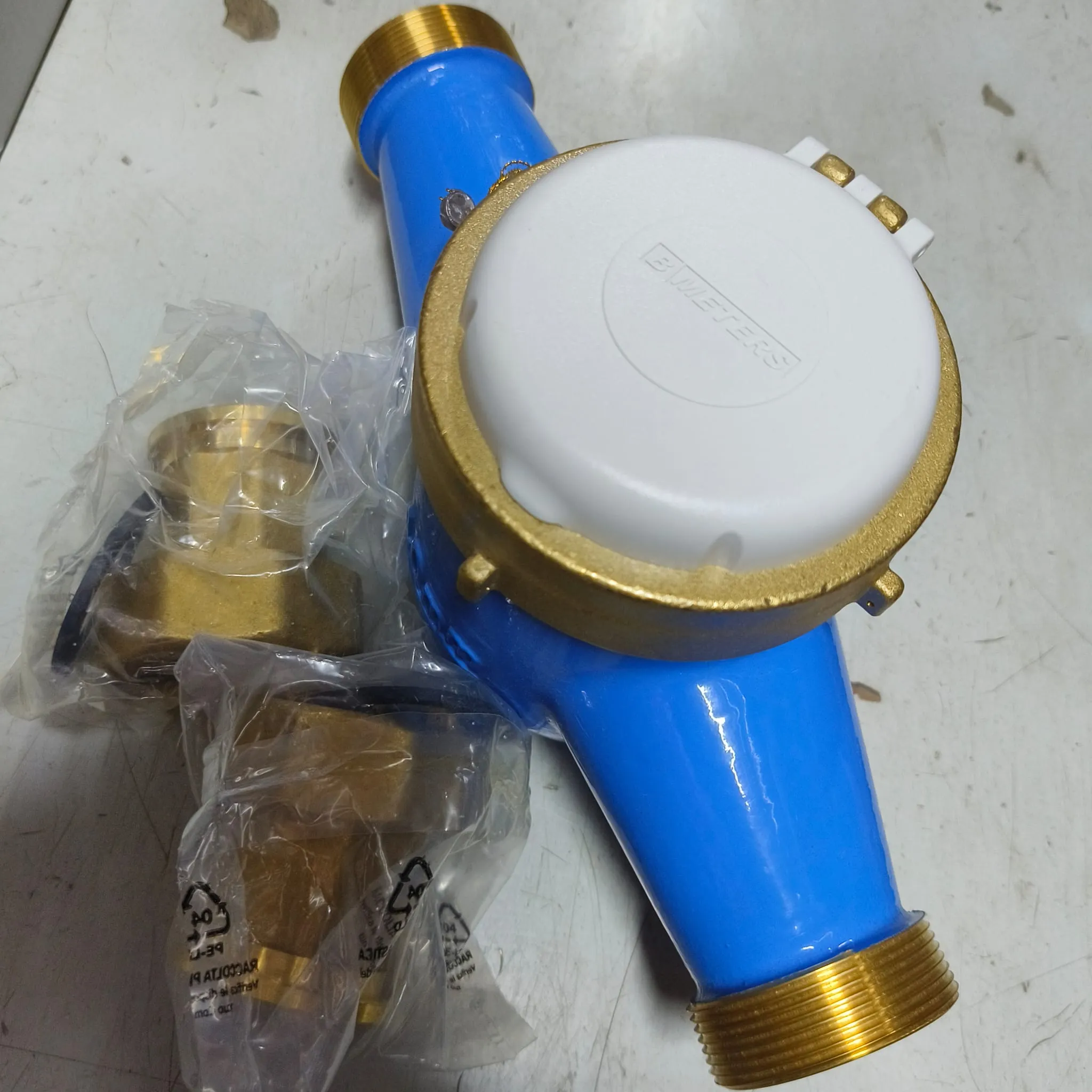

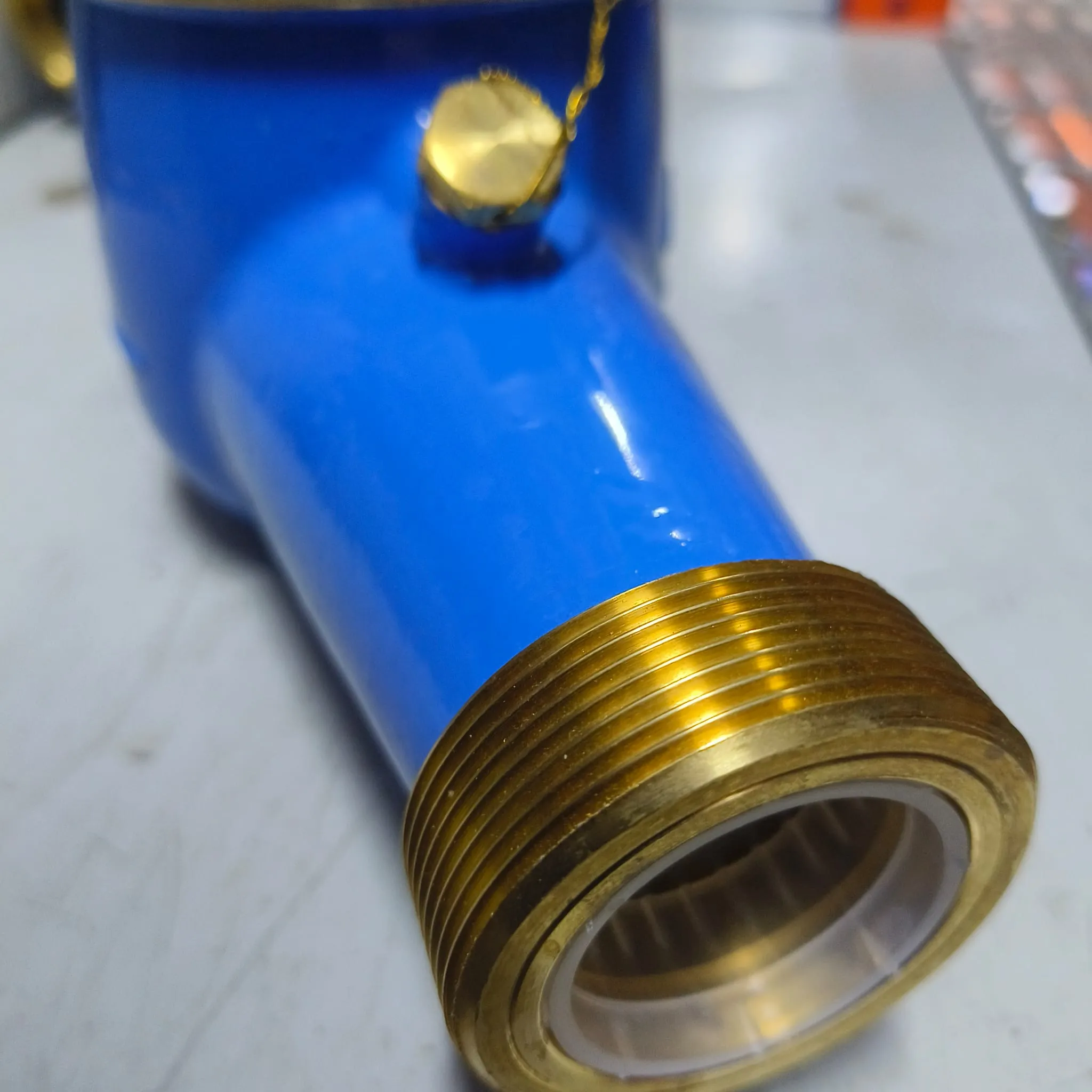

The BMETERS GMDM-I is a multi jet dry dial water meter designed for accurate cold water consumption measurement in residential, commercial and light utility applications. This version is marked T50 and R100 with MID metrology approval, and uses a BSPP threaded connection manufactured to the EN ISO 228-1:2003 thread standard. It features magnetic transmission, IP68 protection, anti-magnetic fraud protection, direct roller reading, and pre-equipment for add-on remote reading modules such as wired M-BUS, wireless M-BUS, pulse and LoRa. Construction includes a brass body together with a brass sealing ring, plastic display, sealing gaskets and integrated strainer components. For this DN40 size, the permanent flow rate Q3 is 16 m³/h, and the laying length is 300 mm.
