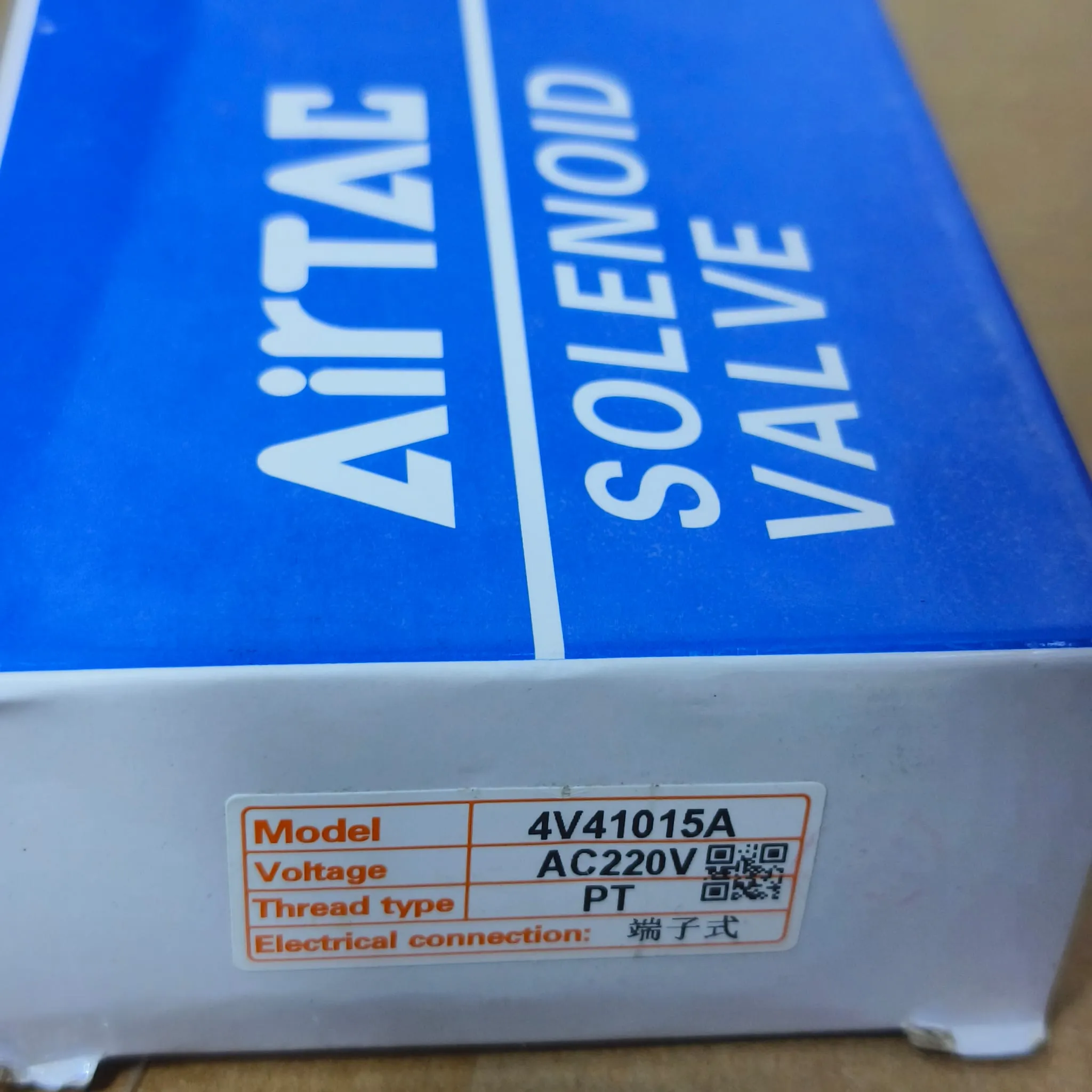

Airtac 4V400 Series Pneumatic Solenoid Valve, 5/2 Way, PT 1/2" Port, 220V AC Coil with Connector, 4V41015A
Technical overview

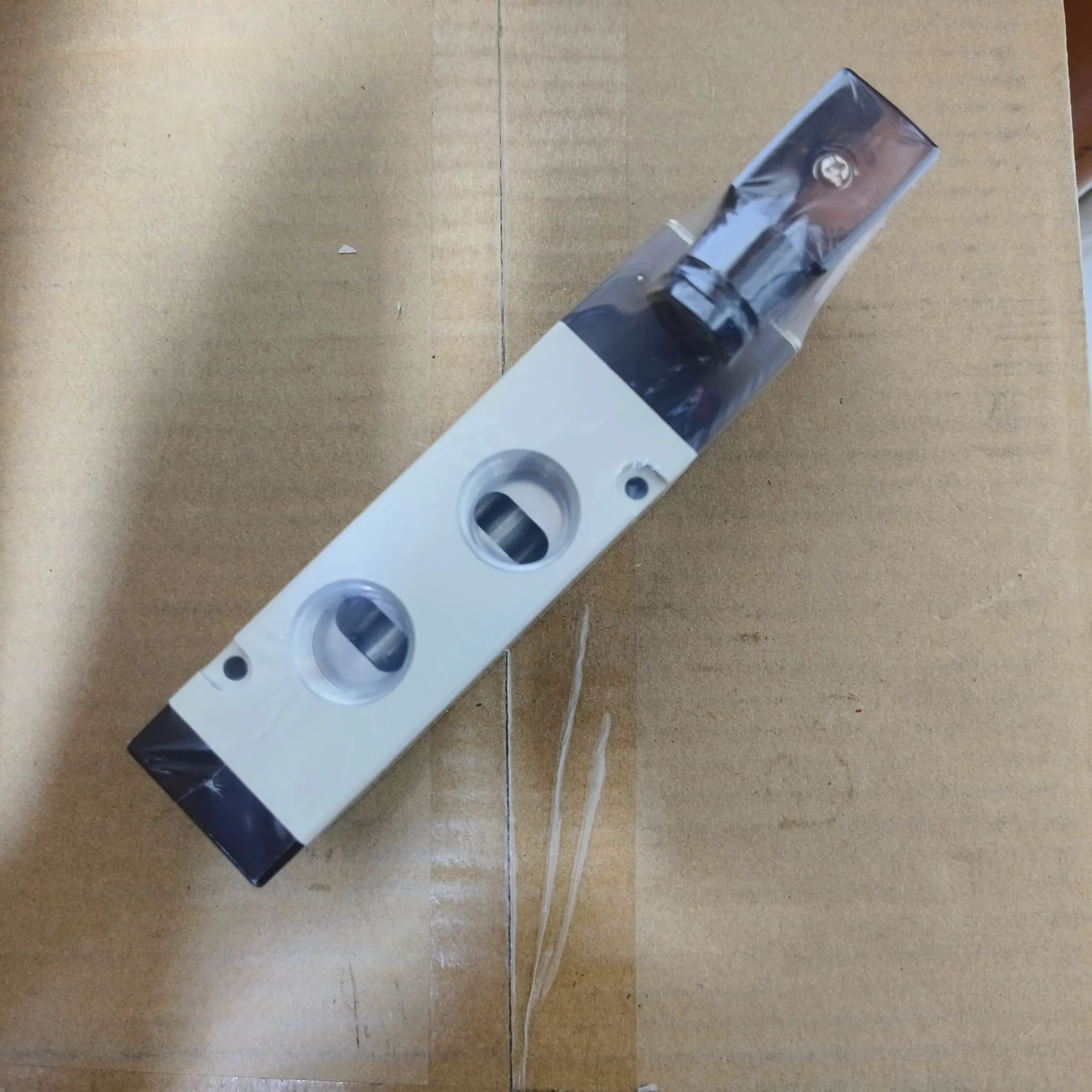

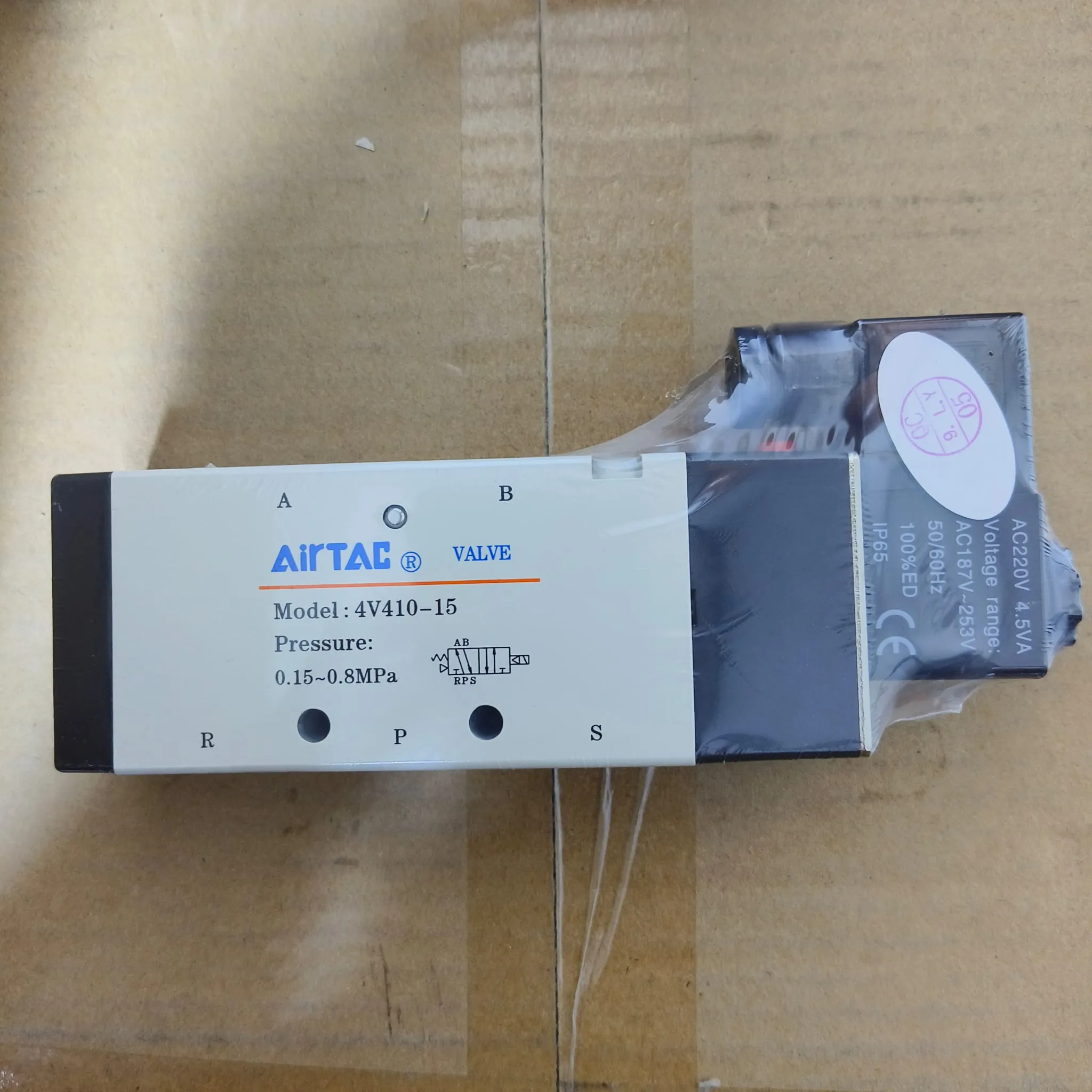

The Airtac 4V400 Series provides pilot-operated directional control for pneumatic cylinders and actuators used in automated machinery. A single 220 V AC solenoid rated at 4.5 VA shifts the 5/2-way valve, with spring return and a choice of internal or external pilot supply. The valve has PT 1/2" connections, a 0.15 to 0.8 MPa operating pressure range, 1.2 MPa proof pressure, 0.05 seconds or less response time and a maximum switching frequency of 3 cycles/sec. The flow path has an orifice area of 48.0 mm² and a flow coefficient of 2.82. Its aluminum-alloy body is specified for 40-micron filtered air from -20 to 70 °C. The 220 V AC solenoid coil is supplied with a terminal-type connector for wiring and installation. IP65 coil protection, Class B insulation and lubrication-free operation support reliable service. Typical uses include cylinder control, packaging and assembly machinery, material-handling equipment and pneumatic control panels.
Key Features
- Uses a 5/2-way pilot-operated spool design for dependable directional control.
- A single 220 V AC solenoid shifts the valve, while the spring returns it when power is removed.
- Terminal-type electrical connector allows straightforward wiring.

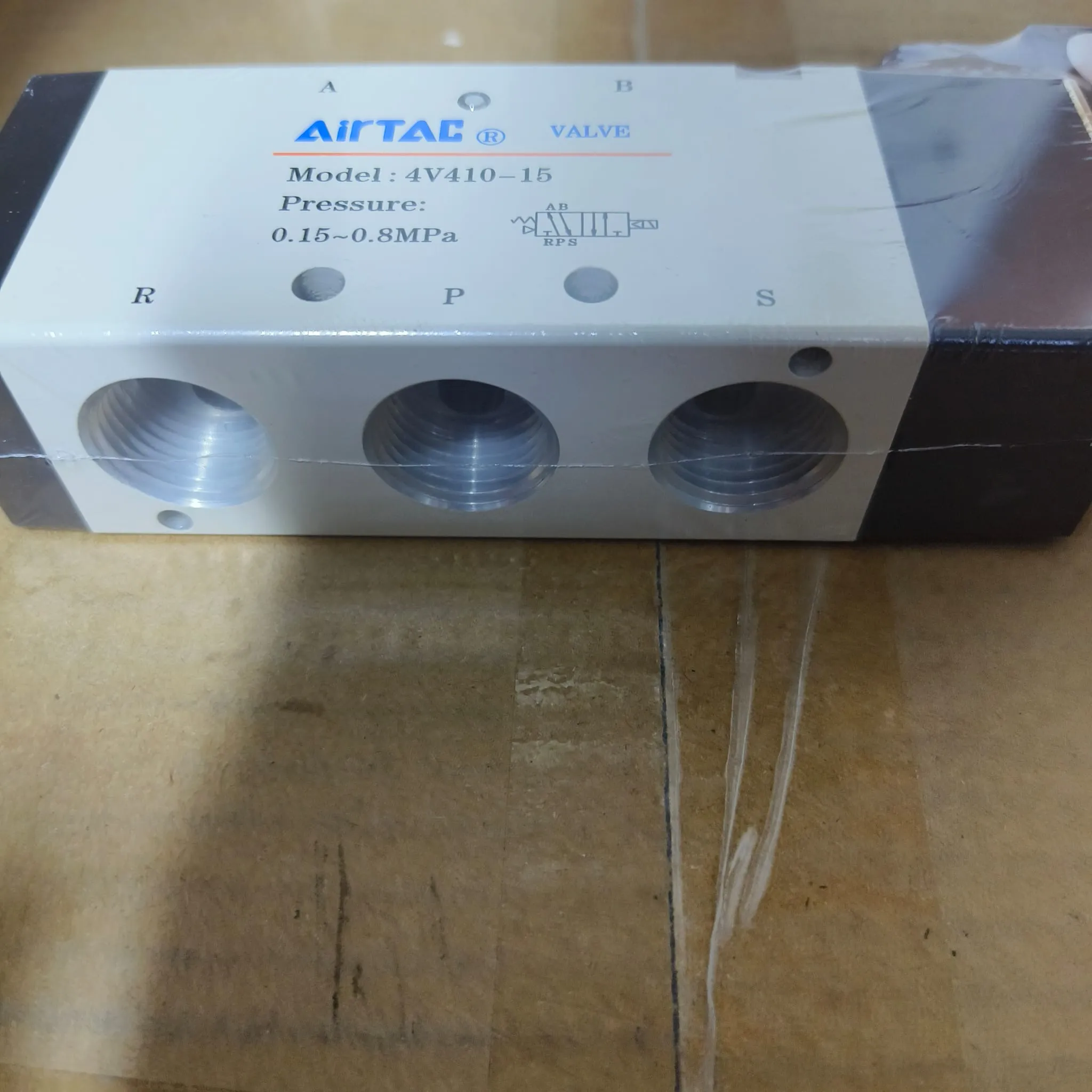

- The PT 1/2" threaded ports allow straight forward connection to the pneumatic circuit.
- Operates within a working pressure range of 0.15 to 0.8 MPa.
- Responds in 0.05 s or less and supports up to 3 cycles/s.
- The pilot supply can use either internal or external air to suit the installation.
- The IP65-rated coil is protected against dust and water jets when correctly installed.
Applications
- Double-acting pneumatic cylinders
- Rotary pneumatic actuators
- Machine automation systems
- Packaging and assembly equipment
- Pneumatic control panels
Specifications
Series4V400
Valve TypePilot Operated Spool
Valve Function5/2 way
Port SizePT 1/2"
Coil Voltage220 V AC
Electrical ConnectionTerminal Coil Connector
Power Consumption4.5 VA
Working Pressure Range0.15 to 0.8 MPa
Ingress ProtectionIP65
Body MaterialAluminum Alloy
