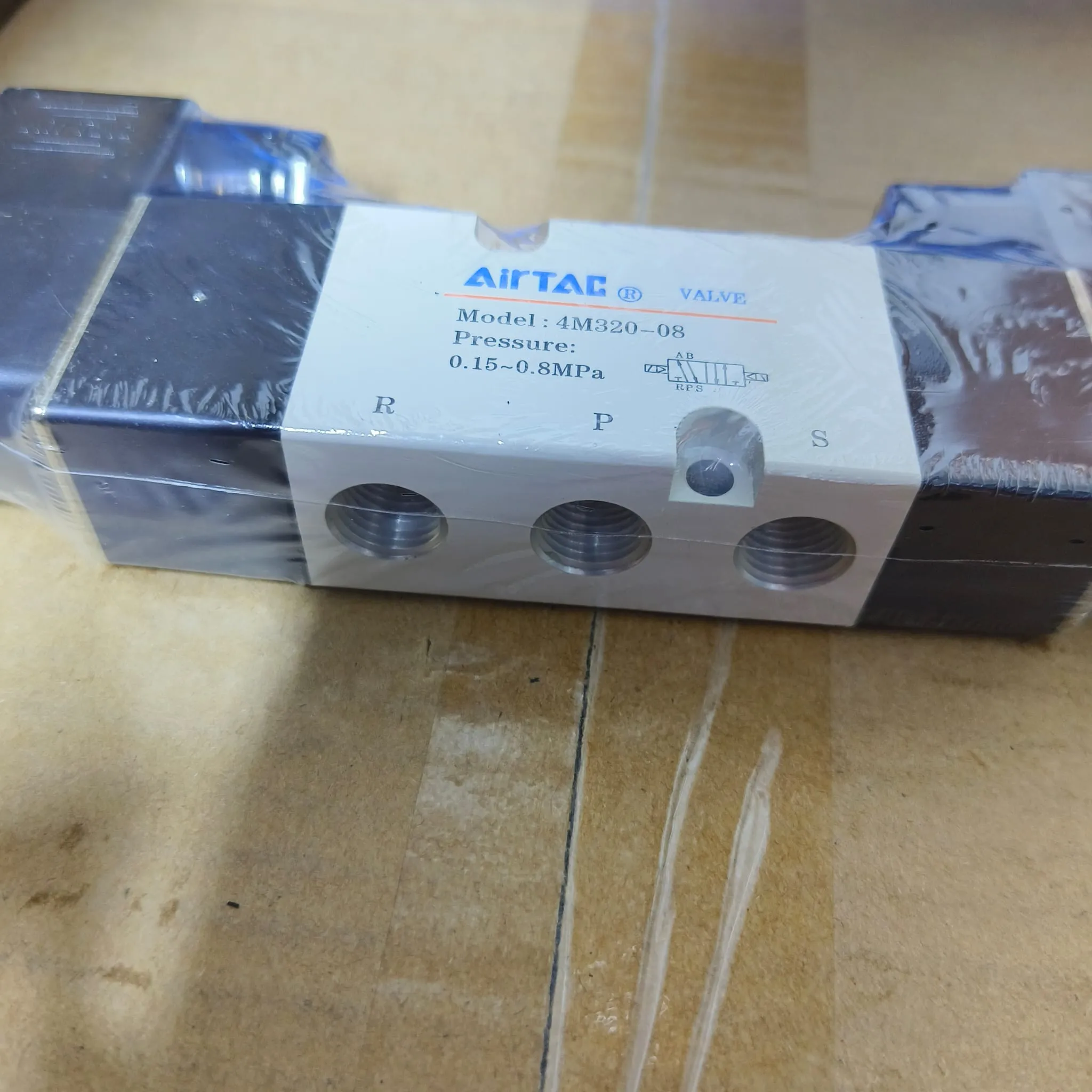

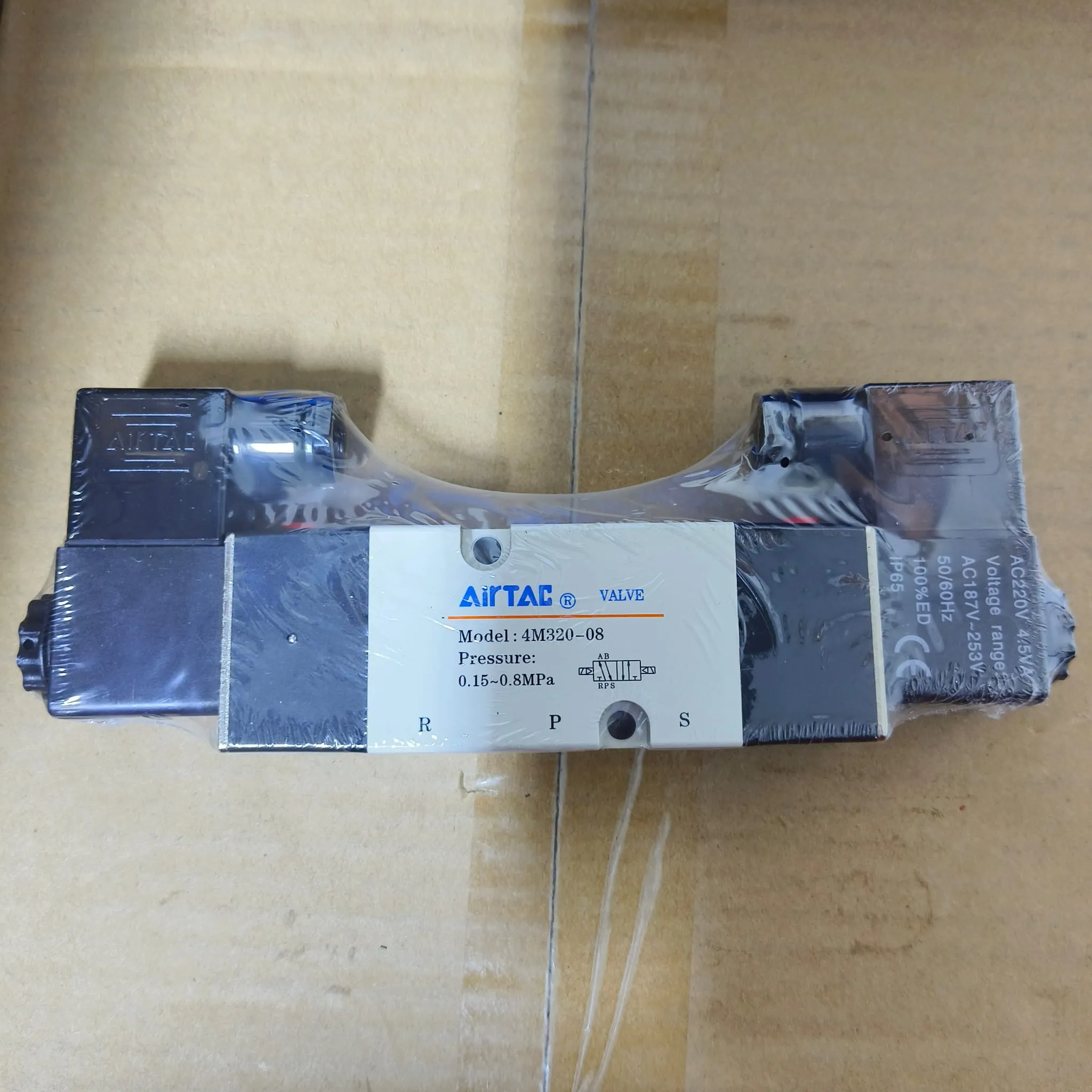

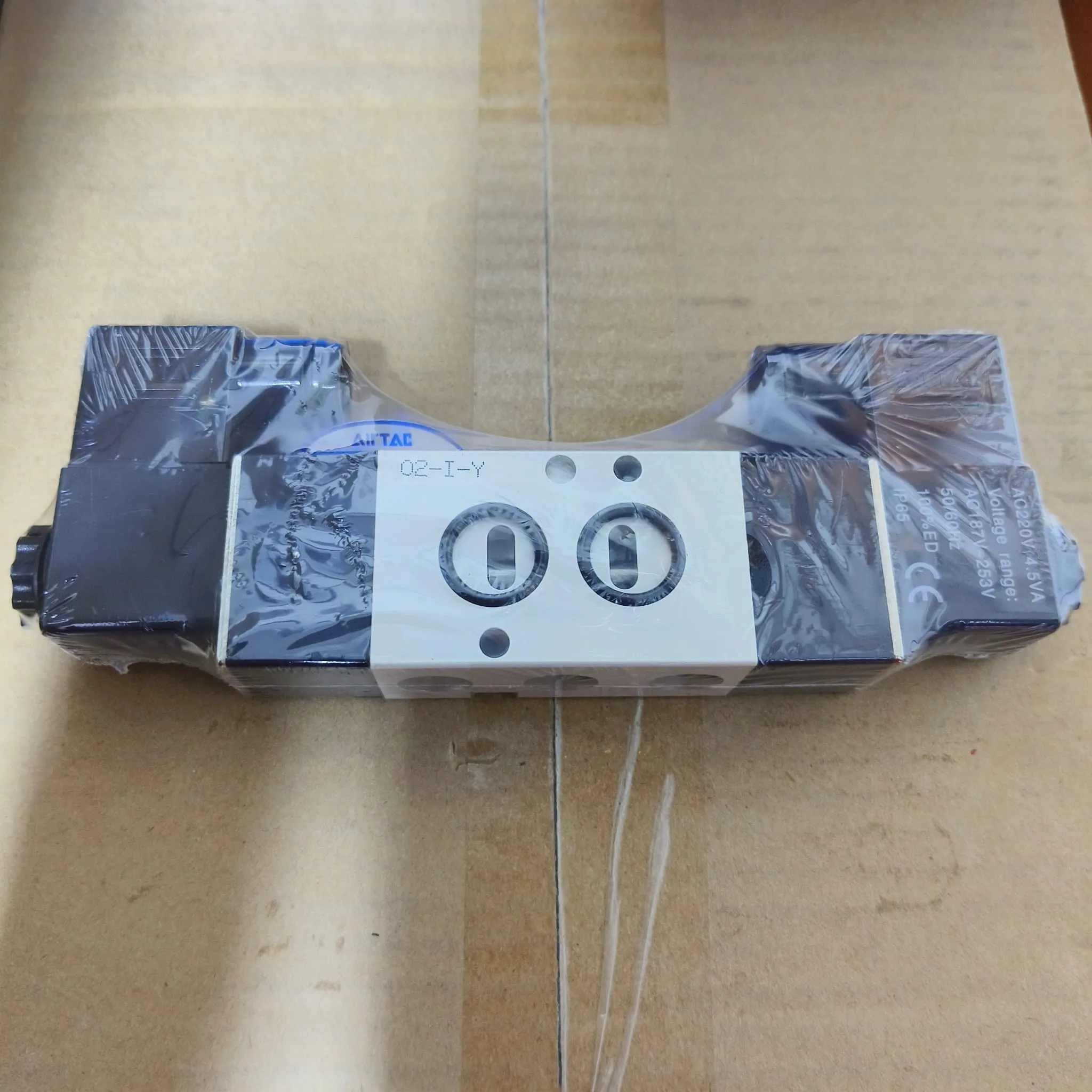

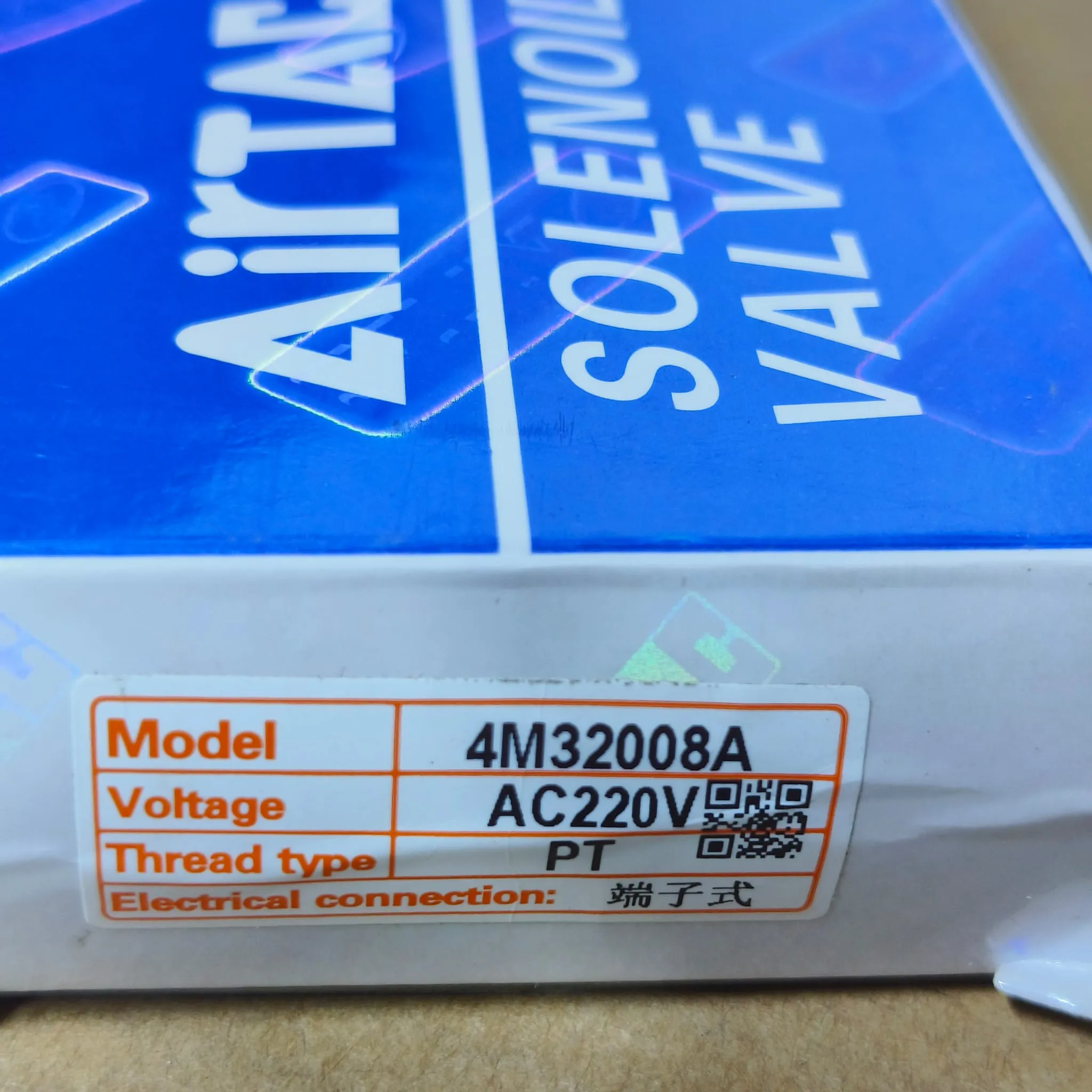

Airtac 4M Series NAMUR Pneumatic Solenoid Valve, 5/2 Way, PT 1/4" Port, Double Solenoid, 220V AC Coils with Connectors, 4M32008A

The Airtac 4M Series mounts directly on NAMUR pneumatic rotary actuators, keeping process-valve control assemblies compact. Dual 220 V AC solenoids rated at 4.5 VA switch the 5/2-way valve electrically in either direction, with a choice of internal or external pilot supply. The valve has PT 1/4" connections, a 0.15 to 0.8 MPa operating pressure range, 1.2 MPa proof pressure, 0.05 seconds or less response time and a maximum switching frequency of 4 cycles/sec. Its aluminum-alloy body is specified for 40-micron filtered air from -20 to 70 °C. Both 220 V AC solenoid coils are supplied with terminal-type connectors for wiring and installation. IP65 coil protection, Class B insulation and lubrication-free operation support reliable service. It is suited to compact process-valve packages and other automated actuator systems.
