Pneumatic Solenoid Valves

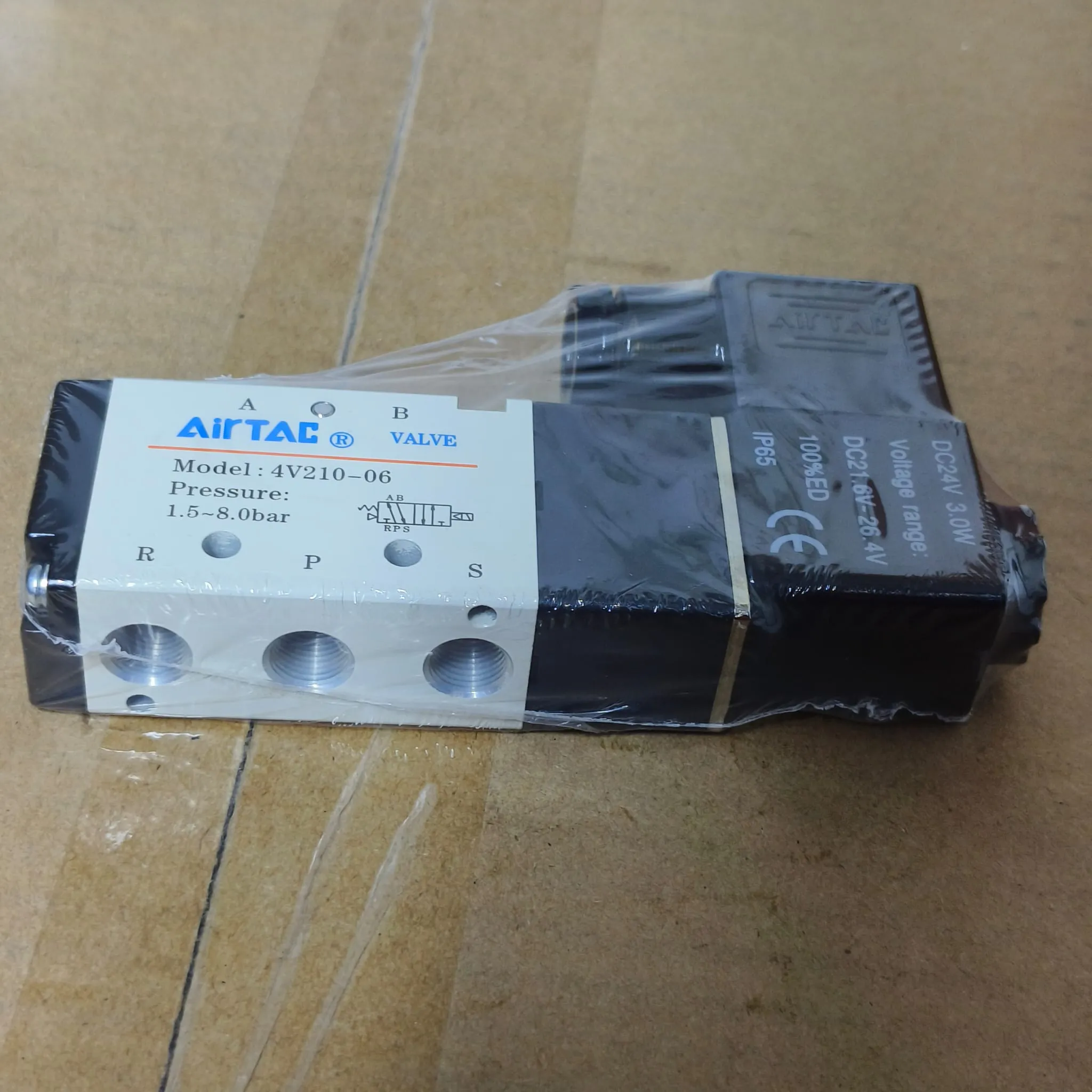

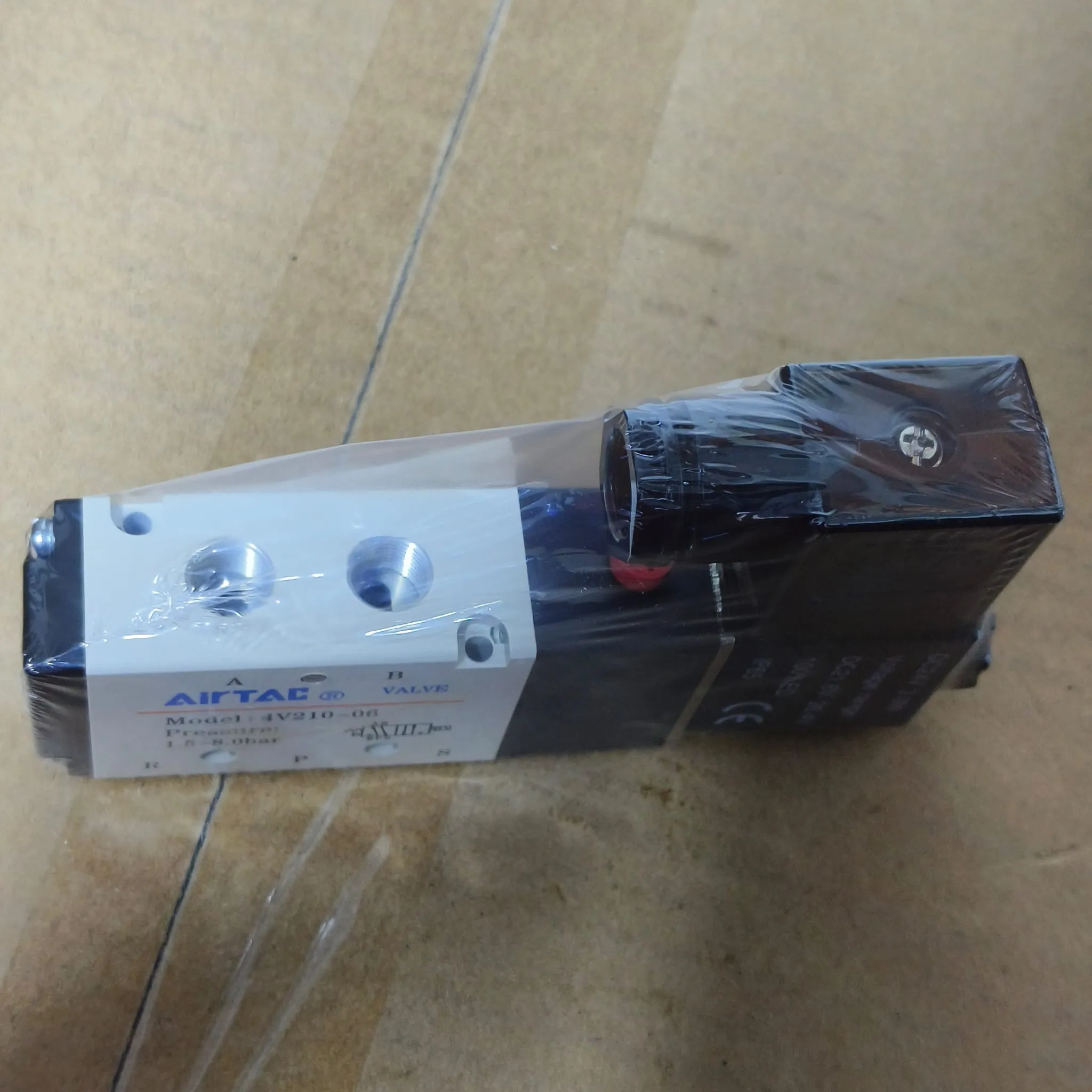

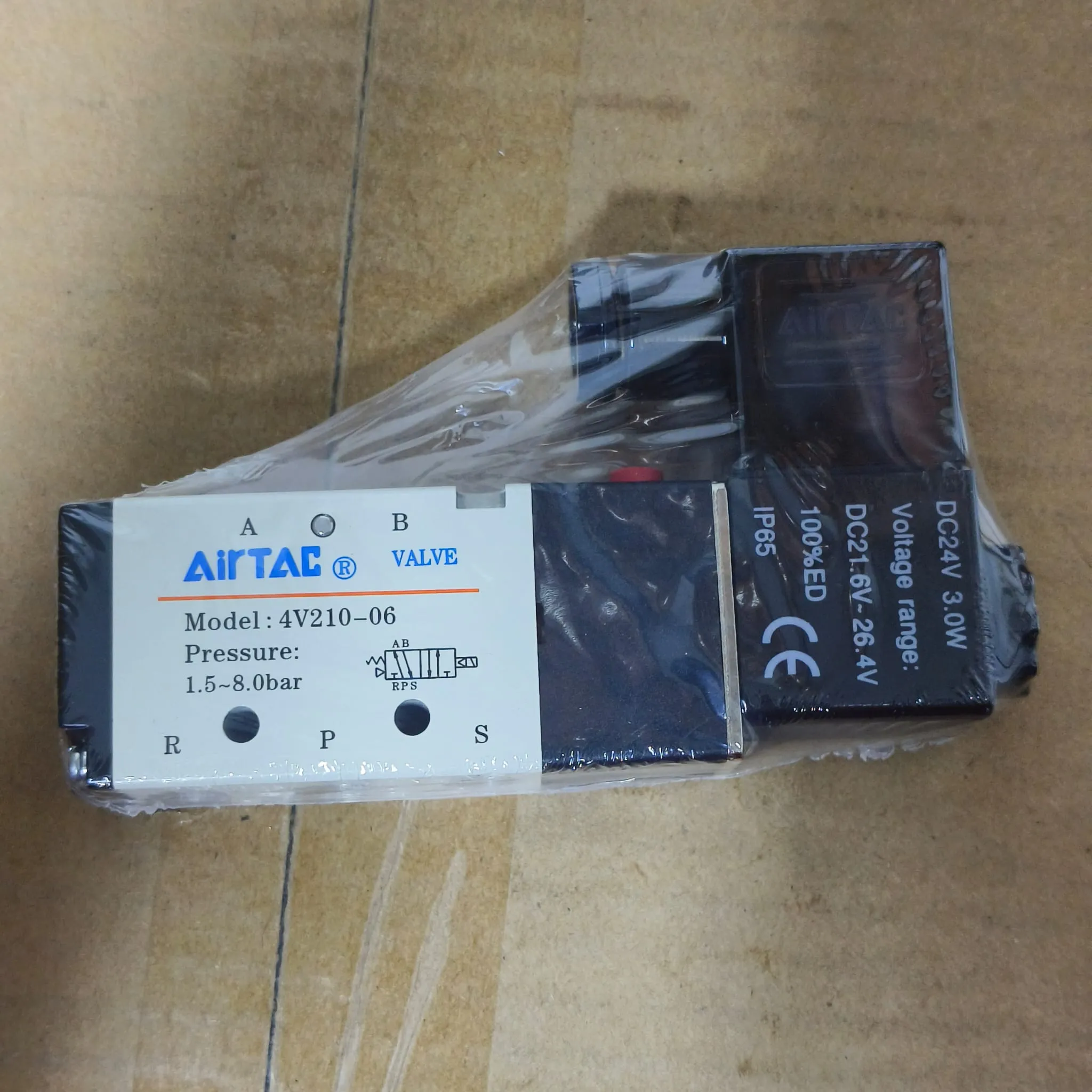

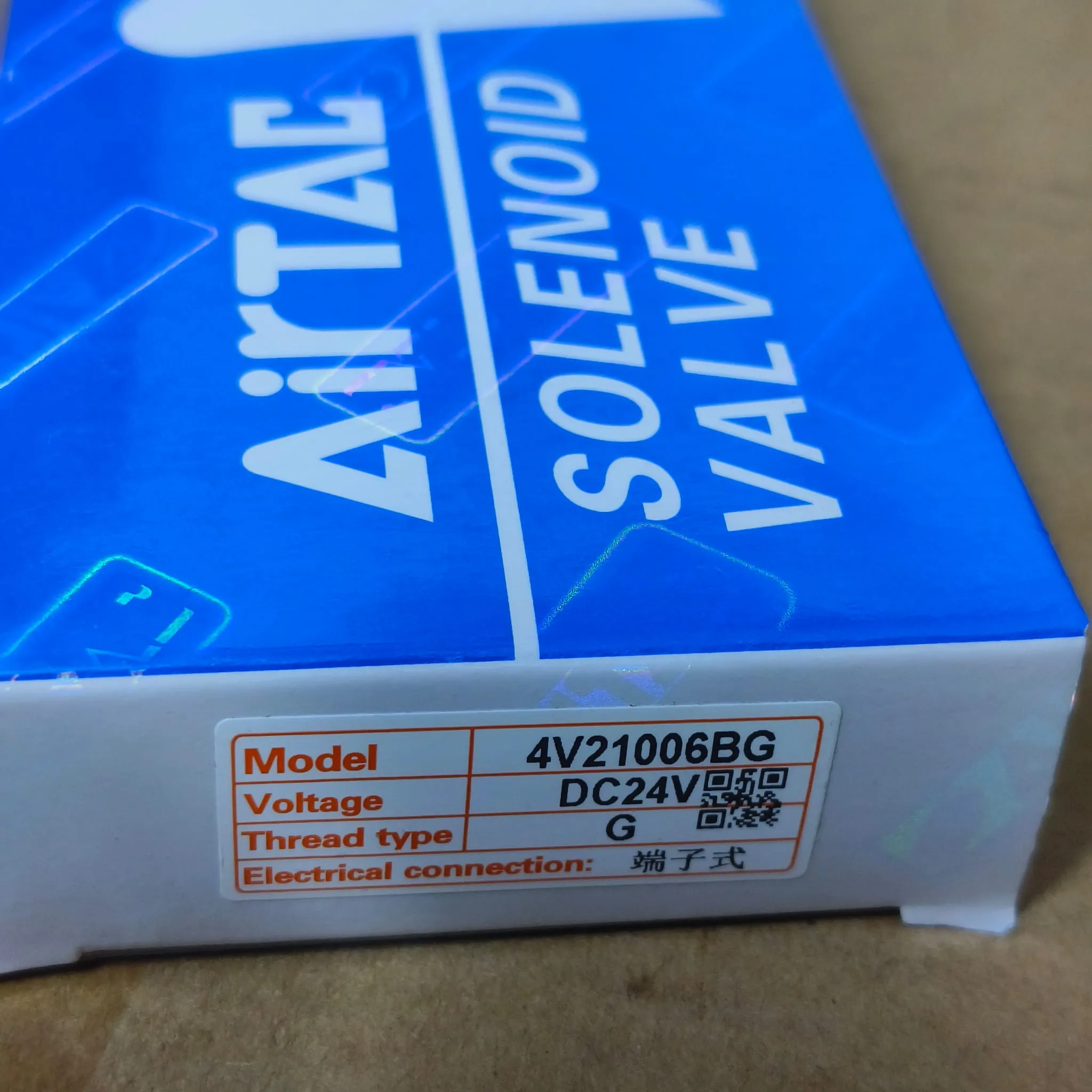

Airtac 4V200 Series Pneumatic Solenoid Valve, 5/2 Way, G 1/8" Port, 24V DC Coil with Connector, 4V21006BG
Airtac

Airtac 4V200 Series Pneumatic Solenoid Valve, 5/2 Way, G 1/8" Port, 24V DC Coil with Connector, 4V21006BG

Mfr. part no.
4V21006BG
SKU
PN-SOL-502-02-24DC

Specifications

Series 4V200
Valve Type Pilot Operated Spool
Valve Function 5/2 way
Port Size G 1/8"
Coil Voltage 24 V DC
Electrical Connection Terminal Coil Connector
Power Consumption 3 W
Working Pressure Range 0.15 to 0.8 MPa
Ingress Protection IP65
Body Material Aluminum Alloy

Key Features

  • Uses a 5/2-way pilot-operated spool design for dependable directional control.
  • A single 24 V DC solenoid shifts the valve, while the spring returns it when power is removed.
  • Terminal-type electrical connector allows straightforward wiring.
  • The G 1/8" threaded ports allow straight forward connection to the pneumatic circuit.
  • Operates within a working pressure range of 0.15 to 0.8 MPa.
  • Responds in 0.05 s or less and supports up to 5 cycles/s.
  • The pilot supply can use either internal or external air to suit the installation.
  • The IP65-rated coil is protected against dust and water jets when correctly installed.

Description

The Airtac 4V200 Series provides pilot-operated directional control for pneumatic cylinders and actuators used in automated machinery. A single 24 V DC solenoid rated at 3 W shifts the 5/2-way valve, with spring return and a choice of internal or external pilot supply. The valve has G 1/8" connections, a 0.15 to 0.8 MPa operating pressure range, 1.2 MPa proof pressure, 0.05 seconds or less response time and a maximum switching frequency of 5 cycles/sec. Its aluminum-alloy body is specified for 40-micron filtered air from -20 to 70 °C. The 24 V DC solenoid coil is supplied with a terminal-type connector for wiring and installation. IP65 coil protection, Class B insulation and lubrication-free operation support reliable service. Typical uses include cylinder control, packaging and assembly machinery, material-handling equipment and pneumatic control panels.

Applications

  • Double-acting pneumatic cylinders
  • Rotary pneumatic actuators
  • Machine automation systems
  • Packaging and assembly equipment
  • Pneumatic control panels

Documents

  • Airtac-4V200 Series Solenoid Valves — Datasheet

    PDF, 662 KB
