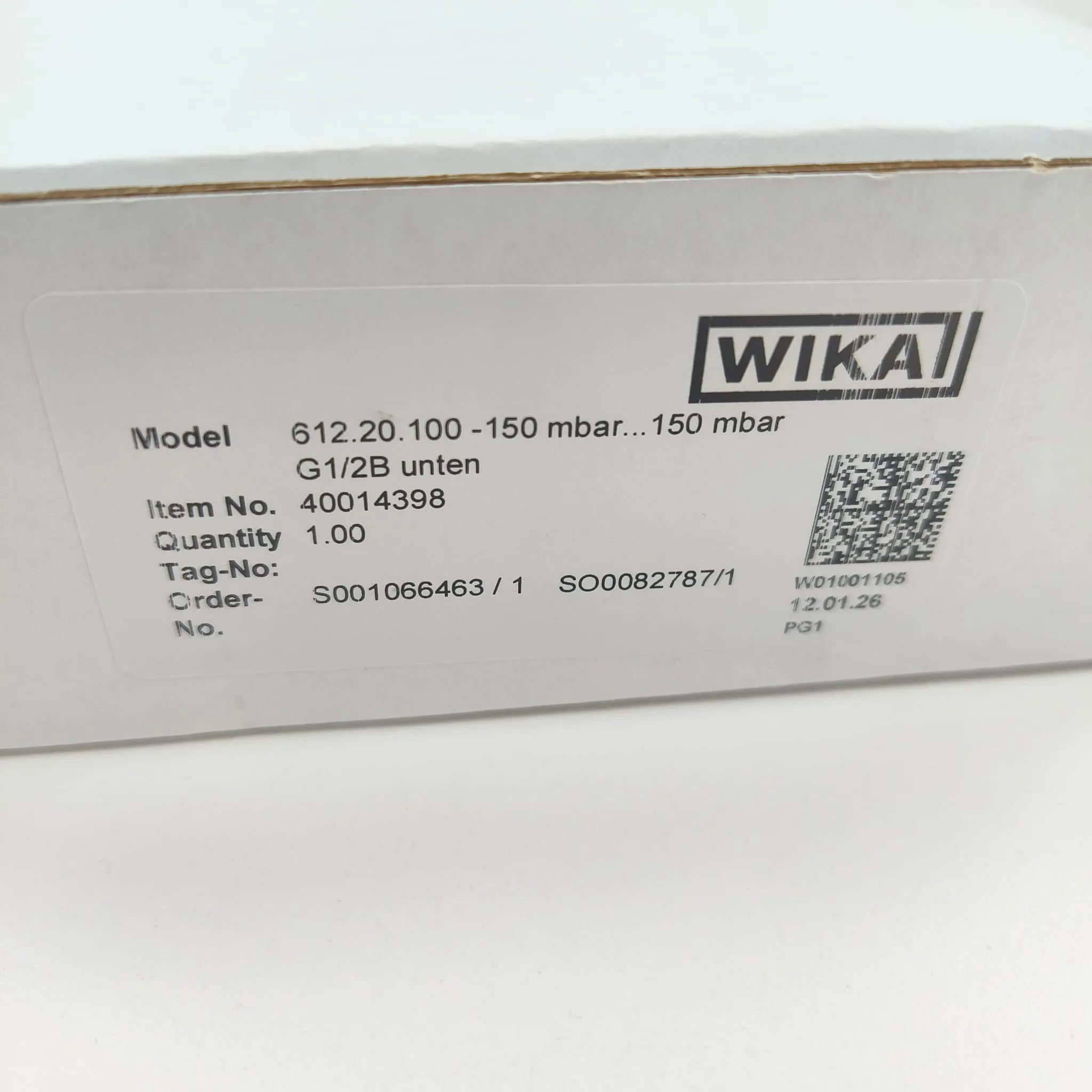

WIKA Capsule Pressure Gauge Model 612.20.100, -150 to 150 mbar, 4" Dial, G 1/2" BSPP Thread, Lower Mount, 40014398
Mfg. Part No. : 40014398
SKU : PW40-MBAR-150+150
Brand :
![WIKA]()
- Range: -150 to 150 mbar

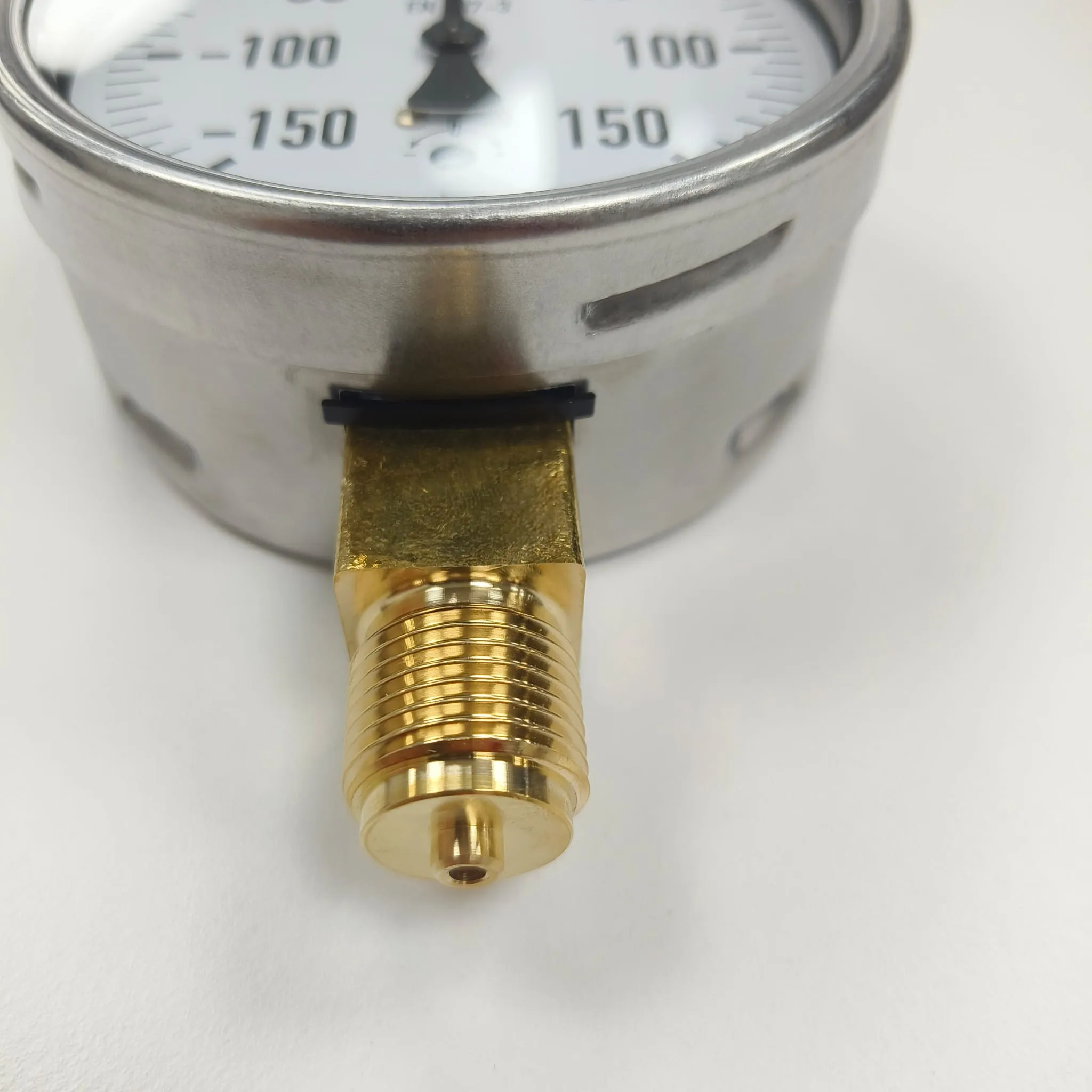

- Connection: G 1/2 B bottom connection
- Accuracy: Class 1.6 to EN 837-3
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allDescription
WIKA 40014398 — WIKA Capsule Pressure Gauge Model 612.20.100, -150 to 150 mbar, 4" Dial, G 1/2" BSPP Thread, Lower Mount, 40014398. Stocked by Indspare for Kuwait and GCC delivery.

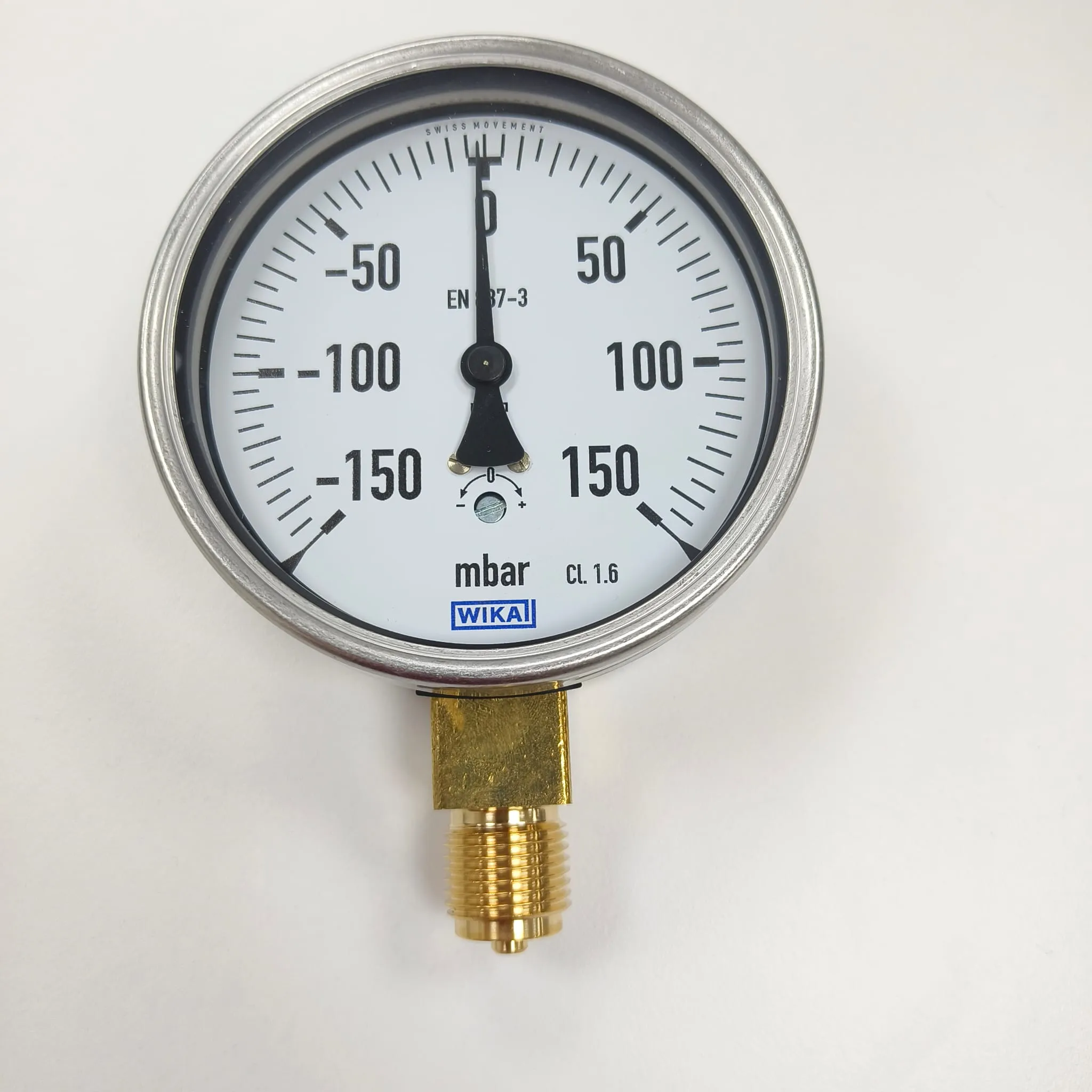

WIKA capsule pressure gauge model 612.20.100 is designed for stable indication of very low pressures and vacuum using a proven capsule measuring system where capsule expansion is transmitted to the movement and displayed on the dial. It is intended for gaseous, dry and non aggressive media and is commonly used in medical, vacuum, environmental and laboratory duties as well as contents measurement and filter monitoring. The instrument is built with a stainless steel case and bayonet bezel for durable everyday service, while the process connection is made from copper alloy and supplied as a G 1/2 B BSPP Thread bottom mount for standard installation. This configuration provides a clear NS 100 dial with a -150 to 150 mbar vacuum and pressure scale, front zero point correction for quick setting during commissioning, IP54 ingress protection, EN 837-3 design marking and accuracy class 1.6 for dependable local indication.
Key Features
- Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
- Copper alloy capsule measuring system for dry, non-aggressive gases
- Stainless steel case with cam-ring (bayonet) bezel and flat glass window
- Accuracy class 1.6 to EN 837-3
- Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
- High resolution at low pressures for accurate draft and level indication
- Made in Switzerland.
Applications
- Draft and chimney pressure monitoring in boilers, heaters and flues
- Filter and blower differential pressure indication at very low pressures
- Sensitive low-pressure pneumatic control and monitoring
- Laboratory and environmental monitoring of ultra-low gas pressures
Specifications
